5)
Take the tail of the active spool (E) (currently working) knot it with the head of the new spool (F).
F
6)
The red LED (G) of the IS3F/HTP sensor starts blinking when the yarn is inserted into the sensor itself. Touch the
red LED to make it stop blinking.
Yarn ready for spool
change

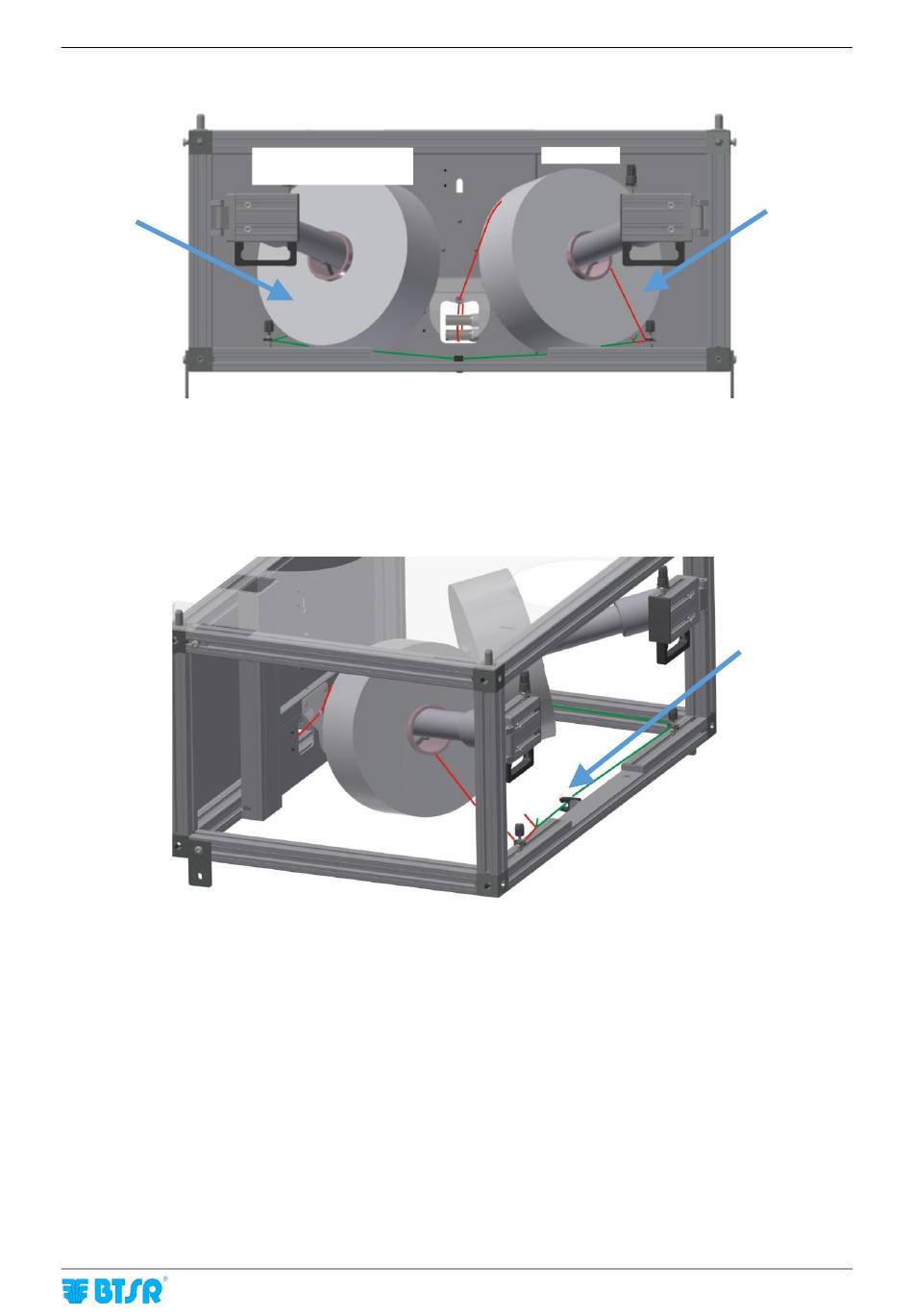

Figure 33 – Yarn path between active spool and new spool
Figure 34 – IS3F/HTP sensor reset
MATRIX CUBE (MCC)
Installation and Connections
Active Yarn
E
G
- 1-27 -
