btsr MATRIX CUBE User Manual page 67


Operate on screw 2 for vertical coil separator adjustment (only regulation). Coil separator vertical
position is 1 mm distance from motor dumb, or as close as possible without contact between the two
elements. Pay attention not to remove completely this screw
Even if the torque of motor driving the roller rotation is very low and does not involve hazards for the operator
safety, it's always advisable to lock the motor prior to operate on the devices (yarn threading, tilt adjustment
of coil separation element, etc.) in order to avoid unexpected motor startup events.
To lock the motor, just press the
and of TFS sensor. At the end of the operation, press again the
turn off.

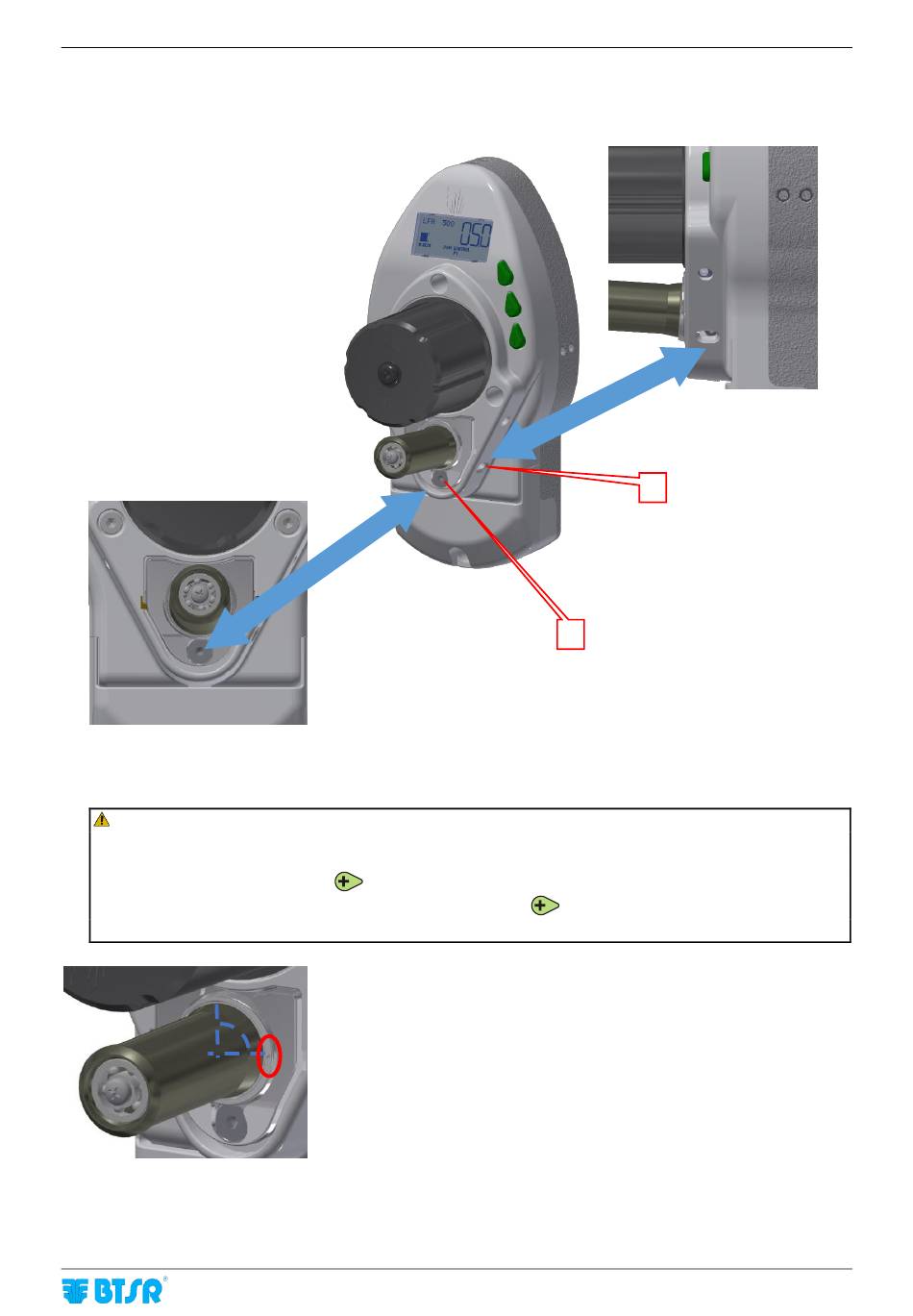

Figure 46 – Coil separator check and adjustment
key on the DIAPERFEEDER device and check the lighting of keys red LEDs
In case of removal for cleaning or replacement of coils separator, pay attention
to the position of the adjustment notch: for all devices installed on all Matrix
Cubes (MATRIX CUBE (MCC), MATRIX CUBE (MCC)2, MATRIX CUBE (MCC)3) type
it must be at 3 o'clock (as indicated on the picture).
Figure 47 – Position of the adjustment notch
MATRIX CUBE (MCC)
1
2
key and make sure that all the red LEDs
Maintenance
- 3-5 -
