Installation and Connections

1.3 Tension sensors positioning

Fixing the load cell upside-down enhances the durability of the entire load cell because drastically reduces the dust
accumulation on the entire sensor.

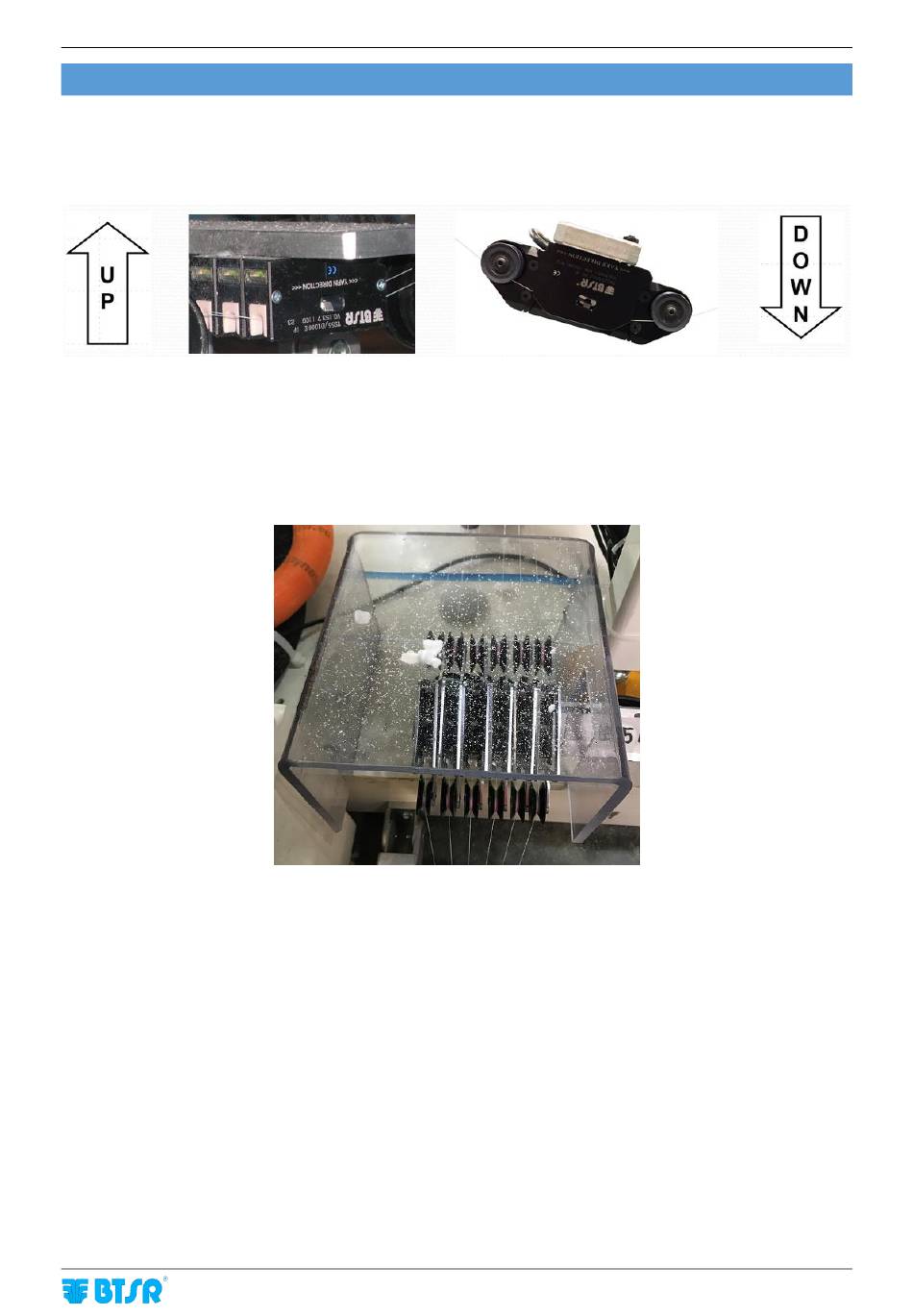

Figure 10 – Tension sensor positioning
According to the different types of application and the several types of machines all over the world, it is not always
feasible to fix the tension sensor upside-down. To improve its lifespan we can simply put over the tension sensor an
own-made Plexiglas or something similar to avoid the build-up of dust or SAP in the sensor's load cell.
Figure 11 – Covering the tension sensors
