1.5 TMS Sensor Connection

TMS CONNECTOR
FRONT VIEW
PIN COLOR
1 Brown
2 White
3 Yellow
4 Green

1.6 Connection to MASTER CUBE Box

xxx= ETH (Ethernet/IP)
xxx= PFN (Profinet)
Start / Stop /
Alarm, etc signal
cable
From MASTER CUBE Box (A)
SIGNAL
Vdc
Rx Tx +
GND+sch
Rx Tx -

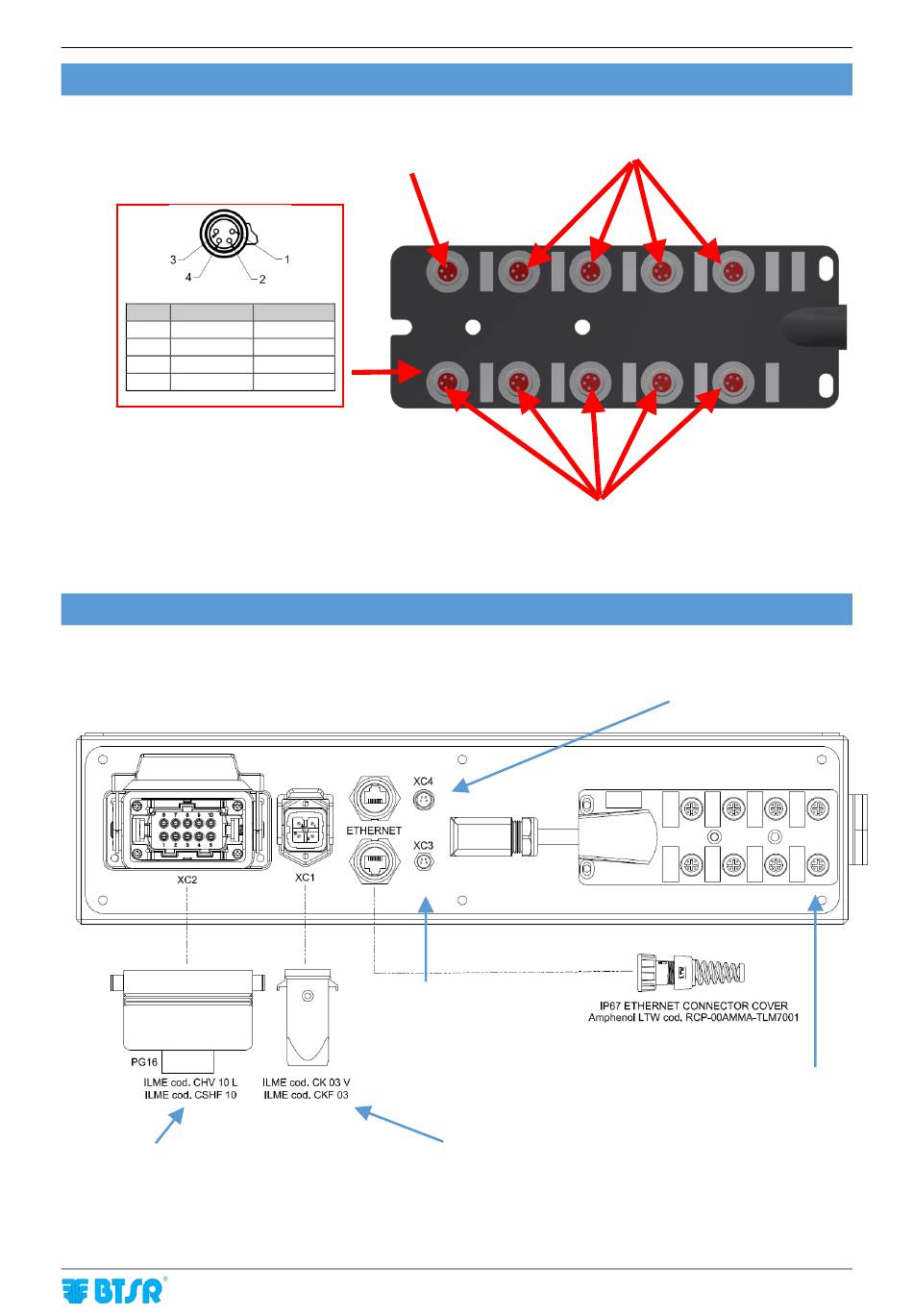

Figure 15 – TMS Sensor Connection
TMS/TS55
connection
Figure 16 – Connection to MASTER CUBE Box
MATRIX CUBE (MCC)
available
to TMS sensors
y=M (Single phase)
y=T (Three phase)
110/220 or 380/480 Vac
power cable
Installation and Connections
MATRIX TOUCH DIAPER
connection
Connection of
DIAPERFEEDER devices
