1.14 MATRIX TOUCH DIAPER Terminal Installation

For transport/handling purpose, the MATRIX TOUCH DIAPER terminal is fastened to the creel inside.
To install the terminal to its final position, proceed as follows:
1) Remove the screw (A) and position the terminal in correspondence of the removed screw, as shown on the
following figure
2) Fasten the terminal, using the screw previously removed.
The following figure shows the MATRIX TOUCH DIAPER terminal correctly installed to the final position
A

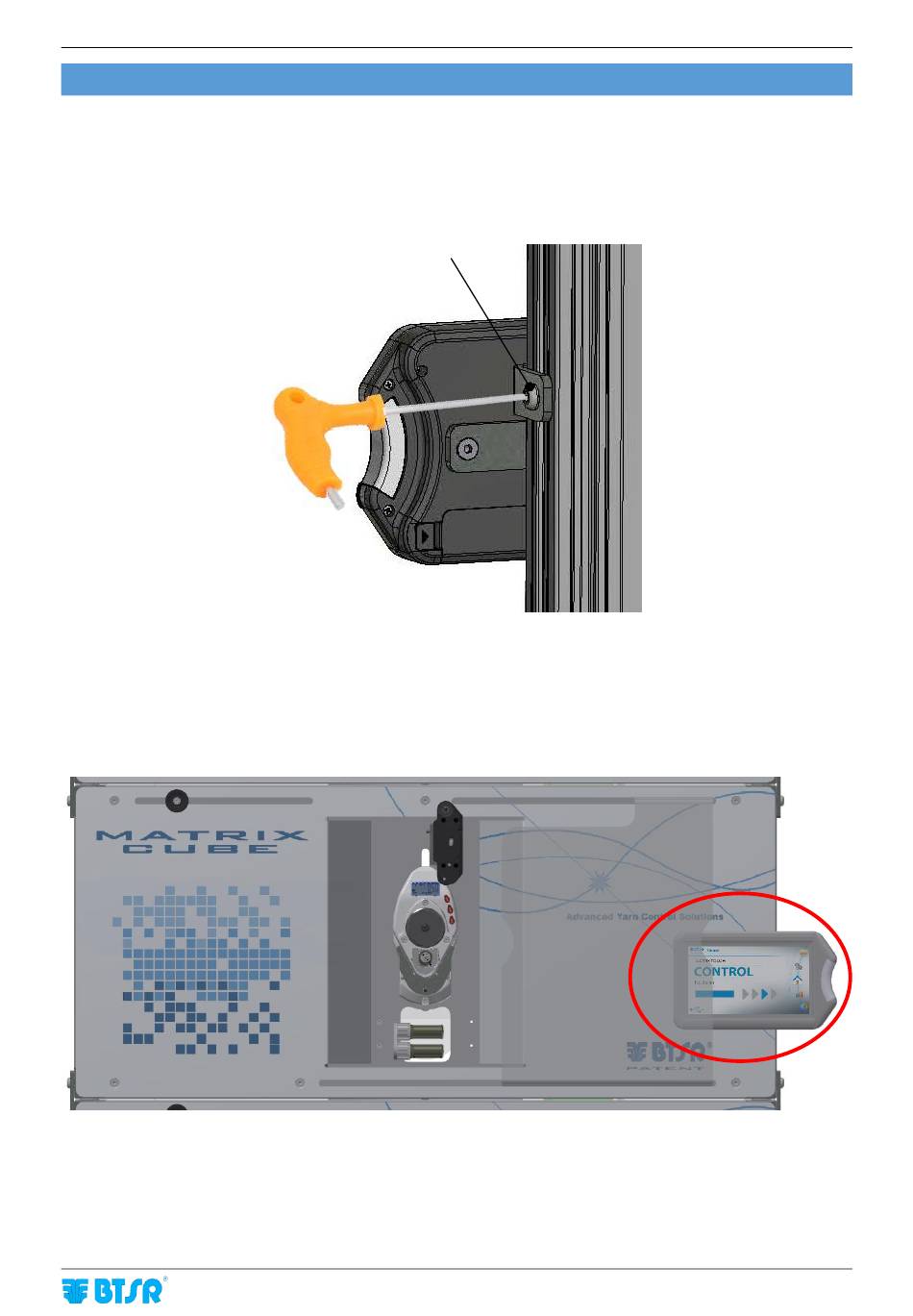

Figure 26 – Fastening screw removal
Figure 27 – MATRIX TOUCH DIAPER final position
