6)
Bring the yarn up to the application point on production line, passing through the intermediate wheels provided
along the path (if any).
7)
Thread the yarn over the load cell of TMS sensor, as shown on the following figure:

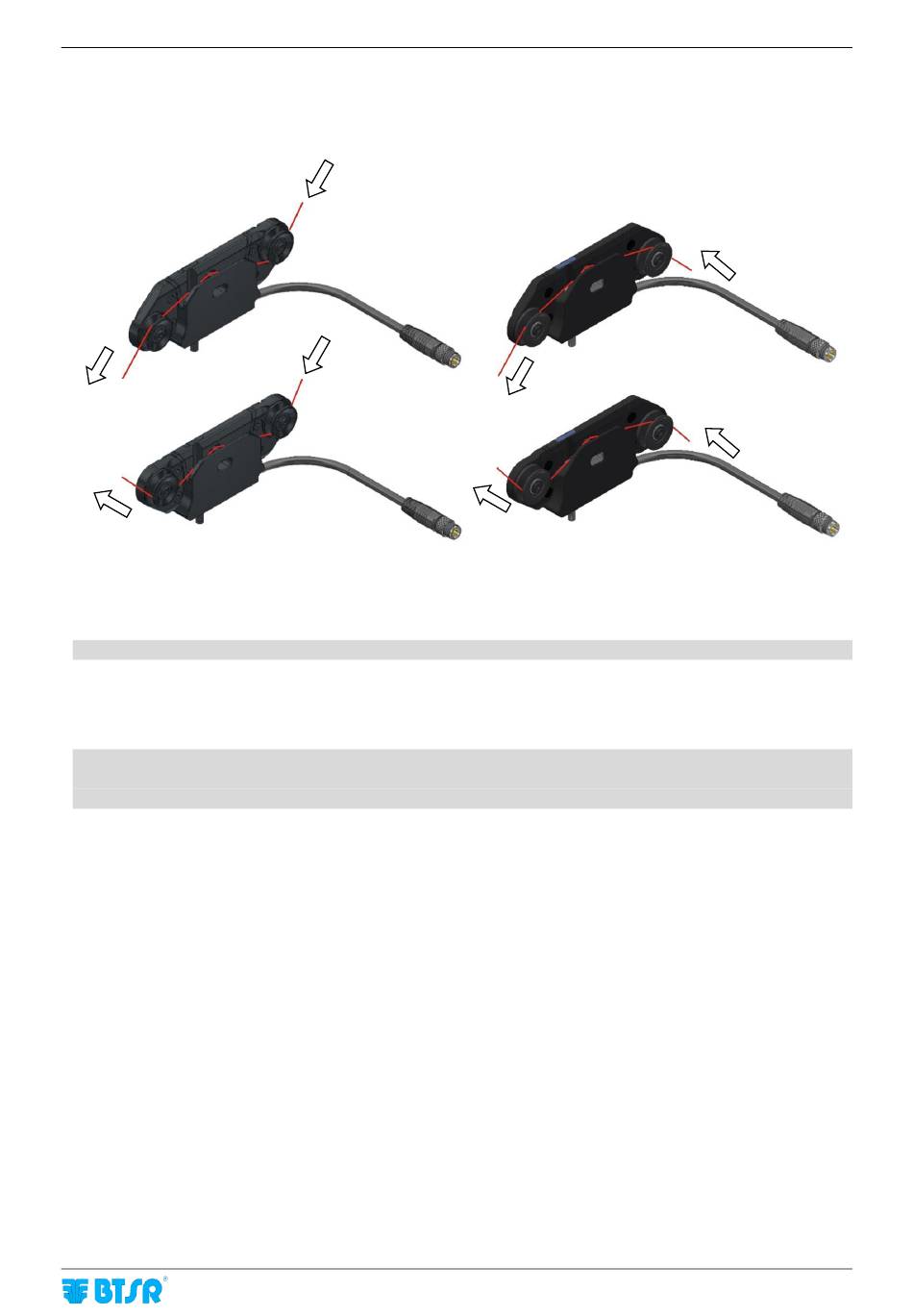

Figure 40 – Correct direction and path for yarn threading on TMS Sensors
For more details on the correct yarn in/out directions, please refer to paragraph 1.2 –TMS sensor assembly.
8)
Repeat steps 1) to 7), to thread the yarns into the other creels.
Pay attention not to exchange the yarns along the path!
The yarn fed by DIAPER FEEDER device no. 1 shall pass over the TMS sensor no. 1, and so on.
For DIAPER FEEDER and sensors numbering, please refer to the relevant manual.
TB Configuration
TT Configuration
MATRIX CUBE (MCC)
Installation and Connections
BB Configuration
BT Configuration
- 1-31 -
