btsr MATRIX CUBE User Manual page 55

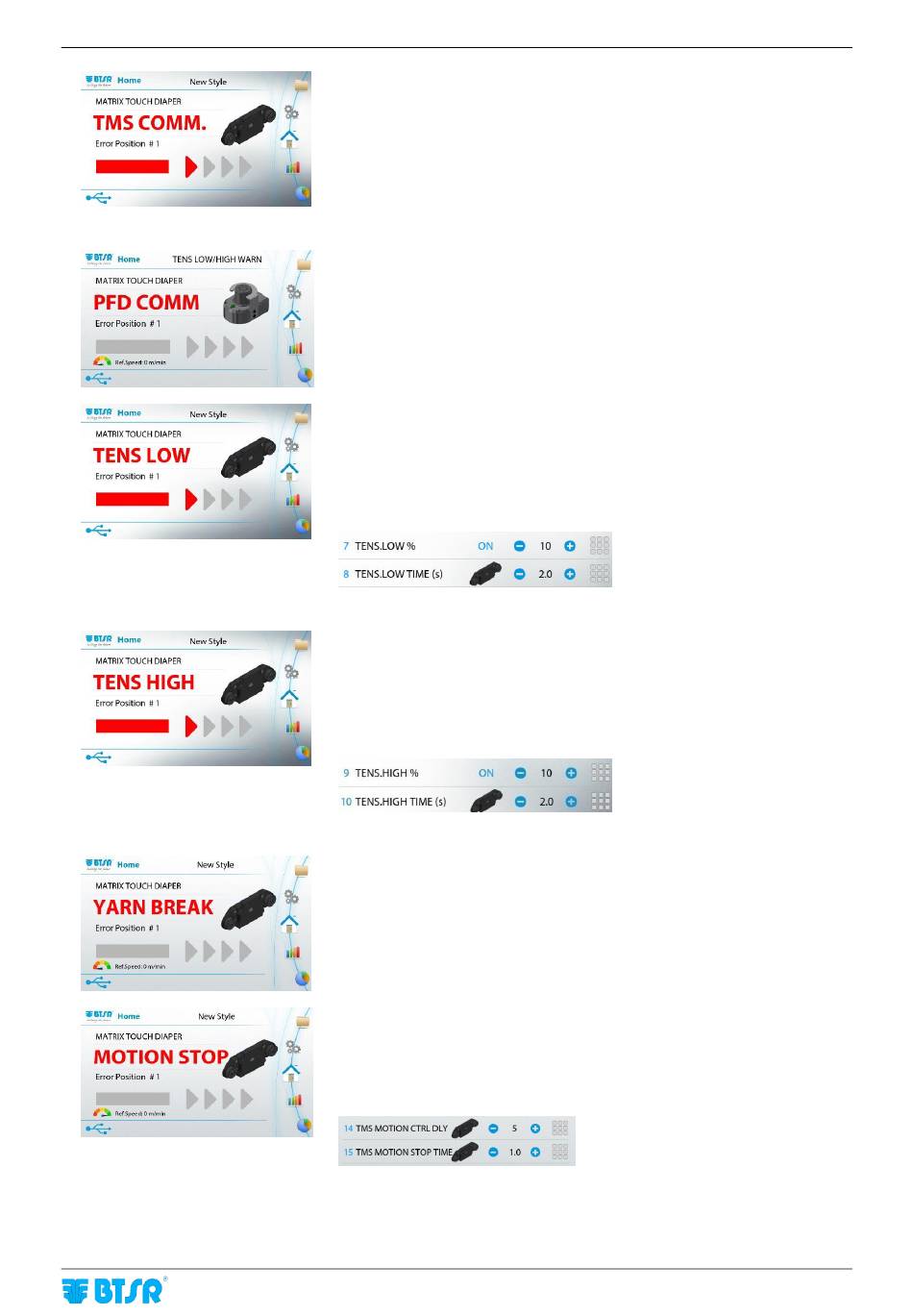

Communication Error with the TMS device.
Check connection with TMS device.
System can't run until the error is solved.
Communication Error with the PFD device.
Check connection with DIAPERFEEDER
device
System can't run until the error is solved
Tension Low Error: TMS/TS55 tension is
lower than the minimum value allowed for
the time set on the style parameters;
detected by sensor TMS/TS55 when
TENSION CONTROL is activated. It activates
the STOP output and stops the machine.
Tension High Error: TMS/TS55 tension is
higher than the maximum value allowed
for the time set on the style parameters:
detected by sensor TMS/TS55 when
TENSION CONTROL is activated. It activates
the STOP output and stops the machine.
Yarn Break Error: it appears when
TMS/TS55 tension value is close to 0 cN;
detected by sensor TS55/TMS. It activates
the STOP output and stops the machine.
Motion Stop Error: A DIAPERFEEDER that
should run is, on the contrary, steady.
Error related to MOTION CONTROL setting
; it activates the STOP output and stops
the machine.
MATRIX CUBE (MCC)
Error Messages
Solution 1: Repeat the TMS
initialization procedure
(IDENTIFY).
If the ALARM persist check the
electrical connections, if the
ALARM persist replace the
replace the TMS
Solution 1: Replace the part,
contact BTSR authorized
distributor
Solution 1: Elastic broken or out
of position in tension sensor
TMS
Solution 1: Elastic broken or out
of position in tension sensor
TMS
Solution 1: Elastic broken or out
of position in tension sensor
TMS
Solution 1: Check the elastic
condition and restore the
correct path.
Solution 2: Elastic broken or
wrong parameters in
"DIAPERFEEDER MOTION
CONTROL DELAY"
- 2-2 -
