1.9 DIAPER FEEDER Interface

TS44
SM/IN - SM/OUT
EXT
UNICO
IS3
Power supply voltage
Maximum absorption
STOP Outputs: relay contacts (NO)
Opto-insulated Inputs
Max. voltage (Inputs/Output)
Programmable yarn tension
Programmable alarms
Integrated keypad
Signaling
Dimensions
Operating temperature range
Storage temperature
Tension range
Useful tension range
Max applicable tension

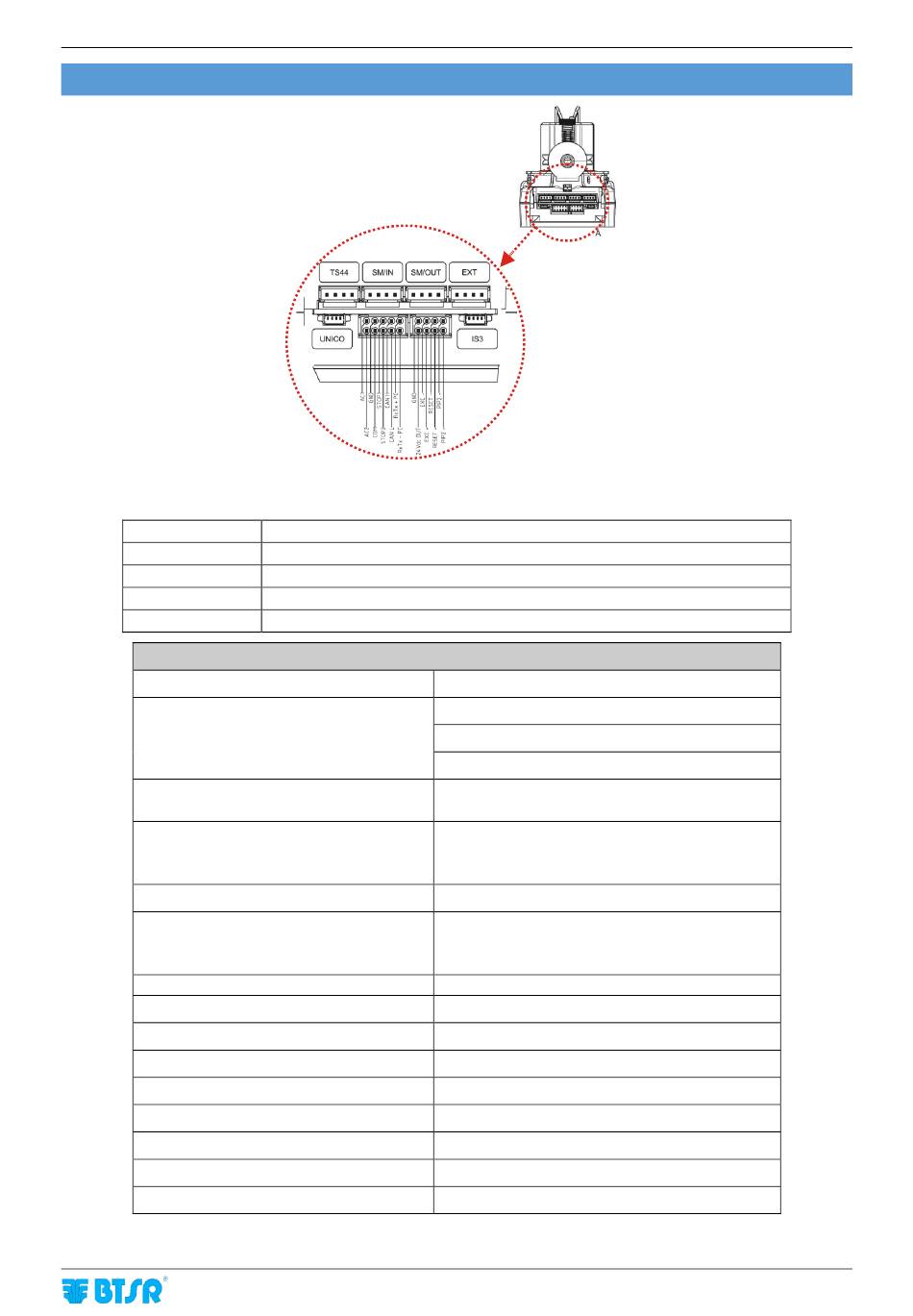

Figure 22 – DIAPER FEEDER Interface
Connector for TFS tension sensor connection
Connectors for DIAPER FEEDER devices daisy chain connection
Connector for PFD pre-feeding device
Connector for intelligent accessory connection
Connector for IS3F sensor connection
DIAPER FEEDER Device Technical Characteristics
24 VDC ± 10% or 24 VAC ± 20%
0.2 A (during normal operation)
1 A (under stress)
3 A (at start-up)
0.3 A 125 VAC
1 A 30 VDC
0-24 VDC
VIL Max 1.2 VDC
VIH Min 5 VDC
30 VDC
0.5 ÷ 100.0 gr. (resolution 0.1 gr.) or
5 ÷ 1,000 gr.
Depending on the type of tfs sensor used
0.1 ÷ 10 sec.
3 keys + STOP red LED
With LCD graphic display
290 x 86 x 94 mm
10° - 60 °C
-25° - +85° C
0 / full scale
0% - 95% full scale
10 times the full scale value
MATRIX CUBE (MCC)
Installation and Connections
(resolution 1 gr.)
