3)
Load the new spool (C) onto the right spool-holder and close the spool-holder
C
4)
Fit the tail of the new spool into the yarn braking device (D), in order to avoid the risk of yarn breakage during
opening closure operations of the spool-holder carriage.
D

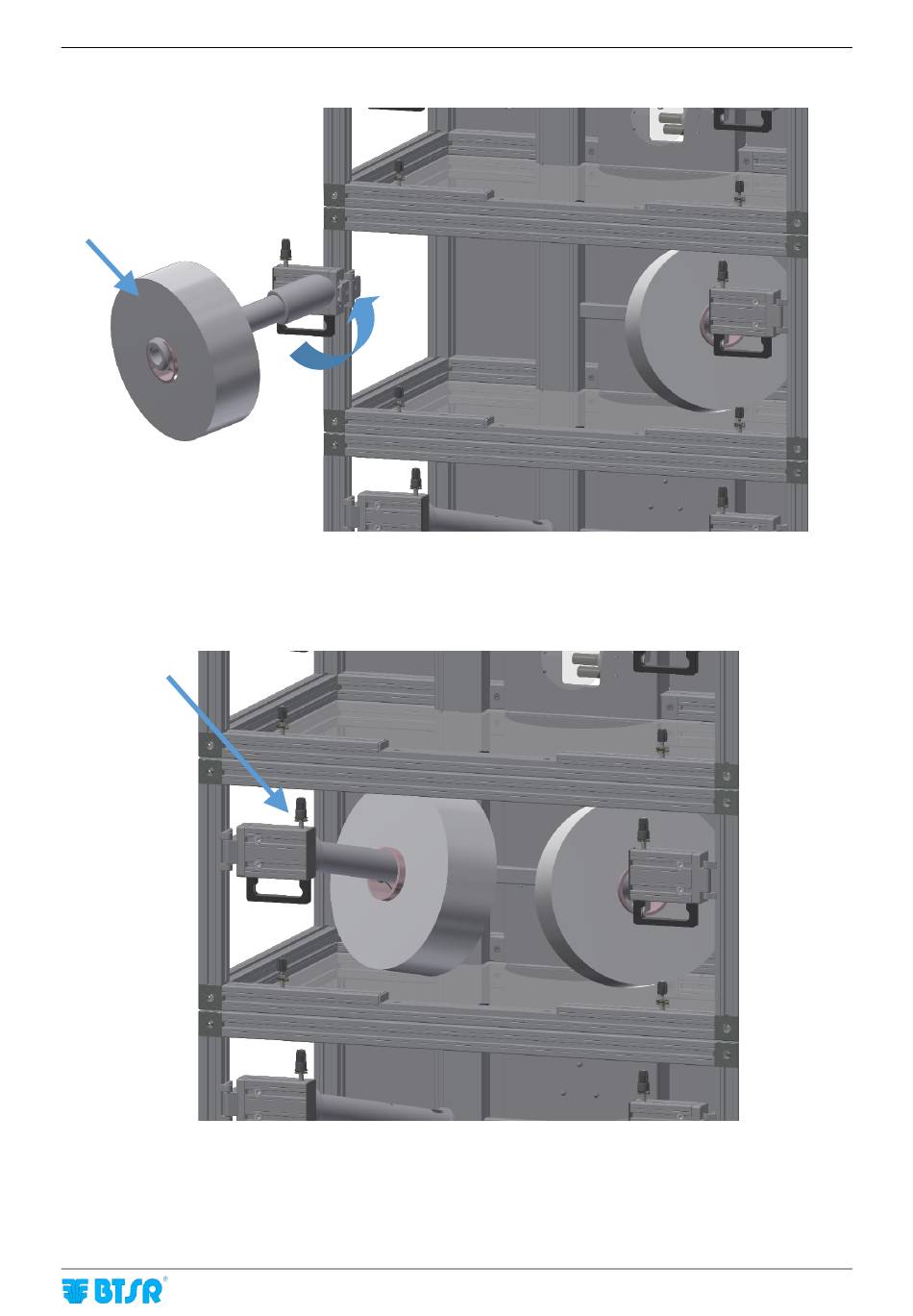

Figure 32 – Tail insertion of the new spool into the yarn braking device
Figure 31 – Loading the new spool
MATRIX CUBE (MCC)
Installation and Connections
- 1-26 -
