Menu Operations

Operating Instructions:
Knob:

On the home screen, press the knob to enter the operation menu screen.
−
On the home screen, rotate the knob to view the device overall status and backplane
−
connector status.
On the operation menu screen, rotate the knob to select a menu item and press the
−
knob to confirm the selection or enter the submenu.
When a menu item with parameters is selected, you can rotate the knob to adjust the
−
parameters. Please note that after the adjustment, you need to press the knob again
to confirm the adjustment.
ESC: Exit the current menu or cancel an operation.

Hold down the knob and ESC button simultaneously for 3s or longer to lock or unlock

the front panel buttons.

Switch Screen

After the device is successfully powered on, the device status is displayed by default as
shown in Figure
Figure 2-2.

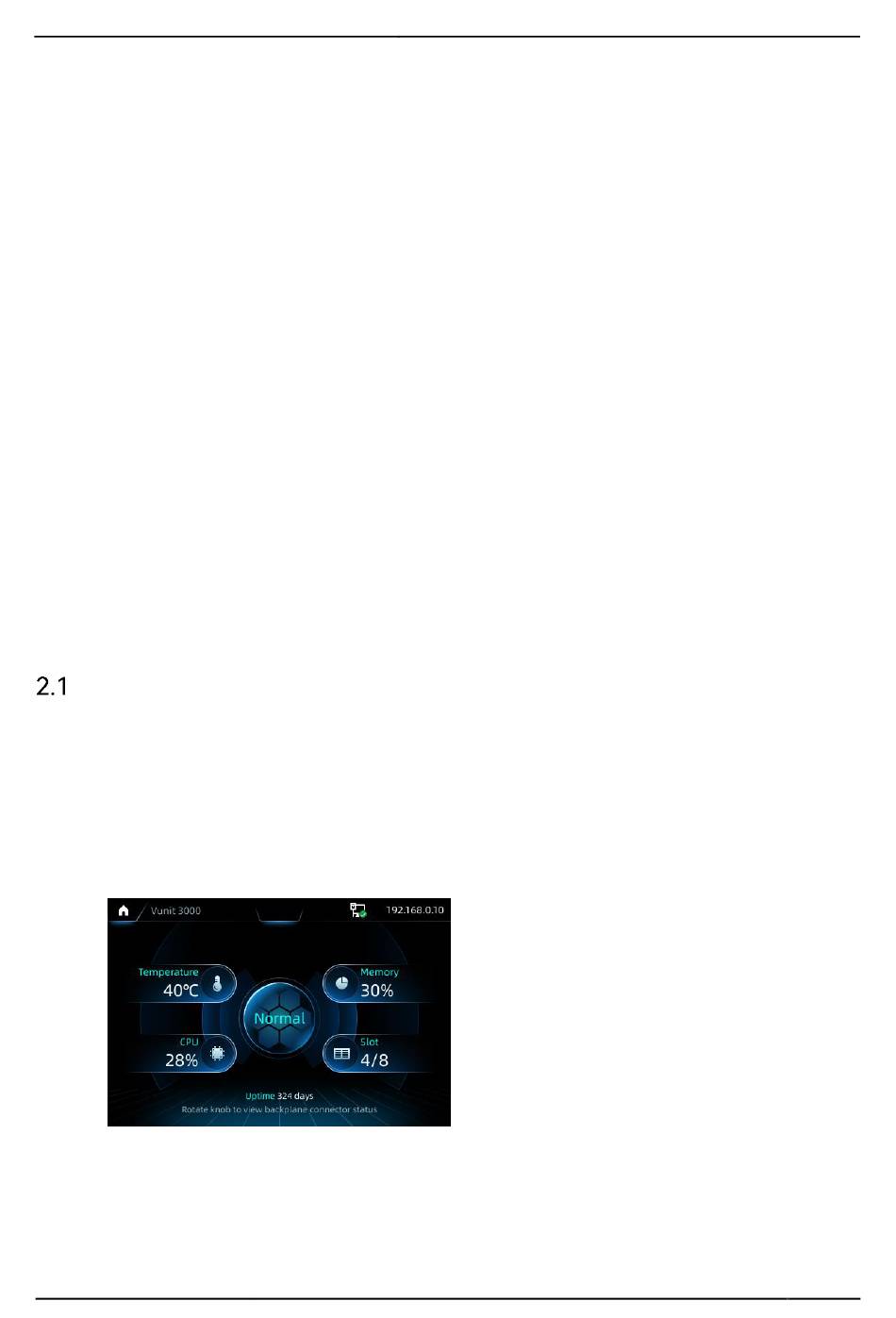

Figure 2-1 Device status
The device IP address is displayed at the top right of the screen. The default IP address is
192.168.0.10.
www.novastar.tech
2-1. Rotate the knob to view backplane connector status as shown in
