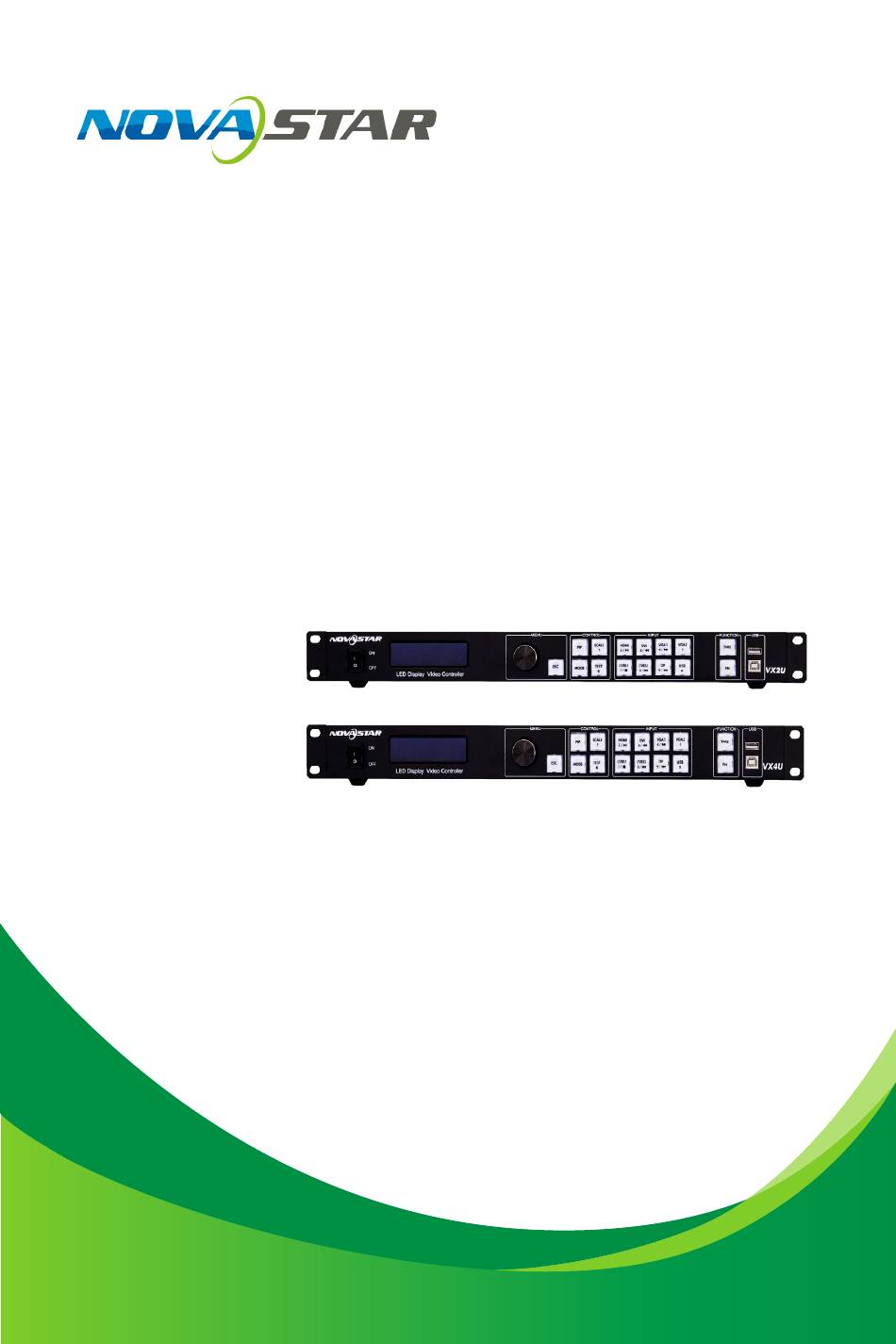

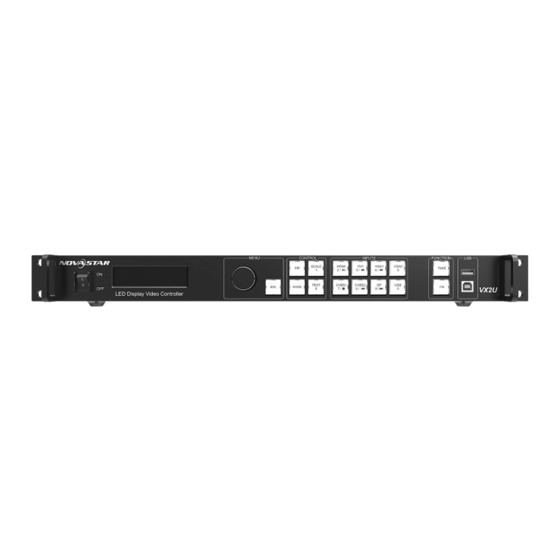

- Page 1 User's Manual LED Display Video Controller VX2U/VX4U Rev1.0.3 NS160100228...
- Page 2 Welcome to use the product from Xi’an NovaStar Tech Co., Ltd. (hereinafter referred to as “Novastar”). It is our great pleasure to offer this manual to help you understand and use the product. We have striven for precision and reliability during the compilation of this manual.
-
Page 3: Table Of Contents
Contents 1 Model Description ������������������������������������������������������������������������������������� 1 2 Appearance�������������������������������������������������������������������������������������������������� 1 Front Panel ..........................1 Rear Panel ..........................2 3 Signal Connection ��������������������������������������������������������������������������������������� 3 4 Dimensions �������������������������������������������������������������������������������������������������� 4 5 Operating Motion Instruction ������������������������������������������������������������������� 4 6 Main Interface ��������������������������������������������������������������������������������������������� 4 7 Operation Instruction��������������������������������������������������������������������������������� 5 Step1: Input Settings ...................... -
Page 4: Model Description
Inputs: DVI×1, VGA×2, CVBS×2, HDMI×1, DP×1, USB×1 VX4U Inputs: DVI×1, VGA×2, CVBS×2, HDMI×1, DP×1, USB×1 Tips: The number, types, functions and specifications of the interfaces of VX2U and VX4U are basically the same. In this manual, VX4U is described as an example. 2 Appearance Front Panel ①... -
Page 5: Rear Panel
V X 2 U / V X 4 U U se r 's M a n ua l ⑦ : Function keys� TAKE: Shortcut for screen switching. After pressing TAKE key, PIP will be enabled. Switching between MAIN and PIP will be realized after it is enabled. Fn: Custom shortcut key. -
Page 6: Signal Connection
V X 2 U / V X 4 U U se r 's M a n ua l Tip:Type A USB interfaces on both the front and rear panel are not allowed to connect PC directly. 3 Signal Connection Connect the required hardware equipments refering to the interface description of the previous chapters. -
Page 7: Dimensions
ESC: Return key, exit current menu or operation. Key lock/unlock: long press knob and ESC key simultaneously. 6 Main Interface After starting the controller, the main interface of OLED display is as follows: NovaStar 192.168.0.10 1024x768@60Hz VGA1 1024x768@60Hz... -
Page 8: Operation Instruction
V X 2 U / V X 4 U U se r 's M a n ua l First row: Company name; the name and IP of the product are shown alternately; Second row: Main screen 1; signal source; input signal format; Third row: PIP 2;... -
Page 9: Step2: Screen Settings
V X 2 U / V X 4 U U se r 's M a n ua l Method I: Preset Resolution. Selection is made in preset resolution of the controller. If there is no preset resolution, you can select the second method and customize resolution. Brightness Preset Resolution 1024x768... -
Page 10: Setp3: Brightness
V X 2 U / V X 4 U U se r 's M a n ua l Precautions for screen settings: （a） If the number of ports Example: with loads is n (n≤4), the first For example, if port 1, port 2, port 3 have loads, n-1 ports must load the same port 1 and port 2 must have the same number of number of cabinets, which must... - Page 11 V X 2 U / V X 4 U U se r 's M a n ua l display in one direction, LED display may not become bright in this direction; if the input resolution is greater than the LED display in one direction, the input contents may not be displayed completely in this direction.
-
Page 12: Image Mosaic
V X 2 U / V X 4 U U se r 's M a n ua l Scaling Enable Input Capture Input Source HDMI Auto Fit Disable Output Window Width(H) Custom Scaling Height(V) Image Offset Start X Start Y Step 2 Set output window, the size of window is smaller than or equal to the size of LED display;... -
Page 13: Advanced Settings
V X 2 U / V X 4 U U se r 's M a n ua l Please choose Equal Division or Unequal Division while setting detailed parameters. The specific parameter settings are shown in the following tables. Unequal Division Equal Division VX4U （... - Page 14 V X 2 U / V X 4 U U se r 's M a n ua l Image Mosaic Advanced Settings Redundancy Advanced Attr Factory Reset Presettings Communication Settings Fn Settings Audio Settings Display Control Inputs Backup Output Resolution Cabinet Settings OLED Brightness Hardware Version...
- Page 15 V X 2 U / V X 4 U U se r 's M a n ua l Horizontal Res: Horizontal offset of PIP Vertical Res: Vertical offset of PIP Horizontal X: Horizontal width of PIP Vertical Y: Vertical height of PIP PIP Crop Settings: Picture is cropped from the set starting position and is displayed on PIP and its size is set horizontal width and vertical height.
- Page 16 V X 2 U / V X 4 U U se r 's M a n ua l Video Synchronization: Enable the input and output to be synchronous. ƒ Go Homepage(s): The time period during which the system stops at current ƒ...
- Page 17 V X 2 U / V X 4 U U se r 's M a n ua l off. After selecting the desired effect, it will take effect after pressing the knob. Tip: When PIP function is enabled, the switching effect will automatically disabled. Only when PIP function is disabled, the special effects of channel switching can take effect.
- Page 18 V X 2 U / V X 4 U U se r 's M a n ua l 2 ) Import cabinet configuration file into VX4U. 3 ) Load RCFG Files. Load RCFG Files RG 128×128 Save to RV Card Save to RV Card All current configurations related the recieving card of VX4U are saved into receiving card and will not be lost after power fault.
-
Page 19: Factory Reset
Language Switch Language. 8 Specifications Inputs Port Resolution Specification VX2U VX4U VESA Standard, max. supported input1920×1200@60Hz VESA Standard (supports 1080i input), supports HDCP CVBS PAL/NTSC EIA/CEA-861 standard, in accordance with HDMI-1.3... -
Page 20: Faqs
V X 2 U / V X 4 U U se r 's M a n ua l Outputs Port Resolution Specification VX2U VX4U DVI LOOP The same as DVI input Max. output 1280×1024@60Hz (1.3 million pixels) Self-defined output resolution (Bandwidth optimization) Max. - Page 21 V X 2 U / V X 4 U U se r 's M a n ua l Check whether Image Mosaic is enabled and whether Image Image Mosaic is Mosaic parameter settings are correct; abnormal Check whether input signal source is normal. Check whether the volume setting is appropriate;...
