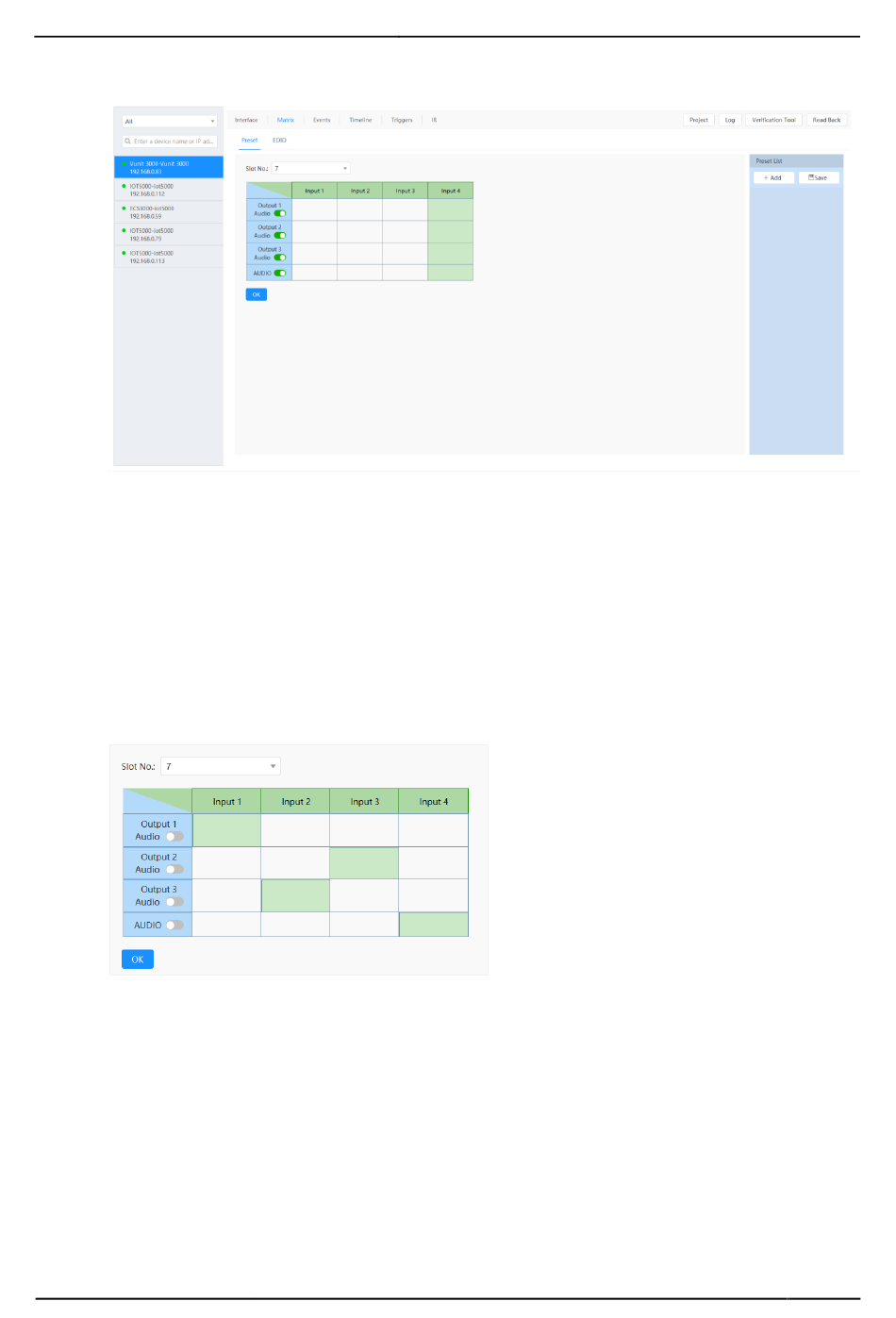

Figure 5-6 Matrix configurations
Step 4 Select the desired card slot number from the drop-down list next to Slot No.. The matrix
configuration table will be automatically displayed.
Step 5 Click the matrix cells to relate or unrelate the inputs with the outputs.
For example, if output 2 is used to output the image of input 3, you need to click the
matched cells of input 3 and output 2.
Figure 5-7 Output the image of input 3 via output 2
Step 6 Click the desired cell in the row of AUDIO to configure the output audio.
As shown in
input 4 will be output.
Step 7 Click OK to complete the settings.
