5.3.2 Configure EDID

Step 1 Click the Central Control Configuration tab to enter the corresponding page.
Step 2 Select the desired device from the device list on the left.
Step 3 Click the Matrix tab to enter the matrix configuration page.
Step 4 Click the EDID tab to enter the EDID settings page.

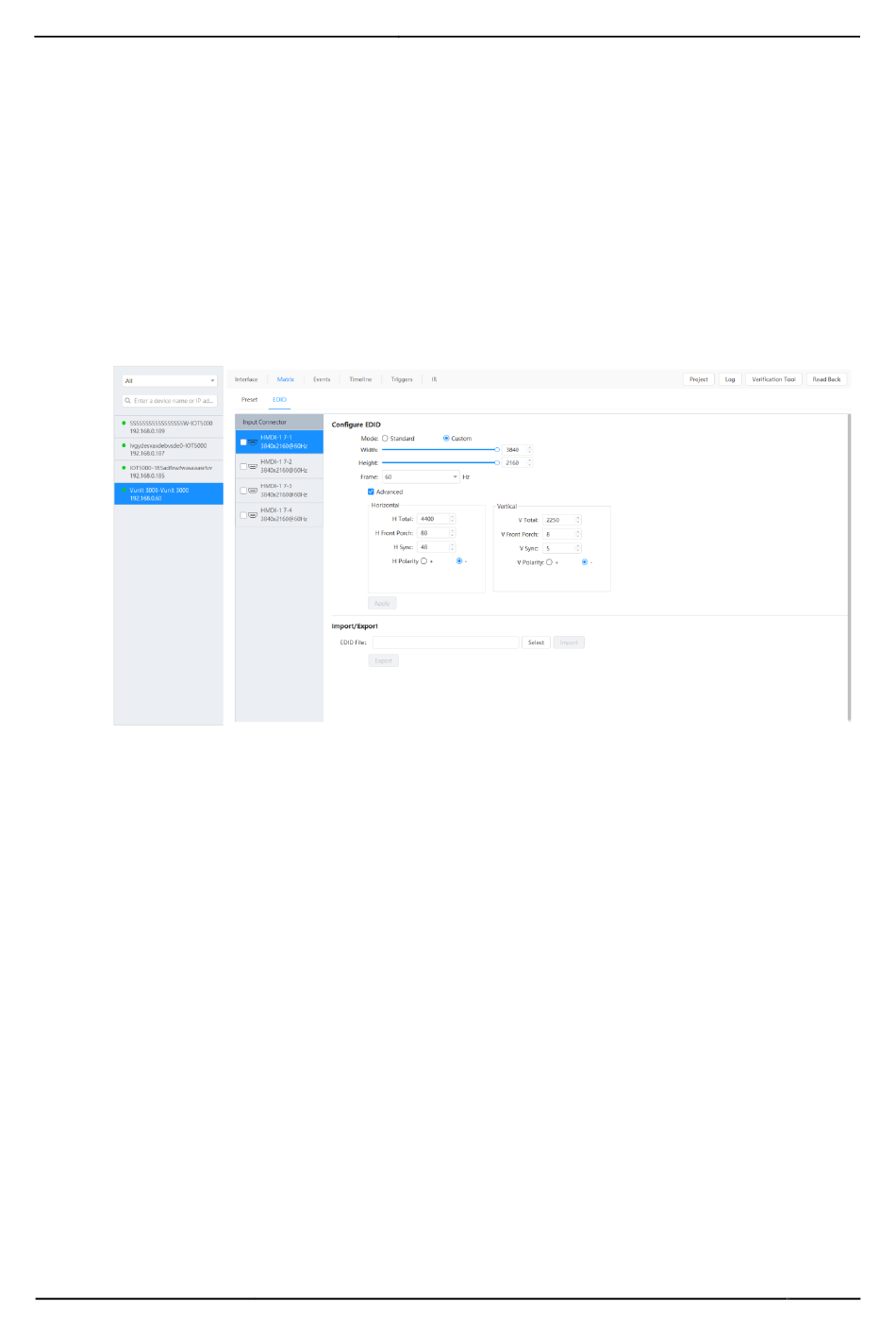

Figure 5-8 EDID settings
Step 5 Check the box in front of the desired input connector.
You can set the input connector resolution through the following three ways.
Standard

Select an input resolution from the drop-down list next to Standard.
Custom

Set the width, height and frame rate for the input connectors, and then click Apply to
complete and apply the settings.
Advanced

Under custom mode, you can select Advanced to enable the advanced EDID settings
function. It is recommended personnel who are familiar with the EDID settings adopt
this method. The parameters for advanced EDID settings are shown as follows.
