5.4.7 Configure CAN Events

Step 1 On the event configuration page, click Add at the top right to open the new event adding
window.

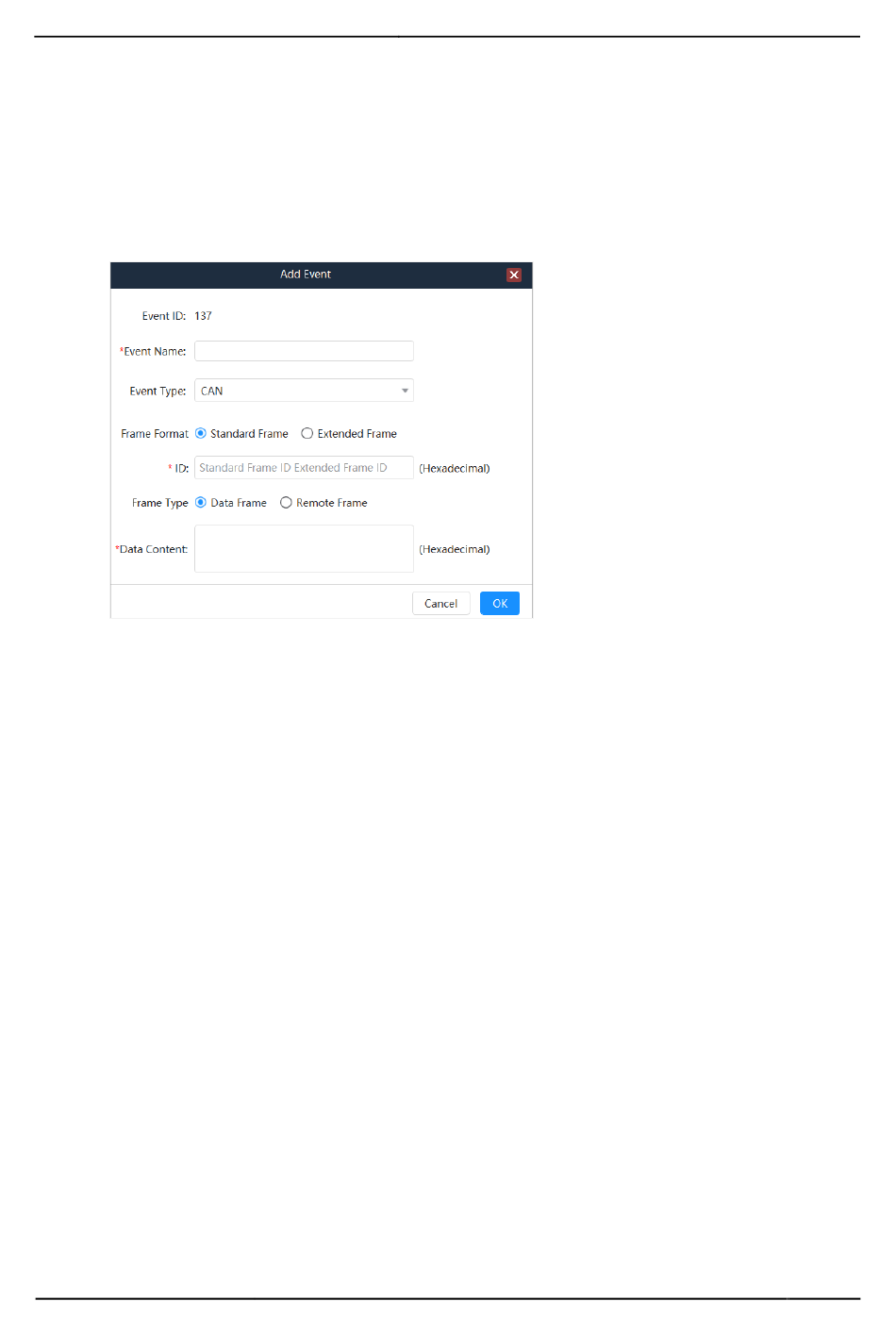

Figure 5-19 Add new events
Step 2 Enter a name for the new event.
Step 3 Select CAN from the drop-down list next to Event Type.
Step 4 Select the frame format of the Ethernet port transmission protocol.
The supported options include Standard Frame and Extended Frame.
Step 5 Enter the standard frame ID or extended frame ID.
The hexadecimal format is supported.
Step 6 Select the frame type of CAN protocol.
The supported options include Data Frame and Remote Frame.
Data Frame: The frame used for data transmission from the sending unit to the receiving

unit
Remote Frame: The frame used for data requests from the receiving unit to the sending

unit with the same ID as the receiving unit
Step 7 Enter the control command in the text box next to Data Content.
Step 8 Click OK to complete the adding.
