NovaStar Vunit 3000 User Manual page 20

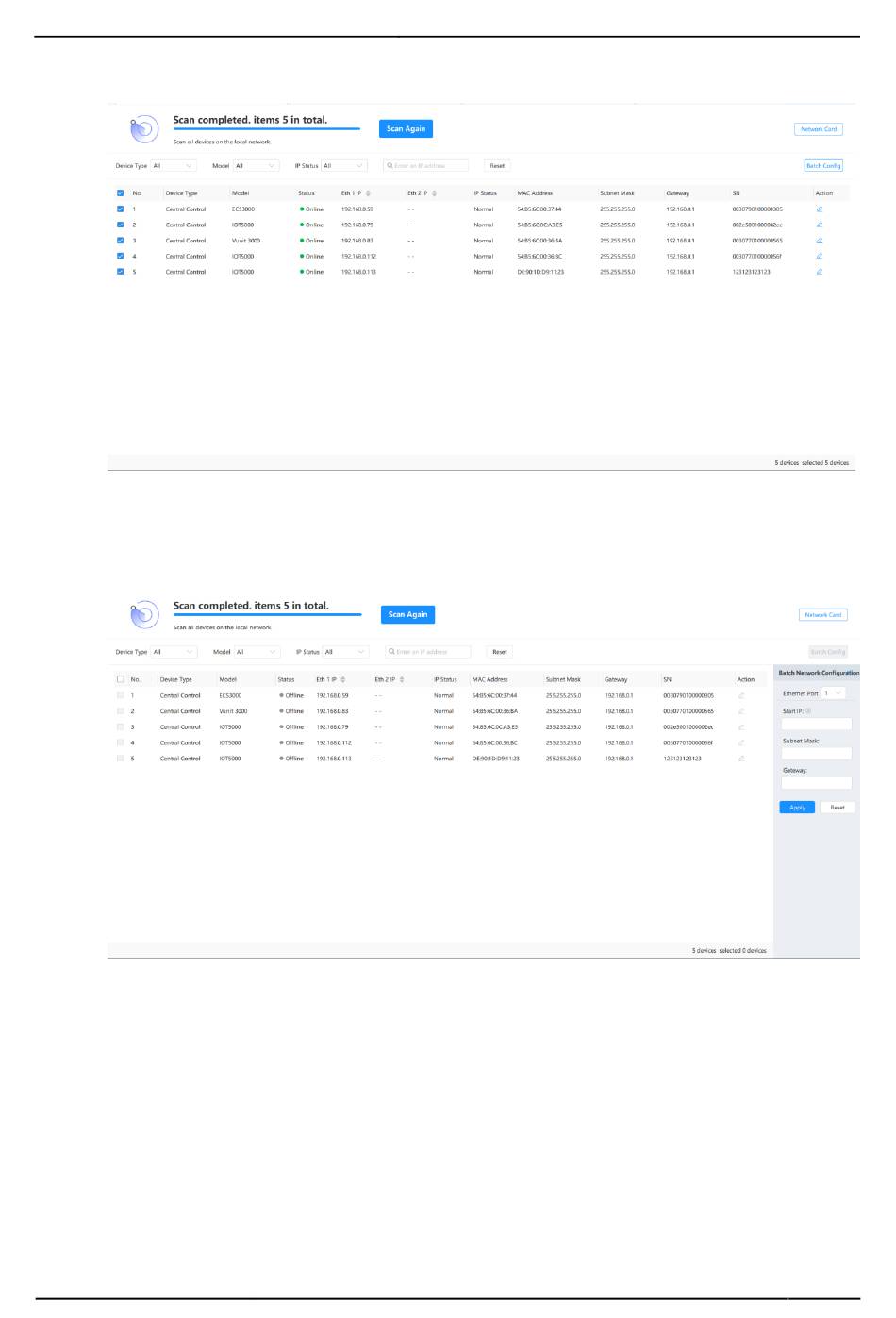

Figure 3-5 Batch select devices
Step 2 Click Batch Config to expand the Batch Network Configuration pane.
Figure 3-6 Batch network configuration
Step 3 Enter the device start IP address in the text box below Start IP.
After the start IP address is set successfully, the IP addresses of other devices are increased
sequentially by one according the order of the device.
For example, the start IP address is 192.168.0.10, and the IP address of the second device
in the device list is 192.168.0.11.
Step 4 Set the subnet mask and gateway respectively.
Step 5 Click Apply to complete and apply the configurations.
www.novastar.tech
Vunit 3000 Professional Control Processor User Manual
15
