HEX: The control command is in hexadecimal format.

ASCII: The control command is in text format.

JSON: The control command is in .json format.

Step 7 Enter the control command in the text box next to Data Content.
Step 8 Enter the event description to provide clearer event details.
Step 9 Click OK to complete the adding.
Configure DMX Events
When the backend device is controlled via DMX protocol, you need to set the serial port
mode to DMX as described in
Step 1 On the event configuration page, click Add at the top right to open the new event adding
window.

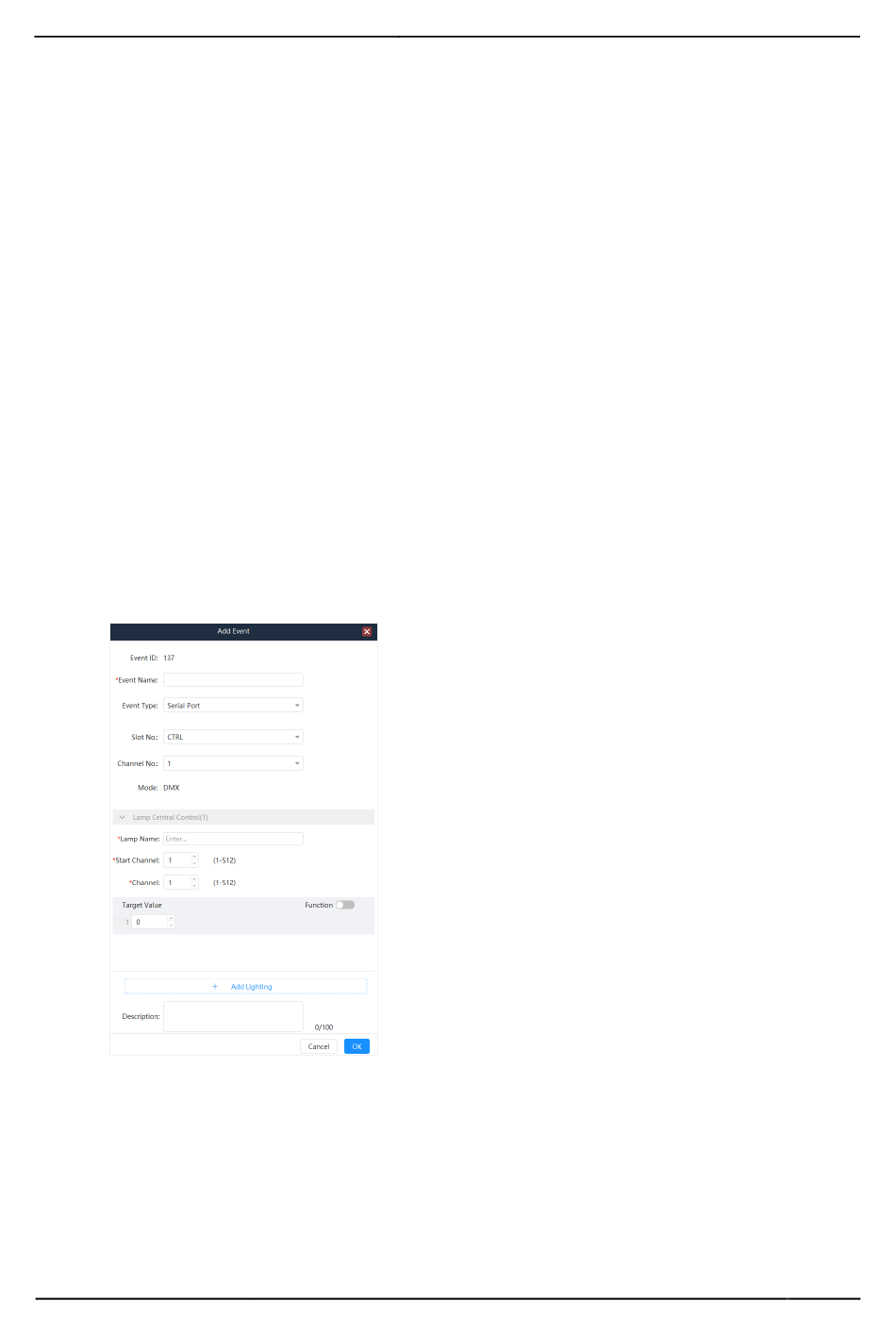

Figure 5-12 Add DMX events
The event ID is generated automatically and cannot be edited. The ID cannot be repeated
and should be increased in ascending order. After an event is deleted, the new event ID
continues to increase based on the original order. When all the events are cleared, the
event ID restarts from 1.
Step 2 Enter a name for the new event.
