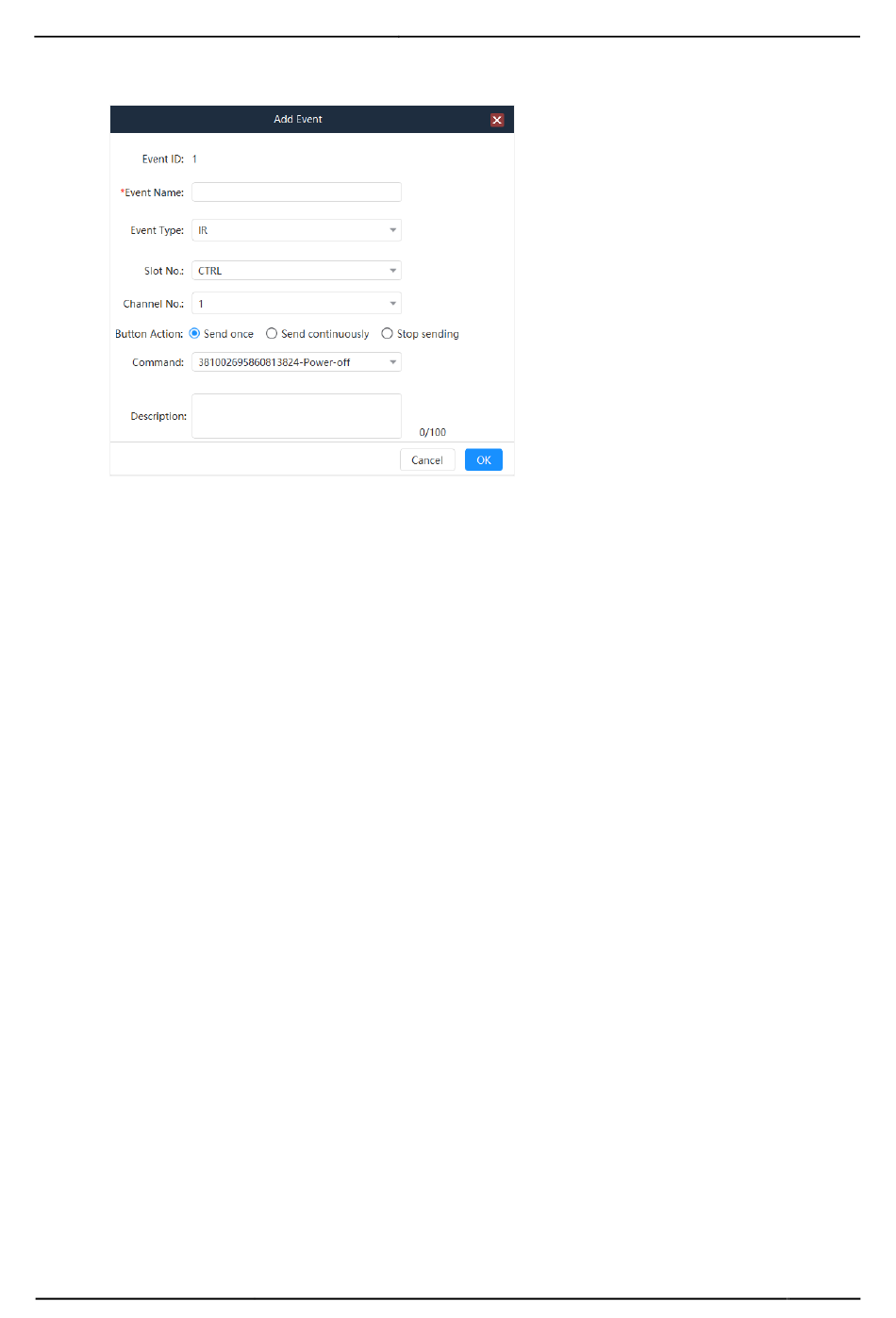

Figure 5-15 Add new events
Step 2 Enter a name for the new event.
Step 3 Select IR from the drop-down list next to Event Type.
Step 4 Select the slot number where the corresponding card matched with the added event is
installed.
Step 5 Select the slot number of the corresponding card matched with the added event.
Step 6 Select the command sending information of the IR control button next to Button Action.
The supported options include Send once, Send continuously and Stop sending.
Send once: For each operation, the system will send the command once.

Send continuously: The system sends the command automatically and continuously.

Stop sending: Working with Send continuously, you can stop sending the command

continuously.
Step 7 Select the added infrared command from the drop-down list next to Command.
Step 8 Enter the event description to provide clearer event details.
Step 9 Click OK to complete the adding.

5.4.4 Configure Relay Events

Step 1 On the event configuration page, click Add at the top right to open the new event adding
window.
