NovaStar Skyco VX600 Quick Start Manual

Self-adaptive OPT 1 for either video input or

sending card output
Thanks to the self-adaptive design, OPT 1 can
be used as either an input or output connector,
depending on its connected device.
Audio input and output

Audio input accompanied with HDMI input
−
source
Audio output via a multifunction card
−
Output volume adjustment supported
−
Low latency

Reduce the delay from the input to receiving
card to 20 lines when the low latency function
and Bypass mode are both enabled.
3x layers

Adjustable layer size and position
−
Adjustable layer priority
−
Output synchronization

An internal input source or external Genlock can
be used as the sync source to ensure the output
images of all cascaded units in sync.
Powerful video processing

Based on SuperView III image quality
−
processing technologies to provide stepless
output scaling
One-click full screen display
−
Free input cropping
−
Easy preset saving and loading

Appearance

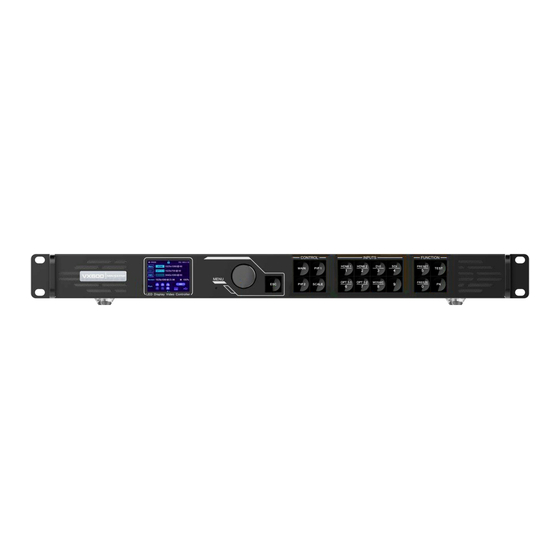

Front Panel
No. Area
1 LCD screen
2 Knob
3 ESC button
4 Control area
+27 11 026 7018 | info@skycomedia.co.za | www.skycomedia.co.za
VX600
All-in-One Controller







Function
Display the device status, menus, submenus and messages.
Rotate the knob to select a menu item or adjust the parameter value.

Press the knob to confirm the setting or operation.

Exit the current menu or cancel an operation.
Open or close a layer (main layer and PIP layers), and show the layer status.

Status LEDs:
On (blue): The layer is opened.
−
Up to 10 user-defined presets supported
−
Load a preset by simply pressing one button
−
Multiple kinds of hot backup
Backup between devices
−
Backup between Ethernet ports
−
Backup between input sources
−
Mosaic input source supported
The mosaic source is composed of two sources
(2K×1K@60Hz) accessed to the OPT 1.
Up to 4 units cascaded for image mosaic
Three working modes
Video Controller
−
Fiber Converter
−
Bypass
−
All-round color adjustment
Input source and LED screen color adjustment
supported, including brightness, contrast,
saturation, hue and Gamma
Pixel level brightness and chroma calibration
Work with NovaLCT and NovaStar calibration
software to support brightness and chroma
calibration on each LED, effectively removing
color discrepancies and greatly improving LED
display brightness and chroma consistency,
allowing for better image quality.
Multiple operation modes
Control the device as you wish via V-Can,
NovaLCT or device front panel knob and
buttons.
