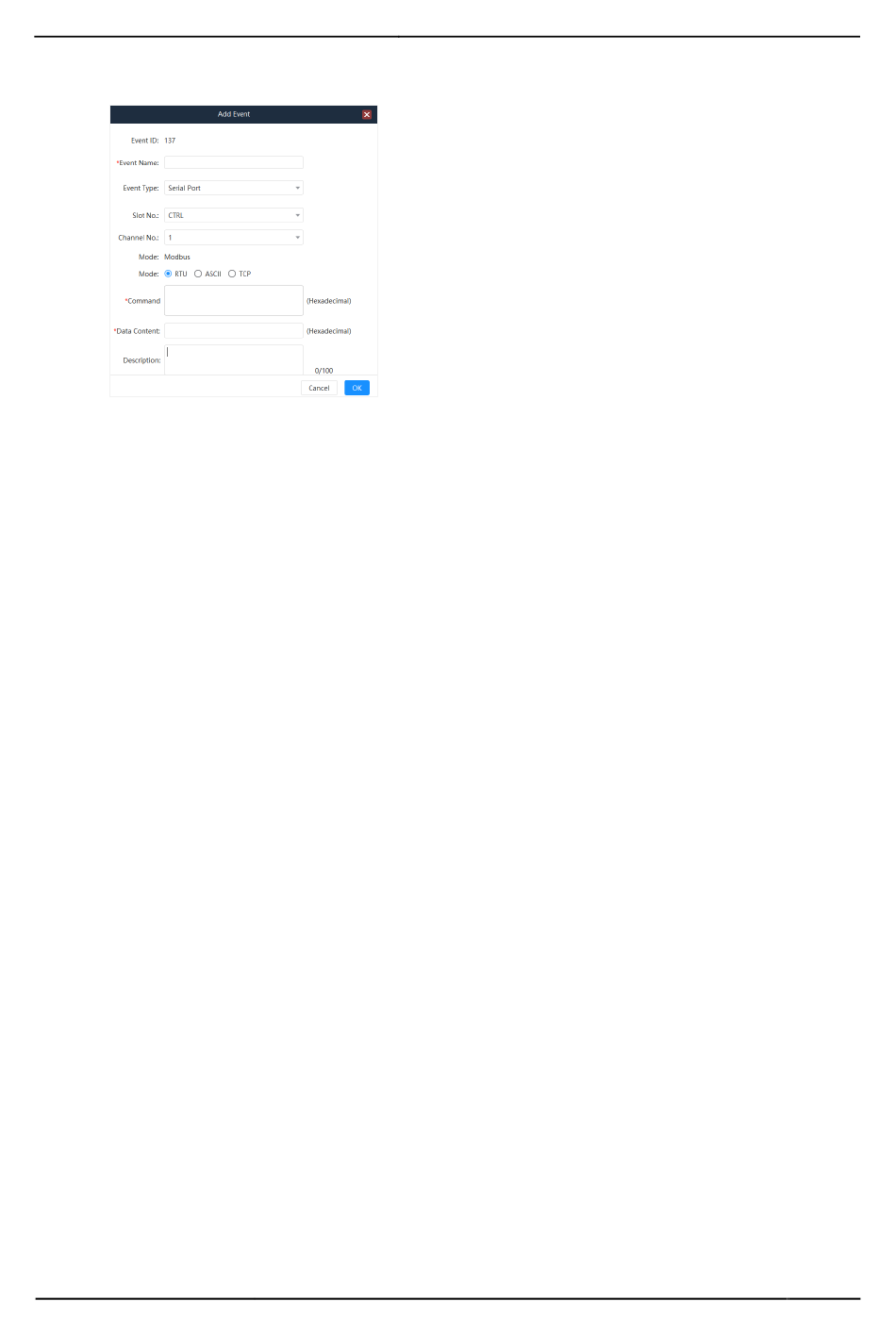

Figure 5-13 Add Modbus events
The event ID is generated automatically and cannot be edited. The ID cannot repeat and
should increase in ascending order. After an event is deleted, the new event ID continues to
increase based on the original order. When all the events are cleared, the event ID restarts
from 1.
Step 2 Enter a name for the new event.
Step 3 Select Serial Port from the drop-down list next to Event Type.
Step 4 Select the slot number of the corresponding card matched with the added event.
Step 5 Select the channel number of the corresponding card matched with the added event.
Step 6 Select the control command mode supported by the backend device next to Mode.
The supported options include RTU, ASCII and TCP.
Step 7 Enter the control command in the text box next to Command.
Step 8 Enter the control command in the text box next to Data Content.
The command and data content supports data in hexadecimal format.
Step 9 Enter the event description to provide clearer event details.
Step 10 Click OK to complete the adding.

5.4.2 Configure I/O Events

Step 1 On the event configuration page, click Add at the top right to open the new event adding
window.
