User's Manual

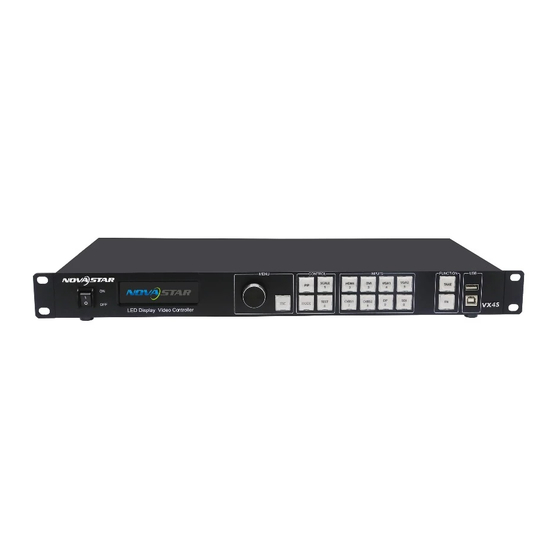

LED Display Video Controller VX Series
Rev1.0.0 NS160100130

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VX4 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for NovaStar VX4

Summary of Contents for NovaStar VX4

  • Page 1 User's Manual LED Display Video Controller VX Series Rev1.0.0 NS160100130...
  • Page 2 Welcome to use the product from Xi’an NovaStar Tech Co., Ltd. (hereinafter referred to as “Novastar”). It is our great pleasure to offer this manual to help you understand and use the product. We have striven for precision and reliability during the compilation of this manual.

  • Page 3: Table Of Contents

    Contents 1 Model Description ������������������������������������������������������������������������������������� 1 2 Appearance�������������������������������������������������������������������������������������������������� 1 Front Panel ..........................1 Rear Panel ..........................2 3 Signal Connection ��������������������������������������������������������������������������������������� 5 4 Installation Dimensions ����������������������������������������������������������������������������� 6 5 Operating Motion Instruction ������������������������������������������������������������������� 7 6 Main Interface ��������������������������������������������������������������������������������������������� 7 7 Operation Instruction��������������������������������������������������������������������������������� 8 Step1: Input Settings ......................

  • Page 4: Model Description

    V X S e r i e s U se r 's M a nu a l 1 Model Description Model Description (inputs) DVI×1, VGA×3, CVBS×2, HDMI×1, DP×1 VX2U DVI×1, VGA×2, CVBS×2, HDMI×1, DP×1, USB×1 DVI×2, VGA×3, CVBS×3, HDMI×1, DP×1 VX4S DVI×1, VGA×2, CVBS×2, HDMI×1, DP×1, SDI×1 VX4U...

  • Page 5: Rear Panel

    V X S e r i e s U se r 's M a nu a l ⑥ : Shortcuts for switching of 8 signal input sources. Press the key to set corresponding source as main screen input source, and long press to set as PIP input source.
  • Page 6 V X S e r i e s U se r 's M a nu a l DVI LOOP DVI LOOP Output Monitor -VGA OUT VGA Monitoring Interface Monitor -DVI OUT DVI Monitoring Interface LED Out 1, 2, 3, 4 4 Ethernet Outputs Control Ethernet Control (Communicating with PC, or accessing...
  • Page 7 V X S e r i e s U se r 's M a nu a l Power AC 100-240V ～ 50/60HZ AC Power Interface Note:Type A USB interface on the front panel is not allowed to connect control computer directly.

  • Page 8: Signal Connection

    V X S e r i e s U se r 's M a nu a l Inputs Audio 1 Set of Audio Input 1 DP Input HDMI 1 HDMI Input SDI IN 1 SDI Input 1 DVI Input VGA1~VGA2 2 VGA Inputs CVBS1~CVBS2 2 PAL/NTSC TV Composite Video Inputs...

  • Page 9: Installation Dimensions

    V X S e r i e s U se r 's M a nu a l VX4U Signal connection diagram If it is required to control more sets of VX4U units, please connect them according to the figure below. Multiple units connection 4 Installation Dimensions VX4U dimensions (Unit:mm)

  • Page 10: Operating Motion Instruction

    ESC: Return key, exit current menu or operation. Key lock/unlock: long press the knob and ESC key simultaneously. 6 Main Interface After starting the controller, the main interface of OLED display is as follows: NovaStar 192.168.0.10 1024x768@60Hz VGA1 1024x768@60Hz HDMI First row: company name;...

  • Page 11: Operation Instruction

    V X S e r i e s U se r 's M a nu a l Key lock marking. When this icon appears at the main interface, keys and knob are locked. Single loop mode List loop mode No USB drive is inserted. USB drive is inserted.

  • Page 12: Step2: Screen Settings

    V X S e r i e s U se r 's M a nu a l Preset Resolution Width (H) 60Hz 1920 Custom Resolution Height(V) 1080 59.94Hz Custom Refresh Rate 50Hz Apply 30Hz Step2: Screen Settings The preconditions of quick screen settings is that the screen and cabinets must be regular (not special-shaped) and the load of each cabinet is same.

  • Page 13: Setp3: Brightness

    V X S e r i e s U se r 's M a nu a l （c） During Data Flow setting, you can rotate the knob to see the results of different data flow on the screen in real time. If you are satisfied with the result, you must press the button to save the setting.
  • Page 14 V X S e r i e s U se r 's M a nu a l II: Auto Fit� In this case, [Scaling] is enabled, and [Auto Fit] is enabled. When enabling [Auto Fit], the input contents will be fully zoomed to the size of LED display, and the input contents will be adaptive to the size of LED display.

  • Page 15: Image Mosaic

    V X S e r i e s U se r 's M a nu a l Step 3 Input Capture Width (H) Height (V) Output Window Start X Start Y After setting according to the above two steps, the captured contents will only be input and displayed at the specified area on the LED display, as shown below: Input Source LED Display...

  • Page 16: Advanced Settings

    V X S e r i e s U se r 's M a nu a l Please choose Equal Division or Unequal Division while setting detailed parameters. The specific parameter settings are shown in the following tables. Unequal Division Equal Division VX4U （...
  • Page 17 V X S e r i e s U se r 's M a nu a l LAYOUT: The position of PIP relative to main screen, including eight types of layouts such as Custom, Left Top, Left Bottom, Right Top, etc. When any type except Custom is selected, the values of horizontal and vertical offset of PIP will be automatically adjusted to the corresponding values of the selected layout .
  • Page 18 VGA picture is clear and complete. Select this menu and then press the knob once and perform VGA automatic adjustment once. (VGA1 of VX4 does not support this function) ADC Calibration: Controllers without ADC calibration may cause abnormalities ƒ...
  • Page 19 V X S e r i e s U se r 's M a nu a l Fn Settings Normal Audio Settings Black out Display Control Freeze Inputs Backup Test Pattern Image Settings Switching Effect Normal: Normal display. ƒ Black Out: Display is blank ƒ...
  • Page 20 V X S e r i e s U se r 's M a nu a l Output Resolution Preset Resolution Custom Resolution Cabinet Settings OLED Brightness Hardware Version V1.3.0.0 Cabinet Settings Output Resolution Load RCFG Files Cabinet Settings Save to RV Card OLED Brightness Hardware Version V1.3.0.0...

  • Page 21: Usb Play Settings

    V X S e r i e s U se r 's M a nu a l 3 ) Load RCFG Files. Load RCFG Files RG 128×128 Save to RV Card Save to RV Card All current configurations related the recieving card of VX4U are saved into receiving card and will not be lost after power fault.

  • Page 22: Factory Reset

    V X S e r i e s U se r 's M a nu a l to select media files. When USB drive is selected as input, the controller will automatically detect and play the files that can be played in the USB drive. Users can switch through Previous and Next keys or view the files in the USB drive and select files to be played.

  • Page 23: Faqs

    V X S e r i e s U se r 's M a nu a l Max. output 1280×1024@60Hz (1.3 million pixels) Customized output resolution (Bandwidth optimization) Max. horizontal resolution 3840 pixels Max. vertical resolution 1920 pixels 9 FAQs Problems Solutions Check whether the power connection is correct and the switch is...
  • Page 24 V X S e r i e s U se r 's M a nu a l Check whether the volume setting is appropriate; Check whether the Audio mode is correct; Confirm the controller is well connected to multifunction card, and the corresponding output port icon on the main interface Sound is abnormal is highlighted;...
