2.2.4.3

IR Settings

Step 1 On the main menu screen, rotate the knob to select Advanced Settings and press the knob
to enter the advanced settings screen.
Step 2 On the advanced settings screen, rotate the knob to select IR Settings and press the knob
to enter the IR settings screen.

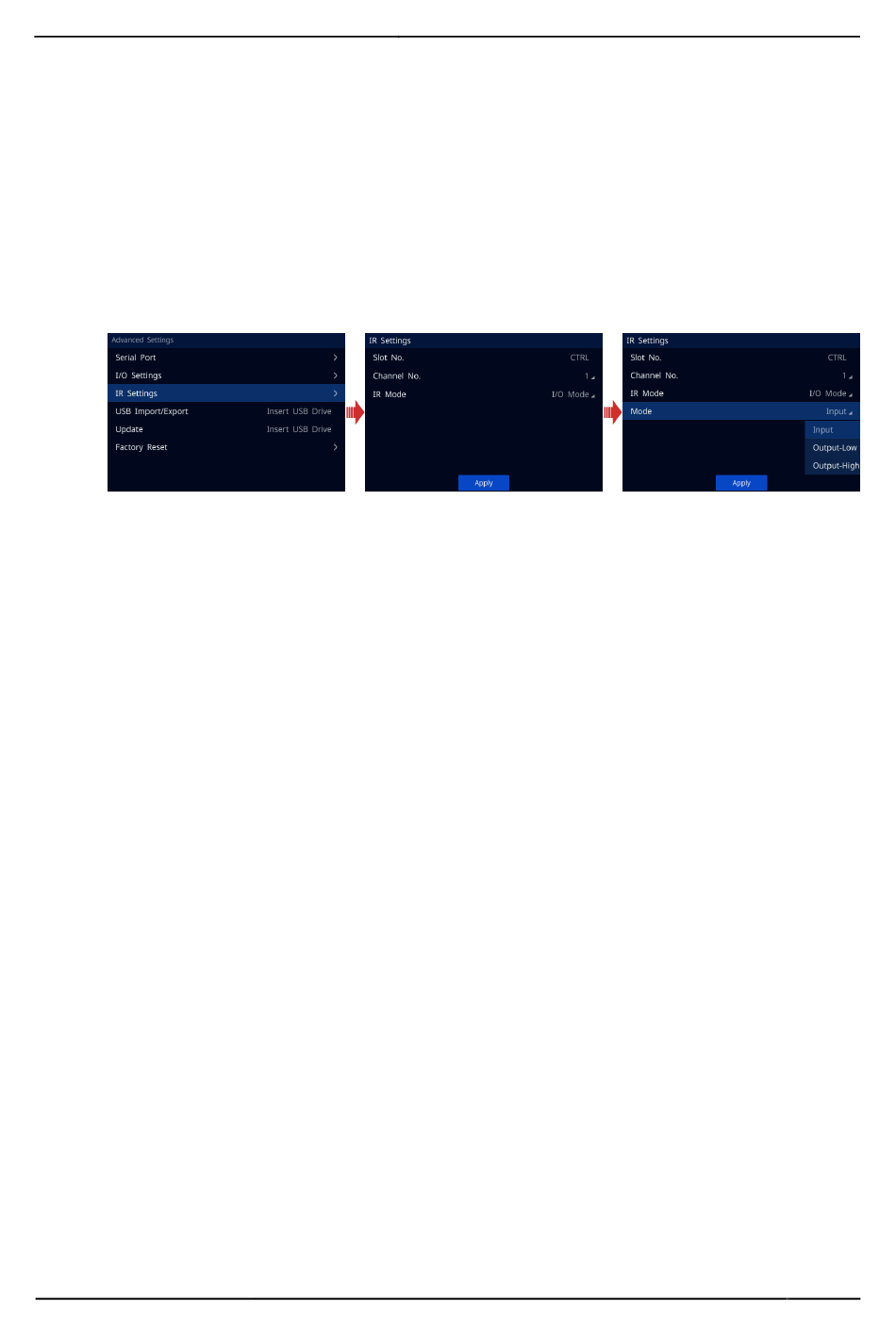

Figure 2-9 IR settings
Slot No. Select the slot number of the corresponding card where the IR port is located.

CTRL: Main control card
Channel No.: Select the channel number of the corresponding card where the IR port is

located.
IR Mode: If the selected IR port is located on the main control card, you can set the IR

mode to IR Mode or I/O Mode. If the selected IR port is not located on the main control
card, only IR Mode is supported.
IR Mode: The current connector is used for the IR port only.
−
I/O Mode: Set the current connector as the I/O port.
−
Mode: When the IR mode is set to I/O Mode, you need to select the connector mode for

each connected device.
2.2.4.4

USB Impot/Export

You can export the configuration information to your local computer via a USB drive, or
import the configuration file saved in the USB drive to the device for quick configuration.
On the main menu screen, go to Advanced Settings > USB Import/Export and press the
knob to enter the corresponding screen.
