Vunit 3000 Professional Control Processor User Manual

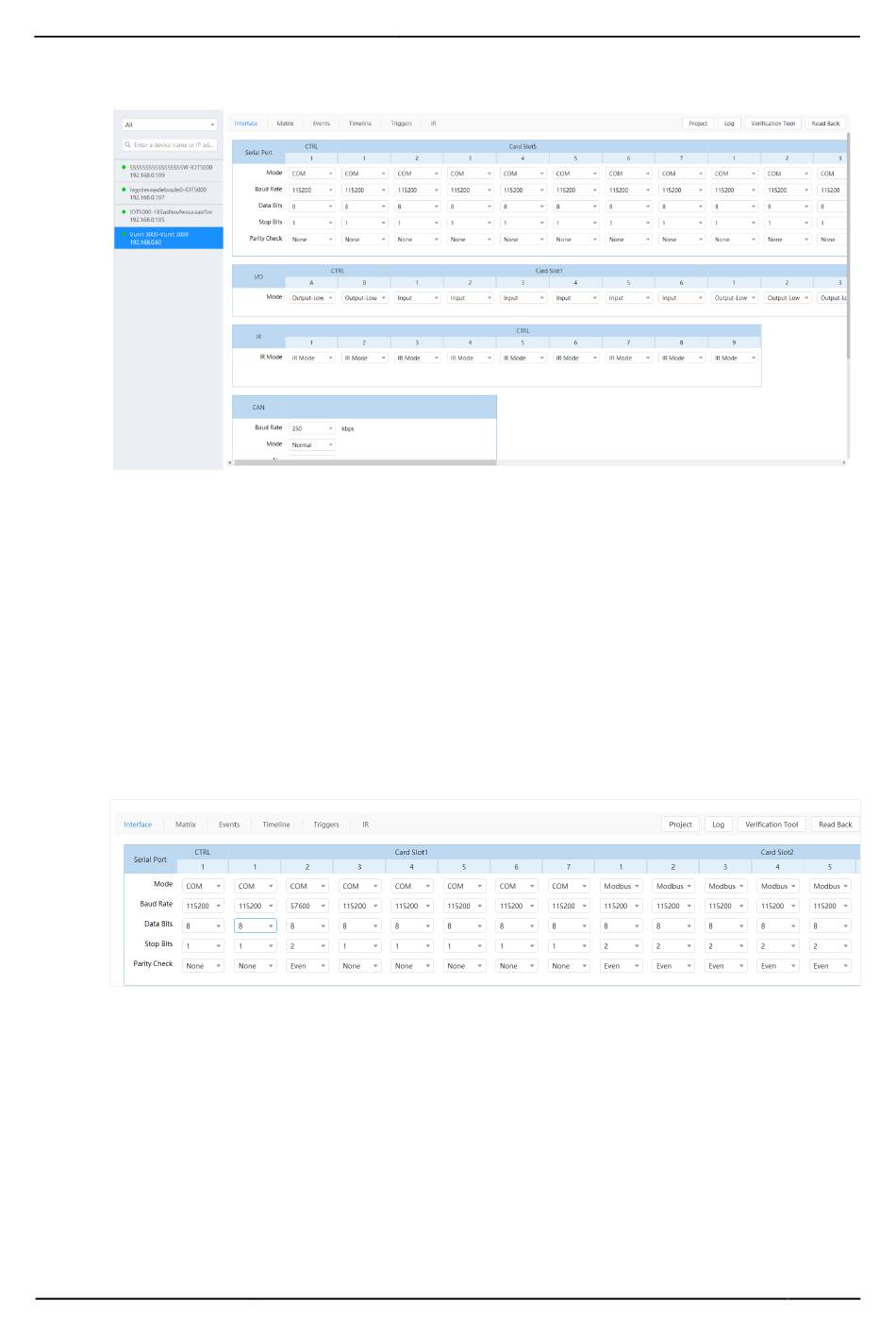

Figure 5-2 Configure connector parameters
5.2.1 Configure Serial Port Parameters
When the Vunit 3000 is connect to the control device via a serial port, you need to
configure the communication parameters of the serial port and control device to ensure
normal communication.
The supported communication modes include COM, Modbus and DMX. Select one of the
modes according to the control protocol supported by the controlled device.
Figure 5-3 Configure serial port parameters
The parameters of COM and Modbus modes are the same, including the baud rate, data
bits, stop bits and parity check. All the parameters need to be the same as the controlled
device.
The supported options of the baud rate include 1200, 1800, 2400, 4800, 9600, 19200,
38400, 57600 and 115200 (default).
www.novastar.tech
23
