Menu Operations

The MCTRL660 is powerful and easy to use. You can quickly configure the LED screen to light it up and
display the entire input source following steps in
can further improve the LED screen display effect.
Light a Screen Quickly
Following the two steps below, namely Set Input Resolution > Quickly Configure the Screen, you can quickly
light up the LED screen to display the entire input source.

6.1.1 Step 1: Set Input Resolution

This function is used to set the output resolution of the graphics card. In general, the content shown on the
screen cannot exceed the output resolution of the graphics card.

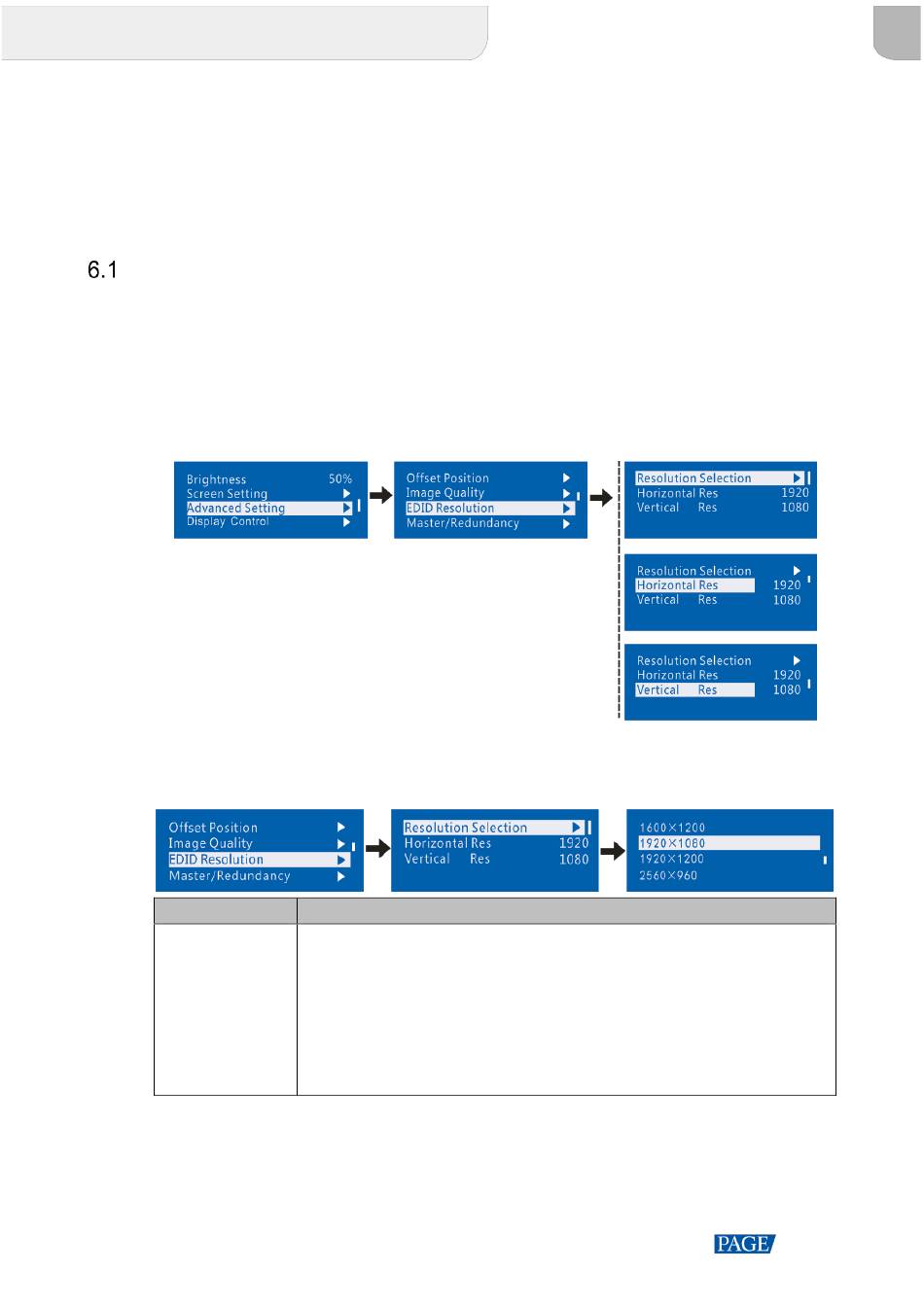

Enter the Advanced Setting menu to set the video source resolution. It can be achieved in two methods:
select a preset resolution and customize a resolution.
Method 1: Select a preset resolution
Select a proper resolution and refresh rate from the standard resolution presets in the controller. If there is no
proper preset, use method 2 to customize a resolution.
Input Source
HDMI/DVI
Method 2: Customize a resolution
Step 1 On the home screen, press the knob to enter the main menu.
www.novastar.tech
6.1
Available Standard Resolution Presets
1024×768@(24/30/48/50/60/72/75/85/100/120)Hz
1280×1024@(24/30/48/50/60/72/75/85)Hz
1366×768@(24/30/48/50/60/72/75/85/100)Hz
1440×900@(24/30/48/50/60/72/75/85)Hz
1600×1200@(24/30/48/50/60)Hz
1920×1080@(24/30/48/50/60)Hz
1920×1200@(24/30/48/50/60)Hz
2560×960@(24/30/48/50)Hz
MCTRL660 LED Display Controller User Manual
