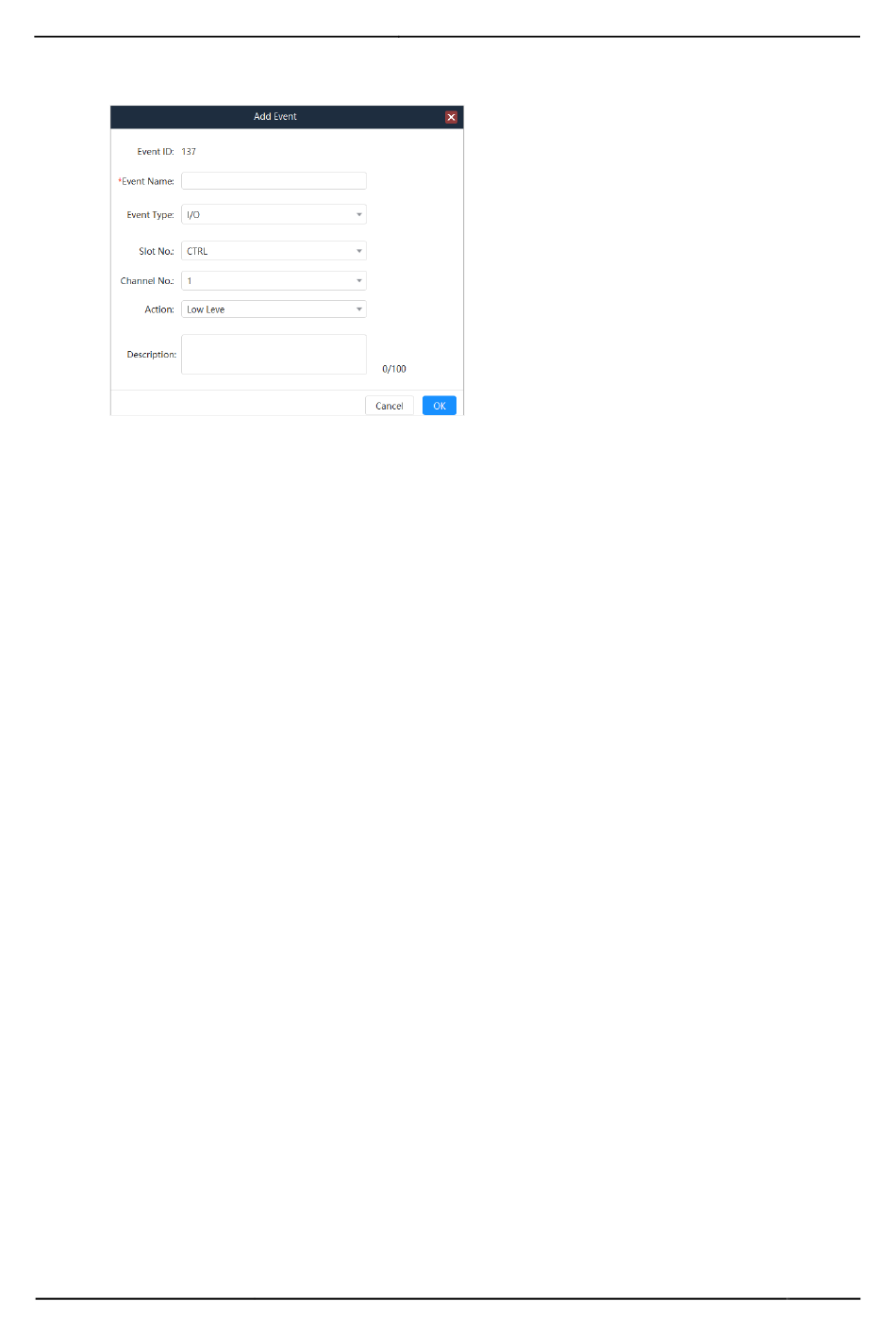

Figure 5-14 Add new events
Step 2 Enter a name for the new event.
Step 3 Select I/O from the drop-down list next to Event Type.
Step 4 Select the slot number of the corresponding card matched with the added event.
Step 5 Select the channel number of the corresponding card matched with the added event.
Step 6 Select the response action that the controlled device supports.
The options include High Level and Low Level.
Step 7 Enter the event description to provide clearer event details.
Step 8 Click OK to complete the adding.
5.4.3 Configure IR Events
Prerequisites
You have added the infrared commands as described in
Operating Procedure
Step 1 On the event configuration page, click Add at the top right to open the new event adding
window.
www.novastar.tech
Vunit 3000 Professional Control Processor User Manual
5.7
Configure IR Command Library.
34
