Chapter 4 Menu Operations

Main Interface

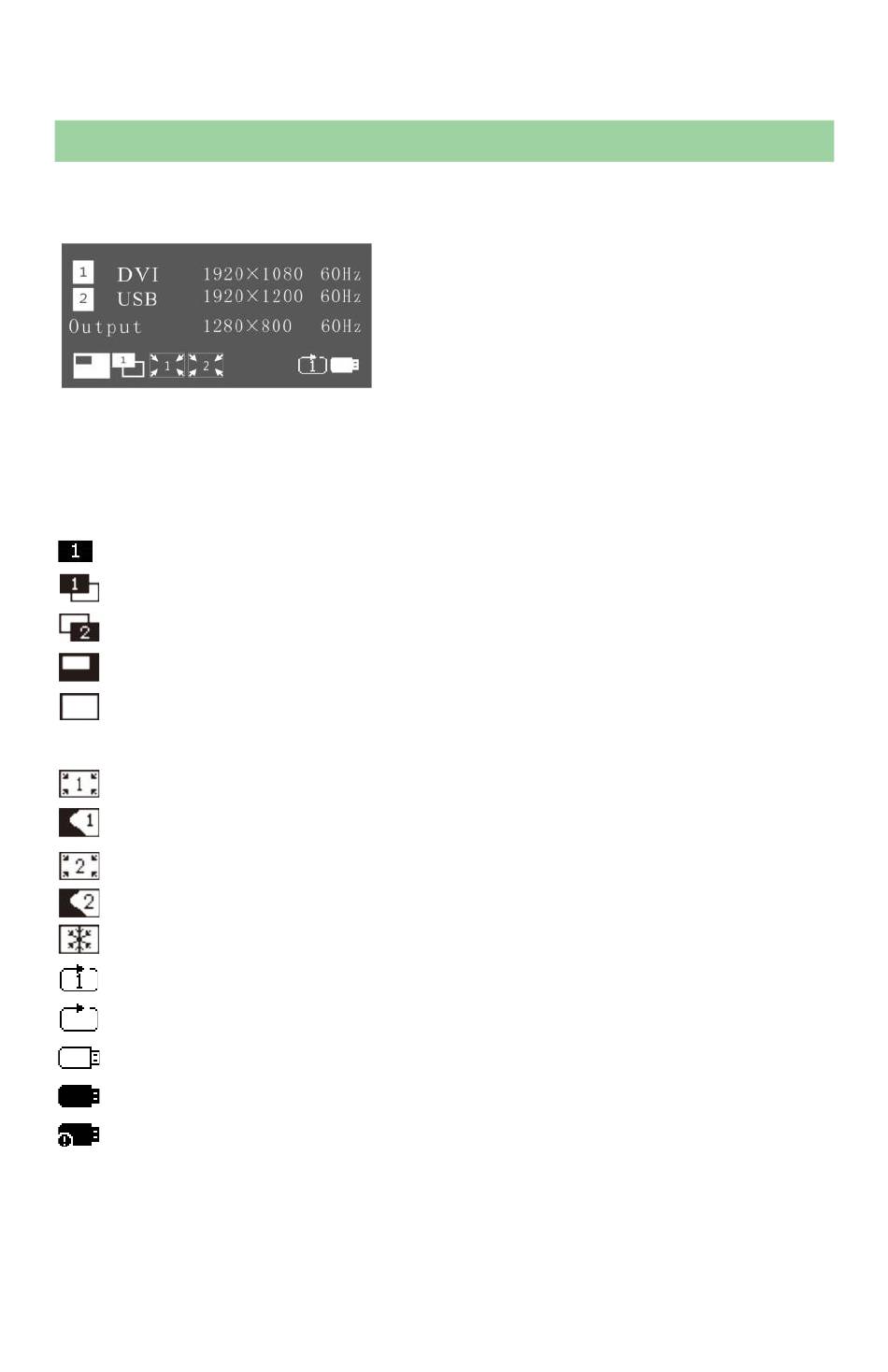

Switch on the processor and the main interface on operation screen is shown as
follows:
1 line: Channel1, signal source, format of input signal;
st
2 line: Channel2, signal source, format of input signal;
nd
3 line: Output, resolution and refresh rate of output signal;
rd
4 line: Status line, the meaning of each icon is described as follows;
th
: PIP closed;
: PIP opened, Channel1 picture is moved to the top layer;
: PIP opened, Channel2 picture is moved to the top layer;
: Part function is enabled and size of output image is the same as window size；
: Full screen function is enabled and the size of output image is the same as
the input size;
: Channel1 Image Crop is closed and the output is complete image;
: Channel1 Image Crop is opened and the output is cropped image;
: Channel2 Image Crop is closed and the output is complete image;
: Channel2 Image Crop is opened and the output is cropped image;
: Freeze is opened and current output image is frozen;
: Current USB drive is set to single round play;
: Current USB drive is set to list round play;
: USB drive hasn't been plugged;
： USB drive has been plugged;
： USB drive has been plugged, but the format of USB drive is not supported.
