Controller; Front View Of The Controller - MICRO-EPSILON optoCONTROL 2600 Operating Instructions Manual

Measure
optoCONTROL 2600
3.3

Controller

3.3.1

Front View of the Controller

The interactive operation is supported by an LC graphical display with illuminated
screen. The controller is operated with the four keys on the front
Operating mode LED green
Multi segment
System ready
1
2

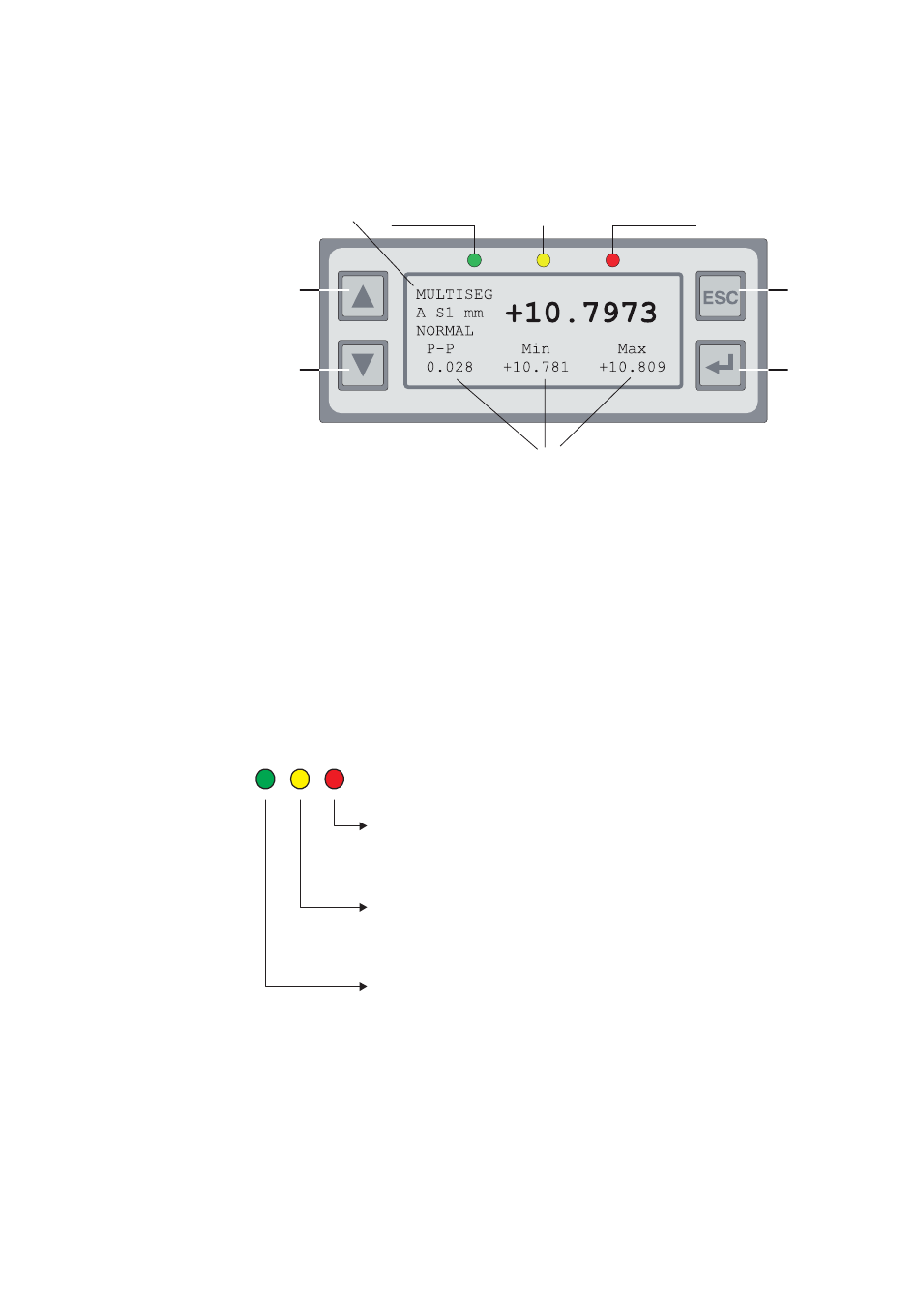

Fig. 3 Keypad and display on the front panel of the controller
The following functions are assigned to the
(1), (2) Up/down movement in menus,
Value input: (1) greater, (2) smaller
(3) Quitting a menu point, change to the next higher hierarchical level
(4) Entry into the selected menu point, confirmation of entry (By long press switches the
input values are taken over.)
Below the operating mode (e.g. DIA, EDGE) A for absolute or R for relative measurement
is displayed.
- In the Multisegment operating mode (MULTISEG) the code for the selected seg-
ment also appears (S1 or S2).
LED red
LED yellow
LED grün
Fig. 4 LEDs on the front panel of the controller
LED red
LED yellow
Error
Light ON
Statistic values
keypad, see Fig.
lights Error
lights
Measurement operation, Light ON
Menu operation, Light ON
lights
System in operation
panel, see Fig. 3.
3
4
3:
Page 9
