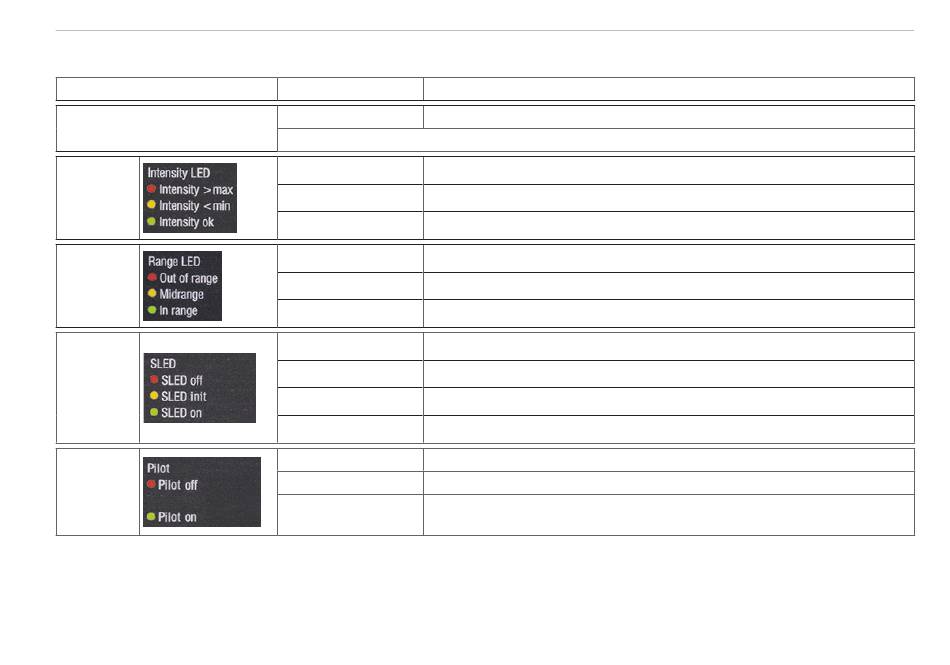

LEDs Controller

LEDs Controller
Power on
Status
Intensity
Range
SLED
Pilot
1) When measuring outside the optimum current value of the SLED, the controller will measure, but the measurement
accuracy may not be as specified.
The LED's Intensity and Range flashes with their current color during a synchronization error.
IMS5x00
Green Operating voltage available
Off No error
If EtherCAT is active, meaning of the LED is conform with the Ether-CAT guidelines.
Red Signal in saturation
Yellow Signal too low
Green Signal ok
Red No target object, or target object outside the measuring range
Yellow Target close to mid of measuring range
Green Target within measuring range
Red SLED of
Yellow SLED warms up
Green SLED ready for operation
Yellow flashing SLED current outside the optimal value range
Red Pilot laser off
Green Pilot laser on
Pilot laser is alternately turned on and off,
Green
if no target object or outside the measuring range
