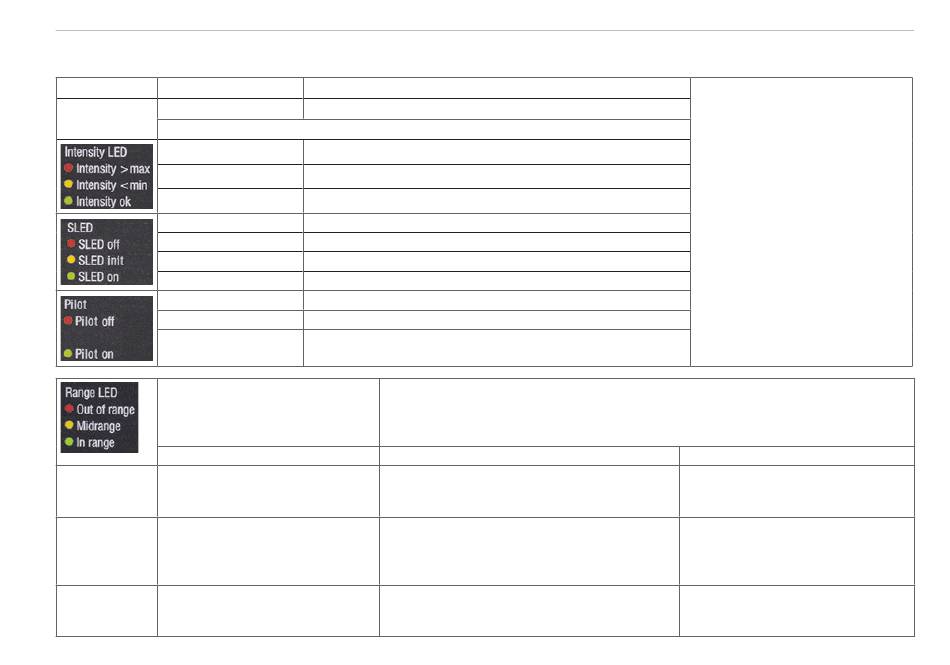

LEDs Controller

LEDs Controller
Power on Green
Off
Status
If EtherCAT is active, meaning of the LED is conform with the Ether-CAT guidelines.
Red
Yellow
Green
Red
Yellow
Green
Yellow flashing
Red
Green
Green
IMS5400-DS19
IMS5400-TH45
IMS5400-TH70
IMS5600-DS19
Distance and thickness measurment Distance measurment
Red No target object, or target object
outside the measuring range
Yellow Target close to mid of measuring
range
Green Target within measuring range
IMS5x00
Operating voltage available
No error
Signal in saturation
Signal too low
Signal ok
SLED of
SLED warms up
SLED ready for operation
SLED current outside the optimal value range
Pilot laser off
Pilot laser on
Pilot laser is alternately turned on and off,
if no target object or outside the measuring range
The expected number of peaks was not found or
it was not possible to assign a distance.
The expected number of peaks was found. A valid
distance could be found for each peak. Center
point of the target in the area surrounding the mid
of the measuring range.
The expected number of peaks was found. A valid
distance could be found for each peak.
The LED's Intensity and Range
flashes with their current color
during a synchronization error.
1) When measuring outside
the optimum current value of
the SLED, the controller will
measure, but the measure-
ment accuracy may not be as
1
specified.
IMS5400-DS19/MP
IMS5400-TH45/MP
IMS5400-TH70/MP
IMS5600-DS19/MP
Thickness measurment
The expected number of peaks was
not found or it was not possible to
assign a thickness.
-
The expected number of peaks was
found. A valid thickness could be
found for each peak.
