If the QRbin. data format is selected, the transmission parameters are prefixed (BAUD=9600;
PARITY=e, 8, 1) and cannot be modified.
At page 159 you can find the description of the ASCII protocol.
To receive the description of the binary protocol please contact your nearest MARPOSS office.

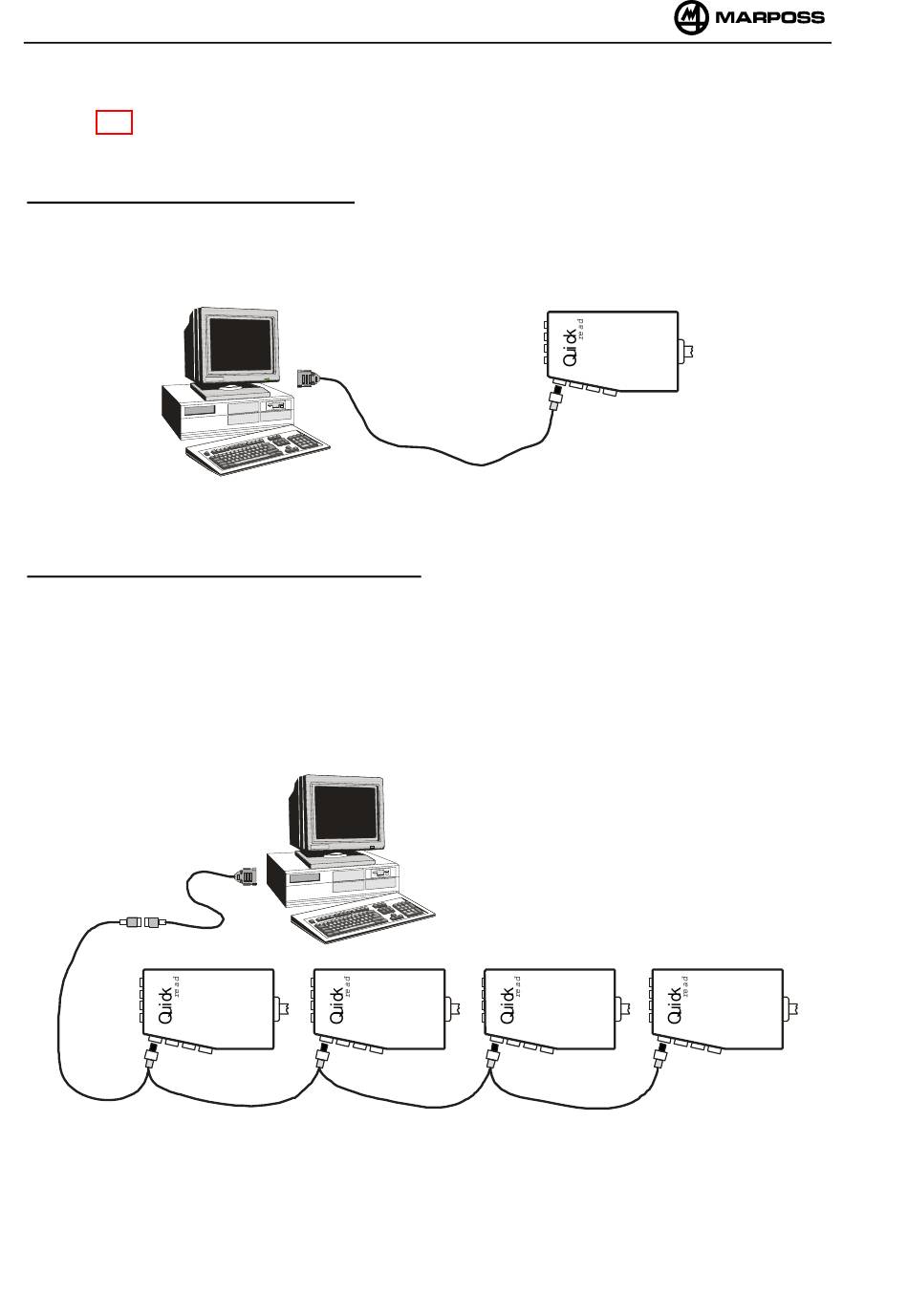

CONNECTION OF ONE QUICK READ
It is possible to connect a Quick Read to each serial port available on the PC, statistical printer,
data collector or BCD interface by means of the G cable code 6739696157 with 9-pins Cannon
connector.
CONNECTION OF GROUPSOF QUICK READ
It is possible to connect a group of max. 4 Quick Read in series to each serial port available on
the PC, data collector or BCD interface. Each Quick Read must be programmed with a unique
identification number (variable SYST.ID).
The F chain cable for the serial connection of the Quick Read is available with two different
lengths, 30 cm code 6739696130 and 60 cm code 6739696131.
The serial cable for the connection to the PC, data collector or BCD interface is available with 9-
pins Cannon connector code 6735957001 (E1) or 25-pins Cannon connector code 6735916001
(E2).
E1 / E2
F
Quick Quick
50 Quick Quick read M
G
