5. To reset the measurement and re-start the acquisition press +
6. To exit the dynamic mode and return to the static mode press ESC.
NOTE
It is possible to exit the dynamic mode only after having stopped the acquisition (STOP must
have been displayed).
NOTE
Alarm 83 is displayed if + is pressed to start the dynamic acquisition before having enabled it
by pressing DYN.

3.8 How to read the display

The kind of measurement visualization changes according to value and status of the
measurement.

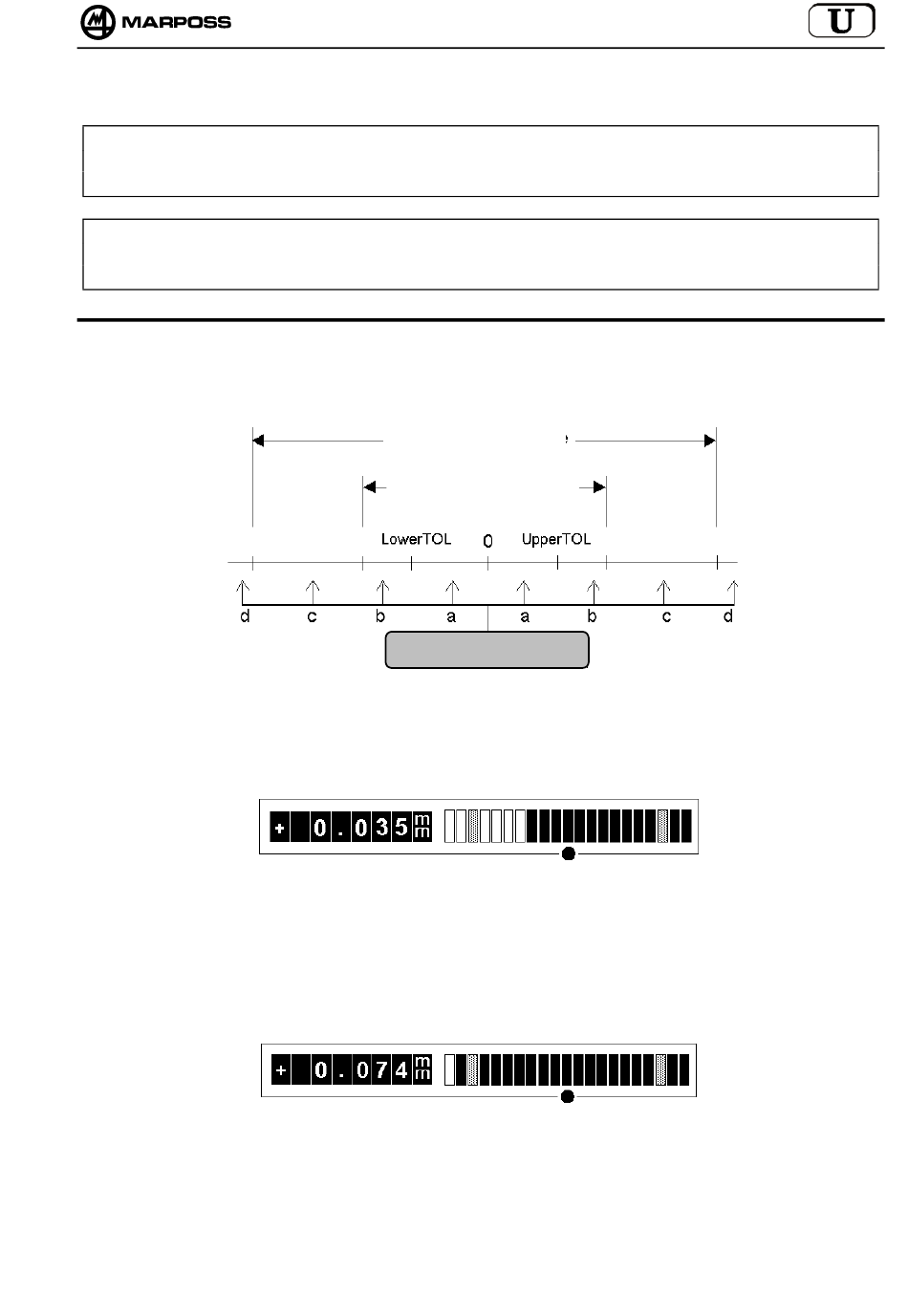

This picture helps understanding the kind of display visualization according to value and status
of the measurement. The following cases can be distinguished:
a. Measurement value within the programmed tolerance limits
Digital display:
Analog display:
b. Measuring value out of tolerance limits, but lower than the programmed analog scale
range
Digital display:
Analog display:
Transducer range
Analogue full range
Measuring value
numeric value of the measurement
green bars for the measuring value;
yellow leds for the tolerance limits
numeric value of the measurement
red bars for the measuring value;
yellow leds for the tolerance limits
