marposs TESTAR Quick read M Installation And User Manual page 39

I

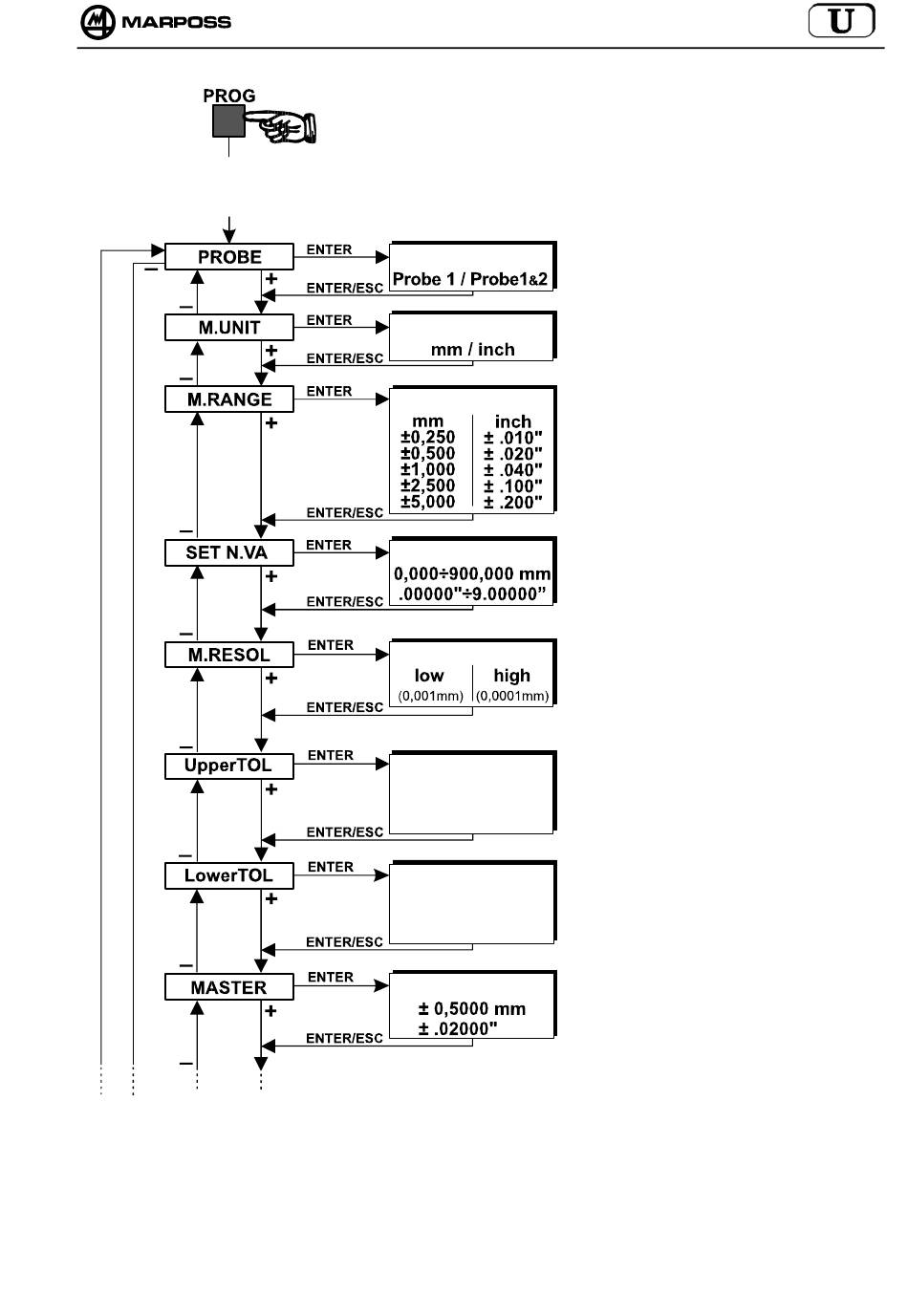

MAIN
MENU
( continue ...)
START PROGRAMMING
(Press PROG for TWO SECONDS)
SECONDARY
MENU
CHOICE
CHOICE
CHOICE
VALUE
CHOICE
VALUE
up to ± 10,000 mm
according to
programmed value
M.RANGE.
VALUE
up to ± 10,000 mm
according to
programmed value
M.RANGE.
VALUE
Tabella 4
Choice of the number of sensors to be connected.
Choice of the measuring unit.
Choice of the measuring range
Programming of the
measurement (to display its absolute value). In this
case the displayed measurement value has a
default resolution of 0,001 mm
Choice of the digital display resolution (this
variable appears only if M.RANGE = ± 0,250 / ±
0,500 / ± 1,000 mm and SET N.VA = 0,000. If
M.RANGE = ± 2,500 / ± 5,000 mm and/or SET
N.VA different from 0, the resolution has a default
value of 0,001 mm).
Programming of the upper tolerance limit. If
M.RESOL = high, the value is programmed with
the
0,0001 mm resolution. If M.RESOL = low, the
of
value is programmed with 0,001 mm resolution.
Programming of the lower tolerance limit. If
M.RESOL = high, the value is programmed with
the
0,0001 mm resolution. If M.RESOL = low, the
of
value is programmed with 0,001 mm resolution.
Programming of the master deviation. If M.RESOL
= high the value is programmed with 0,0001 mm
resolution. If M.RESOL = low the value is
programmed with 0,001 mm resolution.
Chapter 3. Installation
nominal value of the
39
