Technical characteristics

Quick Read Microcolumn is an electronic display unit with a digital and analog display for
visualization of a measurement carried out with one or two HBT (half-bridge) sensors.
1.
RS232 port for data transmission to a PC, data collector, statistical printer, PLC or for
connection to a remote zeroing push-button.
2./3. Power supply connectors for both power supply cable and jumper cable (see paragraph
3.1 on page 35).
4. Connector for measuring sensor. It features a Lumberg KV60 - DIN45322 for the direct
connection of a single sensor, or of the Y-cable with two channels allowing the
connection of two sensors [see paragraph 3.4 "Connection of the measuring sensor(s)"
on page 43].
5. Programming keyboard; four function pushbuttons for programming, transducer signal
visualization, zeroing and commanding dynamic measuring cycle.
6.
Joint enabling 100° display rotation for ergonomical read out of the measurement.
7.
Fixing arm to support base.
8.
Display:
8a) digital display
8b) analog display

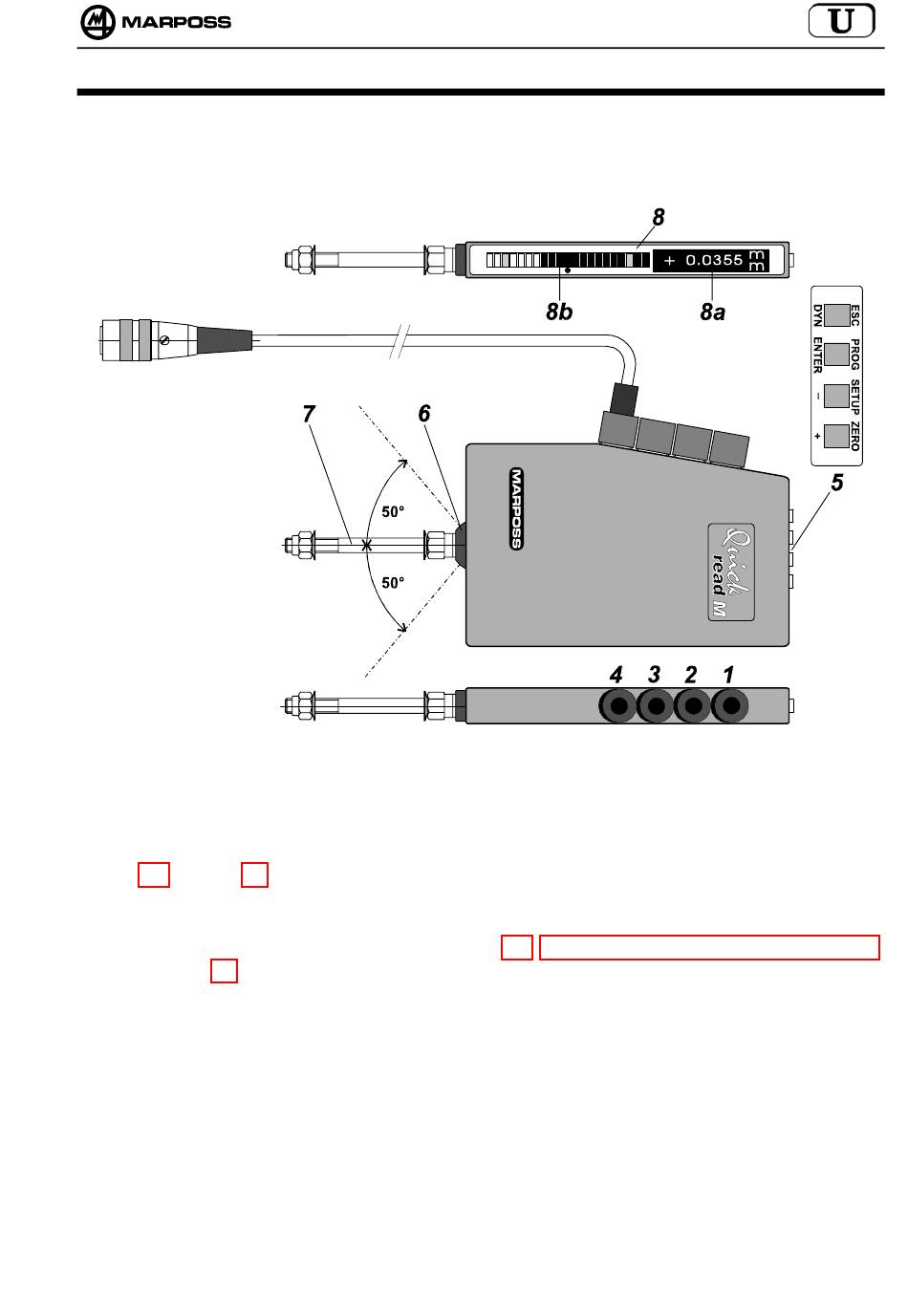

Figure 1. Quick Read
