1
Connector D release tab (green)
2
Slide-rail latching bracket release tab (labeled PUSH)
Use your right hand to support the CMA and use your left thumb to push in
b.
(toward the left) on the slide-rail latching bracket release tab labeled PUSH
(callout 2), and pull the latching bracket out of the left slide-rail and put it aside
[3 and 4].

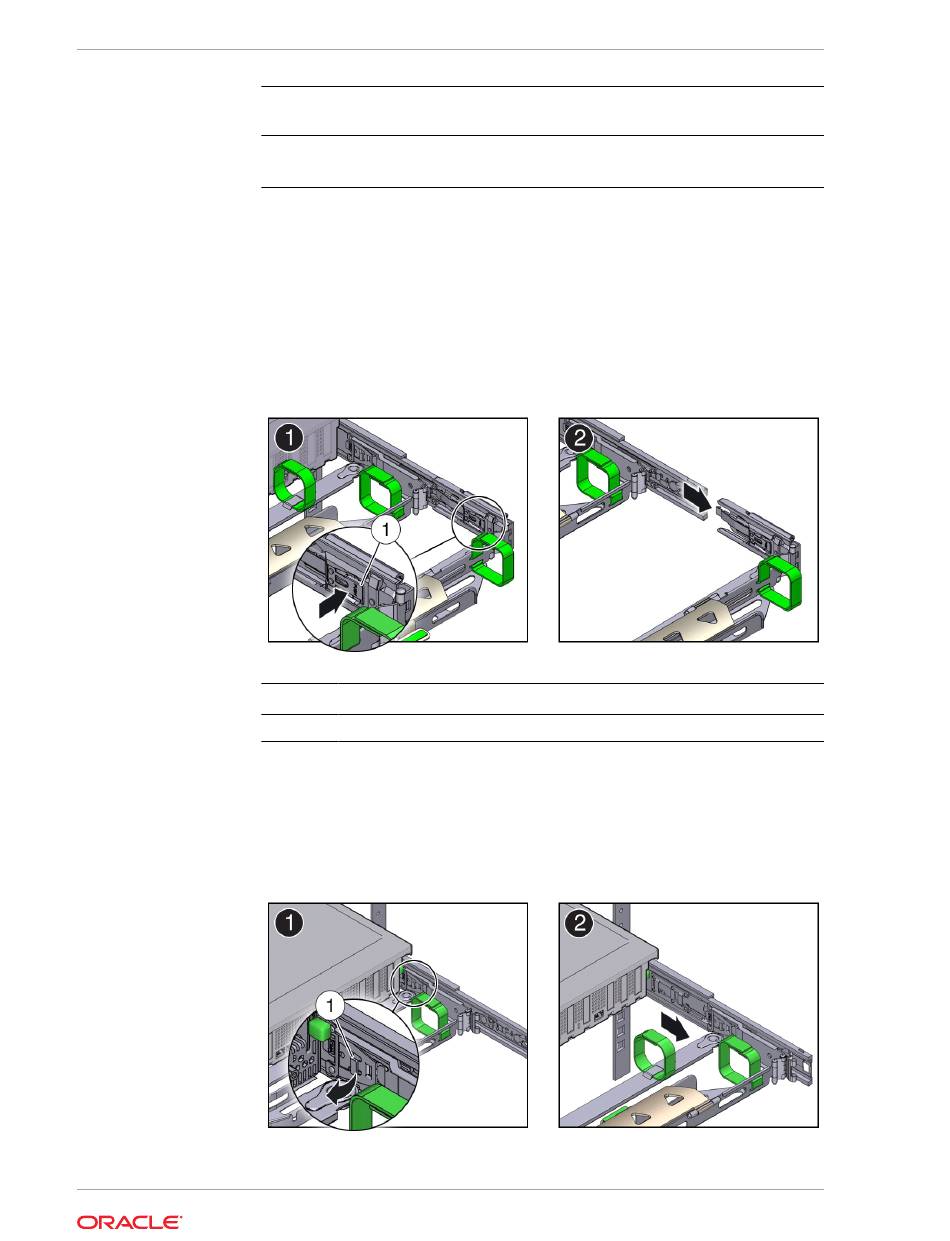

To disconnect connector C:
5.
Place your left arm under the CMA to support it.
a.
Use your right thumb to push in (toward the right) on the connector C release
b.
tab labeled PUSH (callout 1), and pull connector C out of the right slide-rail [1
and 2].
Call Out
Description
1
Connector C release tab (labeled PUSH)
To disconnect connector B:
6.
Place your right arm under the CMA to support it and grasp the back end of
a.
connector B with your right hand.
Use your left thumb to pull the connector B release lever to the left, away from
b.
the right slide-rail (callout 1), and use your right hand to pull the connector out
of the slide-rail [1 and 2].
Preparing the Server for Component Replacement
