Oracle Database Appliance X10 Service Manual page 152

Call Out Description
1 Connector A tab
2 Left slide-rail front slot

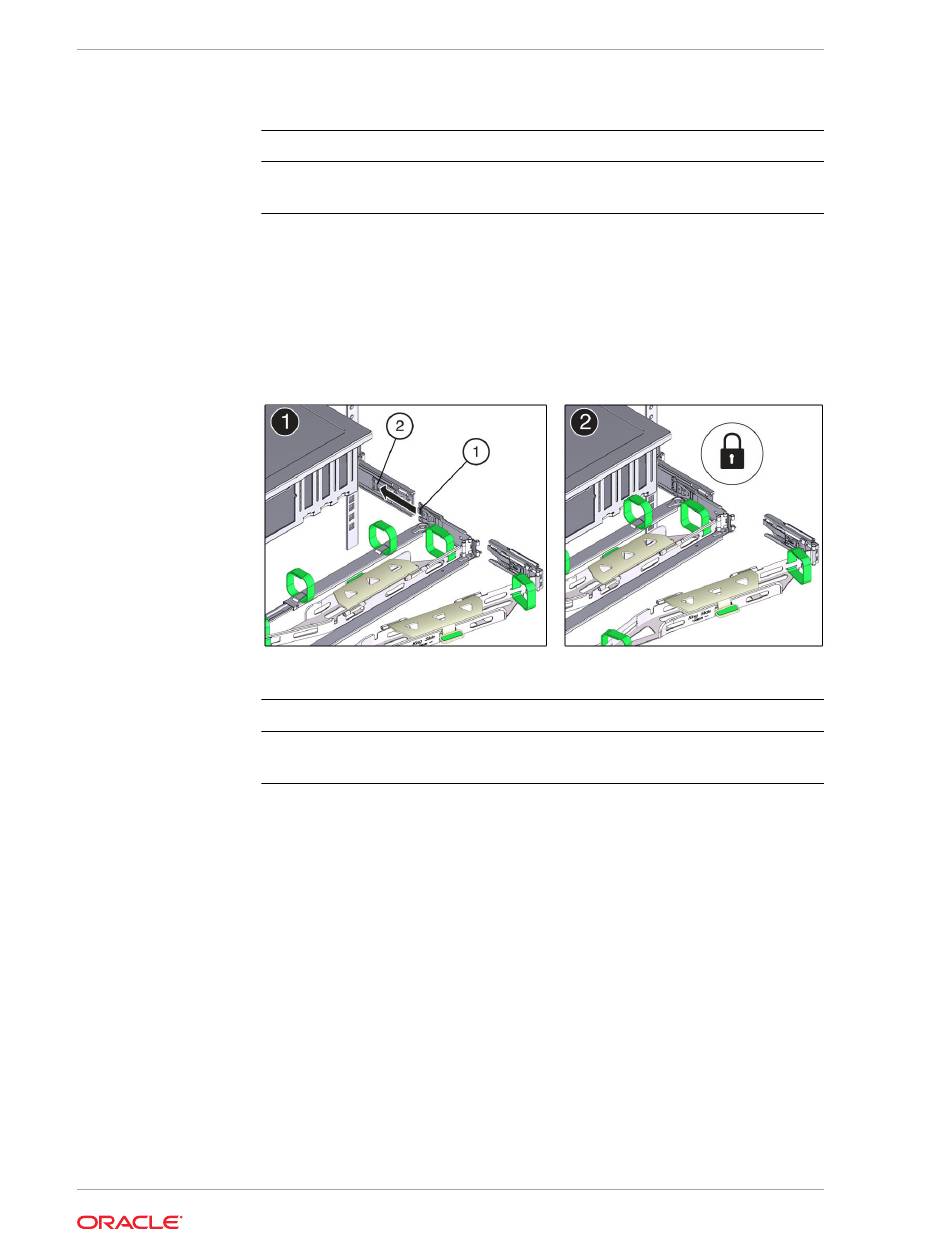

To install CMA connector B into the right slide-rail:
4.
Insert CMA connector B into the front slot on the right slide-rail until it locks
a.
into place with an audible click [1 and 2].
The connector B tab (callout 1) goes into the slide-rail front slot (callout 2).
Gently tug on the right side of the front slide bar to verify that connector B is
b.
properly seated.
Call Out Description
1 Connector B tab
2 Right slide-rail front slot
To install CMA connector C into the right slide-rail:
5.
Align connector C with the slide-rail so that the locking spring (callout 1) is
a.
positioned inside (server side) of the right slide-rail [1].
Install the Cable Management Arm (Optional)
Chapter 6
6-8
