Install the Motherboard Assembly

• Use ESD gloves (not latex or vinyl), if possible, when handling components.
• Obtain a Torx T25 screwdriver for motherboard installation.

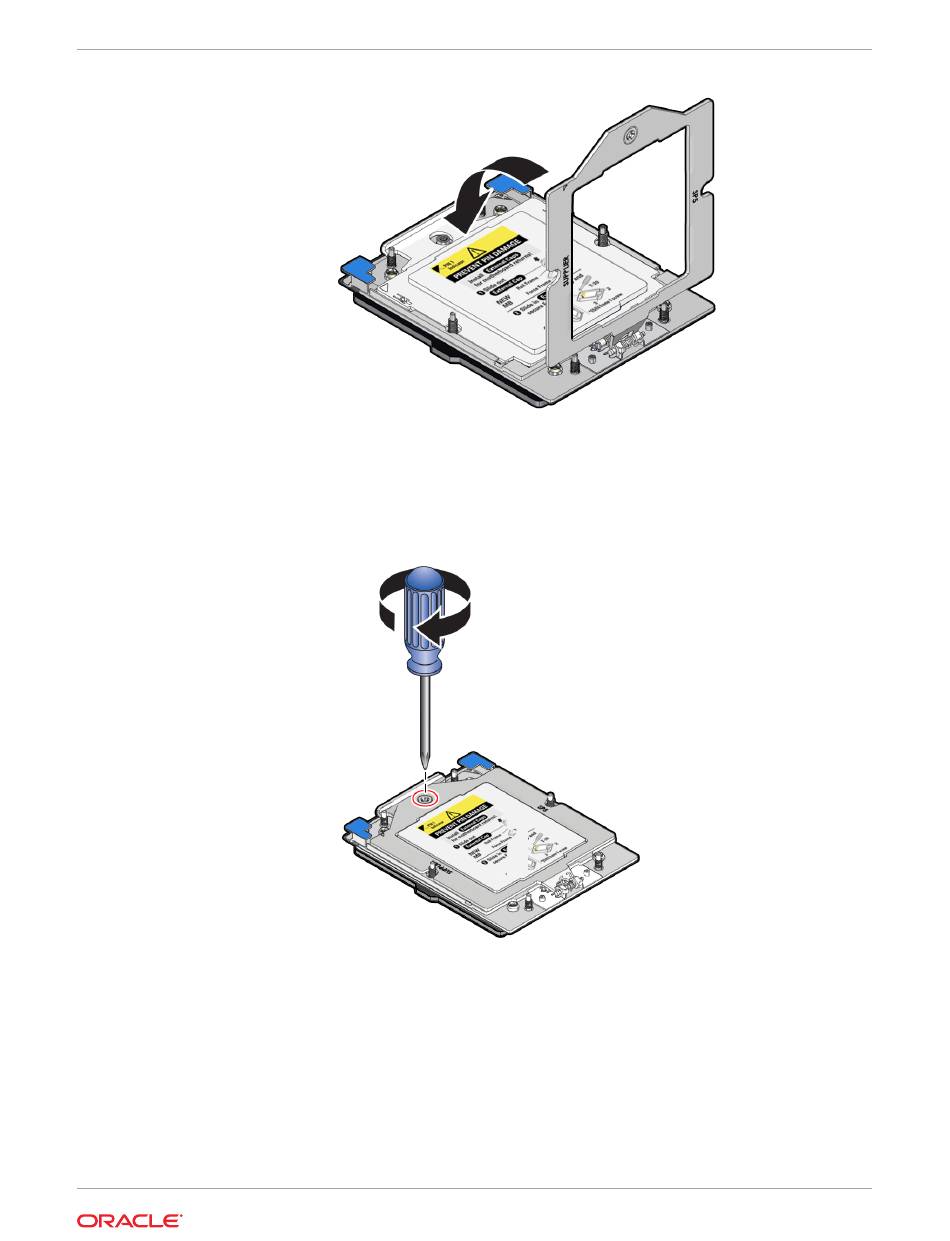

Using a torque driver set to 12 in-lb (inch-pound) (1.35 Nm/13.5 kg-cm) with a Torx
T20 bit, fully tighten the captive screw that secures the force frame to the socket
stiffener frame.
Use one hand to hold down the spring-loaded force frame until the screw is
tightened.
Repeat steps 15a through 15d if your system had a second processor.
Place the old motherboard in the box that the new motherboard came in and return it
to the Oracle Service Center for failure analysis.
