e.
f.
g.

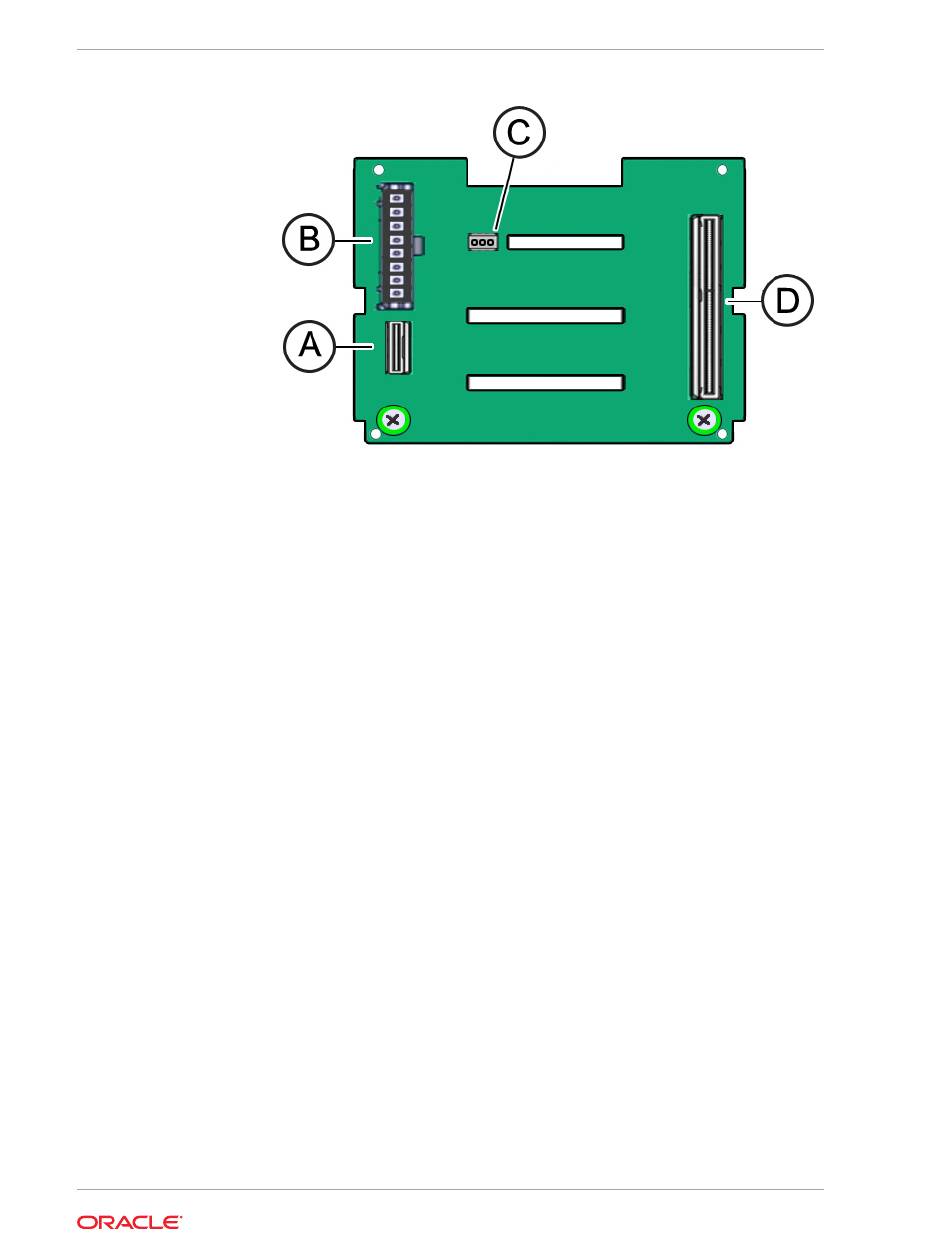

Install the 4-Drive Backplane
To install the 4-Drive disk backplane and storage drive cage:
Unpack the replacement 4-Drive disk backplane and place it on an antistatic mat.
1.
Install the 4-Drive disk backplane on to the storage drive cage. Then reinstall the
2.
storage drive cage in to the chassis.
a.
Using a Torx T15 screwdriver, loosen the two spring-mounted screws that
secure the disk backplane to the storage drive cage [5].
Gently remove the disk backplane from the storage drive cage [6].
Place the disk backplane on an antistatic mat.
Align the replacement disk backplane with the rear of the storage drive cage.
Using a Torx T15 screwdriver, tighten the two spring-mounted screws to
secure the disk backplane to the storage drive cage [1, 2].
Chapter 5
Servicing the Disk Backplane (FRU)
5-26
