Oracle Database Appliance X10 Service Manual page 107

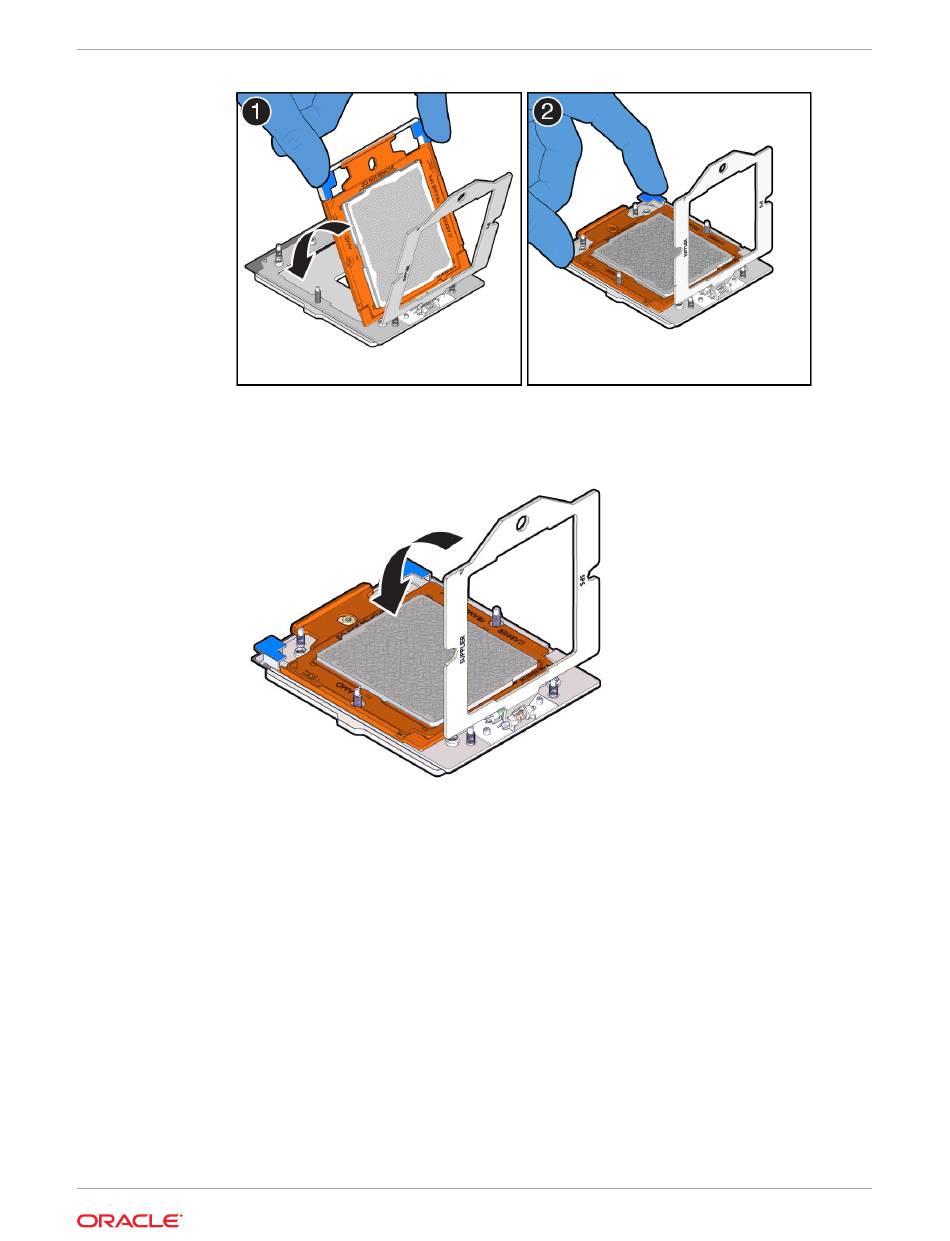

Rotate the Force Frame down to its closed position on the socket stiffener frame.
5.
Using a torque driver set to 12 in-lb (inch-pound) or 1.35 Nm/13.5 kg-cm force with a Torx
6.
T20 bit, fully tighten the captive screw that secures the Force Frame to the socket
stiffener frame.
Use one hand to hold down the spring-loaded Force Frame until the screw is tightened.
Chapter 5
Servicing Processors (FRU)
5-15
