Ensure that you install the flat cable covers for your server on the CMA.
a.
Ensure that the six Velcro straps are threaded into the CMA.
b.
Note:
Ensure that the two Velcro straps located on the front slide bar are threaded
through the opening in the top of the slide bar, as shown in the illustration in
Step 1. This prevents the Velcro straps from interfering with the expansion
and contraction of the slide bar when the server is extended out of the rack
and returned to the rack.
To make it easier to install the CMA, extend the server approximately 13 cm (5
c.
inches) out of the front of the rack.
Take the CMA to the back of the equipment rack, and ensure that you have adequate
d.
room to work at the back of the server.
Note:
References to "left" or "right" in this procedure assume that you are facing
the back of the equipment rack.
Note:
Throughout this installation procedure, support the CMA and do not allow it
to hang under its own weight until it is secured at all four attachment points.

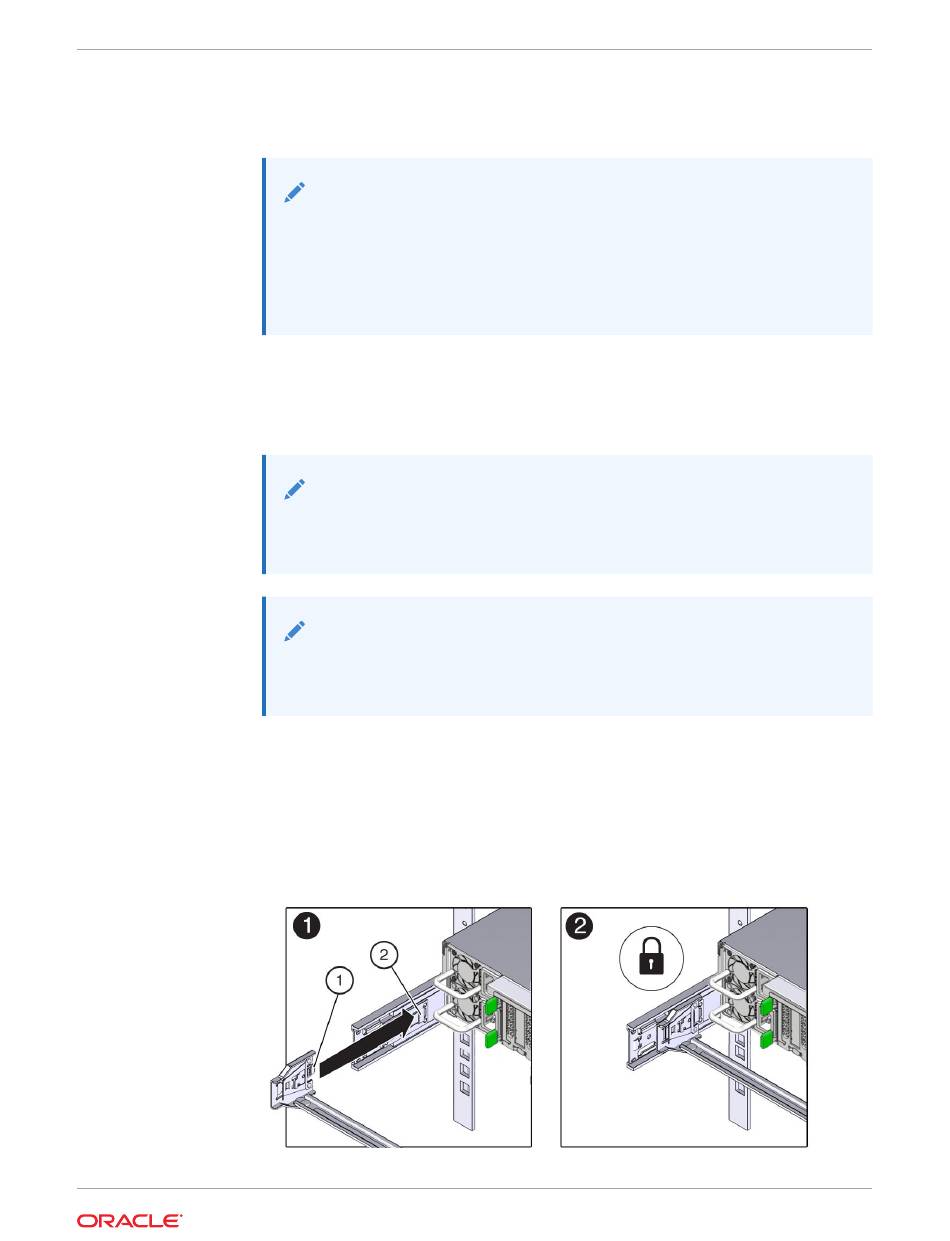

To install CMA connector A into the left slide-rail:
3.
Insert CMA connector A into the front slot on the left slide-rail until it locks into place
a.
with an audible click [1 and 2].
The connector A tab (callout 1) goes into the slide-rail front slot (callout 2).
Gently tug on the left side of the front slide bar to verify that connector A is properly
b.
seated.
Install the Cable Management Arm (Optional)
Chapter 6
6-7
