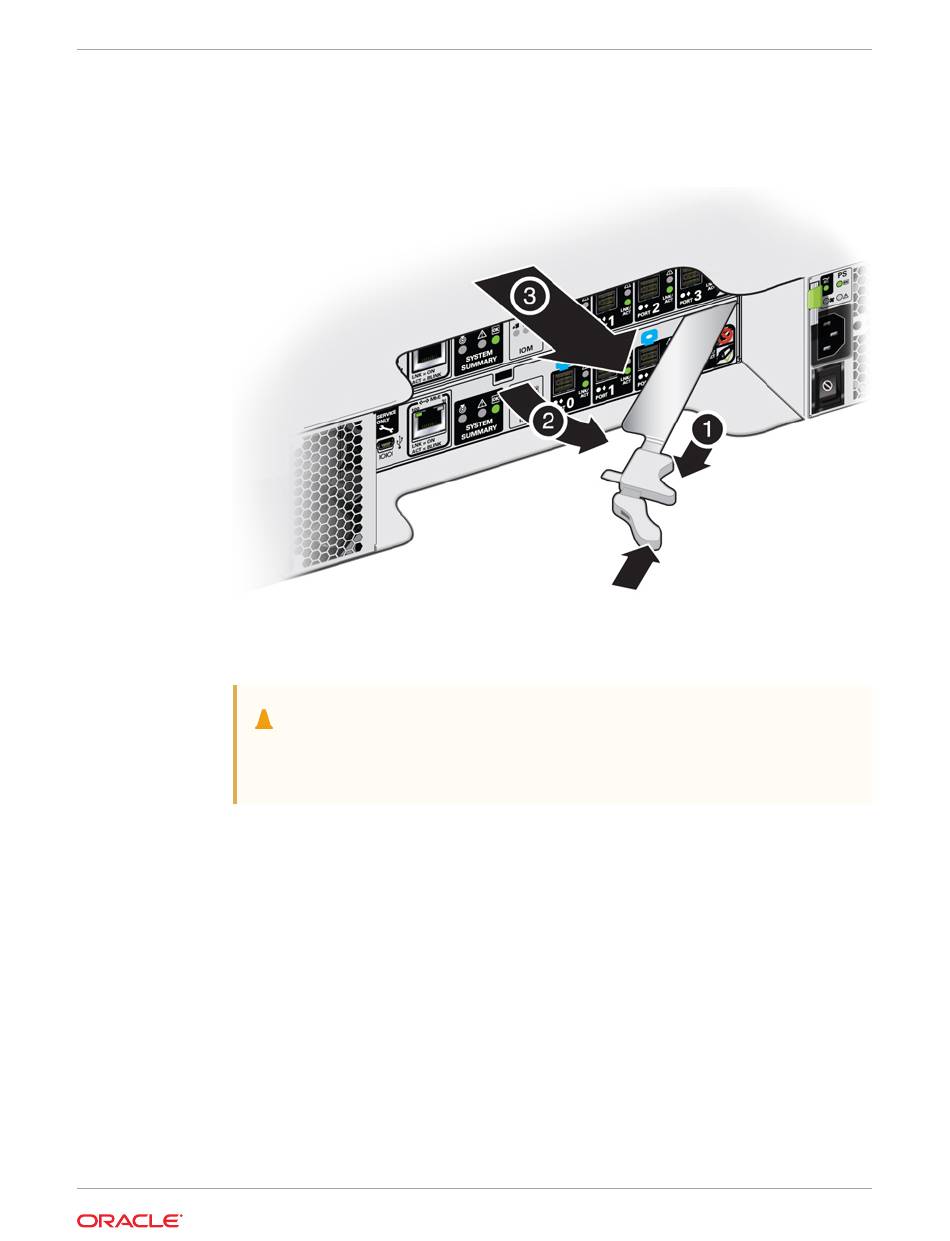

Remove the I/O module using your thumb and forefinger, pinch the release buttons [1]
2.
together to release the locking lever [2] as shown in the following figure. Grasp the lever
and remove the I/O module from the chassis [3] as shown in the following figure.
Open the lever in the new I/O module if it is not already open.
3.
Slide the new I/O module into the disk shelf and close the locking lever.
4.
Caution:
Equipment damage. Be careful not to damage the connector pins at the back
of the I/O module.
Reconnect the cables.
5.
Verify that the new I/O module is working correctly.
6.
•
After approximately 60 seconds, the power LED should be solid green and the Fault/
Locate LED should be off.
•
For each port that has a cable connected, all four activity LEDs should be solid
green.
Oracle Database Appliance X10-HA Storage Shelf Hot Pluggable Components
