Storage Shelf Back Panel Status Indicators
See a listing of the various back panel status indicators for the Oracle Database
Appliance X10-HA storage shelf.

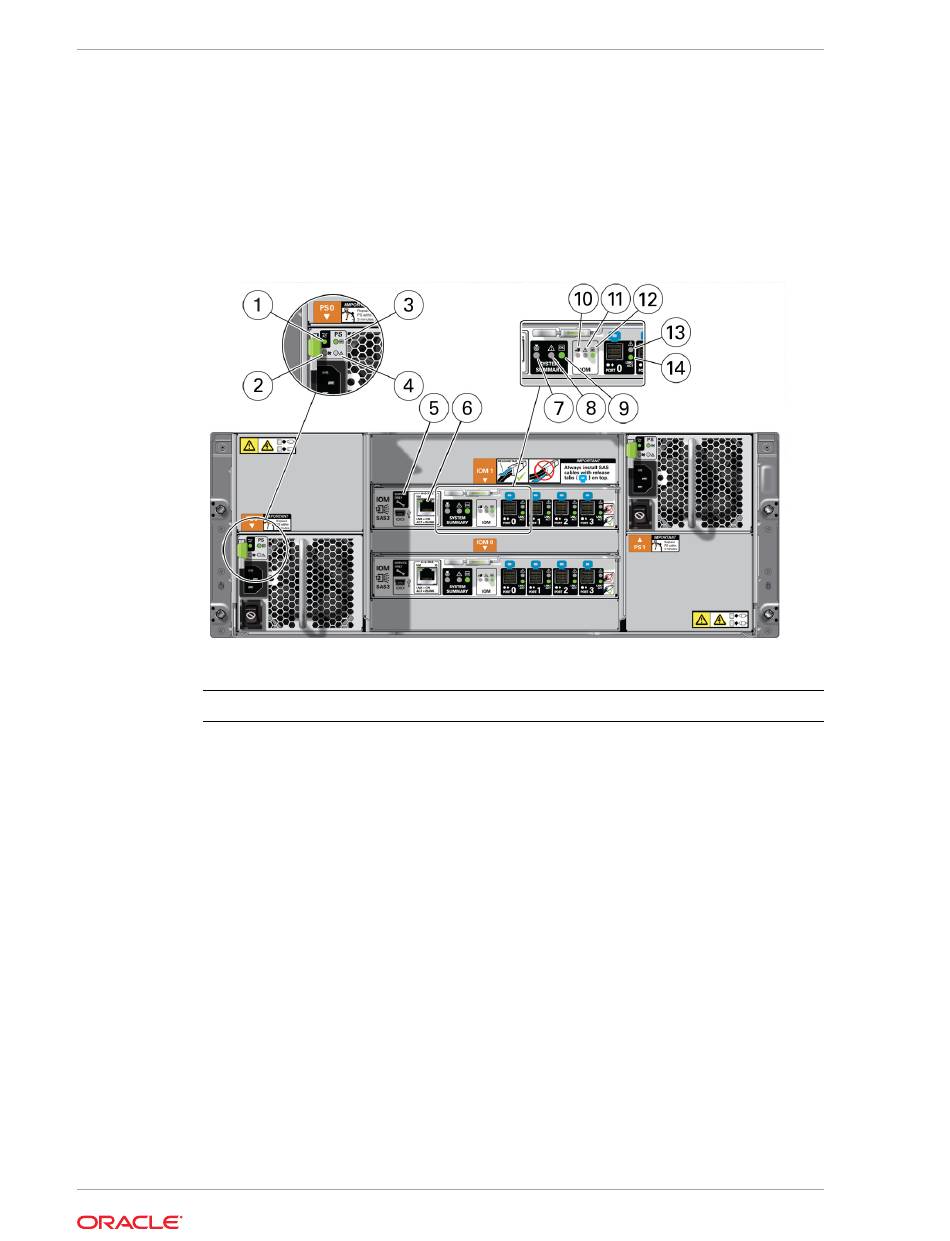

The following figure shows the controls and indicators on the Oracle Database
Appliance X10-HA storage shelf (DE3-24C) back panel.
Callout
1
2
3
4
5
6
Oracle Database Appliance X10-HA Status Indicators
Indicator/LED: Color
AC power fault indicator:
amber
Fan fail indicator: amber
Power supply status indicator:
green
DC power fail indicator: amber
Reserved
Network port (reserved)
Chapter 1
State Meaning
•
Off - Normal operation.
•
On - Indicates an AC
power fault.
•
Off - Normal operation.
•
On - The fan is faulty.
•
Off - The power supply is
unplugged or turned off.
•
On - The power supply is
operating normally.
•
Off - Normal operation.
•
On - The power supply is
faulty.
This port is reserved for
Oracle Service.
This port is reserved for
Oracle Service.
