Install the Front LED Indicator Module
Unpack the replacement front LED indicator module and place it on an antistatic
1.
mat.
Install the front LED indicator module.
2.
a.
b.
c.
Reconnect the LED indicator module cable to the motherboard.
3.
Place the LED indicator module on an antistatic mat.

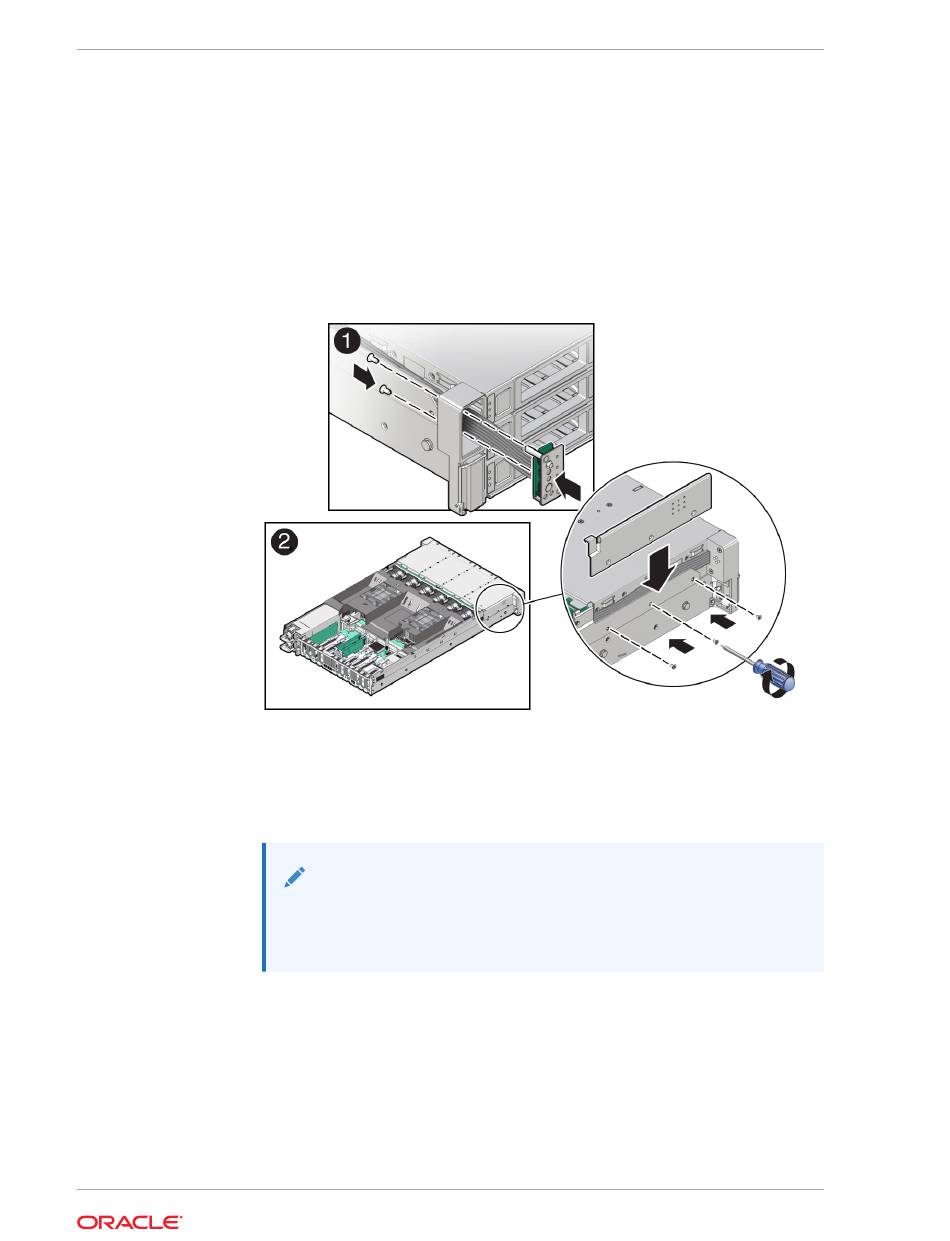

Push the LED indicator module and cable through the LED housing on the
server front panel. Then insert and tighten the two No. 2 Phillips screws to
secure the LED indicator module to the server front panel [1].
Place the FIM cable cover onto the chassis and install the three No. 2 Phillips
screws to secure the cover to the chassis [2].
Slide the LED indicator module cable into the cable trough on the side of the
chassis wall (on the left side when facing the front of the system).
Note:
To ease installation of the LED indicator module cable, you might
need to lift the disk backplane auxiliary signal cable from the left-side
cable trough.
