CHAPTER 3 Settings and Measurement

3 . 1 Window names and functions

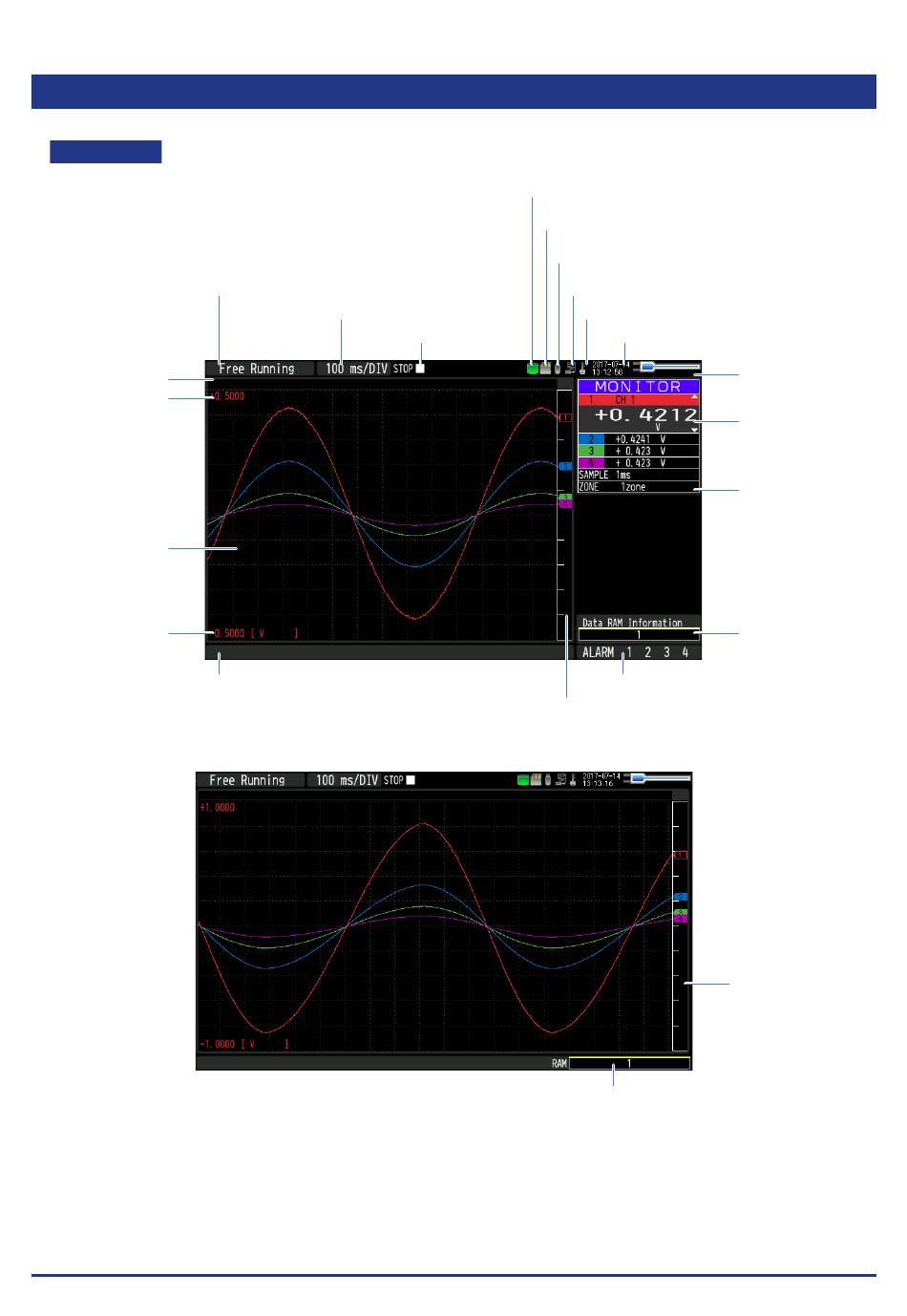

Y-T Screen
19 . Data capture bar
17 . Scale upper limit
18 . Y-T Waveform display
17 . Scale lower limit
3-2
1 . Status message
2 . TIME/DIV
16 . File name display area
4 . Device access display
(Internal memory)
5 . Device access display
(SD card)
6 . Device access display
(USB memory)
7 . Remote lamp
3 . Status mark
15 . Level bar
8 . Key lock display
9 . Clock display
10 . AC/Battery status indicator
11 . Digital display
12 . Quick settings
13 . Internal RAM information
14 . Alarm display
15 . Level bar
13 . Internal RAM information
