2 .3 Nomenclature and Functions

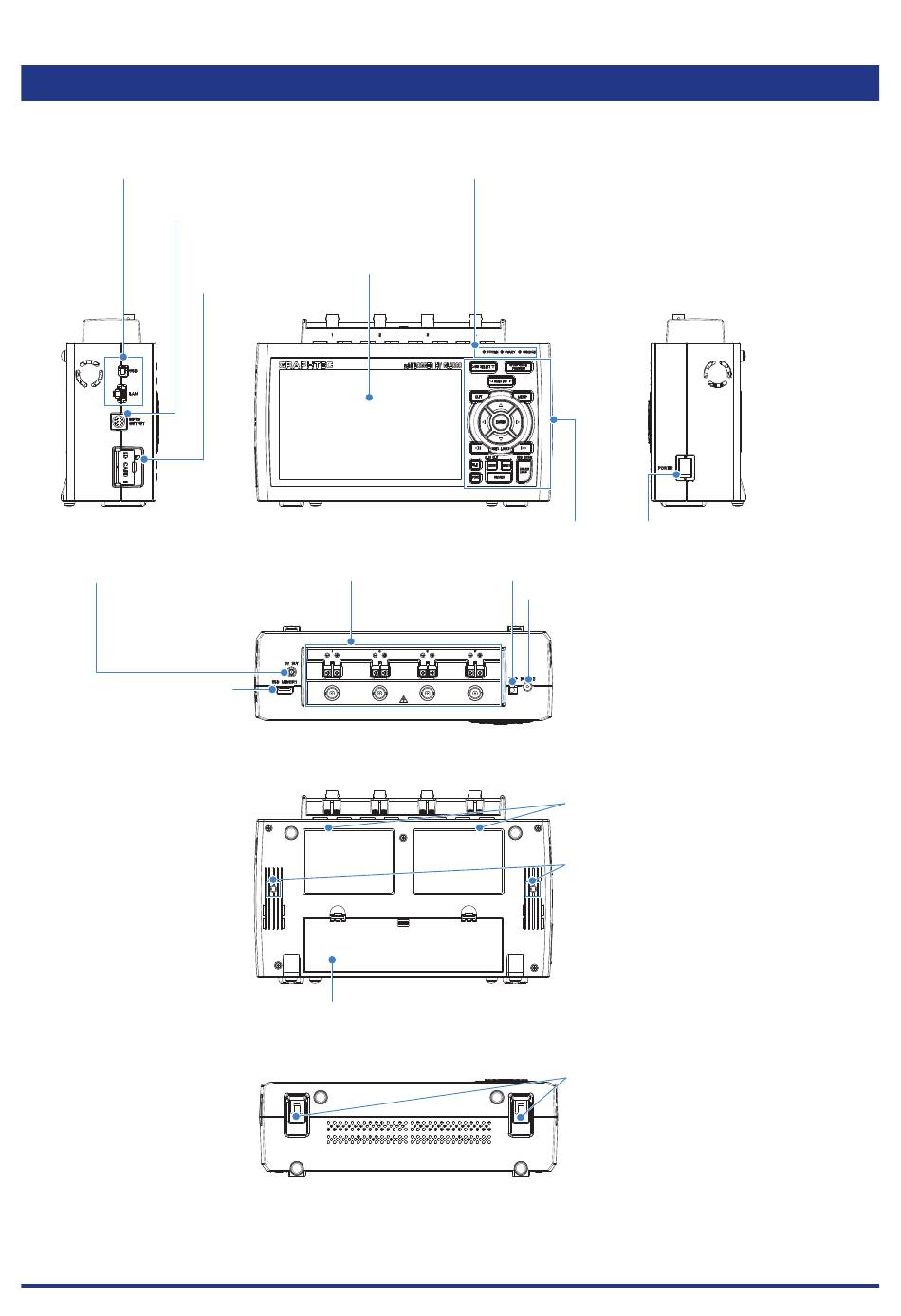

This section describes the names and function of the device.
PC interface terminals
• USB
• LAN
External input/output terminals
• LOGIC/PULSE
• EXT TRIG/SAMPLE
• ALARM/TRIG
SD CARD
Power jack for humidity sensor
Humidity sensor
(B-530: Option)
USB memory terminal
Operation status LED
Monitor
Analog signal input terminals
Battery cover
Two battery packs (B-569: option)
can be installed .
CHAPTER 2 Checks and Preparation
• POWER ON when the power is ON
Blinking while accessing to the
memory
• START ON during data capture
• CHARGE ON while the battery is charging
Control panel keys Power switch
GND terminal
AC adapter jack
Label
Tilt stand fixing screw
(Screw hole M4, Depth 6)
Tilt foot
2-3
