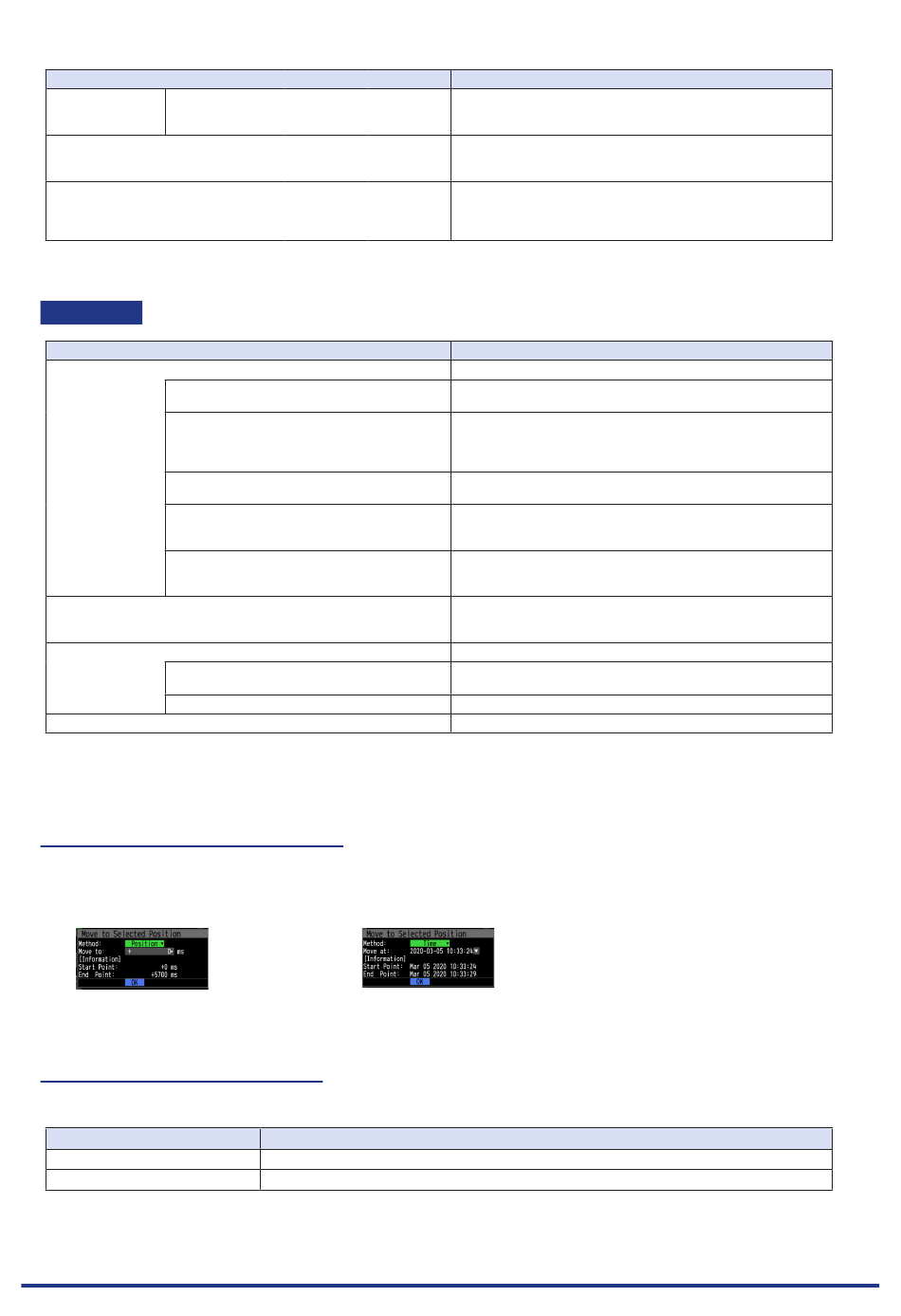

Span
Run All Data XY
Run Cursors XY
XY replay
Set XY Display
CH
Trace
Position
Vernier
Span
Reflect XY display settings
XY Overwrite
Select File
Overwrite clear
Return to Y-T waveform screen
(8)-1 Move to selected position
Set the position (relative time with the trigger point set as 0) or the time and then move the current selected
cursor (A or B) to the position.
< Position >
(8)-2 Cursor synchronization
Set function that move two cursors in synchronization.
Setting
Off
On
* Cursor Synch is turned Off when you move a cursor using the Move to Selected Position or perform Data Search.
Setting
Setting
< Time >
Cursors are not synchronized. Only the specified one cursor moves.
Two cursors move in synchronization.
CHAPTER 3 Settings and Measurement
Description
Set the Span.
You can set it when the analog CH in the Span mode is set to
the axis.
Execute XY display for all data.
* When the amount of data is large, it may take time to draw
XY graph.
The data of the section sandwiched between cursors AB is
XY-displayed.
* When the amount of data is large, it may take time to draw
the XY graph.
Description
Perform settings for XY display.
Set X-axis and Y-axis of XY graph.
CH1 to CH4
Set the trace of XY graph.
Off, On
Waveforms are not displayed on the screen when trace is set
to Off. They are also not displayed on the digital display.
Set the XY position.
0 to 100%
Set the XY Vernier.
40 to 100%
* The range varies depending on the range setting.
Set the Span.
You can set it when the analog CH in the Span mode is set
on the axis.
The XY graph with the contents of XY display settings is
redrawn.
* When the amount of data is large, it may take time to draw.
Set the XY overwrite.
Select the image file to be overwritten and execute
overwriting.
The XY overwrite is cleared and completed.
The data being replayed is changed to Y-T display.
Description
3-131
