Chapter 3: Jumpers and Connectors

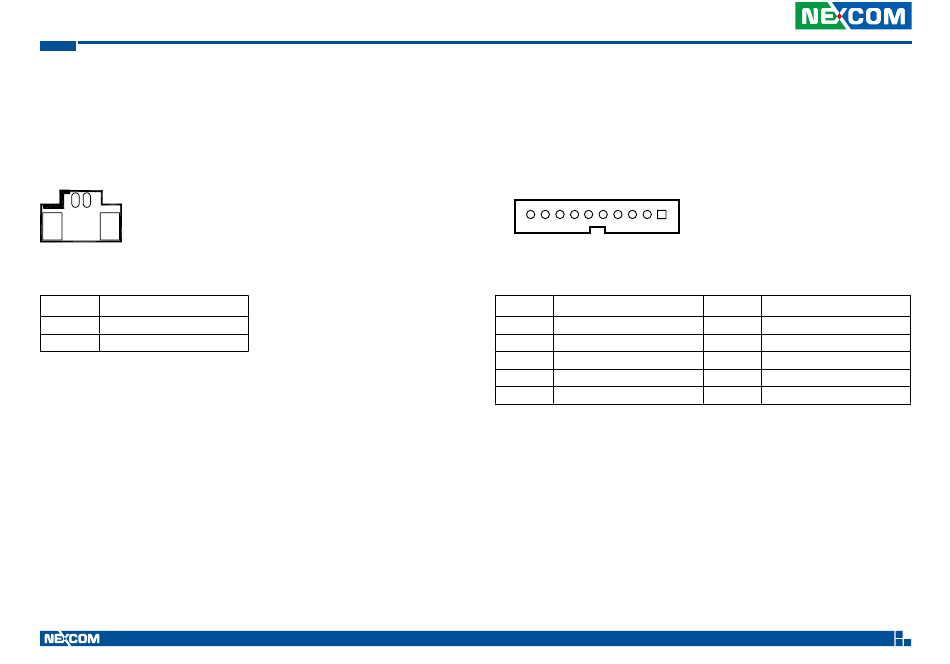

RTC Battery Connector

Connector size: 1 x 2 = 2-pin header
Connector location: J15
1 2
Pin Definition
1 GND
2 VBAT
Copyright © 2021 NEXCOM International Co., Ltd. All Rights Reserved.

Debug 80 Port Connector

Connector size: 1 x 10 = 10-pin header
Connector location: J17
10
Pin Definition
1 GND
3 LPC_CLK
5 LPC_AD3
7 LPC_AD1
9 LPC_SERIRQ
23
1
Pin Definition
2 PLTRST#
4 LPC_FRAME#
6 LPC_AD2
8 LPC_AD0
10 VCC3
