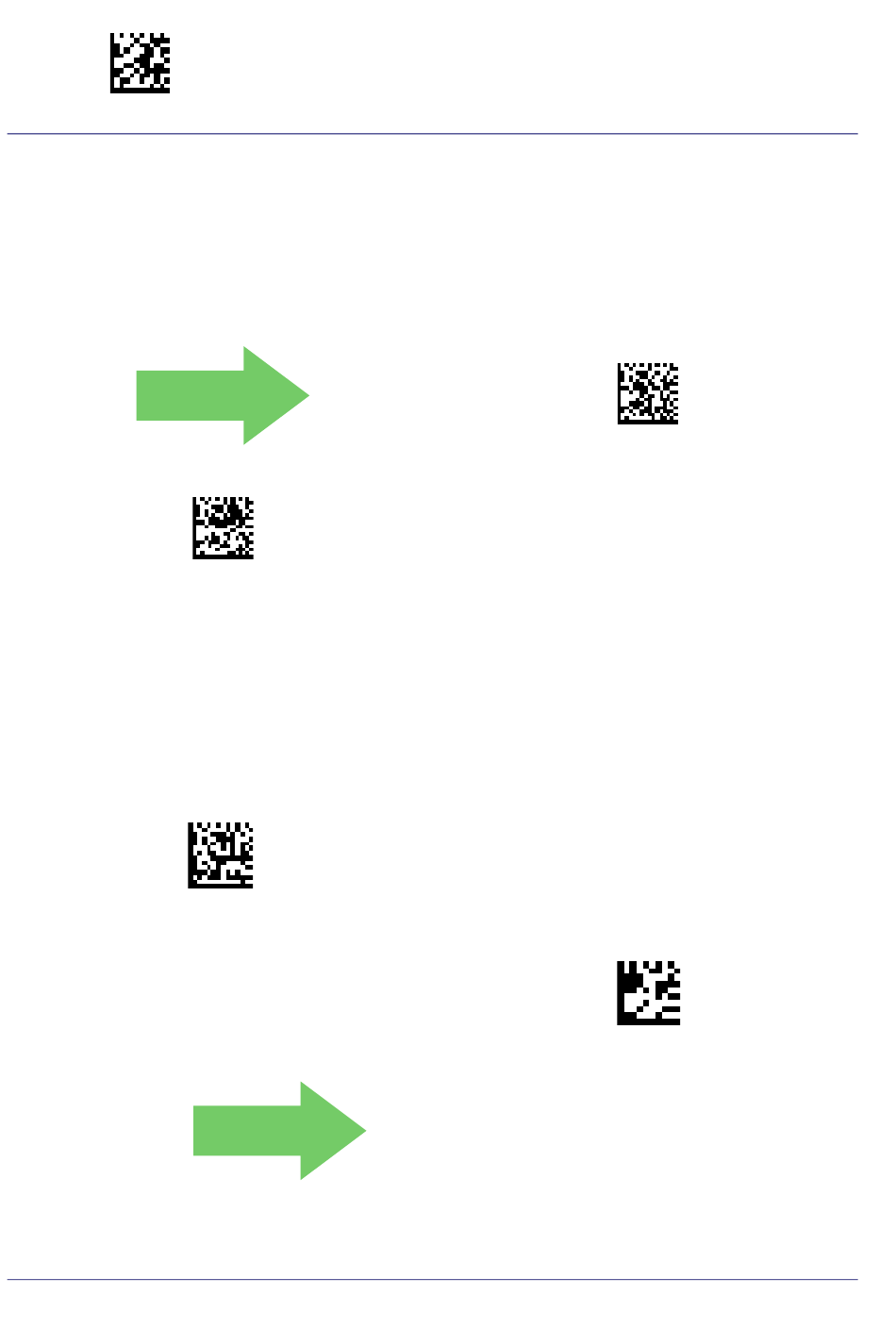

Enter/Exit Programming Mode

Micro PDF417 Length Control

This feature specifies either variable length decoding or fixed length decoding for this symbology.
Variable Length: For variable length decoding, a minimum and maximum length may be set.
Fixed Length: For fixed length decoding, two different lengths may be set.
DEFAULT
$CMILC01(CR)
Micro PDF417 Length Control = Fixed Length

Micro PDF417 Set Length 1

Specifies one of the bar code lengths for
in Variable Length Mode, or the first fixed length if in Fixed Length Mode. Length includes the bar code's data
characters only. Characters can be set from 0001 to 0366 characters (pad with zeroes) in increments of 01. Any
value greater than 0366 will be considered to be 0366.
See page 217 for detailed instructions on setting this feature.
$CMIL1
Select Micro PDF417 Length 1 Setting
Make a mistake? Scan the CANCEL bar code to abort and
not save the entry string. You can then start again at the
beginning.
192
Micro PDF417 Length
DEFAULT
$CMILC00(CR)
Micro PDF417 Length Control = Variable Length
Control. Length 1 is the minimum label length if
To configure this feature, scan the ENTER/EXIT PRO-
GRAMMING MODE bar code above, then the bar code
at left followed by the digits from the Alphanumeric
Appendix D, Keypad
characters in
desired character(s). End by scanning the ENTER/EXIT
bar code again.
~
0001 = Length 1 is 1 Character
representing your
CANCEL
QuickScan™ I QD24XX
