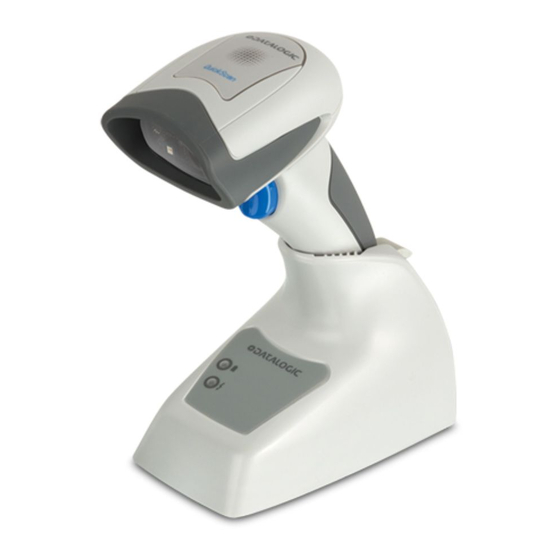

Page 1 ® QuickScan QD2100 Barcode Imager Product Reference Guide...
Page 2 Datalogic reserves the right to change any specification at any time without prior notice. Datalogic is a registered trademark of Datalogic S.p.A. in many countries and the Datalogic logo is a trademark of Data- logic S.p.A. All other brand and product names referred to herein may be trademarks of their respective owners.
Page 3: Table Of Contents
Chapter 1. Introduction ................................. 1 About this Guide ..........................................1 Manual Overview ..........................................1 Manual Conventions ........................................2 References ............................................2 Technical Support ..........................................3 Datalogic Website Support ....................................3 Reseller Technical Support ....................................3 Telephone Technical Support ....................................3 Chapter 2. Getting Started ................................5 About the Imager ..........................................5 Unpacking ............................................5 Setting Up the Imager ........................................6...
Page 4 RS-232 Standard Factory Settings ...................................41 Baud Rate ............................................41 Data Bits .............................................43 Stop Bits .............................................44 Parity ..............................................45 Handshaking Control ........................................46 Chapter 6. RS-232/USB-Com Interfaces ............................. 47 Introduction .............................................47 Standard Factory Settings ......................................47 Intercharacter Delay ........................................48 Beep On ASCII BEL .........................................50 Beep On Not on File ........................................50 ACK NAK Options ...........................................51 ACK Character ........................................52 NAK Character ........................................54...
Page 5 Case Conversion ..........................................107 Character Conversion ........................................108 Chapter 11. Symbologies................................111 Introduction ...........................................111 Symbologies ........................................111 Standard Factory Settings for Symbologies ..............................111 UPC-A ...............................................112 UPC-A Enable/Disable ......................................112 UPC-A Check Character Transmission ................................112 Expand UPC-A to EAN-13 ....................................113 UPC-A Number System Character Transmission ............................113 In-Store Minimum Reads ....................................114 UPC-E ..............................................115 UPC-E Enable/Disable .......................................115...
Page 6 I 2 of 5 Stitching ........................................200 Datalogic 2 of 5 ..........................................201 Datalogic 2 of 5 Enable/Disable ................................... 201 Datalogic 2 of 5 Check Character Calculation ............................202 Datalogic 2 of 5 Minimum Reads ................................. 203 Datalogic 2 of 5 Decoding Level .................................. 203 Datalogic 2 of 5 Length Control ...................................
Page 7 Codabar Check Character Calculation ...............................214 Codabar Check Character Transmission ..............................215 Codabar Start/Stop Character Transmission ............................215 Codabar Start/Stop Character Set ................................216 Codabar Start/Stop Character Match .................................217 Codabar Quiet Zones ......................................218 Codabar Minimum Reads ....................................219 Codabar Decoding Level ....................................220 Codabar Length Control ....................................222 Codabar Set Length 1 .......................................223 Codabar Set Length 2 .......................................225 Codabar Interdigit Ratio ....................................227...
Page 8 Appendix B. Standard Defaults ....................271 Default Exceptions ........................................280 Appendix C. LED and Beeper Indications ................283 LED and Beeper Indications ....................................284 Error Codes ............................................ 285 Appendix D. Sample Barcodes ....................287 UPC-A ..........................................287 Interleaved 2 of 5 ........................................287 Codabar .............................................
Page 9: Chapter 1 Introduction
Programming can alternatively be performed using the Datalogic Aladdin™ Configura- tion application which is downloadable from the Datalogic website listed on the back cover of this manual. This multi-platform utility program allows device configuration us- ing a PC.
Page 10: Manual Conventions
References Current versions of the Product Reference Guide (PRG), Quick Reference Guide (QRG), the Datalogic Aladdin™ Configuration application, and any other manuals, in- struction sheets and utilities for this product can be downloaded from the website listed on the back cover of this manual. Alternatively, printed copies or product support CDs can be purchased through your Datalogic reseller.
Page 11: Technical Support
Telephone Technical Support If you do not have internet or email access, you may contact Datalogic technical support at (541) 349-8283 or check the back cover of your manual for more contact information.
Page 12 Introduction NOTES QuickScan® QD2100...
Page 13: Chapter 2. Getting Started
Chapter 2 Getting Started About the Imager Advancements in the LED technology used in this imager significantly improve the illu- mination of the target field of view, resulting in higher scan efficiency. Whether used in Single Trigger or Continuous Mode, the ergonomic design of the imager will help to promote comfortable handling during extended periods of use.
Page 14: Setting Up The Imager
Getting Started Setting Up the Imager Follow the steps provided in this section to connect and get your imager up and commu- nicating with its host: Install the Interface Cable Select the Interface Type Configure Interface Settings (only if not using factory settings for that interface) Configure Other Features (if modifications are needed from factory settings) Install the Interface Cable...
Page 15: Programming
Setting Up the Imager Connect the imager to a USB port on the terminal/PC using the USB Connection — correct USB cable for the interface type you ordered. Reference Figure 2 Connect the imager to the IBM port on the terminal/PC using the IBM Connection —...
Page 16: Using The Programming Barcodes
Getting Started Using the Programming Barcodes This manual contains feature descriptions and barcodes which allow you to reconfigure your imager. Some programming barcode labels, like the Standard Product Default Set- , require only the scan of that single label to enact the change. Most of tings on page 9 the programming labels in this manual, however, require the imager to be placed in Pro- gramming Mode prior to scanning them.
Page 17: Resetting The Standard Product Defaults
Resetting the Standard Product Defaults Resetting the Standard Product Defaults If you aren’t sure what programming options are in your imager, or you’ve changed some options and want the factory settings restored, scan the Standard Product Default Set- barcode below. This will copy the factory configuration for the currently active in- tings terface to the current configuration.
Page 18 Getting Started NOTES QuickScan® QD2100...
Page 19: Chapter 3. Interfaces
Chapter 3 Interfaces Interface Selection Each reader model will support one of the following sets of host interfaces: General Purpose Models (5 volt supply) RS-232 RS-232 OPOS Keyboard Wedge Retail Point of Sale Models (4 to 14 volt supply) RS-232 RS-232 OPOS IBM 46XX Configuring the Interface...
Page 20 Features starting on page 83 IBM-46xx Port 9B reader interface Select IBM-P9B USB-OEM FEATURES Set USB-OEM Interface USB-OEM Features (can be used for OPOS/UPOS/JavaPOS) starting on page 81 Select USB-OEM Download the correct USB Com driver from www.datalogic.com QuickScan® QD2100...
Page 21 Configuring the Interface KEYBOARD FEATURES AT, PS/2 25-286, 30-286, 50, 50Z, 60, 70, 80, 90 & 95 w/Standard Key Encoding Select KBD-AT Keyboard Wedge for IBM AT PS2 with standard key encoding but without external keyboard Select KBD-AT-NK AT, PS/2 25-286, 30-286, 50, 50Z, 60, 70, 80, 90 & 95 Set KEYBOARD w/Alternate Key WEDGE...
Page 22 Interfaces KEYBOARD — cont. FEATURES Keyboard Wedge for IBM Terminals 31xx, 32xx, 34xx, 37xx make only keyboard Select KBD-IBM-M Keyboard Wedge for IBM Terminals 31xx, 32xx, 34xx, 37xx make break keyboard Select KBD-IBM-MB Keyboard Wedge for DIGITAL Terminals VT2xx, VT3xx, VT4xx Set KEYBOARD WEDGE Select KBD-DIG-VT...
Page 23: Global Interface Features
Global Interface Features Global Interface Features The following interface features are configurable by all interface types. To set features specific to your interface, turn to that section of this manual: • RS-232 ONLY Interface on page 41 • Keyboard Interface on page 67 •...
Page 24: Usb Suspend Mode
Interfaces USB Suspend Mode This setting enables/disables the ability of USB interfaces to enter suspend mode. ENTER/EXIT PROGRAMMING MODE DEFAULT USB Suspend Mode = Disable USB Suspend Mode = Enable QuickScan® QD2100...
Page 25: Chapter 4. General Features
Chapter 4 General Features Double Read Timeout To prevent a double read of the same label, the Double Read Timeout sets the minimum time allowed between reads of labels of the same symbology and data. If the unit reads a label and sees the same label again within the Double Read Timeout, the second read of the label will be ignored.
Page 26 General Features Double Read Timeout — continued ENTER/EXIT PROGRAMMING MODE Double Read Timeout = 0.5 Second Double Read Timeout = 0.6 Second Double Read Timeout = 0.7 Second Double Read Timeout = 0.8 Second Double Read Timeout = 0.9 Second Double Read Timeout = 1 Second QuickScan®...
Page 27: Label Gone Timeout
Label Gone Timeout Label Gone Timeout This feature sets the time after the last label segment is seen before the reader prepares for a new label. The timeout can be set within a range of 10 milliseconds to 2,550 millisec- onds (2.55 seconds) in 10ms increments.
Page 28 General Features Label Gone Timeout — cont. ENTER/EXIT PROGRAMMING MODE Select Label Gone Timeout Setting Make a mistake? Scan the CANCEL barcode to abort and not save the entry string. You can then start again at the beginning. CANCEL 016 = Timeout of 160 ms DEFAULT QuickScan®...
Page 29: Led And Beeper Indicators
LED and Beeper Indicators LED and Beeper Indicators Power On Alert Disables or enables the indication (from the Beeper) that the reader is receiving power. ENTER/EXIT PROGRAMMING MODE Power On Alert = Disable (No Audible Indication) DEFAULT Power On Alert = Four Beeps Product Reference Guide...
Page 30: Good Read: When To Indicate
General Features Good Read: When to Indicate This feature specifies when the reader will provide indication (beep and/or flash its green LED) upon successfully reading a barcode. Choices are: • Good Read = Indicate after decode • Good Read = Indicate after transmit •...
Page 31: Good Read Beep Type
LED and Beeper Indicators Good Read Beep Type Specifies whether the good read beep has a mono or bitonal beep sound. ENTER/EXIT PROGRAMMING MODE DEFAULT Good Read Beep Type = Mono Good Read Beep Type = Bitonal Product Reference Guide...
Page 32: Good Read Beep Frequency
General Features Good Read Beep Frequency Adjusts the good read beep to sound at a selectable low, medium or high frequency, se- lectable from the list below. (Controls the beeper’s pitch/tone.) ENTER/EXIT PROGRAMMING MODE Good Read Beep Frequency = Low Good Read Beep Frequency = Medium DEFAULT Good Read Beep Frequency = High...
Page 33 LED and Beeper Indicators Good Read Beep Length — continued ENTER/EXIT PROGRAMMING MODE DEFAULT Good Read Beep Length = 80 msec Good Read Beep Length = 100 msec Good Read Beep Length = 120 msec Good Read Beep Length = 140 msec Good Read Beep Length = 160 msec Good Read Beep Length = 180 msec Good Read Beep Length = 200 msec...
Page 34: Good Read Beep Volume
General Features Good Read Beep Volume Selects the beeper volume (loudness) upon a good read beep. There are three selectable volume levels. ENTER/EXIT PROGRAMMING MODE Good Read Beep Volume = Beeper Off Good Read Beep Volume = Low Good Read Beep Volume = Medium DEFAULT Good Read Beep Volume = High QuickScan®...
Page 35: Good Read Led Duration
LED and Beeper Indicators Good Read LED Duration This feature specifies the amount of time that the Good Read LED remains on following a good read. The good read LED on time can be set within a range of 10 milliseconds to 2,550 milliseconds (0.001 to 2.55 seconds) in 10ms increments.
Page 36 General Features Good Read LED Duration — cont. ENTER/EXIT PROGRAMMING MODE Select Good Read LED Duration Setting Make a mistake? Scan the CANCEL barcode to abort and not save the entry string. You can then start again at the beginning. CANCEL 020 = Good Read LED stays on for DEFAULT...
Page 37: Scanning Features
Scanning Features Scanning Features Scan Mode Selects the scan operating mode for the reader. Selections are: When the trigger is pulled, scanning is activated until one of the fol- Trigger Single — lowing occurs: Scanning Active Time has elapsed - a label has been read - the trigger is released This mode is associated with typical handheld reader operation: when the trigger is pulled, scanning starts and the product scans until the trigger is released, or a label is read,...
Page 38 General Features Scan Mode — continued ENTER/EXIT PROGRAMMING MODE DEFAULT Scan Mode = Trigger Single Scan Mode = Trigger Hold Multiple Scan Mode = Trigger Pulse Multiple Scan Mode = Flashing Scan Mode = Always On Scan Mode = Stand Mode Scan Mode = Trigger Object Sense QuickScan®...
Page 39: Stand Mode Triggered Timeout
Scanning Features Stand Mode Triggered Timeout This feature specifies the time to remain in Trigger Single mode after the trigger is pulled while in Stand Mode. Stand This timeout is only used when the Scan Mode is configured as Mode. NOTE ENTER/EXIT PROGRAMMING MODE DEFAULT...
Page 40 General Features Stand Mode Triggered Timeout — continued ENTER/EXIT PROGRAMMING MODE Stand Mode Triggered Timeout = 6 Seconds Stand Mode Triggered Timeout = 8 Seconds Stand Mode Triggered Timeout = Switch back to Trigger Single on trigger pull QuickScan® QD2100...
Page 41: Scanning Active Time
Scanning Features Scanning Active Time This setting specifies the amount of time that the reader stays in scan ON state once the state is entered. The range for this setting is from 1 to 255 seconds in 1-second incre- ments. Follow these instructions to set this feature: 1.
Page 42 General Features Scanning Active Time — cont. ENTER/EXIT PROGRAMMING MODE Select Scanning Active Time Setting Make a mistake? Scan the CANCEL barcode to abort and not save the entry string. You can then start again at the beginning. CANCEL DEFAULT 005 = Scanning is active for 5 Seconds QuickScan®...
Page 43: Flash On Time
Flash On Time Flash On Time This feature specifies the ON time for the indicator LED while in Flash Mode. The se- lectable range is 100 to 9,900 milliseconds (0.1 to 9.9 seconds), in 100 millisecond in- crements. Follow these instructions to set this feature. 1.
Page 44 General Features Flash On Time — cont. ENTER/EXIT PROGRAMMING MODE Select Flash ON Time Setting Make a mistake? Scan the CANCEL barcode to abort and not save the entry string. You can then start again at the beginning. CANCEL 10 = Flash is ON for 1 Second DEFAULT QuickScan®...
Page 45: Flash Off Time
Flash Off Time Flash Off Time This feature specifies the OFF time for the indicator LED while in Flash Mode. The se- lectable range is 100 to 9,900 milliseconds (0.1 to 9.9 seconds), in 100 millisecond in- crements. Follow these instructions to set this feature. 1.
Page 46 General Features Flash Off Time — cont. ENTER/EXIT PROGRAMMING MODE Select Flash OFF Time Setting Make a mistake? Scan the CANCEL barcode to abort and not save the entry string. You can then start again at the beginning. CANCEL 06 = Flash is OFF for 600ms DEFAULT QuickScan®...
Page 47: Stand Mode Sensitivity
Stand Mode Sensitivity Stand Mode Sensitivity Sets the sensitivity level for stand mode wakeup. Choices are low, medium and high. ENTER/EXIT PROGRAMMING MODE Stand Mode Sensitivity = Low DEFAULT Stand Mode Sensitivity = Medium Stand Mode Sensitivity = High Product Reference Guide...
Page 48: Green Spot Duration
General Features Green Spot Duration Specifies the duration of the good read pointer beam after a good read. ENTER/EXIT PROGRAMMING MODE Green Spot Duration = Disable (Green Spot is Off) DEFAULT Green Spot Duration = Short (300 msec) Green Spot Duration = Medium (500 msec) Green Spot Duration = Long (800 msec) QuickScan®...
Page 49: Chapter 5. Rs-232 Only Interface
Chapter 5 RS-232 ONLY Interface Introduction Use the programming barcodes in this chapter if modifications to the standard RS-232 interface settings are necessary to meet your system’s requirements. Additional settings which apply to both the RS-232 and USB interfaces are available in Chapter 6, RS-232/ USB-Com Interfaces RS-232 Standard Factory Settings...
Page 50 RS-232 ONLY Interface Baud Rate — continued ENTER/EXIT PROGRAMMING MODE DEFAULT Baud Rate = 9600 Baud Rate = 19,200 Baud Rate = 38,400 Baud Rate = 57,600 Baud Rate = 115,200 QuickScan® QD2100...
Page 51: Data Bits
Data Bits Data Bits This parameter allows the reader to interface with devices requiring a 7-bit or 8-bit ASCII protocol for sending and receiving data. ENTER/EXIT PROGRAMMING MODE 7 Data Bits DEFAULT 8 Data Bits Product Reference Guide...
Page 52: Stop Bits
RS-232 ONLY Interface Stop Bits The stop bit(s) at the end of each transmitted character marks the end of transmission of one character and prepares the receiving device for the next character in the serial data stream. The number of stop bits selected (one or two) depends on the number the receiv- ing terminal is programmed to accommodate.
Page 53: Parity
Parity Parity This feature specifies parity required for sending and receiving data. A parity check bit is the most significant bit of each ASCII coded character. Select the parity type according to host device requirements. • Select None when no parity bit is required. •...
Page 54: Handshaking Control
RS-232 ONLY Interface Handshaking Control The data interface consists of an RS-232 port designed to operate either with or without the hardware handshaking lines, Request to Send (RTS), and Clear to Send (CTS). Hand- shaking Control includes the following options: •...
Page 55: Chapter 6. Rs-232/Usb-Com Interfaces
Chapter 6 RS-232/USB-Com Interfaces Introduction The programming barcodes in this chapter allow modifications to the standard RS-232 and USB-Com interfaces. Standard Factory Settings Reference for a listing of standard factory settings. Appendix B, Standard Defaults Product Reference Guide...
Page 56: Intercharacter Delay
RS-232/USB-Com Interfaces Intercharacter Delay This parameter specifies the intercharacter delay between the end of one character and the beginning of the next. The delay can be set within a range of zero (0) to 990 milliseconds in 10ms increments. A setting of zero specifies no delay. To set the delay: 1.
Page 57 Intercharacter Delay Intercharacter Delay — cont. ENTER/EXIT PROGRAMMING MODE Intercharacter Delay = No Delay Select Intercharacter Delay Setting Make a mistake? Scan the CANCEL barcode to abort and not save the entry string. You can then start again at the beginning. CANCEL 00 = No Intercharacter Delay DEFAULT...
Page 58: Beep On Ascii Bel
RS-232/USB-Com Interfaces Beep On ASCII BEL When this parameter is enabled, the reader issues a beep when a <BEL> character is de- tected on the RS-232 serial line. <BEL> is issued to gain a user's attention to an illegal entry or other important event. ENTER/EXIT PROGRAMMING MODE DEFAULT Beep On ASCII BEL = Disable...
Page 59: Ack Nak Options
ACK NAK Options ACK NAK Options This enables/disables the ability of the reader to support the RS-232 ACK/NAK proto- col. When configured, the reader and/or host sends an “ACK” when it receives data properly, and sends “NAK” when the data is in error. Options are: •...
Page 60: Ack Character
RS-232/USB-Com Interfaces ACK Character This setting specifies an ASCII character or hex value to be used as the ACK character. ASCII characters or any hex value from 0 to 0xFF can be selected. Setting to previously defined characters such as XON, XOFF, or host commands conflicts with normal operation of these characters.
Page 61 ACK NAK Options ACK Character — cont. ENTER/EXIT PROGRAMMING MODE Select ACK Character Setting 0x06 ‘ACK’ Character DEFAULT Product Reference Guide...
Page 62: Nak Character
RS-232/USB-Com Interfaces NAK Character This setting specifies an ASCII character or hex value to be used as the NAK character. ASCII characters or any hex value from 0 to 0xFF can be selected. Setting to previously defined characters such as XON, XOFF, or host commands conflicts with normal operation of these characters.
Page 63 ACK NAK Options NAK Character — cont. ENTER/EXIT PROGRAMMING MODE Select NAK Character Setting 0x15 ‘NAK’ Character DEFAULT Product Reference Guide...
Page 64: Ack Nak Timeout Value
RS-232/USB-Com Interfaces ACK NAK Timeout Value This option specifies the amount of time the reader waits for an ACK character from the host following label transmission. The selectable timeout range is 200 milliseconds to 15,000ms (15 seconds) in 200ms increments. A selection of 0 disables the timeout. To set this value: 1.
Page 65 ACK NAK Options ACK NAK Timeout Value — cont. ENTER/EXIT PROGRAMMING MODE Select ACK NAK Timeout Value Setting Make a mistake? Scan the CANCEL barcode to abort and not save the entry string. You can then start again at the beginning. CANCEL 01 ACK NAK Timeout value is 200ms DEFAULT...
Page 66: Ack Nak Retry Count
RS-232/USB-Com Interfaces ACK NAK Retry Count This feature specifies the number of times the reader retries a label transmission due to a retry condition. The selectable range is from 1 to 254 retries. A selection of 0 disables the count, and a selection of 255 specifies unlimited retries. To set this feature: 1.
Page 67 ACK NAK Options ACK NAK Retry Count — cont. ENTER/EXIT PROGRAMMING MODE Select ACK NAK Retry Count Setting Make a mistake? Scan the CANCEL barcode to abort and not save the entry string. You can then start again at the beginning. CANCEL 003 = 3 Retries DEFAULT...
Page 68: Ack Nak Error Handling
RS-232/USB-Com Interfaces ACK NAK Error Handling This feature specifies the method the reader uses to handle receive errors detected while waiting for an ACK character from the host. Options are: • Ignore errors detected • Process error as valid ACK character •...
Page 69: Indicate Transmission Failure
Indicate Transmission Failure Indicate Transmission Failure This option enables/disables the reader’s ability to sound an error beep to indicate a transmission failure while in ACK/NAK mode. ENTER/EXIT PROGRAMMING MODE Indicate Transmission Failure = Disable Indication DEFAULT Indicate Transmission Failure = Enable Indication Product Reference Guide...
Page 70: Disable Character
RS-232/USB-Com Interfaces Disable Character Specifies the value of the RS-232 host command used to disable the reader. ASCII characters or any hex value from 0 to 0xFF can be selected. Setting to previously defined characters such as XON, XOFF, or host commands conflicts with normal operation of these characters.
Page 71 Disable Character Disable Character — cont. ENTER/EXIT PROGRAMMING MODE Select Disable Character Setting 0x44 = Disable Character is ‘D’ DEFAULT Product Reference Guide...
Page 72: Enable Character
RS-232/USB-Com Interfaces Enable Character Specifies the value of the RS-232 host command used to enable the reader. ASCII characters or any hex value from 0 to 0xFF can be selected. Setting to previously defined characters such as XON, XOFF, or host commands conflicts with normal operation of these characters.
Page 73 Enable Character Enable Character — cont. ENTER/EXIT PROGRAMMING MODE Select Enable Character Setting 0x45 = Enable Character is ‘E’ DEFAULT Product Reference Guide...
Page 74 RS-232/USB-Com Interfaces NOTES QuickScan® QD2100...
Page 75: Chapter 7. Keyboard Interface
Chapter 7 Keyboard Interface Introduction Use the programming barcodes in this chapter to select options for USB Keyboard and Wedge Interfaces. Standard Factory Settings Reference for a listing of standard factory settings. Appendix B, Standard Defaults Scancode Tables Information about control character emulation which applies to keyboard interfaces is listed in Appendix F, Scancode Tables Product Reference Guide...
Page 76: Country Mode
Keyboard Interface Country Mode This feature specifies the country/language supported by the keyboard. Only the following interfaces support ALL Country Modes. • USB Keyboard (without alternate key encoding) • AT, PS/2 25-286, 30-286, 50, 50Z, 60, 70, 80, 90 & 95 w/Std Key Encoding •...
Page 77 Country Mode Country Mode — continued ENTER/EXIT PROGRAMMING MODE Supports only the interfaces listed in theCountry Mode feature description. Country Mode = Denmark Country Mode = France Country Mode = Germany Supports only the interfaces listed in theCountry Mode feature description.
Page 78 Keyboard Interface Country Mode — continued ENTER/EXIT PROGRAMMING MODE Supports only the interfaces listed in theCountry Mode feature description. Country Mode = Poland Supports only the interfaces listed in theCountry Mode feature description. Country Mode = Portugal Supports only the interfaces listed in theCountry Mode feature description.
Page 79: Caps Lock State
Caps Lock State Caps Lock State This option specifies the format in which the reader sends character data. This applies to keyboard wedge interfaces. This does not apply when an alternate key encoding keyboard is selected. ENTER/EXIT PROGRAMMING MODE DEFAULT Caps Lock State = Caps Lock OFF Caps Lock State = Caps Lock ON Caps Lock State = AUTO Caps Lock Enable...
Page 80: Send Control Characters
Keyboard Interface Send Control Characters This feature Specifies how the reader transmits ASCII control characters to the host. Ref- erence for more information about control characters. Appendix F, Scancode Tables Options are as follows: Characters from 00 to 0x1F are sent as control character Control Character 00 —...
Page 81: Wedge Quiet Interval
Wedge Quiet Interval Wedge Quiet Interval This option specifies the amount of time to look for keyboard activity before the read- er breaks the keyboard connection in order to transmit data to host. The selectable range for this feature is from 0 to 990ms in 10ms increments. This feature applies ONLY to the Keyboard Wedge interface.
Page 82 Keyboard Interface Wedge Quiet Interval — cont. ENTER/EXIT PROGRAMMING MODE Select Wedge Quiet Interval Setting Make a mistake? Scan the CANCEL barcode to abort and not save the entry string. You can then start again at the beginning. CANCEL 10 = Quiet Interval of 100 ms DEFAULT QuickScan®...
Page 83: Intercharacter Delay
Intercharacter Delay Intercharacter Delay This parameter specifies the intercharacter delay between the end of one character and the beginning of the next. The delay can be set within a range of zero (0) to 990 milliseconds in 10ms increments. A setting of zero specifies no delay. This feature applies ONLY to the Keyboard Wedge interface.
Page 84 Keyboard Interface Intercharacter Delay — cont. ENTER/EXIT PROGRAMMING MODE Intercharacter Delay = No Delay Select Intercharacter Delay Setting Make a mistake? Scan the CANCEL barcode to abort and not save the entry string. You can then start again at the beginning. CANCEL 00 = No Intercharacter Delay DEFAULT...
Page 85: Intercode Delay
Intercode Delay Intercode Delay Specifies the delay between labels transmitted to the host for this interface. The selectable range for this feature is from 0 to 99 seconds. Follow these instructions to set this feature: 1. Determine the desired setting. 2.
Page 86 Keyboard Interface Intercode Delay — cont. ENTER/EXIT PROGRAMMING MODE Set Intercode Delay Make a mistake? Scan the CANCEL barcode to abort and not save the entry string. You can then start again at the beginning. CANCEL 00 = No Wedge Intercode Delay DEFAULT QuickScan®...
Page 87: Usb Keyboard Speed
USB Keyboard Speed USB Keyboard Speed This option specifies the USB poll rate for a USB keyboard. This feature applies ONLY to the USB Keyboard interface. NOTE ENTER/EXIT PROGRAMMING MODE DEFAULT USB Keyboard Speed = 1ms USB Keyboard Speed = 2ms USB Keyboard Speed = 3ms USB Keyboard Speed = 4ms USB Keyboard Speed = 5ms...
Page 88 Keyboard Interface USB Keyboard Speed — continued ENTER/EXIT PROGRAMMING MODE USB Keyboard Speed = 6ms USB Keyboard Speed = 7ms USB Keyboard Speed = 8ms USB Keyboard Speed = 9ms USB Keyboard Speed = 10ms QuickScan® QD2100...
Page 89: Chapter 8. Usb-Oem Interface
Chapter 8 USB-OEM Interface Introduction Feature settings for USB interfaces differ depending upon which host type the reader will be connected with. Use the feature settings in this chapter and Chapter 9, IBM 46XX to specifically configure for the USB-OEM interface. Other USB interfaces are Interface included in the approprite chapter for their host type.
Page 90: Usb-Oem Device Usage
USB-OEM Interface USB-OEM Device Usage The USB-OEM protocol allows for the reader to be identified as one of two different types of barcode scanners. Depending on what other scanners you may already have con- nected to a USB-OEM POS, you may need to change this setting to enable all devices to communicate.
Page 91: Chapter 9. Ibm 46Xx Interface
Chapter 9 IBM 46XX Interface Introduction Use the barcodes in this section to configure programmable features for available IBM 46XX interfaces. IBM Standard Factory Settings Reference for a listing of standard factory settings. Appendix B, Standard Defaults Product Reference Guide...
Page 92: 46Xx Number Of Host Resets
IBM 46XX Interface 46xx Number of Host Resets Specifies how many consecutive resets are processed before the reader starts a five-second period to allow the user to enter Programming Mode and configure the reader. The con- figurable range for this feature is 1 to 15 resets. ENTER/EXIT PROGRAMMING MODE 46xx Number of Host Resets = 1 46xx Number of Host Resets = 2...
Page 93 46xx Number of Host Resets 46xx Number of Host Resets — cont. ENTER/EXIT PROGRAMMING MODE 46xx Number of Host Resets = 7 46xx Number of Host Resets = 8 46xx Number of Host Resets = 9 46xx Number of Host Resets = 10 46xx Number of Host Resets = 11 46xx Number of Host Resets = 12 Product Reference Guide...
Page 94 IBM 46XX Interface 46xx Number of Host Resets — cont. ENTER/EXIT PROGRAMMING MODE 46xx Number of Host Resets = 13 46xx Number of Host Resets = 14 46xx Number of Host Resets = 15 QuickScan® QD2100...
Page 95: Transmit Labels In Code 39 Format
Transmit Labels in Code 39 Format Transmit Labels in Code 39 Format This feature enable/disables translation to Code 39 before transmitting label data to an IBM-46XX or a USB-OEM host. Only the symbology identifier is modified for the translation. The data is not converted to Code 39 or verified to be valid for Code 39. Options are: Send labels in standard IBM format.
Page 96 IBM 46XX Interface NOTES QuickScan® QD2100...
Page 97: Chapter 10. Data Editing
Chapter 10 Data Editing Data Editing Overview It is not recommended to use these features with IBM interfaces. CAUTION When a barcode is scanned, additional information can be sent to the host computer along with the barcode data. This combination of barcode data and supplementary user- defined data is called a “message string.”...
Page 98: Please Keep In Mind
Data Editing Please Keep In Mind... • Modifying a message string is not a mandatory requirement. Data editing is sophisticated feature allowing highly customizable output for advanced users. Factory default settings for data editing is typically set to NONE. • A prefix or suffix may be applied (reference the Symbologies chapter for these settings)
Page 99 Global Prefix/Suffix 6. Scan the ENTER/EXIT barcode once again to exit Programming Mode. 7. The resulting message string would appear as follows: Scanned barcode data:12345 Resulting message string output: $12345 This option sets up to 20 characters each from the set of ASCII characters or any hex val- ue from 00 to FF.
Page 100: Global Aim Id
Data Editing Global AIM ID This feature enables/disables addition of AIM IDs for all symbology types. NOTE AIM label identifiers (as opposed to custom characters you select yourself as with label identifiers) can be included with scanned barcode data. AIM label identifiers consist of three characters as follows: •...
Page 101 Global AIM ID Global AIM ID — continued ENTER/EXIT PROGRAMMING MODE DEFAULT Global AIM ID = Disable Global AIM ID = Enable Product Reference Guide...
Page 102: Gs1-128 Aim Id
Data Editing GS1-128 AIM ID If Global AIM ID is disabled, the AIM ID for GS1-128 can be enabled/disabled inde- pendently. The AIM ID for GS1-128 is a ]C1, ]C2 or ]C3. AIM IDs for other symbologies can be enabled/disabled independently as well. Contact Customer Support for assistance.
Page 103: Label Id
Label ID Label ID A Label ID is a customizable code of up to three ASCII characters (each can be one of hex 0x01-0xFF), used to identify a barcode (symbology) type. It can be appended previ- ous to or following the transmitted barcode data depending upon how this option is en- abled.
Page 104 6A0000 6A0000 CODE93 & 260000 550000 GS1 DATABAR OMNIDIRECTIONAL 523400 750000 GS1 DATABAR EXPANDED 525800 740000 GS1 DATABAR LIMITED 524C00 760000 DATALOGIC 2OF5 730000 730000 GS1-128 000000 6B0000 EAN13 460000 420000 EAN13 P2 460000 4C0000 EAN13 P5 460000 4D0000 EAN13 P8...
Page 105 Label ID Symbology Default Label ID set Alternate Label ID set 730000 500000 UPCA 410000 430000 UPCA P2 410000 460000 UPCA P5 410000 470000 UPCA P8 410000 510000 UPCE 450000 440000 UPCE P2 450000 480000 UPCE P5 450000 490000 UPCE P8 450000 450000 Product Reference Guide...
Page 106: Label Id: Set Individually Per Symbology
Data Editing Label ID: Set Individually Per Symbology To configure a Label ID individually for a single symbology: 1. Scan the ENTER/EXIT barcode. 2. Select Label ID position as either BEFORE (Enable as Prefix) or AFTER (Enable as suf- fix) by scanning the appropriate barcode in the section Label ID Control on page 100.
Page 107 Label ID Label ID — continued Table 18. Label ID Examples STEP ACTION EXAMPLES Scan the ENTER/EXIT barcode (Scanner enters Programming Mode) Determine placement of the Label ID characters BEFORE or AFTER with regard to scanned data using Enable as Prefix Enable as Suffix Enable as Prefix Enable as Suffix...
Page 108: Label Id Control
Data Editing Label ID — continued Label ID Control This option controls whether a Label ID is disabled, or sent as a prefix or suffix for a given symbology type. ENTER/EXIT PROGRAMMING MODE DEFAULT Label ID Transmission = Disable Label ID Transmission = Enable as Prefix Label ID Transmission = Enable as Suffix Make a mistake? Scan the CANCEL barcode to abort and not save the entry string.
Page 109: Label Id Symbology Selection
Label ID Label ID — continued Label ID Symbology Selection This option selects the symbology for which a Label ID is to be configured. See Label ID for full instructions. on page 95 ENTER/EXIT PROGRAMMING MODE Set UPC-A Label ID Character(s) Set UPC-A/P2 Label ID Character(s) Set UPC-A/P5 Label ID Character(s) Set UPC-A/GS1-128 Label ID Character(s)
Page 110 Data Editing Label ID — continued Label ID Symbology Selection — continued This option selects the symbology for which a Label ID is to be configured. See Label ID for full instructions. on page 95 ENTER/EXIT PROGRAMMING MODE Set UPC-E/P5 Label ID Character(s) Set UPC-E/GS1-128 Label ID Character(s) Set EAN 13 Label ID Character(s) Set EAN 13/P2 Label ID Character(s)
Page 111 Label ID Label ID — continued Label ID Symbology Selection — continued This option selects the symbology for which a Label ID is to be configured. See Label ID for full instructions. on page 95 ENTER/EXIT PROGRAMMING MODE Set EAN 8 Label ID Character(s) Set EAN 8/P2 Label ID Character(s) Set EAN 8/P5 Label ID Character(s) Set EAN 8/GS1-128 Label ID Character(s)
Page 112 Data Editing Label ID — continued Label ID Symbology Selection — continued This option selects the symbology for which a Label ID is to be configured. See Label ID for full instructions. on page 95 ENTER/EXIT PROGRAMMING MODE Set GTIN/P5 Label ID Character(s) Set GTIN/GS1-128 Label ID Character(s) Set GS1 DataBar Omnidirectional Label ID Character(s) Set GS1 DataBar Expanded Label ID Character(s)
Page 113 Label ID Label ID — continued Label ID Symbology Selection — continued This option selects the symbology for which a Label ID is to be configured. See Label ID for full instructions. on page 95 ENTER/EXIT PROGRAMMING MODE Set Code 32 Label ID Character(s) Set Code 128 Label ID Character(s) Set Concatinated ISBT 128 Label ID Character(s) Set GS1-128 Label ID Character(s)
Page 114 Data Editing Label ID — continued Label ID Symbology Selection — continued This option selects the symbology for which a Label ID is to be configured. See Label ID for full instructions. on page 95 ENTER/EXIT PROGRAMMING MODE Set Standard 2 of 5 Label ID Character(s) Set Code 4 Label ID Character(s) Set Code 5 Label ID Character(s) Set Follett 2 of 5 Label ID Character(s)
Page 115: Case Conversion
Case Conversion Case Conversion This feature allows conversion of the case of all alphabetic characters to upper or lower case. Case conversion affects ONLY scanned barcode data, and does not affect Label ID, Prefix, Suffix, or other appended data. NOTE ENTER/EXIT PROGRAMMING MODE DEFAULT Case Conversion = Disable (no case conversion)
Page 116: Character Conversion
Data Editing Character Conversion Character conversion is an eight byte configuration item. The eight bytes are 4 character pairs represented in hexadecimal ASCII values. The first character in the pair is the char- acter that will be converted. The second character in the pair is the character to convert to.
Page 117 Character Conversion Character Conversion — continued ENTER/EXIT PROGRAMMING MODE Configure Character Conversion 0xFFFFFFFFFFFFFFFF DEFAULT (No character conversion) Product Reference Guide...
Page 118 Data Editing NOTES QuickScan® QD2100...
Page 119: Chapter 11. Symbologies
UPC-A • GS1-128 • UPC-E • Interleaved 2 of 5 (I 2 of 5) • EAN 13 (JAN 13) • Datalogic 2 of 5 • EAN 8 (JAN 8) • Codabar • GS1 DataBar Omnidirectional • Code 11 • GS1 DataBar Expanded •...
Page 120: Upc-A
Symbologies UPC-A The following options apply to the UPC-A symbology. UPC-A Enable/Disable When disabled, the reader will not read UPC-A barcodes. ENTER/EXIT PROGRAMMING MODE UPC-A = Disable DEFAULT UPC-A = Enable UPC-A Check Character Transmission Enable this option to transmit the check character along with UPC-A barcode data. ENTER/EXIT PROGRAMMING MODE UPC-A Check Character Transmission = Don’t Send DEFAULT...
Page 121: Expand Upc-A To Ean-13
UPC-A UPC-A — cont. Expand UPC-A to EAN-13 Expands UPC-A data to the EAN-13 data format. Selecting this feature also changes the symbology ID to match those required for EAN-13. ENTER/EXIT PROGRAMMING MODE DEFAULT UPC-A to EAN-13 = Don’t Expand UPC-A to EAN-13 = Expand UPC-A Number System Character Transmission This feature enables/disables transmission of the UPC-A number system character.
Page 122: In-Store Minimum Reads
Symbologies UPC-A — cont. In-Store Minimum Reads This feature specifies the minimum number of consecutive times an in-store label must be decoded before it is accepted as good read. In-store labels are defined as UPC-A labels with a number-system character of 2 or 4 as well as EAN 8 and EAN 13 labels with a Flag1 character of 2 or an EAN 13 label starting with the three characters '980'.
Page 123: Upc-E
UPC-E UPC-E The following options apply to the UPC-E symbology. UPC-E Enable/Disable When disabled, the reader will not read UPC-E barcodes. ENTER/EXIT PROGRAMMING MODE UPC-E = Disable DEFAULT UPC-E = Enable UPC-E Check Character Transmission Enable this option to transmit the check character along with UPC-E barcode data. ENTER/EXIT PROGRAMMING MODE UPC-E Check Character Transmission = Don’t Send DEFAULT...
Page 124: Expand Upc-E To Ean-13
Symbologies UPC-E — cont. Expand UPC-E to EAN-13 Expands UPC-E data to the EAN-13 data format. Selecting this feature also changes the symbology ID to match those required for EAN-13. ENTER/EXIT PROGRAMMING MODE DEFAULT UPC-E to EAN-13 = Don’t Expand UPC-E to EAN-13 = Expand Expand UPC-E to UPC-A Expands UPC-E data to the UPC-A data format.
Page 125: Upc-E Number System Character Transmission
UPC-E UPC-E — cont. UPC-E Number System Character Transmission This feature enables/disables transmission of the UPC-E system number character. ENTER/EXIT PROGRAMMING MODE UPC-E Number System Character = Do not transmit DEFAULT UPC-E Number System Character = Transmit Product Reference Guide...
Page 126: Upc-E Minimum Reads
Symbologies UPC-E — cont. UPC-E Minimum Reads This feature specifies the minimum number of consecutive times a UPC-E label must be decoded before it is accepted as good read.. ENTER/EXIT PROGRAMMING MODE UPC-E Minimum Reads = 1 DEFAULT UPC-E Minimum Reads = 2 UPC-E Minimum Reads = 3 UPC-E Minimum Reads = 4 QuickScan®...
Page 127: Gtin Formatting
GTIN Formatting GTIN Formatting This feature enables/disables the ability to convert UPC-E, UPC-A, EAN 8, and EAN 13 labels into the GTIN 14-character format. If add-on information is present on the base label prior to the conver- sion taking place, the addon information will be appended to the con- verted GTIN label.
Page 128: Ean 13
Symbologies EAN 13 The following options apply to the EAN 13 (Jan 13) symbology. EAN 13 Enable/Disable When disabled, the reader will not read EAN 13/JAN 13 barcodes. ENTER/EXIT PROGRAMMING MODE EAN 13 = Disable DEFAULT EAN 13 = Enable EAN 13 Check Character Transmission Enable this option to transmit the check character along with EAN 13 barcode data.
Page 129: Ean-13 Flag 1 Character
EAN 13 EAN 13 — cont. EAN-13 Flag 1 Character Enables/disables transmission of an EAN/JAN13 Flag1 character. The Flag 1 character is the first character of the label. ENTER/EXIT PROGRAMMING MODE EAN-13 Flag 1 Char= Don’t transmit DEFAULT EAN-13 Flag 1 Char= Transmit Product Reference Guide...
Page 130: Ean-13 Isbn Conversion
Symbologies EAN-13 ISBN Conversion This option enables/disables conversion of EAN 13/JAN 13 Bookland labels starting with 978 to ISBN labels. ENTER/EXIT PROGRAMMING MODE DEFAULT EAN-13 ISBN Conversion = Disable EAN-13 ISBN Conversion = Convert to ISBN QuickScan® QD2100...
Page 131: Ean 13 Minimum Reads
EAN 13 EAN 13 — cont. EAN 13 Minimum Reads This feature specifies the minimum number of consecutive times an EAN 13 label must be decoded before it is accepted as good read. ENTER/EXIT PROGRAMMING MODE DEFAULT EAN 13 Minimum Reads = 1 EAN 13 Minimum Reads = 2 EAN 13 Minimum Reads = 3 EAN 13 Minimum Reads = 4...
Page 132: Ean 8
Symbologies EAN 8 The following options apply to the EAN 8 (Jan 8) symbology. EAN 8 Enable/Disable When disabled, the reader will not read EAN 8/JAN 8 barcodes. ENTER/EXIT PROGRAMMING MODE EAN 8 = Disable DEFAULT EAN 8 = Enable EAN 8 Check Character Transmission Enable this option to transmit the check character along with EAN 8 barcode data.
Page 133: Expand Ean 8 To Ean 13
EAN 8 EAN 8 — cont. Expand EAN 8 to EAN 13 Enable this option to expand EAN 8/JAN 8 labels to EAN 13/JAN 13. ENTER/EXIT PROGRAMMING MODE DEFAULT Expand EAN 8 to EAN 13 = Disable Expand EAN 8 to EAN 13 = Enable Product Reference Guide...
Page 134: Ean 8 Minimum Reads
Symbologies EAN 8 — cont. EAN 8 Minimum Reads This feature specifies the minimum number of consecutive times an EAN 8 (Jan 8) label must be decoded before it is accepted as good read.. ENTER/EXIT PROGRAMMING MODE DEFAULT EAN 8 Minimum Reads = 1 EAN 8 Minimum Reads = 2 EAN 8 Minimum Reads = 3 EAN 8 Minimum Reads = 4...
Page 135: Upc/Ean Global Settings
UPC/EAN Global Settings UPC/EAN Global Settings This section provides configuration settings for UPC-A, UPC-E, EAN 13 and EAN 8 symbologies, and affects all of these unless otherwise marked for each feature description. UPC/EAN Decoding Level Decoding Levels are used to configure a barcode symbology decoder to be very aggressive to very conservative depending on a particular customer’s needs.
Page 136 Symbologies UPC/EAN Global Settings — cont. UPC/EAN Decoding Level — cont. ENTER/EXIT PROGRAMMING MODE UPC/EAN Decoding Level = 1 DEFAULT UPC/EAN Decoding Level = 2 UPC/EAN Decoding Level = 3 UPC/EAN Decoding Level = 4 UPC/EAN Decoding Level = 5 QuickScan®...
Page 137: Upc/Ean Correlation
UPC/EAN Global Settings UPC/EAN Global Settings — cont. UPC/EAN Correlation When correlation is enabled, the barcode reader will combine label data from multiple scans when decoding. Enabling correlation will help the scanner read labels that have some spots and/or voids. It may also help read labels that have damaged areas. Enabling correlation will also increase the chances that a label will be read incorrectly.
Page 138: Upc/Ean Price Weight Check
Symbologies UPC/EAN Global Settings — cont. UPC/EAN Price Weight Check This feature enables/disables calculation and verification of price/weight check digits. Options are • Disabled • Enable 4-digit price-weight check-digit calculation • Enable 5-digit price-weight check-digit calculation • Enable European 4-digit price-weight check-digit calculation •...
Page 139: Upc-A Minimum Reads
UPC/EAN Global Settings UPC/EAN Global Settings — cont. UPC-A Minimum Reads This feature specifies the minimum number of consecutive times a UPC-A label must be decoded before it is accepted as good read.. ENTER/EXIT PROGRAMMING MODE DEFAULT UPC-A Minimum Reads = 1 UPC-A Minimum Reads = 2 UPC-A Minimum Reads = 3 UPC-A Minimum Reads = 4...
Page 140: Add-Ons
Symbologies Add-Ons The following features apply to optional add-ons. Contact Customer Support for advanced programming of optional and conditional add-ons. NOTE Optional Add-ons The reader can be enabled to optionally read the following add-ons (supplementals): • • • GS1-128 If a UPC/EAN base label and a an add-on are both decoded, the reader will transmit the base label and add-on.
Page 141 Add-Ons Add-Ons — cont. Optional Add-ons — cont. ENTER/EXIT PROGRAMMING MODE Optional Add-Ons = Enable P5 DEFAULT Optional Add-Ons = Disable GS1-128 Optional Add-Ons = Enable GS1-128 Product Reference Guide...
Page 142: Optional Add-On Timer
Symbologies Add-Ons — cont. Optional Add-On Timer This option sets the time the reader will look for an add-on when an add-on fragment has been seen and optional add-ons are enabled. (Also see Optional GS1-128 Add-On Timer on page 137 ENTER/EXIT PROGRAMMING MODE Optional Add-on Timer = 10ms Optional Add-on Timer = 20ms...
Page 143 Add-Ons Add-Ons — cont. Optional Add-On Timer — cont. ENTER/EXIT PROGRAMMING MODE Optional Add-on Timer = 60ms DEFAULT Optional Add-on Timer = 70ms Optional Add-on Timer = 100ms Optional Add-on Timer = 120ms Optional Add-on Timer = 140ms Optional Add-on Timer = 160ms Product Reference Guide...
Page 144 Symbologies Add-Ons — cont. Optional Add-On Timer — cont. ENTER/EXIT PROGRAMMING MODE Optional Add-on Timer = 180ms Optional Add-on Timer = 200ms Optional Add-on Timer = 220ms Optional Add-on Timer = 240ms Optional Add-on Timer = 260ms Optional Add-on Timer = 280ms Optional Add-on Timer = 300ms QuickScan®...
Page 145: Optional Gs1-128 Add-On Timer
Add-Ons Add-Ons — cont. Optional GS1-128 Add-On Timer This option sets the timer expiration value to read the additional part after reading the linear EAN/UPC part. For UPC/EAN add-ons other than those of this type, see Option- al Add-On Timer on page 134 ENTER/EXIT PROGRAMMING MODE DEFAULT Optional GS1-128 Add-On Timer = Disable...
Page 146 Symbologies Add-Ons — cont. Optional GS1-128 Add-On Timer — cont. ENTER/EXIT PROGRAMMING MODE Optional GS1-128 Add-On Timer = 60ms Optional GS1-128 Add-On Timer = 70ms Optional GS1-128 Add-On Timer = 100ms Optional GS1-128 Add-On Timer = 120ms Optional GS1-128 Add-On Timer = 140ms Optional GS1-128 Add-On Timer = 160ms QuickScan®...
Page 147 Add-Ons Add-Ons — cont. Optional GS1-128 Add-On Timer — cont. ENTER/EXIT PROGRAMMING MODE Optional GS1-128 Add-On Timer = 180ms Optional GS1-128 Add-On Timer = 200ms Optional GS1-128 Add-On Timer = 220ms Optional GS1-128 Add-On Timer = 240ms Optional GS1-128 Add-On Timer = 260ms Optional GS1-128 Add-On Timer = 280ms Optional GS1-128 Add-On Timer = 300ms Product Reference Guide...
Page 148: P2 Add-Ons Minimum Reads
Symbologies Add-Ons — cont. P2 Add-Ons Minimum Reads This feature specifies the minimum number of times a P2 add-on must be read before it is marked as valid and then combined with a base label. ENTER/EXIT PROGRAMMING MODE P2 Add-Ons Minimum Reads = 1 DEFAULT P2 Add-Ons Minimum Reads = 2 P2 Add-Ons Minimum Reads = 3...
Page 149: P5 Add-Ons Minimum Reads
Add-Ons Add-Ons — cont. P5 Add-Ons Minimum Reads This feature specifies the minimum number of times a P5 add-on must be read before it is marked as valid and then combined with a base label. ENTER/EXIT PROGRAMMING MODE DEFAULT P5 Add-Ons Minimum Reads = 1 P5 Add-Ons Minimum Reads = 2 P5 Add-Ons Minimum Reads = 3 P5 Add-Ons Minimum Reads = 4...
Page 150: Gs1-128 Add-Ons Minimum Reads
Symbologies Add-Ons — cont. GS1-128 Add-Ons Minimum Reads This feature specifies the minimum number of times an GS1-128 add-on must be read before it is marked as valid and then combined with a base label. ENTER/EXIT PROGRAMMING MODE DEFAULT GS1-128 Add-Ons Minimum Reads = 1 GS1-128 Add-Ons Minimum Reads = 2 GS1-128 Add-Ons Minimum Reads = 3 GS1-128 Add-Ons Minimum Reads = 4...
Page 151: Gs1 Databar Omnidirectional
GS1 DataBar Omnidirectional GS1 DataBar Omnidirectional The following options apply to the GS1 DataBar Omnidirectional (formerly RSS-14) symbology. GS1 DataBar Omnidirectional Enable/Disable When disabled, the reader will not read GS1 DataBar Omnidirectional barcodes. ENTER/EXIT PROGRAMMING MODE DEFAULT GS1 DataBar Omnidirectional = Disable GS1 DataBar Omnidirectional = Enable GS1 DataBar Omnidirectional GS1-128 Emulation When enabled, GS1 DataBar Omnidirectional barcodes will be translated to the GS1-...
Page 152: Gs1 Databar Omnidirectional Minimum Reads
Symbologies GS1 DataBar Omnidirectional — cont. GS1 DataBar Omnidirectional Minimum Reads This feature specifies the minimum number of consecutive times a GS1 DataBar Omni- directional label must be decoded before it is accepted as good read. ENTER/EXIT PROGRAMMING MODE DEFAULT GS1 DataBar Omnidirectional Minimum Reads = 1 GS1 DataBar Omnidirectional Minimum Reads = 2 GS1 DataBar Omnidirectional Minimum Reads = 3...
Page 153: Gs1 Databar Expanded
GS1 DataBar Expanded GS1 DataBar Expanded The following options apply to the GS1 DataBar Expanded (formerly RSS Expanded) symbology. GS1 DataBar Expanded Enable/Disable When disabled, the reader will not read GS1 DataBar Expanded barcodes. ENTER/EXIT PROGRAMMING MODE DEFAULT GS1 DataBar Expanded = Disable GS1 DataBar Expanded = Enable GS1 DataBar Expanded GS1-128 Emulation When enabled, GS1 DataBar Expanded barcodes will be translated to the GS1-128 label...
Page 154: Gs1 Databar Expanded Minimum Reads
Symbologies GS1 DataBar Expanded — cont. GS1 DataBar Expanded Minimum Reads This feature specifies the minimum number of consecutive times a GS1 DataBar Ex- panded label must be decoded before it is accepted as good read. ENTER/EXIT PROGRAMMING MODE DEFAULT GS1 DataBar Expanded Minimum Reads = 1 GS1 DataBar Expanded Minimum Reads = 2 GS1 DataBar Expanded Minimum Reads = 3...
Page 155: Gs1 Databar Expanded Length Control
GS1 DataBar Expanded GS1 DataBar Expanded — cont. GS1 DataBar Expanded Length Control This feature specifies either variable length decoding or fixed length decoding for the GS1 DataBar Expanded symbology. For variable-length decoding, a minimum length may be set. Variable Length — For fixed-length decoding, two different lengths may be set.
Page 156: Gs1 Databar Expanded Set Length 1
Symbologies GS1 DataBar Expanded — cont. GS1 DataBar Expanded Set Length 1 This feature specifies one of the barcode lengths for GS1 DataBar Expanded Length . Length 1 is the minimum label length if in Mode, or the first Control Variable Length fixed length if in Mode.
Page 157 GS1 DataBar Expanded GS1 DataBar Expanded — cont. GS1 DataBar Expanded Set Length 1 — cont. ENTER/EXIT PROGRAMMING MODE Select GS1 DataBar Expanded Set Length 1 Setting Make a mistake? Scan the CANCEL barcode to abort and not save the entry string. You can then start again at the beginning. CANCEL 01 = Length 1 is 1 Character DEFAULT...
Page 158: Gs1 Databar Expanded Set Length 2
Symbologies GS1 DataBar Expanded — cont. GS1 DataBar Expanded Set Length 2 This feature specifies one of the barcode lengths for GS1 DataBar Expanded Length . Length 2 is the maximum label length if in Mode, or the sec- Control Variable Length ond fixed length if in Mode.
Page 159 GS1 DataBar Expanded GS1 DataBar Expanded — cont. GS1 DataBar Expanded Set Length 2 — cont. ENTER/EXIT PROGRAMMING MODE Select GS1 DataBar Expanded Set Length 2 Setting Make a mistake? Scan the CANCEL barcode to abort and not save the entry string. You can then start again at the beginning. CANCEL 74 = Length 2 is 74 Characters DEFAULT...
Page 160: Gs1 Databar Limited
Symbologies GS1 DataBar Limited The following options apply to the GS1 DataBar Limited (formerly RSS Limited) sym- bology. GS1 DataBar Limited Enable/Disable When disabled, the reader will not read GS1 DataBar Limited barcodes. ENTER/EXIT PROGRAMMING MODE DEFAULT GS1 DataBar Limited = Disable GS1 DataBar Limited = Enable GS1 DataBar Limited GS1-128 Emulation When enabled, GS1 DataBar Limited barcodes will be translated to the GS1-128 label...
Page 161: Gs1 Databar Limited Minimum Reads
GS1 DataBar Limited GS1 DataBar Limited — cont. GS1 DataBar Limited Minimum Reads This feature specifies the minimum number of consecutive times a GS1 DataBar Limited label must be decoded before it is accepted as good read. ENTER/EXIT PROGRAMMING MODE DEFAULT GS1 DataBar Limited Minimum Reads = 1 GS1 DataBar Limited Minimum Reads = 2...
Page 162: Code 39
Symbologies Code 39 The following options apply to the Code 39 symbology. Code 39 Enable/Disable When disabled, the reader will not read Code 39 barcodes. ENTER/EXIT PROGRAMMING MODE Code 39 = Disable DEFAULT Code 39 = Enable QuickScan® QD2100...
Page 163: Code 39 Check Character Calculation
Code 39 Code 39 — cont. Code 39 Check Character Calculation Enable this option to enables/disables calculation and verification of an optional Code 39 check character. When disabled, any check character in the label is treated as a data character. ENTER/EXIT PROGRAMMING MODE Code 39 Check Character Calculation = Don’t Calculate DEFAULT...
Page 164: Code 39 Check Character Transmission
Symbologies Code 39 — cont. Code 39 Check Character Transmission Enable this option to transmit the check character along with Code 39 barcode data. ENTER/EXIT PROGRAMMING MODE Code 39 Check Character Transmission = Don’t Send DEFAULT Code 39 Check Character Transmission = Send Code 39 Start/Stop Character Transmission Enable this option to enable/disable transmission of Code 39 start and stop characters.
Page 165: Code 39 Full Ascii
Code 39 Code 39 — cont. Code 39 Full ASCII In Code 39 decoding, this enables/disables the translation of Code 39 characters to Code 39 full-ASCII characters. ENTER/EXIT PROGRAMMING MODE DEFAULT Code 39 Full ASCII = Disable Code 39 Full ASCII = Enable Product Reference Guide...
Page 166: Code 39 Quiet Zones
Symbologies Code 39 — cont. Code 39 Quiet Zones This feature specifies the number of quiet zones for Code 39 labels. Quiet zones are blank areas at the ends of a barcode and are typically 10 times the width of the narrowest bar or space in the label.
Page 167: Code 39 Minimum Reads
Code 39 Code 39 — cont. Code 39 Minimum Reads This feature specifies the minimum number of consecutive times a Code 39 label must be decoded before it is accepted as good read.. ENTER/EXIT PROGRAMMING MODE Code 39 Minimum Reads = 1 DEFAULT Code 39 Minimum Reads = 2 Code 39 Minimum Reads = 3...
Page 168: Code 39 Decoding Level
Symbologies Code 39 — cont. Code 39 Decoding Level Decoding Levels are used to configure a barcode symbology decoder to be very aggressive to very conservative depending on a particular customer’s needs. • Choosing Level 1 results in a very conservative decoder at the expense of not being able to read poorly printed or damaged labels.
Page 169 Code 39 Code 39 — cont. Code 39 Decoding Level — cont. ENTER/EXIT PROGRAMMING MODE Code 39 Decoding Level = 1 Code 39 Decoding Level = 2 DEFAULT Code 39 Decoding Level = 3 Code 39 Decoding Level = 4 Code 39 Decoding Level = 5 Product Reference Guide...
Page 170: Code 39 Length Control
Symbologies Code 39 — cont. Code 39 Length Control This feature specifies either variable length decoding or fixed length decoding for the Code 39 symbology. For variable length decoding, a minimum and maximum length Variable Length — may be set. For fixed length decoding, two different lengths may be set.
Page 171: Code 39 Set Length 1
Code 39 Code 39 — cont. Code 39 Set Length 1 This feature specifies one of the barcode lengths for . Length 1 Code 39 Length Control is the minimum label length if in Mode, or the first fixed length if in Variable Length Mode.
Page 172 Symbologies Code 39 — cont. Code 39 Set Length 1 — cont. ENTER/EXIT PROGRAMMING MODE Select Code 39 Set Length 1 Setting Make a mistake? Scan the CANCEL barcode to abort and not save the entry string. You can then start again at the beginning. CANCEL 02 = Length 1 is 2 Characters DEFAULT...
Page 173: Code 39 Set Length 2
Code 39 Code 39 — cont. Code 39 Set Length 2 This feature specifies one of the barcode lengths for . Length 2 Code 39 Length Control is the maximum label length if in Mode, or the second fixed length if Variable Length Mode.
Page 174 Symbologies Code 39 — cont. Code 39 Set Length 2 — cont. ENTER/EXIT PROGRAMMING MODE Select Code 39Length 2 Setting Make a mistake? Scan the CANCEL barcode to abort and not save the entry string. You can then start again at the beginning. CANCEL 50 = Length 2 is 50 Characters DEFAULT...
Page 175: Code 39 Interdigit Ratio
Code 39 Code 39 — cont. Code 39 Interdigit Ratio This feature specifies the ratio between an intercharacter space and module for Code 39 labels. ENTER/EXIT PROGRAMMING MODE Code 39 Interdigit Ratio = Disable Code 39 Interdigit Ratio = 1 Code 39 Interdigit Ratio = 2 Code 39 Interdigit Ratio = 3 DEFAULT...
Page 176 Symbologies Code 39 — cont. Code 39 Interdigit Ratio — cont. ENTER/EXIT PROGRAMMING MODE Code 39 Interdigit Ratio = 6 Code 39 Interdigit Ratio = 7 Code 39 Interdigit Ratio = 8 Code 39 Interdigit Ratio = 9 Code 39 Interdigit Ratio = 10 QuickScan®...
Page 177: Code 39 Character Correlation
Code 39 Code 39 — cont. Code 39 Character Correlation When correlation is enabled, the barcode reader will combine label data from multiple scans when decoding. Enabling correlation will help the scanner read labels that have some spots and/or voids. It may also help read labels that have damaged areas. Enabling correlation will also increase the chances that a label will be read incorrectly.
Page 178: Code 39 Stitching
Symbologies Code 39 Stitching This option enables/disables stitching for Code 39 labels. When parts of a Code 39 bar- code are presented to the reader with this feature enabled, the barcode parts will be as- sembled by the reader’s software, and the data will be decoded if all barcode proofing requirements are met.
Page 179: Code 32
Code 32 Code 32 The following options apply to the Code 32 (Italian Pharamaceutical Code) symbology. Code 32 Enable/Disable When disabled, the reader will not read Code 32 barcodes. ENTER/EXIT PROGRAMMING MODE DEFAULT Code 32 = Disable Code 32 = Enable Code 32 Feature Setting Exceptions The following features are set for Code 32 by using these Code 39 settings: Code 39 Quiet Zones on page 158...
Page 180: Code 32 Check Character Transmission
Symbologies Code 32 — cont. Code 32 Check Character Transmission Enable this option to transmit the check character along with Code 32 barcode data. ENTER/EXIT PROGRAMMING MODE DEFAULT Code 32 Check Character Transmission = Don’t Send Code 32 Check Character Transmission = Send Code 32 Start/Stop Character Transmission This option enables/disable transmission of Code 32 start and stop characters.
Page 181: Code 128
Code 128 Code 128 The following options apply to the Code 128 symbology. Code 128 Enable/Disable When disabled, the reader will not read Code 128 barcodes. ENTER/EXIT PROGRAMMING MODE Code 128 = Disable DEFAULT Code 128 = Enable Expand Code 128 to Code 39 This feature enables/disables expansion of Code 128 labels to Code 39 labels.
Page 182: Code 128 Check Character Transmission
Symbologies Code 128 — cont. Code 128 Check Character Transmission Enable this option to transmit the check character along with Code 128 barcode data. ENTER/EXIT PROGRAMMING MODE DEFAULT Code 128 Check Character Transmission = Don’t Send Code 128 Check Character Transmission = Send Code 128 Function Character Transmission Enables/disables transmission of Code128 function characters 1, 2, 3, and 4.
Page 183: Code 128 Sub-Code Change Transmission
Code 128 Code 128 — cont. Code 128 Sub-Code Change Transmission Enables/disables the transmission of “Sub-Code exchange” characters (NOT transmitted by standard decoding). ENTER/EXIT PROGRAMMING MODE DEFAULT Code 128 Sub-Code Change Transmission = Disable Code 128 Sub-Code Change Transmission = Enable Product Reference Guide...
Page 184: Code 128 Quiet Zones
Symbologies Code 128 — cont. Code 128 Quiet Zones This feature specifies the number of quiet zones for Code 128 labels. Quiet zones are blank areas at the ends of a barcode and are typically 10 times the width of the narrowest bar or space in the label.
Page 185: Code 128 Minimum Reads
Code 128 Code 128 — cont. Code 128 Minimum Reads This feature specifies the minimum number of consecutive times a Code 128 label must be decoded before it is accepted as good read.. ENTER/EXIT PROGRAMMING MODE DEFAULT Code 128 Minimum Reads = 1 Code 128 Minimum Reads = 2 Code 128 Minimum Reads = 3 Code 128 Minimum Reads = 4...
Page 186: Code 128 Decoding Level
Symbologies Code 128 — cont. Code 128 Decoding Level Decoding Levels are used to configure a barcode symbology decoder to be very aggressive to very conservative depending on a particular customer’s needs. • Choosing Level 1 results in a very conservative decoder at the expense of not being able to read poorly printed or damaged labels.
Page 187 Code 128 Code 128 — cont. Code 128 Decoding Level — cont. ENTER/EXIT PROGRAMMING MODE Code 128 Decoding Level = 1 Code 128 Decoding Level = 2 DEFAULT Code 128 Decoding Level = 3 Code 128 Decoding Level = 4 Code 128 Decoding Level = 5 Product Reference Guide...
Page 188: Code 128 Length Control
Symbologies Code 128 — cont. Code 128 Length Control This feature specifies either variable length decoding or fixed length decoding for the Code 128 symbology. For variable length decoding, a minimum and maximum length Variable Length — may be set. For fixed length decoding, two different lengths may be set.
Page 189: Code 128 Set Length 1
Code 128 Code 128 — cont. Code 128 Set Length 1 This feature specifies one of the barcode lengths for . Length Code 128 Length Control 1 is the minimum label length if in Mode, or the first fixed length if in Variable Length Mode.
Page 190 Symbologies Code 128 — cont. Code 128 Set Length 1 — cont. ENTER/EXIT PROGRAMMING MODE Select Code 128 Set Length 1 Setting Make a mistake? Scan the CANCEL barcode to abort and not save the entry string. You can then start again at the beginning. CANCEL 01 = Length 1 is 1 Character DEFAULT...
Page 191: Code 128 Set Length 2
Code 128 Code 128 — cont. Code 128 Set Length 2 This feature specifies one of the barcode lengths for . Length Code 128 Length Control 2 is the maximum label length if in Mode, or the second fixed length if Variable Length Mode.
Page 192 Symbologies Code 128 — cont. Code 128 Set Length 2 — cont. ENTER/EXIT PROGRAMMING MODE Select Code 128 Length 2 Setting Make a mistake? Scan the CANCEL barcode to abort and not save the entry string. You can then start again at the beginning. CANCEL 80 = Length 2 is 80 Characters DEFAULT...
Page 193: Code 128 Character Correlation
Code 128 Code 128 — cont. Code 128 Character Correlation When correlation is enabled, the barcode reader will combine label data from multiple scans when decoding. Enabling correlation will help the scanner read labels that have some spots and/or voids. It may also help read labels that have damaged areas. Enabling correlation will also increase the chances that a label will be read incorrectly.
Page 194: Code 128 Stitching
Symbologies Code 128 — cont. Code 128 Stitching This option enables/disables stitching for Code 128 labels. When parts of a Code 128 barcode are presented to the reader with this feature enabled, the barcode parts will be assembled by the reader’s software, and the data will be decoded if all barcode proofing requirements are met.
Page 195: Gs1-128
GS1-128 GS1-128 The following options apply to the GS1-128 symbology. (Also known as USS-128, GTIN-128, UCC-128.) GS1-128 Enable This option enables/disables the ability of the reader to translate GS1-128 labels to the GS1-128 data format. Options are: • Transmit GS1-128 labels in Code 128 data format. •...
Page 196: Interleaved 2 Of 5 (I 2 Of 5)
Symbologies Interleaved 2 of 5 (I 2 of 5) The following options apply to the I 2 of 5 symbology. I 2 of 5 Enable/Disable When disabled, the reader will not read I 2 of 5 barcodes. ENTER/EXIT PROGRAMMING MODE DEFAULT I 2 of 5 = Disable I 2 of 5 = Enable...
Page 197: I 2 Of 5 Check Character Calculation
Interleaved 2 of 5 (I 2 of 5) Interleaved 2 of 5 (I 2 of 5) — cont. I 2 of 5 Check Character Calculation This option enables/disables calculation and verification of an optional I 2 of 5 check character. When disabled, any check character in label is treated as a data character.
Page 198: I 2 Of 5 Check Character Transmission
Symbologies Interleaved 2 of 5 (I 2 of 5) — cont. I 2 of 5 Check Character Transmission Enable this option to transmit the check character along with I 2 of 5 barcode data. ENTER/EXIT PROGRAMMING MODE I 2 of 5 Check Character Transmission = Don’t Send DEFAULT I 2 of 5 Check Character Transmission = Send QuickScan®...
Page 199: I 2 Of 5 Minimum Reads
Interleaved 2 of 5 (I 2 of 5) Interleaved 2 of 5 (I 2 of 5) — cont. I 2 of 5 Minimum Reads This feature specifies the minimum number of consecutive times an I 2 of 5 label must be decoded before it is accepted as good read..
Page 200: Of 5 Decoding Level
Symbologies Interleaved 2 of 5 (I 2 of 5) — cont. 2 of 5 Decoding Level This configuration item applies to Interleaved 2 of 5, Datalogic 2 of 5 and Standard 2 of 5. NOTE Decoding Levels are used to configure a barcode symbology decoder to be very aggressive to very conservative depending on a particular customer’s needs.
Page 201 Interleaved 2 of 5 (I 2 of 5) Interleaved 2 of 5 (I 2 of 5) — cont. 2 of 5 Decoding Level — cont. ENTER/EXIT PROGRAMMING MODE 2 of 5 Decoding Level = 1 2 of 5 Decoding Level = 2 DEFAULT 2 of 5 Decoding Level = 3 2 of 5 Decoding Level = 4...
Page 202: I 2 Of 5 Length Control
Symbologies Interleaved 2 of 5 (I 2 of 5) — cont. I 2 of 5 Length Control This feature specifies either variable length decoding or fixed length decoding for the I 2 of 5 symbology. For variable length decoding, a minimum and maximum length Variable Length —...
Page 203: I 2 Of 5 Set Length 1
Interleaved 2 of 5 (I 2 of 5) Interleaved 2 of 5 (I 2 of 5) — cont. I 2 of 5 Set Length 1 This feature specifies one of the barcode lengths for . Length 1 is I 2 of 5 Length Control the minimum label length if in Mode, or the first fixed length if in Variable Length...
Page 204 Symbologies Interleaved 2 of 5 (I 2 of 5) — cont. Datalogic 2 of 5 Set Length 1 — cont. ENTER/EXIT PROGRAMMING MODE Select I 2 of 5 Length 1 Setting Make a mistake? Scan the CANCEL barcode to abort and not save the entry string.
Page 205: I 2 Of 5 Set Length 2
Interleaved 2 of 5 (I 2 of 5) Interleaved 2 of 5 (I 2 of 5) — cont. I 2 of 5 Set Length 2 This feature specifies one of the barcode lengths for . Length 2 is I 2 of 5 Length Control the maximum label length if in Mode, or the second fixed length if in Variable Length...
Page 206 Symbologies Interleaved 2 of 5 (I 2 of 5) — cont. I 2 of 5 Set Length 2 — cont. ENTER/EXIT PROGRAMMING MODE Select I 2 of 5 Length 2 Setting Make a mistake? Scan the CANCEL barcode to abort and not save the entry string.
Page 207: I 2 Of 5 Character Correlation
Interleaved 2 of 5 (I 2 of 5) Interleaved 2 of 5 (I 2 of 5) — cont. I 2 of 5 Character Correlation When correlation is enabled, the barcode reader will combine label data from multiple scans when decoding. Enabling correlation will help the scanner read labels that have some spots and/or voids.
Page 208: I 2 Of 5 Stitching
Symbologies Interleaved 2 of 5 (I 2 of 5) — cont. I 2 of 5 Stitching This option enables/disables stitching for I 2 of 5 labels. When parts of a I 2 of 5 barcode are presented to the reader with this feature enabled, the barcode parts will be assembled by the reader’s software, and the data will be decoded if all barcode proofing require- ments are met.
Page 209: Datalogic 2 Of 5
Datalogic 2 of 5 The following options apply to the Datalogic 2 of 5 symbology. Datalogic 2 of 5 Enable/Disable When disabled, the reader will not read Datalogic 2 of 5 barcodes. ENTER/EXIT PROGRAMMING MODE DEFAULT Datalogic 2 of 5 = Disable...
Page 210: Datalogic 2 Of 5 Check Character Calculation
Symbologies Datalogic 2 of 5 — cont. Datalogic 2 of 5 Check Character Calculation This option enables/disables calculation and verification of an optional Datalogic 2 of 5 check character. ENTER/EXIT PROGRAMMING MODE DEFAULT Datalogic 2 of 5 Check Character Calculation = Disable Datalogic 2 of 5 Check Character Calculation = Enable QuickScan®...
Page 211: Datalogic 2 Of 5 Minimum Reads
Datalogic 2 of 5 — cont. Datalogic 2 of 5 Minimum Reads This feature specifies the minimum number of consecutive times an Datalogic 2 of 5 la- bel must be decoded before it is accepted as good read. ENTER/EXIT PROGRAMMING MODE...
Page 212: Datalogic 2 Of 5 Length Control
For fixed length decoding, two different lengths may be set. Fixed Length — ENTER/EXIT PROGRAMMING MODE DEFAULT Datalogic 2 of 5 Length Control = Variable Length Datalogic 2 of 5 Length Control = Fixed Length QuickScan® QD2100...
Page 213: Datalogic 2 Of 5 Set Length 1
6. Scan the ENTER/EXIT PROGRAMMING MODE barcode to exit Programming Mode. This completes the procedure. See for some examples of how to set this feature. Table 27 Table 27. Datalogic 2 of 5 Length 1 Setting Examples STEP ACTION EXAMPLES Desired Setting...
Page 214 Symbologies Datalogic 2 of 5 — cont. Datalogic 2 of 5 Set Length 1 — cont. ENTER/EXIT PROGRAMMING MODE Select Datalogic 2 of 5 Length 1 Setting Make a mistake? Scan the CANCEL barcode to abort and not save the entry string. You can then start again at the beginning.
Page 215: Datalogic 2 Of 5 Set Length 2
20, etc. 3. Scan the ENTER/EXIT PROGRAMMING MODE barcode to enter Programming Mode. 4. Scan the barcode: SELECT Datalogic 2 of 5 LENGTH 2 SETTING. 5. Scan the appropriate two digits from the keypad in Appendix E, Keypad, that represent the length setting which was determined in the steps above.
Page 216 Symbologies Datalogic 2 of 5 — cont. Datalogic 2 of 5 Set Length 2 — cont. ENTER/EXIT PROGRAMMING MODE Select Datalogic 2 of 5 Length 2 Setting Make a mistake? Scan the CANCEL barcode to abort and not save the entry string. You can then start again at the beginning.
Page 217: Datalogic 2 Of 5 Interdigit Maximum Ratio
This feature specifies the maximum ratio between intercharacter space and module for Datalogic 2 of 5. ENTER/EXIT PROGRAMMING MODE Datalogic 2 of 5 Interdigit Maximum Ratio = Disable Datalogic 2 of 5 Interdigit Maximum Ratio = 1 Datalogic 2 of 5 Interdigit Maximum Ratio = 2...
Page 218 Symbologies Datalogic 2 of 5 Interdigit Maximum Ratio — cont. Datalogic 2 of 5 Interdigit Maximum Ratio = 6 Datalogic 2 of 5 Interdigit Maximum Ratio = 7 Datalogic 2 of 5 Interdigit Maximum Ratio = 8 Datalogic 2 of 5 Interdigit Maximum Ratio = 9 Datalogic 2 of 5 Interdigit Maximum Ratio = 10 QuickScan®...
Page 219: Datalogic 2 Of 5 Character Correlation
Datalogic 2 of 5 Datalogic 2 of 5 — cont. Datalogic 2 of 5 Character Correlation When correlation is enabled, the barcode reader will combine label data from multiple scans when decoding. Enabling correlation will help the scanner read labels that have some spots and/or voids.
Page 220: Datalogic 2 Of 5 Stitching
Datalogic 2 of 5 — cont. Datalogic 2 of 5 Stitching This option enables/disables stitching for Datalogic 2 of 5 labels. When parts of a Data- logic 2 of 5 barcode are presented to the reader with this feature enabled, the barcode parts will be assembled by the reader’s software, and the data will be decoded if all bar-...
Page 221: Codabar
Codabar Codabar The following options apply to the Codabar symbology. Codabar Enable/Disable When disabled, the reader will not read Codabar barcodes. ENTER/EXIT PROGRAMMING MODE DEFAULT Codabar = Disable Codabar = Enable Product Reference Guide...
Page 222: Codabar Check Character Calculation
Symbologies Codabar — cont. Codabar Check Character Calculation Enable this option to enables/disables calculation and verification of an optional Codabar check character. When disabled, any check characters in the label are treated as data characters. ENTER/EXIT PROGRAMMING MODE DEFAULT Codabar Check Character Calculation = Don’t Calculate Codabar Check Character Calculation = Enable AIM standard check char.
Page 223: Codabar Check Character Transmission
Codabar Codabar — cont. Codabar Check Character Transmission Enable this option to transmit the check character along with Codabar barcode data. ENTER/EXIT PROGRAMMING MODE Codabar Check Character Transmission = Don’t Send DEFAULT Codabar Check Character Transmission = Send Codabar Start/Stop Character Transmission Enable this option to enable/disable transmission of Codabar start and stop characters.
Page 224: Codabar Start/Stop Character Set
Symbologies Codabar — cont. Codabar Start/Stop Character Set This option specifies the format of transmitted Codabar start/stop characters. ENTER/EXIT PROGRAMMING MODE Codabar Check Character Set = ABCD/TN*E Codabar Check Character Set = ABCD/ABCD Codabar Check Character Set = abcd/tn*e DEFAULT Codabar Check Character Set = abcd/abcd QuickScan®...
Page 225: Codabar Start/Stop Character Match
Codabar Codabar — cont. Codabar Start/Stop Character Match When enabled, this option requires that start and stop characters match. ENTER/EXIT PROGRAMMING MODE DEFAULT Codabar Start/Stop Character Match = Don’t Require Match Codabar Start/Stop Character Match = Require Match Product Reference Guide...
Page 226: Codabar Quiet Zones
Symbologies Codabar — cont. Codabar Quiet Zones This feature specifies the number of quiet zones for Codabar labels. Quiet zones are blank areas at the ends of a barcode and are typically 10 times the width of the narrowest bar or space in the label.
Page 227: Codabar Minimum Reads
Codabar Codabar — cont. Codabar Minimum Reads This feature specifies the minimum number of consecutive times a Codabar label must be decoded before it is accepted as good read.. ENTER/EXIT PROGRAMMING MODE Codabar Minimum Reads = 1 DEFAULT Codabar Minimum Reads = 2 Codabar Minimum Reads = 3 Codabar Minimum Reads = 4 Product Reference Guide...
Page 228: Codabar Decoding Level
Symbologies Codabar — cont. Codabar Decoding Level Decoding Levels are used to configure a barcode symbology decoder to be very aggressive to very conservative depending on a particular customer’s needs. • Choosing Level 1 results in a very conservative decoder at the expense of not being able to read poorly printed or damaged labels.
Page 229 Codabar Codabar — cont. Codabar Decoding Level — cont. ENTER/EXIT PROGRAMMING MODE Codabar Decoding Level = 1 Codabar Decoding Level = 2 DEFAULT Codabar Decoding Level = 3 Codabar Decoding Level = 4 Codabar Decoding Level = 5 Product Reference Guide...
Page 230: Codabar Length Control
Symbologies Codabar — cont. Codabar Length Control This feature specifies either variable length decoding or fixed length decoding for the Codabar symbology. For variable length decoding, a minimum and maximum length Variable Length — may be set. For fixed length decoding, two different lengths may be set. Fixed Length —...
Page 231: Codabar Set Length 1
Codabar Codabar — cont. Codabar Set Length 1 This feature specifies one of the barcode lengths for . Length 1 Codabar Length Control is the minimum label length if in Mode, or the first fixed length if in Variable Length Mode.
Page 232 Symbologies Codabar — cont. Codabar Set Length 1 — cont. ENTER/EXIT PROGRAMMING MODE Select Codabar Length 1 Setting Make a mistake? Scan the CANCEL barcode to abort and not save the entry string. You can then start again at the beginning. CANCEL 03 = Length 1 is 3 Characters DEFAULT...
Page 233: Codabar Set Length 2
Codabar Codabar — cont. Codabar Set Length 2 This feature specifies one of the barcode lengths for . Length 2 Codabar Length Control is the maximum label length if in Mode, or the second fixed length if Variable Length Mode. The length includes the barcode’s start, stop, check and data Fixed Length characters.
Page 234 Symbologies Codabar — cont. Codabar Set Length 2 — cont. ENTER/EXIT PROGRAMMING MODE Select CodabarLength 2 Setting Make a mistake? Scan the CANCEL barcode to abort and not save the entry string. You can then start again at the beginning. CANCEL 50 = Length 2 is 50 Characters DEFAULT...
Page 235: Codabar Interdigit Ratio
Codabar Codabar — cont. Codabar Interdigit Ratio This feature specifies the ratio between an intercharacter space and module for Codabar labels. ENTER/EXIT PROGRAMMING MODE Codabar Interdigit Ratio = Disable Codabar Interdigit Ratio = 1 Codabar Interdigit Ratio = 2 Codabar Interdigit Ratio = 3 DEFAULT Codabar Interdigit Ratio = 4 Codabar Interdigit Ratio = 5...
Page 236 Symbologies Codabar — cont. Codabar Interdigit Ratio — cont. ENTER/EXIT PROGRAMMING MODE Codabar Interdigit Ratio = 6 Codabar Interdigit Ratio = 7 Codabar Interdigit Ratio = 8 Codabar Interdigit Ratio = 9 Codabar Interdigit Ratio = 10 QuickScan® QD2100...
Page 237: Codabar Character Correlation
Codabar Codabar — cont. Codabar Character Correlation When correlation is enabled, the barcode reader will combine label data from multiple scans when decoding. Enabling correlation will help the scanner read labels that have some spots and/or voids. It may also help read labels that have damaged areas. Enabling correlation will also increase the chances that a label will be read incorrectly.
Page 238: Codabar Stitching
Symbologies Codabar Stitching This option enables/disables stitching for Codabar labels. When parts of a Codabar bar- code are presented to the reader with this feature enabled, the barcode parts will be as- sembled by the reader’s software, and the data will be decoded if all barcode proofing requirements are met.
Page 239: Code 11
Code 11 Code 11 The following options apply to the Code 11 symbology. Code 11 Enable/Disable When disabled, the reader will not read Code 11 barcodes. ENTER/EXIT PROGRAMMING MODE DEFAULT Code 11 = Disable Code 11 = Enable Product Reference Guide...
Page 240: Code 11 Check Character Calculation
Symbologies Code 11 — cont. Code 11 Check Character Calculation This option enables/disables calculation and verification of optional Code 11 check char- acter. ENTER/EXIT PROGRAMMING MODE Code 11 Check Character Calculation = Disable Code 11 Check Character Calculation = Check C Code 11 Check Character Calculation = Check K DEFAULT Code 11 Check Character Calculation = Check C and K...
Page 241: Code 11 Check Character Transmission
Code 11 Code 11 — cont. Code 11 Check Character Transmission This feature enables/disables transmission of an optional Code 11 check character. ENTER/EXIT PROGRAMMING MODE Code 11 Check Character Transmission = Don’t Send DEFAULT Code 11 Check Character Transmission = Send Product Reference Guide...
Page 242: Code 11 Minimum Reads
Symbologies Code 11 — cont. Code 11 Minimum Reads This feature specifies the minimum number of consecutive times a Code 11 label must be decoded before it is accepted as good read.. ENTER/EXIT PROGRAMMING MODE Code 11 Minimum Reads = 1 DEFAULT Code 11 Minimum Reads = 2 Code 11 Minimum Reads = 3...
Page 243: Code 11 Length Control
Code 11 Code 11 — cont. Code 11 Length Control This feature specifies either variable length decoding or fixed length decoding for the Code 11 symbology. For variable length decoding, a minimum and maximum length Variable Length — may be set. For fixed length decoding, two different lengths may be set.
Page 244: Code 11 Set Length 1
Symbologies Code 11 — cont. Code 11 Set Length 1 This feature specifies one of the barcode lengths for . Length 1 Code 11 Length Control is the minimum label length if in Mode, or the first fixed length if in Variable Length Mode.
Page 245 Code 11 Code 11 — cont. Code 11 Set Length 1 — cont. ENTER/EXIT PROGRAMMING MODE Select Code 11 Set Length 1 Setting Make a mistake? Scan the CANCEL barcode to abort and not save the entry string. You can then start again at the beginning. CANCEL 04 = Length 1 is 4 Characters DEFAULT...
Page 246: Code 11 Set Length 2
Symbologies Code 11 — cont. Code 11 Set Length 2 This feature specifies one of the barcode lengths for . Length 2 Code 11 Length Control is the maximum label length if in Mode, or the second fixed length if Variable Length Mode.
Page 247 Code 11 Code 11 — cont. Code 11 Set Length 2 — cont. ENTER/EXIT PROGRAMMING MODE Select Code 11 Length 2 Setting Make a mistake? Scan the CANCEL barcode to abort and not save the entry string. You can then start again at the beginning. CANCEL 50 = Length 2 is 50 Characters DEFAULT...
Page 248: Code 11 Interdigit Ratio
Symbologies Code 11 — cont. Code 11 Interdigit Ratio This feature specifies the ratio between an intercharacter space and module for Code 11 labels. ENTER/EXIT PROGRAMMING MODE Code 11 Interdigit Ratio = Disable Code 11 Interdigit Ratio = 1 Code 11 Interdigit Ratio = 2 Code11 Interdigit Ratio = 3 DEFAULT Code 11 Interdigit Ratio = 4...
Page 249 Code 11 Code 11 — cont. Code 11 Interdigit Ratio — cont. ENTER/EXIT PROGRAMMING MODE Code 11 Interdigit Ratio = 6 Code 11 Interdigit Ratio = 7 Code 11 Interdigit Ratio = 8 Code 11 Interdigit Ratio = 9 Code 11 Interdigit Ratio = 10 Product Reference Guide...
Page 250: Code 11 Decoding Level
Symbologies Code 11 Decoding Level Decoding Levels are used to configure a barcode symbology decoder to be very aggressive to very conservative depending on a particular customer’s needs. • Choosing Level 1 results in a very conservative decoder at the expense of not being able to read poorly printed or damaged labels.
Page 251 Code 11 Code 11 — cont. Code 11 Decoding Level — cont. ENTER/EXIT PROGRAMMING MODE Codabar Decoding Level = 1 Codabar Decoding Level = 2 DEFAULT Codabar Decoding Level = 3 Codabar Decoding Level = 4 Codabar Decoding Level = 5 Product Reference Guide...
Page 252: Code 11 Character Correlation
Symbologies Code 11 — cont. Code 11 Character Correlation When correlation is enabled, the barcode reader will combine label data from multiple scans when decoding. Enabling correlation will help the scanner read labels that have some spots and/or voids. It may also help read labels that have damaged areas. Enabling correlation will also increase the chances that a label will be read incorrectly.
Page 253: Code 11 Stitching
Code 11 Code 11 Stitching This option enables/disables stitching for Code 11 labels. When parts of a Code 11 bar- code are presented to the reader with this feature enabled, the barcode parts will be as- sembled by the reader’s software, and the data will be decoded if all barcode proofing requirements are met.
Page 254: Standard 2 Of 5
Symbologies Standard 2 of 5 The following options apply to the Standard 2 of 5 symbology. Standard 2 of 5 Enable/Disable When disabled, the reader will not read Standard 2 of 5 barcodes. ENTER/EXIT PROGRAMMING MODE DEFAULT Standard 2 of 5 = Disable Standard 2 of 5 = Enable QuickScan®...
Page 255: Standard 2 Of 5 Check Character Calculation
Standard 2 of 5 Standard 2 of 5 — cont. Standard 2 of 5 Check Character Calculation This option enables/disables calculation and verification of an optional Standard 2 of 5 check character. ENTER/EXIT PROGRAMMING MODE DEFAULT Standard 2 of 5 Check Character Calculation = Disable Standard 2 of 5 Check Character Calculation = Enable Standard 2 of 5 Check Character Transmission This feature enables/disables transmission of an optional Standard 2 of 5 check character.
Page 256: Standard 2 Of 5 Minimum Reads
Symbologies Standard 2 of 5 — cont. Standard 2 of 5 Minimum Reads This feature specifies the minimum number of consecutive times a Standard 2 of 5 label must be decoded before it is accepted as good read. ENTER/EXIT PROGRAMMING MODE Standard 2 of 5 Minimum Reads = 1 DEFAULT Standard 2 of 5 Minimum Reads = 2...
Page 257: Standard 2 Of 5 Length Control
Standard 2 of 5 Standard 2 of 5 — cont. Standard 2 of 5 Length Control This feature specifies either variable length decoding or fixed length decoding for the Standard 2 of 5 symbology. For variable length decoding, a minimum and maximum length Variable Length —...
Page 258: Standard 2 Of 5 Set Length 1
Symbologies Standard 2 of 5 — cont. Standard 2 of 5 Set Length 1 This feature specifies one of the barcode lengths for Standard 2 of 5 Length Control Length 1 is the minimum label length if in Mode, or the first fixed Variable Length length if in Mode.
Page 259 Standard 2 of 5 Standard 2 of 5 — cont. Standard 2 of 5 Set Length 1 — cont. ENTER/EXIT PROGRAMMING MODE Select Standard 2 of 5 Length 1 Setting Make a mistake? Scan the CANCEL barcode to abort and not save the entry string.
Page 260: Standard 2 Of 5 Set Length 2
Symbologies Standard 2 of 5 — cont. Standard 2 of 5 Set Length 2 This feature specifies one of the barcode lengths for Standard 2 of 5 Length Control Length 2 is the maximum label length if in Mode, or the second fixed Variable Length length if in Mode.
Page 261 Standard 2 of 5 Standard 2 of 5 — cont. Standard 2 of 5 Set Length 2 — cont. ENTER/EXIT PROGRAMMING MODE Select Standard 2 of 5 Length 2 Setting Make a mistake? Scan the CANCEL barcode to abort and not save the entry string.
Page 262: Standard 2 Of 5 Character Correlation
Symbologies Standard 2 of 5 — cont. Standard 2 of 5 Character Correlation When correlation is enabled, the barcode reader will combine label data from multiple scans when decoding. Enabling correlation will help the scanner read labels that have some spots and/or voids. It may also help read labels that have damaged areas. Enabling correlation will also increase the chances that a label will be read incorrectly.
Page 263: Standard 2 Of 5 Stitching
Standard 2 of 5 Standard 2 of 5 Stitching This option enables/disables stitching for Standard 2 of 5 labels. When parts of a Stan- dard 2 of 5 barcode are presented to the reader with this feature enabled, the barcode parts will be assembled by the reader’s software, and the data will be decoded if all bar- code proofing requirements are met.
Page 264: Isbt 128
Symbologies ISBT 128 The following options apply to the ISBT 128 symbology. ISBT 128 Enable/Disable Enables/Disables ability of imager to decode ISBT 128 labels. ENTER/EXIT PROGRAMMING MODE DEFAULT ISBT 128 = Disable ISBT 128 = Enable ISBT 128 Concatenation Enables/disables ISBT128 concatenation of 2 labels. ENTER/EXIT PROGRAMMING MODE DEFAULT ISBN 128 Concatenation = Disable...
Page 265: Isbt 128 Force Concatenation
ISBT 128 ISBT 128 — cont. ISBT 128 Force Concatenation When enabled, this feature forces all ISBT 128 labels to be concatenated. ISBT 128 Concatenation This option is only valid when is enabled. see page 256 NOTE ENTER/EXIT PROGRAMMING MODE DEFAULT ISBT 128 Force Concatenation = Disable ISBT 128 Force Concatenation = Enable...
Page 266: Code 4
Symbologies Code 4 The following options apply to the Code 4 symbology. Code 4 Enable/Disable Enables/Disables ability of imager to decode Code 4 labels. ENTER/EXIT PROGRAMMING MODE DEFAULT Code 4 = Disable Code 4 = Enable QuickScan® QD2100...
Page 267: Code 4 Check Character Transmission
Code 4 Code 4 — cont. Code 4 Check Character Transmission This feature enables/disables transmission of an optional Code 4 check character. ENTER/EXIT PROGRAMMING MODE Code 4 Check Character Transmission = Don’t Send DEFAULT Code 4 Check Character Transmission = Send Code 4 Hex to Decimal Conversion This feature enables/disables the conversion of hexidecimal label data to decimal label da- ENTER/EXIT PROGRAMMING MODE...
Page 268: Code 5
Symbologies Code 5 The following options apply to the Code 5 symbology. Code 5 Enable/Disable Enables/Disables ability of imager to decode Code 5 labels. ENTER/EXIT PROGRAMMING MODE DEFAULT Code 5 = Disable Code 5 = Enable QuickScan® QD2100...
Page 269: Code 5 Check Character Transmission
Code 5 Code 5 — cont. Code 5 Check Character Transmission This feature enables/disables transmission of an optional Code 5 check character. ENTER/EXIT PROGRAMMING MODE Code 5 Check Character Transmission = Don’t Send DEFAULT Code 5 Check Character Transmission = Send Code 5 Hex to Decimal Conversion This feature enables/disables the conversion of hexidecimal label data to decimal label da- ENTER/EXIT PROGRAMMING MODE...
Page 270: Code 4 And Code 5 Common Configuration Items
Symbologies Code 4 and Code 5 Common Configuration Items The following options apply to both Code 4 and Code 5 symbologies. Code 4 and 5 Decoding Level Decoding Levels are used to configure a barcode symbology decoder to be very aggressive to very conservative depending on a particular customer’s needs.
Page 271 Code 4 and Code 5 Common Configuration Items Code 4 and Code 5 Common Configuration Items — cont. Code 4 and 5 Decoding Level — cont. ENTER/EXIT PROGRAMMING MODE Code 4 and Code 5 Decoding Level = 1 Code 4 and Code 5 Decoding Level = 2 DEFAULT Code 4 and Code 5 Decoding Level = 3 Code 4 and Code 5 Decoding Level = 4...
Page 272: Code 4 And Code 5 Minimum Reads
Symbologies Code 4 and Code 5 Common Configuration Items — cont. Code 4 and Code 5 Minimum Reads This feature specifies the minimum number of consecutive times a Code 4 or Code 5 label must be decoded before it is accepted as good read. ENTER/EXIT PROGRAMMING MODE DEFAULT Code 4 or Code 5 Minimum Reads = 1...
Page 273: Follett 2 Of 5
Follett 2 of 5 Follett 2 of 5 The following options apply to the Follett 2 of 5 symbology. Follett 2 of 5 Enable/Disable Enables/Disables ability of imager to decode Follett 2 of 5 labels. ENTER/EXIT PROGRAMMING MODE DEFAULT Follett 2 of 5 = Disable Follett 2 of 5 = Enable Product Reference Guide...
Page 274 Symbologies NOTES QuickScan® QD2100...
Page 275: Appendix A. Technical Specifications
Appendix A Technical Specifications contains Physical and Performance Characteristics, User Environment and Table 35 Regulatory information. provides Standard Cable Pinouts. Table 36 Table 35. Technical Specifications Item Description Physical Characteristics 2.8 in. H x 6.7 in. L x 2.6 in. W Dimensions (7.1 cm H x 17.1 cm L x 6.6 cm W) Weight (without cable)
Page 276 5; Code 11; Codabar; GS1-128; Code 93; MSI; GS1 DataBar Omnidi- rectional, GS1 DataBar Limited, GS1 DataBar Expanded; EAN 13 ISBN; Datalogic 2 of 5; Follet 2/5; Code 4, code 5. RS-232 Std., RS-232 Wincor-Nixdorf, RS-232 OPOS, IBM 46xx (ports 5B and 9B), USB Com Std., USB Keyboard, USB Alternate Keyboard, USB...
Page 277: Standard Cable Pinouts
Standard Cable Pinouts Standard Cable Pinouts provide standard pinout information for the imager’s cable. Figure 7 Table 36 Figure 7. Standard Cable Pinouts Bottom of Imager Cable Interface Cable Port Cable Strain Relief Pin 1 Pin 10 To Host Cable Clip (Latch) The signal descriptions in apply to the connector on the imager and are for ref- Table 36...
Page 278 NOTES QuickScan® QD2100...
Page 279: Appendix B. Standard Defaults
Appendix B Standard Defaults The most common configuration settings are listed in the “Default” column of Table 37 The settings in this table are as applied to a standard RS-232 interface. See Table 38 a listing of default exceptions to this list as appled to other interface types. Page references are also provided for feature descriptions and programming barcodes for each parameter.
Page 280 Parameter Default Your Setting Page Number RS-232 Baud Rate 9600 Data Bits 8 Data Bits Stop Bits 1 Stop Bit Parity None Handshaking Control Disable RS-232/USB-COM Intercharacter Delay No Delay Beep On ASCII BEL Disable Beep On Not on File Enable ACK Character ‘ACK’...
Page 281 Parameter Default Your Setting Page Number Data Editing No Global Prefix Global Prefix/Suffix Global Suffix = 0x0D (CR) Global AIM ID Disable Label ID Control Disable Case Conversion Disable Character Conversion No Char Conversion Symbologies UPC-A UPC-A Enable/Disable Enable UPC-A Check Character Transmission Enable Expand UPC-A to EAN-13 Don’t Expand...
Page 282 Parameter Default Your Setting Page Number EAN-13 ISBN Conversion Disable EAN 13 Minimum Reads EAN 8 EAN 8 Enable/Disable Enable EAN 8 Check Character Transmission Send Expand EAN 8 to EAN 13 Disable EAN 8 Minimum Reads UPC/EAN Global Settings UPC/EAN Decoding Level UPC/EAN Correlation Disable...
Page 283 Parameter Default Your Setting Page Number GS1 DataBar Expanded Set Length 1 GS1 DataBar Expanded Set Length 2 GS1 DataBar Limited GS1 DataBar Limited Enable/Disable Disable GS1 DataBar Limited GS1-128 Emulation Disable GS1 DataBar Limited Minimum Reads Code 39 Code 39 Enable/Disable Enable Code 39 Check Character Calculation Calculate...
Page 284 Disable I 2 of 5 Stitching Disable Datalogic 2 of 5 Datalogic 2 of 5 Enable/Disable Enable Datalogic 2 of 5 Check Character Calcu- Disable lation Datalogic 2 of 5 Minimum Reads Datalogic 2 of 5 Length Control Variable QuickScan® QD2100...
Page 285 Parameter Default Your Setting Page Number Datalogic 2 of 5 Set Length 1 Datalogic 2 of 5 Set Length 2 Datalogic 2 of 5 Character Correlation Disable Datalogic 2 of 5 Stitching Disable Codabar Codabar Enable/Disable Disable Codabar Check Character Calculation Don’t Calculate...
Page 286 Parameter Default Your Setting Page Number Code 11 Interdigit Ratio Code 11 Decoding Level Code 11 Character Correlation Disable Code 11 Stitching Disable Standard 2 of 5 Standard 2 of 5 Enable/Disable Disable Standard 2 of 5 Check Character Calcu- Disable lation Standard 2 of 5 Check Character Trans-...
Page 287 Parameter Default Your Setting Page Number Code 4 and Code 5 Common Configuration Items Code 4 and 5 Decoding Level Code 4 and Code 5 Minimum Reads Follett 2 of 5 Follett 2 of 5 Enable/Disable Disable Product Reference Guide...
Page 288: Default Exceptions
Code Standard 2/5 Label ID Character(s) Codabar Label ID Character(s) Code 128 Label ID Character(s) GS1-128 Label ID Character(s) Datalogic 2 of 5 Label ID Character(s) ISBT 128 Label ID Character(s) UPCE P2 Label ID Character(s) UPCE/P5 Label ID Character(s) UPCE/GS1-128 Label ID Character(s) QuickScan®...
Page 289 Default Exceptions Parameter Default Excption EAN8/P2 Label ID Character(s) EAN8/P5 Label ID Character(s) EAN8/GS1-128 Label ID Character(s) EAN13/P2 Label ID Character(s) EAN13/P5 Label ID Character(s) EAN13/GS1-128 Label ID Character(s) GS1 DataBar 14 (Omnidirectional) Label ID Character(s) GS1 DataBar Expanded Label ID Character(s) GS1 DataBar Limited Label ID Character(s) Character Conversion CR to `...
Page 290 Parameter Default Excption UPCE/P5 Label ID Character(s) EAN8/P2 Label ID Character(s) EAN8/P5 Label ID Character(s) EAN8/GS1-128 Label ID Character(s) EAN13/P2 Label ID Character(s) EAN13/P5 Label ID Character(s) EAN13/GS1-128 Label ID Character(s) GS1 DataBar 14 (Omnidirectional) Label ID Character(s) GS1 DataBar Expanded Label ID Character(s) GS1 DataBar Limited Label ID Character(s) GTIN W/o Add on Label ID Character(s) GTIN Addon 2 Label ID Character(s)
Page 291: Appendix C. Led And Beeper Indications
Appendix C LED and Beeper Indications The imager’s beeper sounds and its LED illuminates to indicate various functions or er- rors on the imager. An optional “Green Spot” also performs useful functions. The tables below list these indications. One exception to the behaviors listed in the tables is that the imager’s functions are programmable, and may or may not be turned on.
Page 292: Led And Beeper Indications
LED and Beeper Indications INDICATION DESCRIPTION BEEPER Imager beeps four times at highest The imager is in the process of pow- Power-up Beep frequency and volume upon power- ering-up. LED behavior for this indica- The imager will beep once at cur- A label has been successfully tion is configurable via the rent frequency, volume, mono/bi-...
Page 293: Error Codes
Error Codes Error Codes Upon startup, if the imager sounds a long tone, this means the imager has not passed its automatic Selftest and has entered FRU isolation mode. If the imager is reset, the se- quence will be repeated. The following table describes the LED flashes/beep codes asso- ciated with an error found.
Page 294 NOTES QuickScan® QD2100...
Page 295: Appendix D. Sample Barcodes
Appendix D Sample Barcodes The sample barcodes in this appendix are typical representations for their symbology types. UPC-A 12345 67890 EAN-13 3 4 5 67 8 9 0 1 2 3 4 0 Code 39 123ABC Code 128 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 Interleaved 2 of 5 12345678901231 Product Reference Guide...
Page 296: Codabar
Sample Barcodes — continued Code 32 Codabar Code 93 Code 11 QuickScan® QD2100...
Page 297: Gs1 Databar (Rss)
GS1 DataBar (RSS) GS1 DataBar (RSS) GS1 DataBar variants must be enabled to read the barcodes below (see DataBar (RSS) on page 289 NOTE 10293847560192837465019283746029478450366523 (GS1 DataBar Expanded Stacked) 1234890hjio9900mnb (GS1 DataBar Expanded) 08672345650916 (GS1 DataBar Limited) GS1 DataBar-14 55432198673467 (GS1 DataBar Omnidirectional Truncated) 90876523412674 (GS1 DataBar Omnidirectional Stacked)
Page 298 NOTES QuickScan® QD2100...
Page 299: Appendix E. Keypad
Appendix E Keypad Use the barcodes in this appendix to enter numbers as you would select digits/characters from a keypad. Product Reference Guide...
Page 300 QuickScan® QD2100...
Page 301 Product Reference Guide...
Page 302 NOTES QuickScan® QD2100...
Page 303: Appendix F. Scancode Tables
Appendix F Scancode Tables Control Character Emulation Control character emulation selects from different scancode tables as listed in this appen- dix. Each of the control character sets below are detailed by interface type in the tables. These apply to Wedge and USB Keyboard platforms. Characters from 00 to 0x1F are sent as control character Control Character 00 —...
Page 314: Microsoft Windows Codepage 1252
Microsoft Windows Codepage 1252 Windows-1252 is a character encoding of the Latin alphabet, used by default in the leg- acy components of Microsoft Windows in English and some other Western languages. QuickScan® QD2100...
Page 315 Microsoft Windows Codepage 1252 NOTES Product Reference Guide...
Page 316 NOTES QuickScan® QD2100...
Page 317: Index
Index bar codes Good Read, Beeper RS-232 Pitch baud rate Volume RS-232 parameters Good Read, Beeper – parity Good Read, Beeper Pitch – 256, 258, 260, 263, barcodes Good Read, Beeper Volume – cancel Green Spot numeric barcodes RS-232 parameters parity Beeper Handheld Scanner...
Page 318 USB Connection USB interface selection numbers lock key User Environment Performance Characteristics Volume – Good Read, Beeper Physical Characteristics Pitch – Good Read, Beeper Pitch Tolerance Prefix/Suffix XON/XOFF Print Contrast Minimum Product Specifications Programming Barcodes Read, Beeper – Good Read, Beeper Pitch – Good Read, Beeper Volume –...
Page 319 ASCII Chart ASCII ASCII ASCII ASCII Char. Char. Char. Char. ‘ “ & ’ < >...
