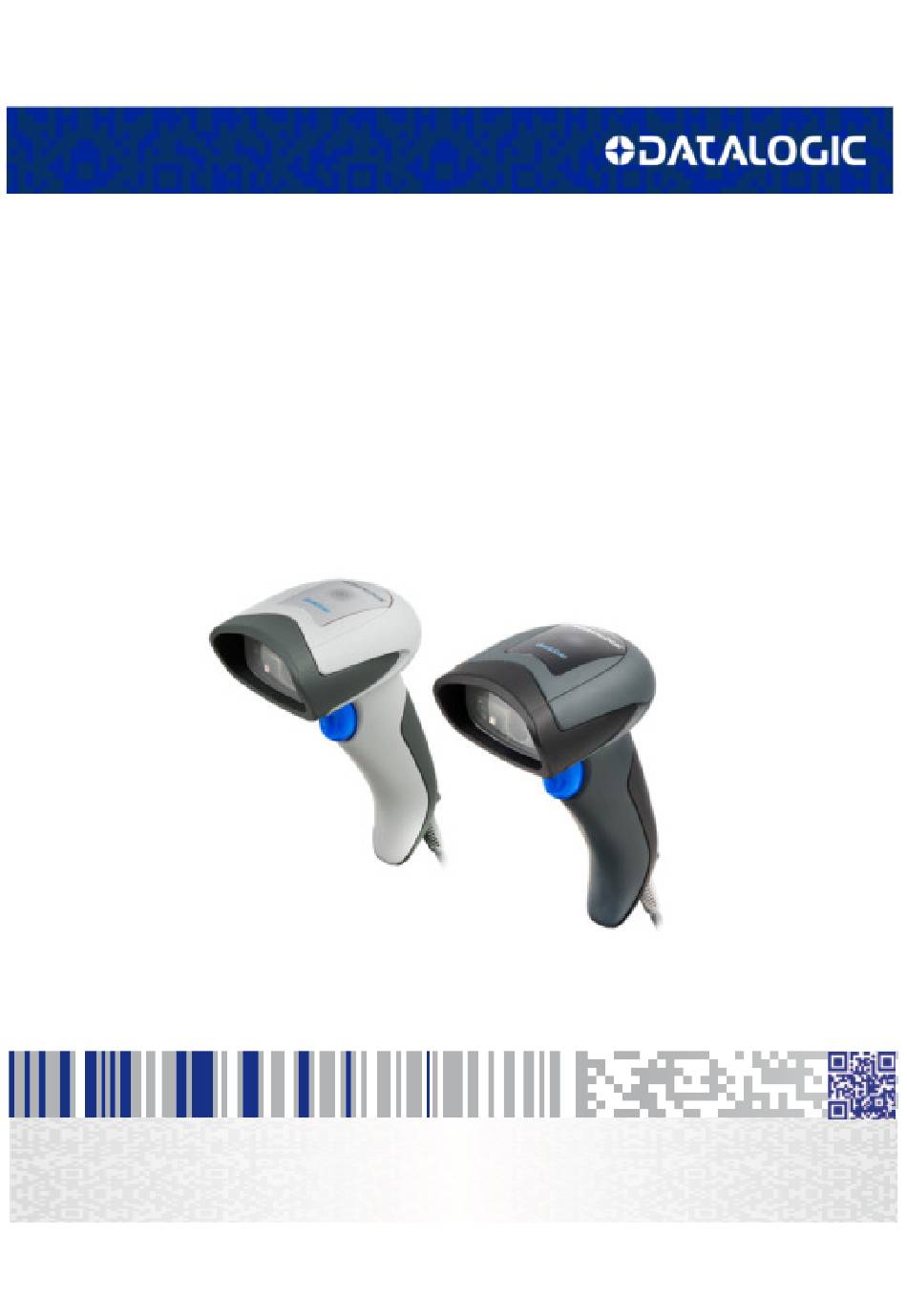

Page 1 QuickScan™ I QD24XX General Purpose Handheld Area Imager Bar Code Reader Product Reference Guide...
Page 2 Disclaimer Datalogic has taken reasonable measures to provide information in this manual that is complete and accurate, however, Datalogic reserves the right to change any specification at any time with- out prior notice. Datalogic and the Datalogic logo are registered trademarks of Datalogic S.p.A. in many countries, including the U.S.A.
Page 3: Table Of Contents
About this Manual ......................................1 Overview ..................................................1 Manual Conventions ............................................. 2 Technical Support ......................................2 Datalogic Website Support ..........................................2 Reseller Technical Support ..........................................2 Telephone Technical Support ..........................................2 About the Reader ......................................3 Programming the Reader ....................................4 Configuration Methods ............................................
Page 4 Contents USB Keyboard Speed ........................................41 USB Keyboard Numeric Keypad ....................................42 USB-OEM Interface ................................. 43 USB-OEM Device Usage ........................................44 USB Interface Options ........................................44 Transmit Labels in Code 39 Format ..................................45 Interface Options ..........................................46 Data Format .................................... 47 Global Prefix/Suffix ...................................... 48 Global AIM ID ........................................
Page 5 Contents UPC-E ......................................86 UPC-E Enable/Disable ........................................86 UPC-E Check Character Transmission ..................................87 UPC-E 2D Component ........................................87 Expand UPC-E to EAN-13 ......................................88 Expand UPC-E to UPC-A .......................................88 UPC-E Number System Character Transmission ..............................89 GTIN FORMATTING ..................................89 EAN 13 (JAN 13) ................................... 90 EAN 13 Enable/Disable .........................................90 EAN 13 Check Character Transmission ...................................90 EAN-13 Flag 1 Character .......................................91...
Page 6 Contents GS1-128 ......................................119 GS1-128 Enable ..........................................119 GS1-128 2D Component ......................................119 CODE ISBT 128 ...................................120 ISBT 128 Concatenation ......................................120 ISBT 128 Force Concatenation ....................................120 ISBT 128 Concatenation Mode ....................................121 ISBT 128 Dynamic Concatenation Timeout ................................ 122 ISBT 128 Advanced Concatenation Options ..............................
Page 7 Contents GS1 DataBar™ Omnidirectional GS1-128 Emulation ............................151 GS1 DataBar™ Omnidirectional 2D Component .............................. 152 GS1 DATABAR™ EXPANDED ..............................152 GS1 DataBar™ Expanded Enable/Disable ................................152 GS1 DataBar™ Expanded GS1-128 Emulation ..............................153 GS1 DataBar™ Expanded 2D Component ................................153 GS1 DataBar™ Expanded Length Control ................................154 GS1 DataBar™...
Page 8 Contents PDF417 ........................................188 PDF417 Enable / Disable ..........................................188 PDF417 Length Control ........................................... 188 PDF417 Set Length 1 ........................................189 PDF417 Set Length 2 ........................................190 Micro PDF417 ......................................191 Micro PDF417 Enable / Disable ........................................191 Micro PDF417 Code 128 GS1-128 Emulation ..................................191 Micro PDF417 Length Control ........................................
Page 9 Contents STANDARD DEFAULTS ................................245 SAMPLE BAR CODES..................................255 KEYPAD ......................................259 SCANCODE TABLES ..................................261 Control Character Emulation ..................................261 Single Press and Release Keys ........................................261 Interface Type PC AT PS/2, USB-Keyboard or USB-Keyboard for APPLE ....................262 Interface type PC AT PS/2 Alt Mode or USB-Keyboard Alt Mode ......................264 Digital Interface ......................................266 IBM31xx 102-key ......................................267 IBM XT ..........................................268...
Page 10 Contents NOTES QuickScan™ I QD24XX...
Page 11: Introduction
Chapter 1 Introduction About this Manual This Product Reference Guide (PRG) is provided for users seeking advanced technical information, including connection, programming, maintenance and specifications. The Quick Reference Guide (QRG) and other publications associated with this product are downloadable free of charge from the website listed on the back cover of this manual.
Page 12: Manual Conventions
Telephone Technical Support If you do not have internet or email access, you may contact Datalogic technical support at (541) 349-8283 or check the back cover of your manual for more contact information. QuickScan™ I QD24XX...
Page 13: About The Reader
Elegant design details are incorporated into a smaller, balanced lightweight enclosure without sacrificing Datalogic’s well-known durability. Ideally suited for applications at the point of-sale (POS), the QuickScan QD2400 imager features a new illumination and aiming system developed with the unique intent to reduce visual stress of the operator during the daily scanning activities.
Page 14: Programming The Reader
PC. These commands are sent to the reader over the selected communication interface, or they can be printed as bar codes to be scanned. Aladdin also provides the ability to perform a software upgrade for the connected device (see the Datalogic Aladdin™ Help On-Line for more details).
Page 15: Setup
Unpacking Check carefully to ensure the reader and any accessories ordered are present and undamaged. If any damage occurred during shipment, contact Datalogic Technical Support. Information is shown on page KEEP THE PACKAGING. Should the unit ever require service, it should be returned in its original shipping container.
Page 16: Installing The Interface Cable
Setup Installing the Interface Cable onnect the reader cable by inserting the cable into the handle as shown in Figure 1. To remove it, insert a paper clip into the release aperture, then unplug the cable. Figure 1. Connect/disconnect the cable RS-232 Serial Connection Turn off power to the terminal/PC and connect the reader to the terminal/PC serial port via the RS-232 cable as shown in Figure 2.
Page 17 Installing the Interface Cable Keyboard Wedge Connection The Keyboard Wedge cable has a ‘Y’ connection from the reader. Connect the female to the male end from the keyboard and the remaining end at the keyboard port at the terminal/PC. Reference Figure 3. Figure 3.
Page 18: Interface Selection
Setup Figure 5. Other Interface Connections or... or... Specific cables are required for connection to different hosts. The connectors illustrated above are examples only. Actual connectors may vary from those illustrated, but the steps to connect the reader remain the same. Interface Selection Upon completing the physical connection between the reader and its host, proceed to Table 1 starting on page 9...
Page 19: Setting The Interface
USB Com to simulate RS-232 standard interface Select USB-COM-STD USB-OEM FEATURES Set USB-OEM $P,HA45,P(CR) Interface USB-OEM Features (can be used for OPOS/UPOS/JavaPOS) starting on page 43 Select USB-OEM a. Download the correct USB Com driver from www.datalogic.com Product Reference Guide...
Page 20 Setup KEYBOARD FEATURES $P,HA2B,P(CR) USB Keyboard with alternate key encoding Select USB Alternate Keyboard $P,HA29,P(CR) AT, PS/2 25-286, 30-286, 50, 50Z, 60, 70, 80, 90 & 95 w/Standard Key Encoding Select KBD-AT $P,HA11,P(CR) Keyboard Wedge for IBM AT PS2 with standard key encoding but without external keyboard Select KBD-AT-NK...
Page 21 Interface Selection KEYBOARD (continued) FEATURES $P,HA15,P(CR) Keyboard Wedge for IBM Terminals 31xx, 32xx, 34xx, 37xx make only key- board Select KBD-IBM-M $P,HA16,P(CR) Keyboard Wedge for IBM Terminals 31xx, 32xx, 34xx, 37xx make break key- board Select KBD-IBM-MB Set KEYBOARD $P,HA1B,P(CR) WEDGE Keyboard Wedge for DIGITAL ...
Page 22: Customizing Configuration Settings
Setup Customizing Configuration Settings Configure Interface Settings If after scanning the interface bar code from the previous table, your installation requires you to select options to further customize your reader, turn to the appropriate section for your interface type in "Configuration Parameters"...
Page 23: Resetting The Product Configuration To Defaults
Customizing Configuration Settings Resetting the Product Configuration to Defaults Restore Custom Defaults If you aren’t sure what programming options are in your imager, or you’ve changed some options and want to restore the Custom Default Configuration that may have been saved in the scanner, scan the Restore Custom Default Configuration bar code below.
Page 24 Setup NOTES QuickScan™ I QD24XX...
Page 25: Configuration Using Bar Codes
Chapter 3 Configuration Using Bar Codes This and following sections provide programming bar codes to configure your reader by changing the default settings. For details about additional methods of programming, see "Configuration Methods" on page You must first enable your reader to read bar codes in order to use this section. If you have not Setup, starting on page 5 done this, go to and complete the appropriate procedure.
Page 26 Enter/Exit Programming Mode 3. If additional input parameters are needed, go to Appendix D, Keypad, and scan the appropriate characters from the keypad. Additional information about many features can be found in the “References” chapter. If you make a mistake before the last character, scan the CANCEL bar code to abort and not save the entry string.
Page 27: Global Interface Features
Enter/Exit Programming Mode GLOBAL INTERFACE FEATURES The following interface features are configurable by all interface types. Host Commands — Obey/Ignore This option specifies whether the reader will obey or ignore host commands. When set to ignore, the reader will ignore all host commands except for those necessary for: •...
Page 28 Enter/Exit Programming Mode NOTES QuickScan™ I QD24XX...
Page 29: Rs-232 Interface
RS-232 INTERFACE on page 20 on page 21 on page 21 ARITY on page 22 ANDSHAKING ONTROL on page 23 Use the programming bar codes in this section if modifications to the standard RS-232 interface settings are necessary to meet your system’s requirements. Additional settings which apply to both the RS-232 and USB interfaces are available in the next section, "RS-232/USB-Com Interfaces"...
Page 30: Baud Rate
Enter/Exit Programming Mode Baud Rate page 206 for information on this feature. $CR2BA00(CR) Baud Rate = 1200 $CR2BA01(CR) Baud Rate = 2400 $CR2BA02(CR) Baud Rate = 4800 $CR2BA03(CR) DEFAULT Baud Rate = 9600 $CR2BA04(CR) Baud Rate = 19,200 $CR2BA05(CR) Baud Rate = 38,400 $CR2BA06(CR) Baud Rate = 57,600 $CR2BA07(CR)
Page 31: Data Bits
Enter/Exit Programming Mode Data Bits This parameter allows the reader to interface with devices requiring a 7-bit or 8-bit ASCII protocol for sending and receiving data. $CR2DA00(CR) 7 Data Bits $CR2DA01(CR) DEFAULT 8 Data Bits Stop Bits Set the number of stop bits to match host device requirements. See page 206 for more information on this feature.
Page 32: Parity
Enter/Exit Programming Mode Parity This feature specifies parity required for sending and receiving data. Select the parity type according to host device requirements. See page 206 for more information. $CR2PA00(CR) DEFAULT Parity = None $CR2PA01(CR) Parity = Even $CR2PA02(CR) Parity = Odd QuickScan™...
Page 33: Handshaking Control
Enter/Exit Programming Mode Handshaking Control page 206 for more information about this feature. $CR2HC00(CR) DEFAULT Handshaking Control = RTS $CR2HC01(CR) Handshaking Control = RTS/CTS $CR2HC02(CR) Handshaking Control = RTS/XON/XOFF $CR2HC03(CR) Handshaking Control = RTS On/CTS $CR2HC04(CR) Handshaking Control = RTS/CTS Scan Control Product Reference Guide...
Page 34: Rs-232/Usb-Com Interfaces
RS-232/USB-COM INTERFACES NTERCHARACTER ELAY on page 25 ASCII BEL on page 25 OT ON on page 26 ACK NAK O PTIONS on page 27 ACK C HARACTER on page 28 NAK C HARACTER on page 28 ACK NAK T IMEOUT ALUE on page 29 ACK NAK R...
Page 35: Intercharacter Delay
Enter/Exit Programming Mode Intercharacter Delay This parameter specifies the intercharacter delay between the end of one character and the beginning of the next. The delay can be set within a range of zero (0) to 990 milliseconds in 10ms increments. A setting of zero specifies no delay.
Page 36: Beep On Not On File
Enter/Exit Programming Mode Beep On Not on File This option enables/disables the action of the reader to sound a three beep sequence upon receiving a Not-On-File (NOF) host command. $CBPNF00(CR) Beep On Not On File = Disable $CBPNF01(CR) DEFAULT Beep On Not On File = Enable QuickScan™...
Page 37: Ack Nak Options
Enter/Exit Programming Mode ACK NAK Options This enables/disables the ability of the reader to support the RS-232 ACK/NAK protocol.  page 208 for more information. $CR2AE00(CR) DEFAULT ACK/NAK Protocol = Disable ACK/NAK $CR2AE01(CR) ACK/NAK Protocol = Enable for label transmission $CR2AE02(CR) ACK/NAK Protocol = Enable for host-command acknowledge...
Page 38: Ack Character
Enter/Exit Programming Mode ACK Character This setting specifies an ASCII character or hex value to be used as the ACK character. ASCII characters or any hex value from 0 to 0xFF can be selected. See page 208 for more information. Setting to previously defined characters such as XON, XOFF, or host commands conflicts with normal Data Bits operation of these characters.
Page 39: Ack Nak Timeout Value
Enter/Exit Programming Mode ACK NAK Timeout Value This option specifies the amount of time the reader waits for an ACK character from the host following label transmission. The selectable timeout range is 200 milliseconds to 15,000ms (15 seconds) in 200ms increments. A selection of 0 disables the timeout.
Page 40: Ack Nak Error Handling
Enter/Exit Programming Mode ACK NAK Error Handling This feature specifies the method the reader uses to handle receive errors detected while waiting for an ACK character from the host. $CR2EH00(CR) DEFAULT ACK NAK Error Handling = Ignore Errors Detected $CR2EH01(CR) ACK NAK Error Handling = Process Error as Valid ACK Character $CR2EH02(CR)
Page 41: Disable Character
Enter/Exit Programming Mode Disable Character Specifies the value of the RS-232 host command used to disable the reader. ASCII characters or any hex value from 0 to 0xFF can be selected. Setting to previously defined characters such as XON, XOFF, or host commands conflicts with Data Bits normal operation of these characters.
Page 42 Enter/Exit Programming Mode NOTES QuickScan™ I QD24XX...
Page 43: Keyboard Settings
KEYBOARD SETTINGS OUNTRY on page 34 ONTROL HARACTERS on page 38 EDGE UIET NTERVAL on page 39 NTERCODE ELAY on page 39 TATE on page 40 UMLOCK on page 40 USB K EYBOARD PEED on page 41 USB K EYBOARD UMERIC EYPAD on page 42...
Page 44: Country Mode
Enter/Exit Programming Mode Country Mode This feature specifies the country/language supported by the keyboard. Several languages are supported: $CKBCO00(CR) DEFAULT Country Mode = U.S. $CKBCO01(CR) Country Mode = Belgium $CKBCO02(CR) Country Mode = Britain $CKBCO11(CR) Supports only the interfaces listed in the Country Mode feature description.
Page 45 Enter/Exit Programming Mode Country Mode (continued) $CKBCO04(CR) Country Mode = France $CKBCO13(CR) Supports only the interfaces listed in the Country Mode fea- ture description. Country Mode = French Canadian $CKBCO05(CR) Country Mode = Germany $CKBCO0D(CR) Supports only the interfaces listed in the Country Mode fea- ture description.
Page 46 Enter/Exit Programming Mode Country Mode (continued) $CKBCO14(CR) Supports only the interfaces listed in the Country Mode feature description. Country Mode = Lithuanian $CKBCO07(CR) Country Mode = Norway $CKBCO12(CR) Supports only the interfaces listed in the Country Mode feature description. Country Mode = Poland $CKBCO08(CR) Supports only the interfaces listed in the Country Mode fea- ture description.
Page 47 Enter/Exit Programming Mode Country Mode (continued) $CKBCO09(CR) Country Mode = Spain $KBCO0A(CR) Country Mode = Sweden $CKBCO0B(CR) Supports only the interfaces listed in the Country Mode feature description. Country Mode = Switzerland Product Reference Guide...
Page 48: Send Control Characters
Enter/Exit Programming Mode Send Control Characters This feature specifies how the reader transmits ASCII control characters to the host. Reference Appendix E, Scancode Tables for more information about control characters. Options are as follows: Control Character 00 : Characters from 00 to 0x1F are sent as control character Ctrl+Keys, special keys are located from 0x80 to 0xA1.
Page 49: Wedge Quiet Interval
Enter/Exit Programming Mode Wedge Quiet Interval Specifies amount of time to look for keyboard activity before scanner breaks keyboard connection in order to transmit data to host. The selectable range for this setting is 00 to 990 milliseconds (00-0x63 by 01) in increments of ten milliseconds.
Page 50: Caps Lock State
Enter/Exit Programming Mode Caps Lock State This option specifies the format in which the reader sends character data. This does not apply when an alternate key encoding keyboard is selected. $CKBCL00(CR) DEFAULT Caps Lock State = Caps Lock OFF $CKBCL01(CR) Caps Lock State = Caps Lock ON $CKBCL02(CR) Caps Lock State = AUTO Caps Lock Enable...
Page 51: Usb Keyboard Speed
Enter/Exit Programming Mode USB Keyboard Speed This option specifies the USB poll rate for a USB keyboard. This feature applies ONLY to the USB Keyboard interface. $CKBSP01(CR) DEFAULT USB Keyboard Speed = 1ms $CKBSP02(CR) USB Keyboard Speed = 2ms $CKBSP03(CR) USB Keyboard Speed = 3ms $CKBSP04(CR) USB Keyboard Speed = 4ms...
Page 52: Usb Keyboard Numeric Keypad
Enter/Exit Programming Mode USB Keyboard Speed (continued) $CKBSP07(CR) USB Keyboard Speed = 7ms $CKBSP08(CR) USB Keyboard Speed = 8ms $CKBSP09(CR) USB Keyboard Speed = 9ms $CKBSP0A(CR) USB Keyboard Speed = 10ms USB Keyboard Numeric Keypad This option Controls whether numeric characters will be sent using standard keys or the numeric keypad. $CKBKP00(CR) DEFAULT Standard Keys...
Page 53: Usb-Oem Interface
USB-OEM INTERFACE USB-OEM D EVICE SAGE on page 44 USB I NTERFACE PTIONS on page 44 Feature settings for USB interfaces differ depending upon which host type the reader will be connected with. Use the feature settings in this chapter to specifically configure for the USB-OEM interface. Other USB interfaces are included in the appropriate chapter for their host type.
Page 54: Usb-Oem Device Usage
Enter/Exit Programming Mode USB-OEM Device Usage The USB-OEM protocol allows for the reader to be identified as one of two different types of bar code scanners. Depending on what other scanners you may already have connected to a USB-OEM POS, you may need to change this setting to enable all devices to communicate.
Page 55: Transmit Labels In Code 39 Format
Enter/Exit Programming Mode Transmit Labels in Code 39 Format This feature enable/disables translation to Code 39 before transmitting label data to a USB-OEM host. Only the symbology identifier is modified for the translation. The data is not converted to Code 39 or verified to be valid for Code 39.
Page 56: Interface Options
Enter/Exit Programming Mode Interface Options This feature provides for an interface-specific control mechanism. $CIFO101(CR) DEFAULT Obey Scanner Configuration Host Commands $CIFO102(CR) Ignore Scanner Configuration Host Commands QuickScan™ I QD24XX...
Page 57: Data Format
DATA FORMAT LOBAL REFIX UFFIX starting on page 48 AIM ID LOBAL starting on page 49 ABEL starting on page 52 Label ID: Pre-Loaded Sets • Individually Set Label ID • Label ID Control • Label ID Symbology Selection • 1D Symbologies •...
Page 58: Global Prefix/Suffix
Enter/Exit Programming Mode Global Prefix/Suffix This option sets up to 20 characters each from the set of ASCII characters or any hex value from 00 to FF. The characters may be added as a prefix (in a position before the bar code data, also called a header) and/or as a suffix (in a position following the bar code data, also called a footer).
Page 59: Global Aim Id
Enter/Exit Programming Mode Global AIM ID This feature enables/disables addition of AIM IDs for all symbology types. AIM label identifiers (as opposed to custom characters you select yourself as with label identifiers) can be included with scanned bar code data. See Table 2 on page 3-49 for a listing of AIM IDs.
Page 60 Enter/Exit Programming Mode DATABAR EXPANDED COMPOSITE DATABAR LIMITED DATABAR LIMITED COMPOSITE DATA MATRIX EAN128 EAN128 COMPOSITE EAN13 EAN13 P2 EAN13 P5 EAN13 COMPOSITE EAN8 EAN8 P2 EAN8 P5 EAN8 COMPOSITE FOLLET 2OF5 I2OF5 IATA INDUSTRIAL 2OF5 INDUSTRIAL 2OF5 ISBN ISBT128 CONCAT ISSN MAXICODE MICRO QR...
Page 61: Set Aim Id Individually For Gs1-128
Enter/Exit Programming Mode Set AIM ID Individually for GS1-128 This feature configures a Label ID individually for the GS1-128 symbology and the programming for this works the same way as Label ID. See Label ID: Set Individually Per Symbology, starting on page 224 for detailed instructions on setting this feature.
Page 62: Label Id
Enter/Exit Programming Mode Label ID A Label ID is a customizable code of up to three ASCII characters (convert to Hex using the ASCII Chart on the inside back cover of this manual), used to identify a bar code symbology type. It can be appended previous to or following the transmitted bar code data depending upon how this option is enabled.
Page 63: Individually Set Label Id
Enter/Exit Programming Mode Individually Set Label ID This feature configures a Label ID individually for a single symbology. To set, first define whether you want it as a prefix or suffix by scanning a label below. Then turn to Label ID Symbology Selection • 1D Symbologies, starting on page 54 to select the symbology you want to set, followed by up to 3 characters from the ASCII Chart at the back of this manual.
Page 64: Label Id Symbology Selection − 1D Symbologies
Enter/Exit Programming Mode Label ID Symbology Selection 1D Symbologies − This option selects the symbology for which a Label ID is to be configured. See "Label ID" on page 52 or page 224 in “References” for more detailed instructions. If less than the expected string of 3 characters are selected, scan the ENTER/EXIT bar code twice to accept the selection and exit Programming Mode.
Page 65 Enter/Exit Programming Mode Label ID Symbology Selection − 1D Symbologies (continued) $CCCID $C35ID Set EAN 13 P5 Label ID Character(s) Set Code 39 CIP Label ID Character(s) $CXCID $C8BID Set EAN 8 Label ID Character(s) Set GS1 DataBar Expanded Composite Label ID Character(s) $C8MID $CU8ID...
Page 66 Enter/Exit Programming Mode Label ID Symbology Selection − 1D Symbologies (continued) $CXBID $CGBID Set GS1 DataBar Expanded Label ID Character(s) Set GTIN 8 Label ID Character(s) $CLPID $CIAID Set IATA Industrial 2 of 5 Label ID Character(s) Set LaPoste Code 39 Label ID Character(s) $CPMID $CMSID Set IMB Postal Code Label ID Character(s)
Page 67 Enter/Exit Programming Mode Label ID Symbology Selection − 1D Symbologies (continued) $CPZID $CAMID Set PZN Code Label ID Character(s) Set UPC-A Composite Label ID Character(s) $CPRID $CA2ID Set Royal Postal Code Label ID Character(s) Set UPC-A P2 Label ID Character(s) $CS2ID $CA5ID Set Standard 2 of 5 Label ID Character(s)
Page 68 Enter/Exit Programming Mode Label ID Symbology Selection 2D Symbologies − $CAZID $CMXID Set Maxicode Label ID Character(s) Set Aztec Label ID Character(s) $CCSID $CP4ID Set China Sensible Label ID Character(s) Set PDF 417 Label ID Character(s) $CDMID $CMIID Set Data Matrix Label ID Character(s) Set Micro PDF 417 Label ID Character(s) $CMQID $CQRID...
Page 69: Advanced Formatting: User Label Edit
Enter/Exit Programming Mode Advanced Formatting: User Label Edit Advanced formatting is available to create user label edit scripts. See the Datalogic Aladdin configuration application or contact Technical Support. Case Conversion This feature allows conversion of the case of all alphabetic characters to upper or lower case.
Page 70: Character Conversion
Enter/Exit Programming Mode Character Conversion Character conversion is an eight byte configuration item. The eight bytes are 4 character pairs represented in hexadecimal ASCII values. The first character in the pair is the character that will be converted. The second character in the pair is the character to convert to.
Page 71: Reading Parameters
READING PARAMETERS OUBLE IMEOUT starting on page 62 EEPER NDICATORS starting on page 64 Power On Alert • Good Read: When to Indicate • Good Read Beep Type • Good Read Beep Frequency • Good Read Beep Length • Good Read Beep Volume •...
Page 72: Double Read Timeout
Enter/Exit Programming Mode Double Read Timeout Double Read Timeout prevents a double read of the same label by setting the minimum time allowed between reads of labels of the same symbology and data. If the unit reads a label and sees the same label again within the specified timeout, the second read is ignored.
Page 73 Enter/Exit Programming Mode Double Read Timeout (continued) $CSNDR50(CR) Double Read Timeout = 0.8 Second $CSNDR5A(CR) Double Read Timeout = 0.9 Second $CSNDR64(CR) Double Read Timeout = 1 Second Product Reference Guide...
Page 74: Led And Beeper Indicators
Enter/Exit Programming Mode LED AND BEEPER INDICATORS Power On Alert Disables or enables the indication (from the Beeper) that the reader is receiving power. $CBPPU00(CR) Power On Alert = Disable (No Audible Indication) $CBPPU01(CR) DEFAULT Power On Alert = Power-up Beep Good Read: When to Indicate This feature specifies when the reader will provide indication (beep and/or flash its green LED) upon successfully reading a bar code.
Page 75: Good Read Beep Type
Enter/Exit Programming Mode Good Read Beep Type Specifies whether the good read beep has a mono or bitonal beep sound. $CBPTY00(CR) DEFAULT Good Read Beep Type = Mono $CBPTY01(CR) Good Read Beep Type = Bitonal Good Read Beep Frequency Adjusts the good read beep to sound at a selectable low, medium or high frequency, selectable from the list below. (Controls the beeper’s pitch/tone.) $CBPFR00(CR) Good Read Beep Frequency = Low...
Page 76: Good Read Beep Length
Enter/Exit Programming Mode Good Read Beep Length $CBPLE06(CR) Good Read Beep Length = 60 msec $CBPLE08(CR) DEFAULT Good Read Beep Length = 80 msec $CBPLE0A(CR) Good Read Beep Length = 100 msec $CBPLE0C(CR) Good Read Beep Length = 120 msec $CBPLE0E(CR) Good Read Beep Length = 140 msec $CBPLE10(CR)
Page 77: Good Read Beep Volume
Enter/Exit Programming Mode Good Read Beep Volume Selects the beeper volume (loudness) upon a good read beep. There are three selectable volume levels. $CBPVO00CR) Good Read Beep Volume = Beeper Off $CBPVO01CR) Good Read Beep Volume = Low $CBPVO02CR) Good Read Beep Volume = Medium $CBPVO03CR) DEFAULT Good Read Beep Volume = High...
Page 78: Good Read Led Duration
Enter/Exit Programming Mode Good Read LED Duration This feature specifies the amount of time that the Good Read LED remains on following a good read. The good read LED on time can be set within a range of 100 milliseconds to 25,500 milliseconds (0.1 to 25.5 seconds) in 100ms increments.
Page 79: Scanning Features
Enter/Exit Programming Mode SCANNING FEATURES Scan Mode Selects the reader’s scan operating mode. See page 228 in “References” for descriptions. $CSNRM00(CR) DEFAULT Scan Mode = Trigger Single $CSNRM01(CR) Scan Mode = Trigger Hold Multiple $CSNRM02(CR) Scan Mode = Trigger Pulse Multiple $CSN- Scan Mode = Flashing $CSNRM04(CR)
Page 80: Stand Mode Indication
Enter/Exit Programming Mode Stand Mode Indication This operation is useful for indicating when the reader is in Stand Mode. If enabled, the blue indicator will blink when Stand Mode scanning is active. If the reader is removed from its Stand support or from the Base Station (cordless models) and switches out of Stand Mode into Triggered Mode, blinking will stop until Stand Mode is active again.
Page 81: Stand Operation
Enter/Exit Programming Mode Stand Operation Specifies the behavior of the reader when stationary in a stand. There are two conditions which cause the reader to switch to Stand Mode: 1. The reader is manually configured to switch to Stand Mode or when inserted into the special Stand support which automatically enables the Stand Mode.
Page 82: Pick Mode
Enter/Exit Programming Mode Pick Mode Specifies the ability of the reader to decode labels only when they are close to the center of the aiming pattern. This allows the reader to accurately target labels when they are placed close together, such as on a pick sheet. This feature is not compatible with Multiple Labels Reading in a Volume.
Page 83: Stand Mode Illumination Off Time
Enter/Exit Programming Mode Stand Mode Illumination Off Time Specifies the amount of time reader illumination stays off after pulling the trigger when in Stand Mode. The configurable range is 01 to 32 by 01 in increments of 500ms (500ms to 16 seconds). See page 229 in “References”...
Page 84: Stand Illumination Control
Enter/Exit Programming Mode Stand Illumination Control Controls the illumination status while the reading mode is stand mode and the reader is attempting to detect objects. $CSMIL00(CR) DEFAULT Stand Illumination Control = OFF $CSMIL01(CR) Stand Illumination Control = ON $CSMIL02(CR) Stand Illumination Control = Dim Flash On Time This feature specifies the ON time for the indicator LED while in Flash Mode.
Page 85: Flash Off Time
Enter/Exit Programming Mode Flash Off Time This feature specifies the OFF time for the indicator LED while in Flash Mode. The selectable range is 100 to 9,900 milliseconds (0.1 to 9.9 seconds), in 100 millisecond increments. See page 233 in “References” for detailed information on setting this feature.
Page 86: Aiming Duration Timer
Enter/Exit Programming Mode Aiming Duration Timer Specifies the frame of time the aiming pointer remains on after decoding a label, when in trigger single mode.The range for this setting is from 1 to 255 seconds in 1-second increments. See page 231 in “References”...
Page 87: Green Spot Duration
Green Spot Duration = Long (800 msec) Mobile Phone Mode This mode is useful for scanning bar codes displayed on a mobile phone. Other options for this feature can be configured using the Datalogic Aladdin application. $CSNPE00(CR) Mobile Phone Mode = Disable...
Page 88: Partial Label Reading Control
Image Capture For information and a list of options for Image Capture, use the Datalogic Aladdin configuration application, available for free download from the Datalogic Scanning website. NOTE: This feature is not supported by the QD24XX model. QuickScan™ I QD24XX...
Page 89: Multiple Label Reading
Enter/Exit Programming Mode MULTIPLE LABEL READING In standard (default) mode, when the reader’s aiming system is activated (by a trigger pull, motion or other method depending on the mode), it then acquires and processes each image in the area in front of it (the Volume). In this case, the scanner stops processing the image once it decodes a label.
Page 90: Multiple Labels Ordering By Code Symbology
Enter/Exit Programming Mode Multiple Labels Ordering by Code Symbology This feature allows you to specify the order multiple labels are transmitted by symbology type, when Multiple Labels per Frame is enabled. See page 234 in “References” for detailed information on setting this feature. To configure this feature, scan the ENTER/EXIT PROGRAM- $CSNMS MING MODE bar code above, then the bar code at left fol-...
Page 91: 1D Symbologies
1D SYMBOLOGIES 1D Code Selection The reader supports the following 1D symbologies (bar code types). See "2D Symbologies" starting on page 173 for 2D bar codes. Symbology-dependent options are included in each chapter. • Disable All Symbologies, page 82 • GS1-128, page 119 •...
Page 92: Disable All Symbologies
Enter/Exit Programming Mode DISABLE ALL SYMBOLOGIES Use this feature to disable all symbologies. 1. Scan the ENTER/EXIT PROGRAMMING Mode bar code. 2. Scan the Disable All Symbologies bar code. 3. Complete the programming sequence by scanning the ENTER/EXIT PROGRAMMING bar code. $AD(CR) Disable All Symbologies This does not disable the reading of programming labels.
Page 93: Code Ean/Upc
Enter/Exit Programming Mode CODE EAN/UPC Coupon Control This feature is used to control the reader’s method of processing coupon labels. $CCPLC00(CR) Coupon Control = Allow all coupon bar codes to be decoded $CCPLC01(CR) DEFAULT Coupon Control = Enable only UPCA coupon decoding $CCPLC02(CR) Coupon Control = Enable only GS1 DataBar™...
Page 94: Upc-A
Enter/Exit Programming Mode UPC-A The following options apply to the UPC-A symbology. UPC-A Enable/Disable When disabled, the reader will not read UPC-A bar codes. $CABEN00(CR) UPC-A = Disable $CABEN01(CR) DEFAULT UPC-A = Enable UPC-A Check Character Transmission Enable this option to transmit the check character along with UPC-A bar code data. $CABCT00(CR) UPC-A Check Character Transmission = Don’t Send $CABCT01(CR)
Page 95: Expand Upc-A To Ean-13
Enter/Exit Programming Mode Expand UPC-A to EAN-13 Expands UPC-A data to the EAN-13 data format. Selecting this feature also changes the symbology ID to match those required for EAN-13. $CAB3B00(CR) DEFAULT UPC-A to EAN-13 = Don’t Expand $CAB3B01(CR) UPC-A to EAN-13 = Expand UPC-A Number System Character Transmission This feature enables/disables transmission of the UPC-A number system character.
Page 96: Upc-A 2D Component
Enter/Exit Programming Mode UPC-A 2D Component This feature enables/disables a requirement that a 2D label component be decoded when a base label of this symbology is decoded. $CAB2D00(CR) DEFAULT EAN-13 2D Component = Disable (2D component not required) $CAB2D01(CR) EAN-13 2D Component = 2D component must be decoded UPC-E The following options apply to the UPC-E symbology.
Page 97: Upc-E Check Character Transmission
Enter/Exit Programming Mode UPC-E Check Character Transmission Enable this option to transmit the check character along with UPC-E bar code data. $CEBCT00(CR) UPC-E Check Character Transmission = Don’t Send $CEBCT01(CR) DEFAULT UPC-E Check Character Transmission = Send UPC-E 2D Component This feature enables/disables a requirement that a 2D label component be decoded when a base label for this symbology is decoded.
Page 98: Expand Upc-E To Ean-13
Enter/Exit Programming Mode Expand UPC-E to EAN-13 Expands UPC-E data to the EAN-13 data format. Selecting this feature also changes the symbology ID to match those required for EAN-13. $CEB3B00(CR) DEFAULT UPC-E to EAN-13 = Don’t Expand $CEB3B01(CR) UPC-E to EAN-13 = Expand Expand UPC-E to UPC-A Expands UPC-E data to the UPC-A data format.
Page 99: Upc-E Number System Character Transmission
Enter/Exit Programming Mode UPC-E Number System Character Transmission This feature enables/disables transmission of the UPC-E system number character. $CEBNS00(CR) UPC-E Number System Character = Do not transmit $CEBNS01(CR) DEFAULT UPC-E Number System Character = Transmit GTIN FORMATTING This feature enables/disables the ability to convert UPC-E, UPC-A, EAN 8, and EAN 13 labels into the GTIN 14- character format.
Page 100: Ean 13 (Jan 13)
Enter/Exit Programming Mode EAN 13 (JAN 13) The following options apply to the EAN 13 (Jan 13) symbology. EAN 13 Enable/Disable When disabled, the reader will not read EAN 13/JAN 13 bar codes. $C3BEN00(CR) EAN 13 = Disable $C3BEN01(CR) DEFAULT EAN 13 = Enable EAN 13 Check Character Transmission Enable this option to transmit the check character along with EAN 13 bar code data.
Page 101: Ean-13 Flag 1 Character
Enter/Exit Programming Mode EAN-13 Flag 1 Character Enables/disables transmission of an EAN/JAN13 Flag1 character. The Flag 1 character is the first character of the label. $C3BF100(CR) EAN-13 Flag 1 Char= Don’t transmit $C3BF101(CR) DEFAULT EAN-13 Flag 1 Char= Transmit EAN-13 ISBN Conversion This option enables/disables conversion of EAN 13/JAN 13 Bookland labels starting with 978 to ISBN labels.
Page 102: Ean-13 2D Component
Enter/Exit Programming Mode EAN-13 2D Component This feature enables/disables a requirement that a 2D label component be decoded when a base label of this symbology is decoded. $C3B2D00(CR) DEFAULT EAN-13 2D Component = Disable (2D component not required) $C3B2D01(CR) EAN-13 2D Component = 2D component must be decoded ISSN The following options apply to the ISSN symbology.
Page 103: Ean 8 (Jan 8)
Enter/Exit Programming Mode EAN 8 (JAN 8) The following options apply to the EAN 8 (Jan 8) symbology. EAN 8 Enable/Disable When disabled, the reader will not read EAN 8/JAN 8 bar codes. $C8BEN00(CR) EAN 8 = Disable $C8BEN01(CR) DEFAULT EAN 8 = Enable EAN 8 Check Character Transmission Enable this option to transmit the check character along with EAN 8 bar code data.
Page 104: Expand Ean 8 To Ean 13
Enter/Exit Programming Mode Expand EAN 8 to EAN 13 Enable this option to expand EAN 8/JAN 8 labels to EAN 13/JAN 13. $C8B3B00(CR) DEFAULT Expand EAN 8 to EAN 13 = Disable $C8B3B01(CR) Expand EAN 8 to EAN 13 = Enable EAN 8 2D Component This feature enables/disables a requirement that a 2D label component be decoded when a base label for this symbology is decoded.
Page 105: Upc/Ean Global Settings
Enter/Exit Programming Mode UPC/EAN GLOBAL SETTINGS This section provides configuration settings for UPC-A, UPC-E, EAN 13 and EAN 8 symbologies, and affects all of these unless otherwise marked for each feature description. UPC/EAN Price Weight Check This feature enables/disables calculation and verification of price/weight check digits. $CPWEN00(CR) DEFAULT Price Weight Check = Disabled...
Page 106: Upc/Ean Quiet Zones
Enter/Exit Programming Mode UPC/EAN Quiet Zones This feature specifies the number of quiet zones for UPC/EAN labels. Quiet zones are blank areas at the ends of a bar code, typically 10 times the width of the narrowest bar or space in the label. The property applies to all EAN- UPC symbologies globally and to the ADDONs.
Page 107: Add-Ons
Enter/Exit Programming Mode ADD-ONS Contact Customer Support for advanced programming of optional and conditional add-ons. Optional Add-ons The reader can be enabled to optionally read the following add-ons (supplementals): If a UPC/EAN base label and an add-on are both decoded, the reader will transmit the base label and add-on.
Page 108: Optional Add-On Timer
Enter/Exit Programming Mode Optional Add-On Timer This option sets the time the reader will look for an add-on when an add-on fragment has been seen and optional add-ons are enabled. (Also see "Optional GS1-128 Add-On Timer" on page 101.) $CADOT01(CR) Optional Add-on Timer = 10ms $CADOT02(CR) Optional Add-on Timer = 20ms...
Page 109 Enter/Exit Programming Mode Optional Add-On Timer (continued) $CADOT06(CR) Optional Add-on Timer = 60ms $CADOT07(CR) DEFAULT Optional Add-on Timer = 70ms $CADOT0A(CR) Optional Add-on Timer = 100ms $CADOT0C(CR) Optional Add-on Timer = 120ms $CADOT0E(CR) Optional Add-on Timer = 140ms $CADOT10(CR) Optional Add-on Timer = 160ms Product Reference Guide...
Page 110 Enter/Exit Programming Mode Optional Add-On Timer (continued) $CADOT12(CR) Optional Add-on Timer = 180ms $CADOT14(CR) Optional Add-on Timer = 200ms $CADOT16(CR) Optional Add-on Timer = 220ms $CADOT18(CR) Optional Add-on Timer = 240ms $CADOT1A(CR) Optional Add-on Timer = 260ms $CADOT1C(CR) Optional Add-on Timer = 280ms $CADOT1E(CR) Optional Add-on Timer = 300ms QuickScan™...
Page 111: Optional Gs1-128 Add-On Timer
Enter/Exit Programming Mode Optional GS1-128 Add-On Timer This option sets the timer expiration value to read the added part after reading the linear EAN/UPC part. For UPC/EAN add-ons other than those of that type, see "Optional Add-On Timer" on page $CADUT00(CR) DEFAULT Optional GS1-128 Add-On Timer = Disable...
Page 112 Enter/Exit Programming Mode Optional GS1-128 Add-On Timer (continued) $CADUT06(CR) Optional GS1-128 Add-On Timer = 60ms $CADUT07(CR) Optional GS1-128 Add-On Timer = 70ms $CADUT0A(CR) Optional GS1-128 Add-On Timer = 100ms $CADUT0C(CR) Optional GS1-128 Add-On Timer = 120ms $CADUT0E(CR) Optional GS1-128 Add-On Timer = 140ms $CADUT10(CR) Optional GS1-128 Add-On Timer = 160ms QuickScan™...
Page 113 Enter/Exit Programming Mode Optional GS1-128 Add-On Timer (continued) $CADUT12(CR) Optional GS1-128 Add-On Timer = 180ms $CADUT14(CR) Optional GS1-128 Add-On Timer = 200ms $CADUT16(CR) Optional GS1-128 Add-On Timer = 220ms $CADUT18(CR) Optional GS1-128 Add-On Timer = 240ms $CADUT1A(CR) Optional GS1-128 Add-On Timer = 260ms $CADUT1C(CR) Optional GS1-128 Add-On Timer = 280ms $CADUT1E(CR)
Page 114: Code 39
Enter/Exit Programming Mode CODE 39 The following options apply to the Code 39 symbology. Code 39 Enable/Disable $CC3EN00(CR) Code 39 = Disable $CC3EN01(CR) DEFAULT Code 39 = Enable Code 39 Check Character Calculation Enable this option to enables/disables calculation and verification of an optional Code 39 check character. When disabled, any check character in the label is treated as a data character $CC3CC00(CR) Code 39 Check Character Calculation = Don’t Calculate...
Page 115: Code 39 Check Character Transmission
Enter/Exit Programming Mode Code 39 Check Character Calculation (continued) $CC3CC04(CR) Code 39 Check Character Calculation = Enable Italian Post Check $CC3CC08(CR) Code 39 Check Character Calculation = Enable Daimler Chrysler Check Code 39 Check Character Transmission Enable this option to transmit the check character along with Code 39 bar code data. $CC3CT00(CR) Code 39 Check Character Transmission = Don’t Send $CC3CT01(CR)
Page 116: Code 39 Start/Stop Character Transmission
Enter/Exit Programming Mode Code 39 Start/Stop Character Transmission Enable this option to enable/disable transmission of Code 39 start and stop characters $CC3SS00(CR) DEFAULT Code 39 Start/Stop Character Transmission = Don’t Transmit $CC3SS01(CR) Code 39 Start/Stop Character Transmission = Transmit Code 39 Full ASCII Enables/disables the translation of Code 39 characters to Code 39 full-ASCII characters.
Page 117: Code 39 Quiet Zones
Enter/Exit Programming Mode Code 39 Quiet Zones This feature specifies the number of quiet zones for Code 39 labels. Quiet zones are blank areas at the ends of a bar code, typically 10 times the width of the narrowest bar or space in the label. $CC3LO02(CR) Code 39 Quiet Zones = Quiet Zones on two sides $CC3LO03(CR)
Page 118: Code 39 Set Length 1
Enter/Exit Programming Mode Code 39 Set Length 1 This feature specifies one of the bar code lengths for Code 39 Length Control. Length 1 is the minimum label length if in Variable Length Mode, or the first fixed length if in Fixed Length Mode.
Page 119: Code 39 Set Length 2
Enter/Exit Programming Mode Code 39 Set Length 2 This feature specifies one of the bar code lengths for Code 39 Length Control. Length 2 is the maximum label length if in Variable Length Mode, or the second fixed length if in Fixed Length Mode.
Page 120: Trioptic Code
Enter/Exit Programming Mode TRIOPTIC CODE The following options apply to the Trioptic symbology. Trioptic Code Enable/Disable $CCTEN00(CR) DEFAULT Trioptic Code = Disable $CCTEN01(CR) Trioptic Code = Enable CODE 32 (ITAL PHARMACEUTICAL CODE) The following options apply to the Code 32 (Italian Pharmaceutical Code) symbology. Code 32 Enable/Disable When disabled, the reader will not read Code 32 bar codes.
Page 121: Code 32 Feature Setting Exceptions
Enter/Exit Programming Mode Code 32 Feature Setting Exceptions The following features are set for Code 32 by using these Code 39 settings:  "Code 39 Quiet Zones" on page 107  "Code 39 Length Control" on page 107 "Trioptic Code" on page 110 Code 32 Check Char Transmission Enable this option to transmit the check character along with Code 32 bar code data.
Page 122: Code 39 Cip (French Pharmaceutical)
Enter/Exit Programming Mode CODE 39 CIP (FRENCH PHARMACEUTICAL) The following options apply to the Code 39 CIP symbology. Code 39 CIP Enable/Disable Enables/Disables ability of the reader to decode Code 39 CIP labels. $CCCEN00(CR) DEFAULT Code 39 CIP = Disable $CCCEN01(CR) Code 39 CIP = Enable CODE 39 DANISH PPT...
Page 123: Code 39 Laposte
Enter/Exit Programming Mode CODE 39 LAPOSTE The following options apply to the Code 39 LaPoste symbology. Code 39 LaPoste Enable/Disable Enables/disables the ability of the scanner to decode Code39 La Poste labels. $CLPEN00(CR) DEFAULT Code 39 LaPoste = Disable $CLPEN01(CR) Code 39 LaPoste = Enable CODE 39 PZN The following options apply to the Code 39 PZN symbology.
Page 124: Code 128
Enter/Exit Programming Mode CODE 128 The following options apply to the Code 128 symbology. Code 128 Enable/Disable When disabled, the reader will not read Code 128 bar codes. $CC8EN00(CR) Code 128 = Disable $CC8EN01(CR) DEFAULT Code 128 = Enable Expand Code 128 to Code 39 This feature enables/disables expansion of Code 128 labels to Code 39 labels.
Page 125: Code 128 Check Character Transmission
Enter/Exit Programming Mode Code 128 Check Character Transmission Enable this option to transmit the check character along with Code 128 bar code data. $CC8CT00(CR) DEFAULT Code 128 Check Character Transmission = Don’t Send $CC8CT01(CR) Code 128 Check Character Transmission = Send Code 128 Function Character Transmission Enables/disables transmission of Code128 function characters 1, 2, 3, and 4.
Page 126: Code 128 Quiet Zones
Enter/Exit Programming Mode Code 128 Quiet Zones This feature specifies the number of quiet zones for Code 128 labels. Quiet zones are blank areas at the ends of a bar code and are typically 10 times the width of the narrowest bar or space in the label. $CC8LO02(CR) Code 128 Quiet Zones = Quiet Zones on two sides $CC8LO03(CR)
Page 127: Code 128 Set Length 1
Enter/Exit Programming Mode Code 128 Set Length 1 Specifies one of the bar code lengths for Code 128 Length Control. Length 1 is the minimum label length if in Variable Length Mode, or the first fixed length if in Fixed Length Mode.
Page 128: Code 128 Set Length 2
Enter/Exit Programming Mode Code 128 Set Length 2 This feature specifies one of the bar code lengths for Code 128 Length Control. Length 2 is the maximum label length if in Variable Length Mode, or the second fixed length if in Fixed Length Mode.
Page 129: Gs1-128
Enter/Exit Programming Mode GS1-128 The following options apply to the GS1-128 symbology. (Also known as USS-128, GS1-128, GTIN-128, UCC- 128, EAN-128.) GS1-128 Enable This option enables/disables the ability of the reader to translate GS1-128 labels to the GS1-128 data format. Options are: •...
Page 130: Code Isbt 128
Enter/Exit Programming Mode CODE ISBT 128 The following options apply to the ISBT 128 symbology. ISBT 128 Concatenation Use this option to enable/disable ISBT128 concatenation of 2 labels. $CI8CE00(CR) DEFAULT ISBN 128 Concatenation = Disable $CI8CE01(CR) ISBN 128 Concatenation = Enable ISBT 128 Force Concatenation When enabled, this feature forces concatenation for ISBT.
Page 131: Isbt 128 Concatenation Mode
Enter/Exit Programming Mode ISBT 128 Concatenation Mode Specifies the concatenation mode between Static and Dynamic. ISBT 128 Concate- This option is only valid when ISBT 128 Concatenation is enabled (see " nation" on page 120 $CI8CM00CR) DEFAULT ISBT 128 Concatenation Mode = Static $CI8CM01CR) ISBT 128 Concatenation Mode = Dynamic Product Reference Guide...
Page 132: Isbt 128 Dynamic Concatenation Timeout
Enter/Exit Programming Mode ISBT 128 Dynamic Concatenation Timeout Specifies the timeout used by the ISBT 128 Dynamic Concatenation Mode. $CI8DT05(CR) ISBT 128 Dynamic Concatenation Timeout = 50 msec $CI8DT0A(CR) ISBT 128 Dynamic Concatenation Timeout = 100 msec DEFAULT $CI8DT14(CR) ISBT 128 Dynamic Concatenation Timeout = 200 msec $CI8DT32(CR) ISBT 128 Dynamic Concatenation Timeout = 500 msec $CI8DT4B(CR)
Page 133: Isbt 128 Advanced Concatenation Options
Enter/Exit Programming Mode ISBT 128 Advanced Concatenation Options To set up pairs of label types for concatenation, use the Datalogic Aladdin configuration page 2 application or contact Datalogic Technical Support, as described on INTERLEAVED 2 OF 5 (I 2 OF 5) The following options apply to the I 2 of 5 symbology.
Page 134: I 2 Of 5 Check Character Calculation
Enter/Exit Programming Mode I 2 of 5 Check Character Calculation This option enables/disables calculation and verification of an optional I 2 of 5 check character. Combinations of these settings are possible via the Aladdin configuration utility, or contact Technical Support. $CI2CC00(CR) DEFAULT I 2 of 5 Check Character Calculation = Disable...
Page 135: I 2 Of 5 Check Character Transmission
Enter/Exit Programming Mode I 2 of 5 Check Character Transmission Enable this option to transmit the check character along with I 2 of 5 bar code data. $CI2CT00(CR) I 2 of 5 Check Character Transmission = Don’t Send $CI2CT01(CR) DEFAULT I 2 of 5 Check Character Transmission = Send I 2 of 5 Length Control This feature specifies either variable length decoding or fixed length decoding for the I 2 of 5 symbology.
Page 136: I 2 Of 5 Set Length 1
Enter/Exit Programming Mode I 2 of 5 Set Length 1 This feature specifies one of the bar code lengths for I 2 of 5 Length Control. Length 1 is the minimum label length if in Variable Length Mode, or the first fixed length if in Fixed Length Mode. The length includes the bar code’s check and data characters.
Page 137: I 2 Of 5 Set Length 2
Enter/Exit Programming Mode I 2 of 5 Set Length 2 This feature specifies one of the bar code lengths for I 2 of 5 Length Control. Length 2 is the maximum label length if in Variable Length Mode, or the second fixed length if in Fixed Length Mode.
Page 138: Interleaved 2 Of 5 Cip Hr
Enter/Exit Programming Mode INTERLEAVED 2 OF 5 CIP HR The following options apply to the Interleaved 2 of 5 CIP HR symbology. Interleaved 2 of 5 CIP HR Enable/Disable Enables/Disables ability of reader to decode Interleaved 2 of 5 CIP HR labels. $CCHEN00(CR) DEFAULT Interleaved 2 of 5 CIP HR = Disable...
Page 139: Standard 2 Of 5
Enter/Exit Programming Mode STANDARD 2 OF 5 The following options apply to the Standard 2 of 5 symbology. Standard 2 of 5 Enable/Disable When disabled, the reader will not read Standard 2 of 5 bar codes. $CS2EN00(CR) DEFAULT Standard 2 of 5 = Disable $CS2EN01(CR) Standard 2 of 5 = Enable Standard 2 of 5 Check Character Calculation...
Page 140: Standard 2 Of 5 Check Character Transmission
Enter/Exit Programming Mode Standard 2 of 5 Check Character Transmission This feature enables/disables transmission of an optional Standard 2 of 5 check character. $CS2CT00(CR) Standard 2 of 5 Check Character Transmission = Don’t Send $CS2CT01(CR) DEFAULT Standard 2 of 5 Check Character Transmission = Send Standard 2 of 5 Length Control This feature specifies either variable length decoding or fixed length decoding for the Standard 2 of 5 symbology.
Page 141: Standard 2 Of 5 Set Length 1
Enter/Exit Programming Mode Standard 2 of 5 Set Length 1 This feature specifies one of the bar code lengths for Standard 2 of 5 Length Control. Length 1 is the minimum label length if in Variable Length Mode, or the first fixed length if in Fixed Length Mode.
Page 142: Standard 2 Of 5 Set Length 2
Enter/Exit Programming Mode Standard 2 of 5 Set Length 2 This feature specifies one of the bar code lengths for Standard 2 of 5 Length Control. Length 2 is the maximum label length if in Variable Length Mode, or the second fixed length if in Fixed Length Mode.
Page 143: Industrial 2 Of 5
Enter/Exit Programming Mode INDUSTRIAL 2 OF 5 The following options apply to the Industrial 2 of 5 symbology. Industrial 2 of 5 Enable/Disable Enables/Disables ability of reader to decode Industrial 2 of 5 labels. $CU2EN00(CR) DEFAULT Industrial 2 of 5 = Disable $CU2EN01(CR) Industrial 2 of 5 = Enable Industrial 2 of 5 Check Character Calculation...
Page 144: Industrial 2 Of 5 Check Character Transmission
Enter/Exit Programming Mode Industrial 2 of 5 Check Character Transmission Enables/disables transmission of an Industrial 2 of 5 check character. $CU2CT00(CR) Industrial 2 of 5 Check Character Transmission = Disable $CU2CT01(CR) DEFAULT Industrial 2 of 5 Check Character Transmission = Enable Industrial 2 of 5 Length Control This feature specifies either variable length decoding or fixed length decoding for the Industrial 2 of 5 symbology.
Page 145: Industrial 2 Of 5 Set Length 1
Enter/Exit Programming Mode Industrial 2 of 5 Set Length 1 This feature specifies one of the bar code lengths for Industrial 2 of 5 Length Control. Length 1 is the minimum label length if in Variable Length Mode, or the first fixed length if in Fixed Length Mode.
Page 146: Industrial 2 Of 5 Set Length 2
Enter/Exit Programming Mode Industrial 2 of 5 Set Length 2 This feature specifies one of the bar code lengths for Industrial 2 of 5 Length Control. Length 2 is the maximum label length if in Variable Length Mode, or the second fixed length if in Fixed Length Mode.
Page 147: Code Iata
Enter/Exit Programming Mode CODE IATA The following options apply to the IATA symbology. IATA Enable/Disable Enables/Disables the ability of the reader to decode IATA labels. $CIAEN00(CR) DEFAULT IATA = Disable $CIAEN01(CR) IATA = Enable IATA Check Character Transmission Enables/Disables calculation and verification of an optional Industrial 2 of 5 check character. $CIACT00(CR) IATA Check Character Transmission = Disable $CIACT01(CR)
Page 148: Codabar
Enter/Exit Programming Mode CODABAR The following options apply to the Codabar symbology. Codabar Enable/Disable When disabled, the reader will not read Codabar bar codes. $CCBEN00(CR) DEFAULT Codabar = Disable $CCBEN01(CR) Codabar = Enable Codabar Check Character Calculation Enable this option to enables/disables calculation and verification of an optional Codabar check character. When disabled, any check character in the label is treated as a data character $CCBCC00(CR) DEFAULT...
Page 149: Codabar Check Character Transmission
Enter/Exit Programming Mode Codabar Check Character Transmission Enable this option to transmit the check character along with Codabar bar code data. $CCBCT00(CR) Codabar Check Character Transmission = Don’t Send $CCBCT01(CR) DEFAULT Codabar Check Character Transmission = Send Codabar Start/Stop Character Transmission Enable this option to enable/disable transmission of Codabar start and stop characters $CCBSS00(CR) Codabar Start/Stop Character Transmission = Don’t...
Page 150: Codabar Start/Stop Character Set
Enter/Exit Programming Mode Codabar Start/Stop Character Set This option specifies the format of transmitted Codabar start/stop characters $CCBSC00(CR) Codabar Check Character Set = ABCD/TN*E $CCBSC01(CR) Codabar Check Character Set = ABCD/ABCD $CCBSC02(CR) Codabar Check Character Set = abcd/tn*e $CCBSC03(CR) DEFAULT Codabar Check Character Set = abcd/abcd Codabar Start/Stop Character Match When enabled, this option requires that start and stop characters match...
Page 151: Codabar Quiet Zones
Enter/Exit Programming Mode Codabar Quiet Zones Specifies the number of quiet zones for Codabar labels. Quiet zones are blank areas at the ends of a bar code and are typically 10 times the width of the narrowest bar or space in the label. $CCBLO02(CR) Codabar Quiet Zones = Quiet Zones on two sides $CCBLO03(CR)
Page 152: Codabar Set Length 1
Enter/Exit Programming Mode Codabar Set Length 1 This feature specifies one of the bar code lengths for Codabar Length ControlCodabar Length Control. Length 1 is the minimum label length if in Variable Length Mode, or the first fixed length if in Fixed Length Mode.
Page 153: Codabar Set Length 2
Enter/Exit Programming Mode Codabar Set Length 2 This feature specifies one of the bar code lengths for Codabar Length ControlCodabar Length Control. Length 2 is the maximum label length if in Variable Length Mode, or the second fixed length if in Fixed Length Mode.
Page 154: Abc Codabar
Enter/Exit Programming Mode ABC CODABAR The following options apply to the ABC Codabar symbology. ABC Codabar Enable/Disable Enables/Disables ability of reader to decode ABC Codabar labels. $CCBAB00(CR) DEFAULT ABC Codabar = Disable $CCBAB01(CR) ABC Codabar = Enable ABC Codabar Concatenation Mode Specifies the concatenation mode between Static and Dynamic.
Page 155: Abc Codabar Dynamic Concatenation Timeout
Enter/Exit Programming Mode ABC Codabar Dynamic Concatenation Timeout Specifies the timeout in 10-millisecond ticks used by the ABC Codabar Dynamic Concatenation Mode. $CCBDT05(CR) ABC Codabar Dynamic Concatenation Timeout = 50 msec $CCBDT0A(CR) ABC Codabar Dynamic Concatenation Timeout = 100 msec $CCBDT14(CR) DEFAULT ABC Codabar Dynamic Concatenation Timeout =...
Page 156: Abc Codabar Force Concatenation
Enter/Exit Programming Mode ABC Codabar Force Concatenation Forces labels starting or ending with D to be concatenated. $CCBFC00(CR) DEFAULT ABC Codabar Force Concatenation = Disable $CCBFC01(CR) ABC Codabar Force Concatenation = Enable QuickScan™ I QD24XX...
Page 157: Code 11
Enter/Exit Programming Mode CODE 11 The following options apply to the Code 11 symbology. Code 11 Enable/Disable When disabled, the reader will not read Code 11 bar codes. $CC1EN00(CR) DEFAULT Code 11 = Disable $CC1EN01(CR) Code 11 = Enable Code 11 Check Character Calculation This option enables/disables calculation and verification of optional Code 11 check character.
Page 158: Code 11 Check Character Transmission
Enter/Exit Programming Mode Code 11 Check Character Transmission This feature enables/disables transmission of an optional Code 11 check character. $CC1CT00(CR) Code 11 Check Character Transmission = Don’t Send $CC1CT01(CR) DEFAULT Code 11 Check Character Transmission = Send Code 11 Length Control This feature specifies either variable length decoding or fixed length decoding for the Code 11 symbology.
Page 159: Code 11 Set Length 1
Enter/Exit Programming Mode Code 11 Set Length 1 This feature specifies one of the bar code lengths for Code 11 Length Control. Length 1 is the minimum label length if in Variable Length Mode, or the first fixed length if in Fixed Length Mode.
Page 160: Code 11 Set Length 2
Enter/Exit Programming Mode Code 11 Set Length 2 This feature specifies one of the bar code lengths for Code 11 Length Control. Length 2 is the maximum label length if in Variable Length Mode, or the second fixed length if in Fixed Length Mode.
Page 161: Gs1 Databar™ Omnidirectional
Enter/Exit Programming Mode GS1 DATABAR™ OMNIDIRECTIONAL The following options apply to the GS1 DataBar™ Omnidirectional (formerly RSS-14) symbology. GS1 DataBar™ Omnidirectional Enable/Disable When disabled, the reader will not read GS1 DataBar™ Omnidirectional bar codes. $C4BEN00(CR) DEFAULT GS1 DataBar™ Omnidirectional = Disable $C4BEN01(CR) GS1 DataBar™...
Page 162: Gs1 Databar™ Omnidirectional 2D Component
Enter/Exit Programming Mode GS1 DataBar™ Omnidirectional 2D Component This feature enables/disables a requirement that a 2D label component be decoded when a base label for this symbology is decoded. $C4B2D00(CR) DEFAULT GS1 DataBar™ Omnidirectional 2D Component = Disable (2D component not required) $C4B2D01(CR) GS1 DataBar™...
Page 163: Gs1 Databar™ Expanded Gs1-128 Emulation
Enter/Exit Programming Mode GS1 DataBar™ Expanded GS1-128 Emulation When enabled, GS1 DataBar™ Expanded bar codes will be translated to the GS1-128 label data format. $CXBU800(CR) DEFAULT GS1 DataBar™ Expanded GS1-128 Emulation = Disable $CXBU801(CR) GS1 DataBar™ Expanded GS1-128 Emulation = Enable GS1 DataBar™...
Page 164: Gs1 Databar™ Expanded Length Control
Enter/Exit Programming Mode GS1 DataBar™ Expanded Length Control This feature specifies either variable length decoding or fixed length decoding for the GS1 DataBar™ Expanded symbology. Variable Length: For variable-length decoding, a minimum length may be set. Fixed Length: For fixed-length decoding, two different lengths may be set. $CXBLC00(CR) DEFAULT GS1 DataBar™...
Page 165: Gs1 Databar™ Expanded Set Length 1
Enter/Exit Programming Mode GS1 DataBar™ Expanded Set Length 1 This feature specifies one of the bar code lengths for GS1 DataBar™ Expanded Length Control. Length 1 is the minimum label length if in Variable Length Mode, or the first fixed length if in Fixed Length Mode.
Page 166: Gs1 Databar™ Expanded Set Length 2
Enter/Exit Programming Mode GS1 DataBar™ Expanded Set Length 2 This feature specifies one of the bar code lengths for GS1 DataBar™ Expanded Length Control. Length 2 is the maximum label length if in Variable Length Mode, or the second fixed length if in Fixed Length Mode.
Page 167: Gs1 Databar™ Limited
Enter/Exit Programming Mode GS1 DATABAR™ LIMITED The following options apply to the GS1 DataBar™ Limited (formerly RSS Limited) symbology. GS1 DataBar™ Limited Enable/Disable When disabled, the reader will not read GS1 DataBar™ Limited bar codes. $CLBEN00(CR) DEFAULT GS1 DataBar™ Limited = Disable $CLBEN01(CR) GS1 DataBar™...
Page 168: Gs1 Databar™ Limited 2D Component
Enter/Exit Programming Mode GS1 DataBar™ Limited 2D Component This feature enables/disables a requirement that a 2D label component be decoded when a base label of this symbology is decoded. $CLB2D00(CR) DEFAULT GS1 DataBar™ Limited 2D Component = Disable (2D component not required) $CLB2D01(CR) GS1 DataBar™...
Page 169: Code 93 Check Character Calculation
Enter/Exit Programming Mode Code 93 Check Character Calculation Enables/disables calculation and verification of an optional Code 93 check character. $CC9CC00(CR) Code 93 Check Character Calculation = Disable $CC9CC01(CR) Code 93 Check Character Calculation = Enable Check C $CC9CC02(CR) Code 93 Check Character Calculation = Enable Check K $CC9CC03(CR) DEFAULT Code 93 Check Character Calculation = Enable Check C...
Page 170: Code 93 Length Control
Enter/Exit Programming Mode Code 93 Length Control This feature specifies either variable length decoding or fixed length decoding for the Code 93 symbology. Variable Length: For variable length decoding, a minimum and maximum length may be set. Fixed Length: For fixed length decoding, two different lengths may be set. $CC9LC00(CR) DEFAULT Code 93 Length Control = Variable Length...
Page 171: Code 93 Set Length 1
Enter/Exit Programming Mode Code 93 Set Length 1 Specifies one of the bar code lengths for Code 93 Length Control. Length 1 is the minimum label length if in Variable Length Mode, or the first fixed length if in Fixed Length Mode.
Page 172: Code 93 Set Length 2
Enter/Exit Programming Mode Code 93 Set Length 2 This feature specifies one of the bar code lengths for Code 93 Length Control. Length 2 is the maximum label length if in Variable Length Mode, or the second fixed length if in Fixed Length Mode.
Page 173: Code 93 Quiet Zones
Enter/Exit Programming Mode Code 93 Quiet Zones Enables/disables quiet zones for Code 93. $CC9LO02(CR) Code 93 Quiet Zones = Quiet Zones on two sides $CC9LO03(CR) DEFAULT Code 93 Quiet Zones = Small Quiet Zones on two sides The following options apply to the MSI symbology. MSI Enable/Disable Enables/Disables ability of reader to decode MSI labels.
Page 174: Msi Check Character Calculation
Enter/Exit Programming Mode MSI Check Character Calculation Enables/Disables calculation and verification of an optional MSI check character. $CMSCC00(CR) MSI Check Character Calculation = Disable $CMSCC01(CR) DEFAULT MSI Check Character Calculation = Enable Mod10 $CMSCC02(CR) MSI Check Character Calculation = Enable Mod11/10 $CMSCC03(CR) MSI Check Character Calculation = Enable Mod10/10 MSI Check Character Transmission...
Page 175: Msi Length Control
Enter/Exit Programming Mode MSI Length Control This feature specifies either variable length decoding or fixed length decoding for the MSI symbology. Variable Length: For variable length decoding, a minimum and maximum length may be set. Fixed Length: For fixed length decoding, two different lengths may be set. $CMSLC00(CR) DEFAULT MSI Length Control = Variable Length...
Page 176: Msi Set Length 1
Enter/Exit Programming Mode MSI Set Length 1 This feature specifies one of the bar code lengths for MSI Length Control. Length 1 is the minimum label length if Variable Length Mode, or the first fixed length if in Fixed Length Mode.
Page 177: Msi Set Length 2
Enter/Exit Programming Mode MSI Set Length 2 This feature specifies one of the bar code lengths for MSI Length Control. Length 2 is the maximum label length if Variable Length Mode, or the second fixed length if in Fixed Length Mode.
Page 178: Plessey
Enter/Exit Programming Mode PLESSEY The following options apply to the Plessey symbology. Plessey Enable/Disable Enables/Disables ability of reader to decode Plessey labels. $CPLEN00CR) DEFAULT Plessey = Disable $CPLEN01CR) Plessey = Enable Plessey Check Character Calculation Enables/Disables calculation and verification of an optional Plessey check character. $CPLCC00(CR) Plessey Check Character Calculation = Disable $CPLCC01(CR)
Page 179: Plessey Check Character Transmission
Enter/Exit Programming Mode Plessey Check Character Transmission Enables/disables transmission of an MSI check character. $CPLCT00(CR) Plessey Check Character Transmission = Disable $CPLCT01(CR) DEFAULT Plessey Check Character Transmission = Enable Plessey Length Control This feature specifies either variable length decoding or fixed length decoding for the Plessey symbology. Variable Length: For variable length decoding, a minimum and maximum length may be set.
Page 180: Plessey Set Length 1
Enter/Exit Programming Mode Plessey Set Length 1 This feature specifies one of the bar code lengths for Plessey Length Control. Length 1 is the minimum label length if in Variable Length Mode, or the first fixed length if in Fixed Length Mode.
Page 181: Plessey Set Length 2
Enter/Exit Programming Mode Plessey Set Length 2 This feature specifies one of the bar code lengths for Plessey Length Control. Length 2 is the maximum label length if in Variable Length Mode, or the second fixed length if in Fixed Length Mode.
Page 182 Enter/Exit Programming Mode NOTES QuickScan™ I QD24XX...
Page 183: 2D Symbologies
2D SYMBOLOGIES 2D Global Features • 2D Maximum Decoding Time on page 174 • 2D Normal/Inverse Symbol Control on page 175 • 2D Structured Append on page 175 The reader supports the following 2D symbologies (bar code types). Symbology-dependent options for each symbology are included in this chapter.
Page 184: 2D Maximum Decoding Time
Enter/Exit Programming Mode 2D Maximum Decoding Time This feature specifies the maximum amount of time the software will spend attempting to decode a 2D label. The selectable range is 10 milliseconds to 2.55 milliseconds. $CDETM0A(CR) 2D Maximum Decoding Time = 100 msec $CDETM32(CR) 2D Maximum Decoding Time = 200 msec $CDETM23(CR)
Page 185: 2D Structured Append
Enter/Exit Programming Mode 2D Structured Append Enables/disables ability of reader to append multiple 2D Codes labels in a structured format. The structured append property is globally applied to the following symbologies, if these are enabled: • Data Matrix • Aztec •...
Page 186: Aztec Code
Enter/Exit Programming Mode Aztec Code Aztec Code Enable / Disable Enables/disables the ability of the reader to decode Aztec Code labels. $CAZEN00(CR) DEFAULT Aztec Code = Disable $CAZEN01(CR) Aztec Code = Enable Aztec Code Length Control This feature specifies either variable length decoding or fixed length decoding for this symbology. Variable Length: For variable length decoding, a minimum and maximum length may be set.
Page 187: Aztec Code Set Length 1
Enter/Exit Programming Mode Aztec Code Set Length 1 Specifies one of the bar code lengths for Aztec Code Length Control. Length 1 is the minimum label length if in Variable Length Mode, or the first fixed length if in Fixed Length Mode. Characters can be set from 0001 to 3,832 characters in increments of 0001 (pad with zeroes).
Page 188: Aztec Code Set Length 2
Enter/Exit Programming Mode Aztec Code Set Length 2 This feature specifies one of the bar code lengths for Aztec Code Length Control. Length 2 is the maximum label length if in Variable Length Mode, or the second fixed length if in Fixed Length Mode. Characters can be set from 0001 to 3,832 characters in increments of 0001 (pad with zeroes).
Page 189: China Sensible Code
Enter/Exit Programming Mode China Sensible Code China Sensible Code Enable / Disable Enables/disables the ability of the reader to decode China Sensible Code labels. $CCSEN00(CR) DEFAULT China Sensible Code = Disable $CCSEN01(CR) China Sensible Code = Enable China Sensible Code Length Control This feature specifies either variable length decoding or fixed length decoding for this symbology.
Page 190: China Sensible Code Set Length 1
Enter/Exit Programming Mode China Sensible Code Set Length 1 Specifies one of the bar code lengths for China Sensible Code Length Control. Length 1 is the minimum label length if in Variable Length Mode, or the first fixed length if in Fixed Length Mode. Characters can be set from 0001 to 7,827 characters in increments of 0001 (pad with zeroes).
Page 191: China Sensible Code Set Length 2
Enter/Exit Programming Mode China Sensible Code Set Length 2 This feature specifies one of the bar code lengths for China Sensible Code Length Control. Length 2 is the maximum label length if in Variable Length Mode, or the second fixed length if in Fixed Length Mode. Characters can be set from 0001 to 7,827 characters in increments of 0001 (pad with zeroes).
Page 192: Data Matrix
Enter/Exit Programming Mode Data Matrix Data Matrix Enable / Disable Enables/disables ability of reader to decode Data Matrix labels. $CDMEN00(CR) Data Matrix = Disable $CDMEN01(CR) DEFAULT Data Matrix = Enable Data Matrix Square/Rectangular Style Specifies the options available when reading Data Matrix with different form factors. Choices are: •...
Page 193: Data Matrix Length Control
Enter/Exit Programming Mode Data Matrix Length Control This feature specifies either variable length decoding or fixed length decoding for this symbology. Variable Length: For variable length decoding, a minimum and maximum length may be set. Fixed Length: For fixed length decoding, two different lengths may be set. $CDMLC00(CR) DEFAULT Data Matrix Length Control = Variable Length...
Page 194: Data Matrix Set Length 2
Enter/Exit Programming Mode Data Matrix Set Length 2 This feature specifies one of the bar code lengths for Data Matrix Length Control. Length 2 is the maximum label length if in Variable Length Mode, or the second fixed length if in Fixed Length Mode. Characters can be set from 0001 to 3,116 characters in increments of 0001 (pad with zeroes).
Page 195: Maxicode
Enter/Exit Programming Mode Maxicode Maxicode Enable / Disable Enables/disables ability of reader to decode Maxicode labels. $CMXEN00(CR) DEFAULT Maxicode = Disable $CMXEN01(CR) Maxicode = Enable Maxicode Primary Message Transmission Enables/disables the transmission of only the Primary Message when the Secondary Message is not readable. $CMXPT00(CR) DEFAULT Maxicode Primary Message Transmission = Disable...
Page 196: Maxicode Length Control
Enter/Exit Programming Mode Maxicode Length Control This feature specifies either variable length decoding or fixed length decoding for this symbology. Variable Length: For variable length decoding, a minimum and maximum length may be set. Fixed Length: For fixed length decoding, two different lengths may be set. $CMXLC00(CR) DEFAULT Maxicode Length Control = Variable Length...
Page 197: Maxicode Set Length 2
Enter/Exit Programming Mode Maxicode Set Length 2 This feature specifies one of the bar code lengths for Maxicode Length Control. Length 2 is the maximum label length if in Variable Length Mode, or the second fixed length if in Fixed Length Mode. Characters can be set from 0001 to 0145 characters in increments of 0001 (pad with zeroes).
Page 198: Pdf417
Enter/Exit Programming Mode PDF417 PDF417 Enable / Disable Enables/disables the ability of the reader to decode PDF417 labels. $CP4EN00(CR) PDF417 = Disable $CP4EN01(CR) DEFAULT PDF417 = Enable PDF417 Length Control This feature specifies either variable length decoding or fixed length decoding for this symbology. Variable Length: For variable length decoding, a minimum and maximum length may be set.
Page 199: Pdf417 Set Length 1
Enter/Exit Programming Mode PDF417 Set Length 1 Specifies one of the bar code lengths for PDF417 Length Control. Length 1 is the minimum label length if in Variable Length Mode, or the first fixed length if in Fixed Length Mode. Length includes the bar code’s data characters only.
Page 200: Pdf417 Set Length 2
Enter/Exit Programming Mode PDF417 Set Length 2 This feature specifies one of the bar code lengths for PDF417 Length Control. Length 2 is the maximum label length if in Variable Length Mode, or the second fixed length if in Fixed Length Mode. Length includes the bar code’s check, data, and full-ASCII shift characters.
Page 201: Micro Pdf417
Enter/Exit Programming Mode Micro PDF417 Micro PDF417 Enable / Disable Enables/disables the ability of the reader to decode Micro PDF417 labels $CMIEN00(CR) DEFAULT Micro PDF417 = Disable $CMIEN01(CR) Micro PDF417 = Enable Micro PDF417 Code 128 GS1-128 Emulation Specifies which AIM ID to use for MicroPDF labels when doing Code 128 or GS1-128 emulation. Emulation choices are: •...
Page 202: Micro Pdf417 Length Control
Enter/Exit Programming Mode Micro PDF417 Length Control This feature specifies either variable length decoding or fixed length decoding for this symbology. Variable Length: For variable length decoding, a minimum and maximum length may be set. Fixed Length: For fixed length decoding, two different lengths may be set. $CMILC00(CR) DEFAULT Micro PDF417 Length Control = Variable Length...
Page 203: Micro Pdf417 Set Length 2
Enter/Exit Programming Mode Micro PDF417 Set Length 2 This feature specifies one of the bar code lengths for Micro PDF417 Length Control. Length 2 is the maximum label length if in Variable Length Mode, or the second fixed length if in Fixed Length includes the bar code’s data characters only.
Page 204: Qr Code
Enter/Exit Programming Mode QR Code QR Code Enable / Disable Enables/disables the ability of the reader to decode QR Code labels $CQREN00(CR) QR Code = Disable $CQREN01(CR) DEFAULT QR Code = Enable QR Code Length Control This feature specifies either variable length decoding or fixed length decoding for this symbology. Variable Length: For variable length decoding, a minimum and maximum length may be set.
Page 205: Qr Code Set Length 1
Enter/Exit Programming Mode QR Code Set Length 1 Specifies one of the bar code lengths for QR Code Length Control. Length 1 is the minimum label length if in Variable Length Mode, or the first fixed length if in Fixed Length Mode. Characters can be set from 0001 to 7,089 characters in increments of 0001 (pad with zeroes).
Page 206: Qr Code Set Length 2
Enter/Exit Programming Mode QR Code Set Length 2 This feature specifies one of the bar code lengths for QR Code Length Control. Length 2 is the maximum label length if in Variable Length Mode, or the second fixed length if in Fixed Length Mode. Characters can be set from 0001 to 7,089 characters in increments of 0001 (pad with zeroes).
Page 207: Micro Qr Code
Enter/Exit Programming Mode Micro QR Code Micro QR Code Enable/Disable Enables/disables the ability of the reader to decode Micro QR Code labels MQEN00 DEFAULT Micro QR Code = Disable MQEN01 Micro QR Code = Enable Micro QR Code Length Control This feature specifies either variable length decoding or fixed length decoding for this symbology.
Page 208: Micro Qr Code Set Length 1
Enter/Exit Programming Mode Micro QR Code Set Length 1 Specifies one of the bar code lengths for Micro QR Code Length Control. Length 1 is the minimum label length if Variable Length Mode, or the first fixed length if in Fixed Length Mode. Characters can be set from 0001 to 0035 characters in increments of 0001 (pad with zeroes).
Page 209: Micro Qr Code Set Length 2
Enter/Exit Programming Mode Micro QR Code Set Length 2 This feature specifies one of the bar code lengths for Micro QR Code Length Control. Length 2 is the maximum label length if in Variable Length Mode, or the second fixed length if in Fixed Length Mode. Characters can be set from 0001 to 0035 characters in increments of 0001 (pad with zeroes).
Page 210: Ucc Composite
Enter/Exit Programming Mode UCC Composite UCC Composite Enable / Disable Enables/disables the ability of the reader to decode the stacked part of a UCC Composite label. Global AIM ID" on page 49 This feature is not effective when Global AIM IDs are enabled (see " $CCMEN00(CR) DEFAULT UCC Composite = Disable...
Page 211: Ucc Optional Composite Timer
UCC Optional Composite Timer Specifies the amount of time the system will wait for the stacked part of a UCC Composite label before transmitting the linear label without an add-on. $CCMOT00(CR) DEFAULT UCC Optional Composite Timer = Timer Disabled $CCMOT01(CR) UCC Optional Composite Timer = 100msec $CCMOT02(CR) UCC Optional Composite Timer = 200msec...
Page 212: Postal Code Selection
Postal Code Selection Enables/disables the ability of the scanner to decode labels of a specific postal symbology. • Disable All Postal Codes • Australia Post • Postnet • Japan Post • Planet • • Royal Mail • Sweden Post • •...
Page 213: Postnet Bb Control
Postal Code Selection (continued) $CPOEN06(CR) Postal Code Selection = Enable Japan Post $CPOEN07(CR) Postal Code Selection = Enable IMB $CPOEN08(CR) Postal Code Selection = Enable Sweden Post $CPOEN09(CR) Postal Code Selection = Enable Portugal Post Postnet BB Control Controls the ability of the scanner to decode B and B' fields of Postnet labels. $CPOBB00(CR) DEFAULT Postnet BB Control = Disable...
Page 214 NOTES QuickScan™ I QD24XX...
Page 215: References
Chapter 4 References This section contains explanations and examples of selected bar code features. See Configuration Using Bar Codes, starting on page 15 for the actual bar code labels used to configure the reader. RS-232 P ARAMETERS starting on page 206 RS-232 •...
Page 216: Rs-232 Parameters
References RS-232 Parameters RS-232 Baud Rate Baud rate is the number of bits of data transmitted per second. Set the reader's baud rate to match the baud rate setting of the host device. With an improper baud rate setting, data may not reach the host correctly. Stop Bits The stop bit(s) at the end of each transmitted character marks the end of transmission of one character and prepares the receiving device for the next character in the serial data stream.
Page 217: Rs-232/Usb Com Parameters
RS-232 Parameters RS-232/USB COM Parameters Intercharacter Delay This parameter specifies the intercharacter delay between the end of one character and the beginning of the next. The delay can be set within a range of zero (0) to 990 milliseconds in 10ms increments. A setting of zero specifies no delay.
Page 218 References ACK NAK Options This enables/disables the ability of the reader to support the RS-232 ACK/NAK protocol. When configured, the reader and/or host sends an “ACK” when it receives data properly, and sends “NAK” when the data is in error. Options are: •...
Page 219 RS-232 Parameters NAK Character This setting specifies an ASCII character or hex value to be used as the NAK character. ASCII characters or any hex value from 0 to 0xFF can be selected. Setting to previously defined characters such as XON, XOFF, or host commands conflicts with Data Bits normal operation of these characters.
Page 220 References ACK NAK Timeout Value This option specifies the amount of time the reader waits for an ACK character from the host following label transmission. The selectable timeout range is 200 milliseconds to 15,000ms (15 seconds) in 200ms increments. A selection of 0 disables the timeout.
Page 221 RS-232 Parameters ACK NAK Retry Count This feature specifies the number of times the reader retries a label transmission due to a retry condition. The selectable range is from 1 to 254 retries. A selection of 0 disables the count, and a selection of 255 specifies unlimited retries.
Page 222 References Disable Character Specifies the value of the RS-232 host command used to disable the reader. ASCII characters or any hex value from 0 to 0xFF can be selected. Setting to previously defined characters such as XON, XOFF, or host commands conflicts with Data Bits normal operation of these characters.
Page 223 RS-232 Parameters Enable Character Specifies the value of the RS-232 host command used to enable the reader. ASCII characters or any hex value from 0 to 0xFF can be selected. Setting to previously defined characters such as XON, XOFF, or host commands conflicts with Data Bits normal operation of these characters.
Page 224: Keyboard Interface
References Keyboard Interface Wedge Quiet Interval Specifies the amount of time the reader looks for keyboard activity before it breaks the keyboard connection in order to transmit data to host. The range is from 0 to 990ms in 10ms increments. This feature applies ONLY to the Keyboard Wedge interface.
Page 225: Intercharacter Delay
Keyboard Interface Intercharacter Delay This parameter specifies the intercharacter delay between the end of one character and the beginning of the next. The delay can be set within a range of zero (0) to 990 milliseconds in 10ms increments. A setting of zero specifies no delay.
Page 226: Intercode Delay
References Intercode Delay Specifies the delay between labels transmitted to the host for this interface. The selectable range for this feature is from 0 to 99 seconds. Follow these instructions to set this feature: 1. Determine the desired setting. 2. Pad the number with leading zeroes to yield two digits. For example: 0 = 00, 5 = 05, 20 = 20, etc 3.
Page 227: Symbologies
Symbologies Symbologies Set Length Length Control allows you to select either variable length decoding or fixed length decoding for the specified symbology. Variable Length: For variable length decoding, a minimum and maximum length may be set. Fixed Length: For fixed length decoding, two different lengths may be set. Set Length 1 This feature specifies one of the bar code lengths for Length Control.
Page 228: Data Editing
ID code will be transmitted before the scanned bar code data. 00 - 20 Characters (ASCII) Additional advanced editing is available. See the Advanced formatting features in the Datalogic page 2 Aladdin configuration software, or contact Technical Support (as described on ) for more information.
Page 229: Global Prefix/Suffix
Data Editing Please Keep In Mind... • Modifying a message string is not a mandatory requirement. Data editing is a sophisticated feature allowing highly customizable output for advanced users. Factory default settings for data editing is typically set to NONE. •...
Page 230: Global Aim Id
References Global AIM ID This feature enables/disables addition of AIM IDs for all symbology types. AIM label identifiers (as opposed to custom characters you select yourself as with label identifiers) can be included with scanned bar code data. AIM label identifiers consist of three characters as follows: •...
Page 231: Label Id
Data Editing Label ID A Label ID is a customizable code of up to three ASCII characters (each can be one of hex 0x01-0xFF), used to identify a bar code (symbology) type. It can be appended previous to or following the transmitted bar code data depending upon how this option is enabled.
Page 232 References USA Label ID set EU Label ID set Symbology Default Default Default Default Character ASCII Character ASCII DATABAR 14 523400 750000 DATABAR 14 COMPOSITE 523400 523400 DATABAR EXPANDED 525800 740000 DATABAR EXPANDED COMPOSITE 525800 525800 DATABAR LIMITED 524C00 760000 DATABAR LIMITED COMPOSITE 524C00 524C00...
Page 233 Data Editing USA Label ID set EU Label ID set Symbology Default Default Default Default Character ASCII Character ASCII MATRIX 2OF5 MAXICODE 4D4300 780000 MICRO QR 245100 245100 MICRO PDF 6D5000 380000 400000 5A0000 PDF417 500000 720000 PLESSEY 610000 610000 POSTAL AUSTRALIAN 244B00 244B00...
Page 234 References Label ID: Set Individually Per Symbology To configure a Label ID individually for a single symbology: 1. Go to page 53 and scan the ENTER/EXIT bar code. 2. Select Label ID position as either BEFORE (Enable as Prefix) or AFTER (Enable as suffix) by scanning the appropriate bar code in the section "Label ID Control"...
Page 235 Data Editing Table 36 . Label ID Examples STEP ACTION EXAMPLES Scan the ENTER/EXIT bar code (Scanner enters Programming Mode) Determine placement of the Label ID characters BEFORE or AFTER with regard to scanned Enable as Prefix Enable as Suffix Enable as Prefix Enable as Suffix data using...
Page 236: Character Conversion
References Character Conversion Character conversion is an eight byte configuration item. The eight bytes are 4 character pairs represented in hexadecimal ASCII values. The first character in the pair is the character that will be converted. The second character in the pair is the character to convert to. If the character to convert in a pair is FF, then no conversion is done.
Page 237: Reading Parameters
Reading Parameters Reading Parameters Good Read LED Duration This feature specifies the amount of time that the Good Read LED remains on following a good read. The good read LED on time can be set within a range of 10 milliseconds to 2,550 milliseconds (0.001 to 2.55 seconds) in 100ms increments.
Page 238: Scanning Features
References Scanning Features Scan Mode This mode is associated with typical handheld reader operation. Selects the scan operating mode for the reader. The following selections are valid for all models: When the trigger is pulled, scanning is activated until one of the following occurs: Trigger Single: Scanning Active Time has elapsed...
Page 239: Stand Mode Off Time
Scanning Features Stand Mode Off Time This feature specifies the amount of time reader illumination stays off after pulling the trigger when in Stand Mode. The configurable range is 01 to 32 by 01 in increments of 500ms (500ms to 16 seconds). Follow these instructions to set this feature: 1.
Page 240: Scanning Active Time
References Scanning Active Time This setting specifies the amount of time that the reader stays in scan ON state once the state is entered. The range for this setting is from 1 to 255 seconds in 1-second increments. Follow these instructions to set this feature: 1.
Page 241: Aiming Duration Time
Scanning Features Aiming Duration Time Specifies the frame of time the aiming pointer remains on after decoding a label, when in trigger single mode. The range for this setting is from 1 to 255 seconds in 1-second increments. Follow these instructions to set this feature: 1.
Page 242: Flash On Time
References Flash On Time This feature specifies the ON time for the indicator LED while in Flash Mode. The selectable range is 100 to 9,900 milliseconds (0.1 to 9.9 seconds), in 100 millisecond increments. Follow these instructions to set this feature. 1.
Page 243: Flash Off Time
Scanning Features Flash Off Time This feature specifies the OFF time for the indicator LED while in Flash Mode. The selectable range is 100 to 9,900 milliseconds (0.1 to 9.9 seconds), in 100 millisecond increments. Follow these instructions to set this feature. 1.
Page 244: Multiple Labels Ordering By Code Symbology
References Multiple Labels Ordering by Code Symbology This feature Specifies the transmission ordering by symbology type, when Multiple Labels per Frame is enabled.Up to six symbologies can be selected. Zeroes must be added to pad the string to 12 characters if not using all six symbologies.
Page 245 Scanning Features Table 44 . Symbology Hex Values Value Symbology ID Value Symbology ID Don't care GTIN5 UPC-A GTIN8 UPC-E S2OF5 EAN8 PDF417 EAN13 CODE11 UPC2 IATA UPC5 MICRO_PDF C128_ADDON GS1 DataBar_LIM_ID EAN128 GS1 DataBar_LIM_COMP C128_PROGRAMMING_LABEL GS1 DataBar_Omnidirectional_COMP CODE128 GS1 DataBar_EXP_COMP FNC3_C128_LABEL GENERIC_DATA DATA MATRIX...
Page 246 References QuickScan™ I QD24XX...
Page 247: Technical Specifications
Appendix A Technical Specifications Table contains Physical and Performance Characteristics, User Environment and Regulatory information. Table 45. Technical Specifications Item Description QD24XX Physical Characteristics Color Black & White Height 6.4"/163 mm Dimensions Length 3.6"/91 mm Width 1.6"/41 mm Weight (without cable) Approximately 5.1 ounces/145 g Electrical Characteristics Input Voltage: 4.5 - 14.0VDC...
Page 248 Technical Specifications Item Description Depth of Field (Typical) Symbology QD24XX 5mil: 0.2" - 5.9" (0.5 - 15cm) Code 39 10mil: 0" - 8.7" (0 - 22cm) 20mil: up to 16" (40cm) 7.5mil: 0" - 5.9" (0 - 15cm) 13mil: 0.2" - 13.8" (0.5 - 35cm) 6.6mil: 0.39"...
Page 249 Technical Specifications Item Description 1D Bar Codes UPC/EAN/JAN (A, E, 13, 8); UPC/EAN/JAN (including P2 /P5); UPC/EAN/JAN (including; ISBN /Bookland & ISSN); UPC/EAN Coupons; Code 39 (including full ASCII); Code 39 Trioptic; Code39 CIP (French Pharmaceutical); LOGMARS (Code 39 w/ standard check digit enabled);...
Page 250 Technical Specifications Item Description User Environment Operating Tempera- 0° to 50° C (32° to 122° F) ture Storage Temperature -40° to 70 °C (-40° to 158° F) Humidity Operating: 0% to 95% relative humidity, non-condensing Drop Specifications Scanner withstands 18 drops from 1.5 meters (5.0 feet) to concrete Ambient Light Up to 86,000 Lux Immunity...
Page 251: Imager Labeling
Technical Specifications Imager Labeling Sample labels are shown here to illustrate their location only. Please view the labels on your prod- uct for actual details, as they may vary from those depicted. Scanner Regulatory Label The QuickScan™ Handheld Reader is not user-serviceable. Opening the case of the unit can cause internal damage and will void the warranty.
Page 252: Standard Cable Pinouts
Technical Specifications Standard Cable Pinouts Figure 10 and Table provide standard pinout information for the interface cable. Figure 10. Standard Cable Pinouts: Handheld Bottom of Scanner Cable Strain Relief Pin 10 To Host Pin 1 Cable Cable Clip (Latch) Interface Cable Port The signal descriptions in Table apply to the connector on the reader and are for reference on- Table 46.
Page 253: Led And Beeper Indications
Technical Specifications LED and Beeper Indications The reader’s beeper sounds and its LED illuminates to indicate various functions or errors on the reader. An optional “Green Spot” also performs useful functions. The tables below list these in- dications. One exception to the behaviors listed in the tables is that the reader’s functions are pro- grammable, and may or may not be turned on.
Page 254: Error Codes
Technical Specifications Table 48 . Programming Mode Indications Programming Mode - The following indications ONLY occur when the reader is in Programming Mode. Label Program- A valid programming label has Reader sounds four low fre- LED blinks continuously ming Mode Entry been scanned.
Page 255: Standard Defaults
Appendix B Standard Defaults The most common configuration settings are listed in the “Default” column of the table below. Page references are also provided for feature descriptions and programming bar codes for each parameter. A column has also been provided for recording of your preferred default settings for these same configurable features.
Page 256 Standard Defaults Page Parameter Default Your Setting Number KEYBOARD WEDGE Country Mode U.S. Keyboard Send Control Characters Wedge Quiet Interval 100 ms Intercode Delay No Delay Caps Lock State Caps Lock OFF NumLock Key Numlock Unchanged USB Keyboard Speed 1 ms USB Keyboard Numeric Keypad Standard Keys USB-OEM...
Page 257 Standard Defaults Page Parameter Default Your Setting Number Good Read LED Duration 300 ms Scanning Features Scan Mode Trigger Single Stand Mode Indication Disable Stand Operation Switch to Stand Mode Pick Mode Disable Stand Mode Sensitivity Medium Stand Mode Illumination Off Time 2 Seconds Scanning Active Time 5 Seconds...
Page 258 Standard Defaults Page Parameter Default Your Setting Number Expand UPC-A to EAN-13 Don’t Expand UPC-A Number System Character Transmission Transmit 2D Component Not UPC-A 2D Component Required UPC-E UPC-E Enable/Disable Enable UPC-E Check Character Transmission Send 2D Component Not UPC-E 2D Component Required Expand UPC-E to EAN-13 Don’t Expand...
Page 259 Standard Defaults Page Parameter Default Your Setting Number Add-Ons Optional Add-ons Disable P2, P5 and P8 Optional Add-On Timer 70 ms Optional GS1-128 Add-On Timer Disable Code 39 Code 39 Enable/Disable Enable Code 39 Check Character Calculation Disable Code 39 Check Character Transmission Send Code 39 Start/Stop Character Transmission Don’t Transmit...
Page 260 Standard Defaults Page Parameter Default Your Setting Number Code 128 Function Character Transmission Don’t Send Small Quiet Zones on Code 128 Quiet Zones two sides Code 128 Length Control Variable Code 128 Set Length 1 Code 128 Set Length 2 GS1-128 Transmit in Code 128 GS1-128 Enable...
Page 261 Standard Defaults Page Parameter Default Your Setting Number Standard 2 of 5 Set Length 1 Standard 2 of 5 Set Length 2 Industrial 2 of 5 Industrial 2 of 5 Enable/Disable Disable Industrial 2 of 5 Check Character Calculation Disable Industrial 2 of 5 Check Character Transmission Enable Industrial 2 of 5 Length Control...
Page 262 Standard Defaults Page Parameter Default Your Setting Number Code 11 Enable/Disable Disable Code 11 Check Character Calculation Check C and K Code 11 Check Character Transmission Send Code 11 Length Control Variable Code 11 Set Length 1 Code 11 Set Length 2 GS1 DataBar™...
Page 263 Standard Defaults Page Parameter Default Your Setting Number Small Quiet Zones on Code 93 Quiet Zones two sides MSI Enable/Disable Disable MSI Check Character Calculation Enable Mod10 MSI Check Character Transmission Enable MSI Length Control Variable MSI Set Length 1 MSI Set Length 2 Plessey Plessey Enable/Disable...
Page 264 Standard Defaults Page Parameter Default Your Setting Number Data Matrix Length Control Variable Data Matrix Set Length 1 3,116 Data Matrix Set Length 2 Maxicode Enable / Disable Disable Maxicode Primary Message Transmission Disable Maxicode Length Control Variable Maxicode Set Length 1 0145 Maxicode Set Length 2 PDF417 Enable / Disable...
Page 265: Sample Bar Codes
Appendix C Sample Bar Codes The sample bar codes in this appendix are typical representations for their symbology types. 1D Bar Codes UPC-A EAN-13 978033029095 Code 39 Code 128 Code 128 Interleaved 2 of 5 Product Reference Guide...
Page 266 Sample Bar Codes Sample Bar Codes (continued) Code 32 Codabar 13579 Code 93 Code 11 123456789 QuickScan™ I QD24XX...
Page 267 Sample Bar Codes GS1 DataBar™ (RSS) GS1 DataBar™ GS1 DataBar™ variants must be enabled to read the bar codes below (see Omnidirectional on page 151 GS1 DataBar™ Expanded Stacked 10293847560192837465019283746029478450366523 GS1 DataBar™ Expanded 1234890hjio9900mnb GS1 DataBar™ Limited 08672345650916 GS1 DataBar™-14 GS1 DataBar™...
Page 268 Sample Bar Codes 2D Bar Codes Aztec Datamatrix China Sensible Code MaxiCode PDF 417 Micro PDF 417 ABCabc BV17453 QR Code Micro QR Code 123456 35900G9 UCC Composite QuickScan™ I QD24XX...
Page 269: Keypad
Appendix D Keypad Use the bar codes in this appendix to enter numbers as you would select digits/characters from a keypad. Product Reference Guide...
Page 270 Keypad QuickScan™ I QD24XX...
Page 271: Scancode Tables
Appendix E Scancode Tables Control Character Emulation Control character emulation selects from different scancode tables as listed in this appendix. Each of the control character sets below are detailed by interface type in the tables. These apply to Wedge and USB Keyboard platforms. Control Character 00 : Characters from 00 to 0x1F are sent as control character Ctrl+Keys, special keys are located from 0x80 to 0xA1.
Page 272: Interface Type Pc At Ps/2, Usb-Keyboard Or Usb-Keyboard For Apple
Interface Type PC AT PS/2, USB-Keyboard or USB-Keyboard for APPLE Table 50. Scancode Set When Control Character is 00 or 01 NULL C(S)+A C(S)+B C(S)+C C(S)+D C(S)+E C(S)+F C(S)+G C(S)+J C(S)+K C(S)+L Enter C(S)+N C(S)+O C(S)+P C(S)+Q C(S)+R C(S)+S C(S)+T C(S)+U C(S)+V C(S)+W...
Page 273 Interface Type PC AT PS/2, USB-Keyboard or USB-Keyboard for APPLE (continued) Table 51. Scancode Set When Control Character is 02 Enter Al ↑ Cl ↓ Cl ↑ Cr ↓ Cr ↑  Ar↓ Ar↑ Al↓ S+ Tab Enter Pg Up Keypd ...
Page 274: Interface Type Pc At Ps/2 Alt Mode Or Usb-Keyboard Alt Mode
Interface type PC AT PS/2 Alt Mode or USB-Keyboard Alt Mode Table 52. Scancode Set When Control Character is 00 or 01 Alt+000 Alt+001 Alt+002 Alt+003 Alt+004 Alt+005 Alt+006 Alt+007 Alt+010 Alt+011 Alt+012 Alt+014 Alt+015 Enter Alt+016 Alt+017 Alt+018 Alt+019 Alt+020 Alt+021 Alt+022...
Page 275 Interface type PC AT PS/2 Alt Mode or USB-Keyboard Alt Mode (continued) Table 53. Scancode Set When Control Character is 02 Enter Al ↑ Cl ↓ Cl ↑ Cr ↓ Cr ↑  Ar↓ Ar↑ Al↓ S+ Tab Enter Pg Up Keypd ...
Page 276: Digital Interface
Digital Interface Table 54. Scancode Set When Control Character is 00 or 01 NULL C(S)+A C(S)+B C(S)+C C(S)+E C(S)+F C(S)+G C(S)+J C(S)+K C(S)+L Enter C(S)+N C(S)+O C(S)+P C(S)+Q C(S)+R C(S)+S C(S)+T C(S)+U C(S)+V C(S)+W C(S)+X C(S)+Y C(S)+Z C(S)+\ C(S)+^ C(S)+_ Space “...
Page 277: Ibm31Xx 102-Key
IBM31xx 102-key Table 56. Scancode Set When Control Character is 00 or 01 NULL C(S)+A C(S)+B C(S)+C C(S)+E C(S)+F C(S)+G C(S)+J C(S)+K C(S)+L Enter C(S)+N C(S)+O C(S)+P C(S)+Q C(S)+R C(S)+S C(S)+T C(S)+U C(S)+V C(S)+W C(S)+X C(S)+Y C(S)+Z C(S)+\ C(S)+^ C(S)+_ Space “...
Page 278: Ibm Xt
IBM XT Table 58. Scancode Set When Control Character is 00 or 01 NULL C(S)+A C(S)+B C(S)+C C(S)+E C(S)+F C(S)+G C(S)+H C(S)+J C(S)+K C(S)+L Enter C(S)+N C(S)+O C(S)+P C(S)+Q C(S)+R C(S)+S C(S)+T C(S)+U C(S)+V C(S)+W C(S)+X C(S)+Y C(S)+Z C(S)+\ C(S)+^ C(S)+_ Space “...
Page 279: Microsoft Windows Codepage 1252
Microsoft Windows Codepage 1252 Windows-1252 is a character encoding of the Latin alphabet, used by default in the legacy components of Microsoft Windows in English and some other Western languages. Product Reference Guide...
Page 280 NOTES QuickScan™ I QD24XX...
Page 281 ASCII Chart ASCII ASCII ASCII ASCII Char. Char. Char. Char. ‘ “ & ’ < >...
Page 282 ©2013 Datalogic ADC, Inc. All rights reserved.  Datalogic and the Datalogic logo are registered trademarks of Datalogic S.p.A. in many countries, including the U.S.A. and the E.U. Datalogic ADC, Inc. 959 Terry Street Eugene |OR 97402 Telephone: (1) 541-683-5700...
