ENGINE / COOLING SYSTEM

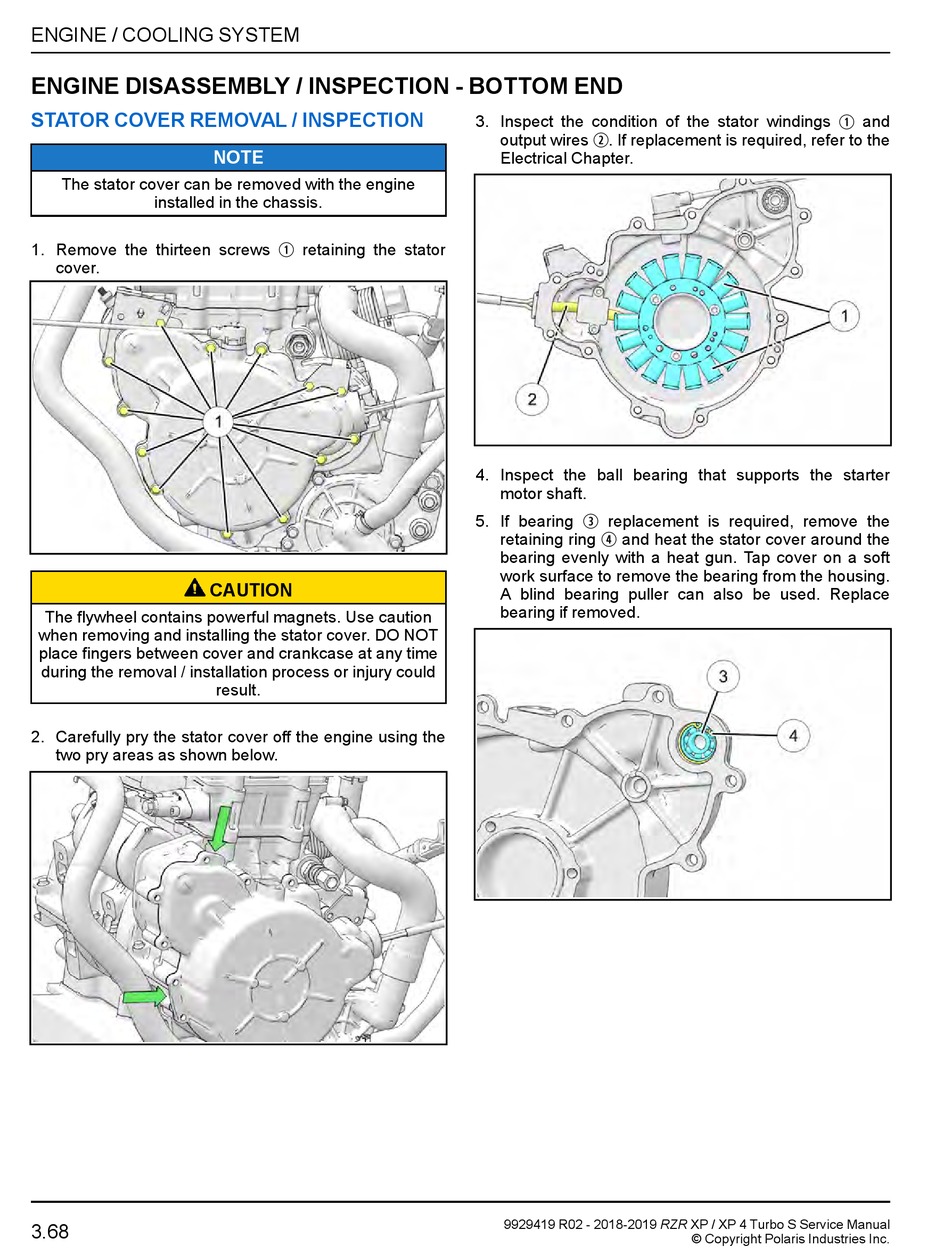

ENGINE DISASSEMBLY / INSPECTION - BOTTOM END

STATOR COVER REMOVAL / INSPECTION

The stator cover can be removed with the engine
installed in the chassis.
1. Remove the thirteen screws
cover.
CAUTION
The flywheel contains powerful magnets. Use caution
when removing and installing the stator cover. DO NOT
place fingers between cover and crankcase at any time
during the removal / installation process or injury could
2. Carefully pry the stator cover off the engine using the
two pry areas as shown below.
3.68
NOTE
q
retaining the stator
result.
3. Inspect the condition of the stator windings
w
output wires . If replacement is required, refer to the
Electrical Chapter.
4. Inspect the ball bearing that supports the starter
motor shaft.
e
5. If bearing replacement is required, remove the
r
retaining ring and heat the stator cover around the
bearing evenly with a heat gun. Tap cover on a soft
work surface to remove the bearing from the housing.
A blind bearing puller can also be used. Replace
bearing if removed.
9929419 R02 - 2018-2019 RZR XP / XP 4 Turbo S Service Manual
q
and
