Waters ACQUITY UPLC I-Class IVD System Manual page 79

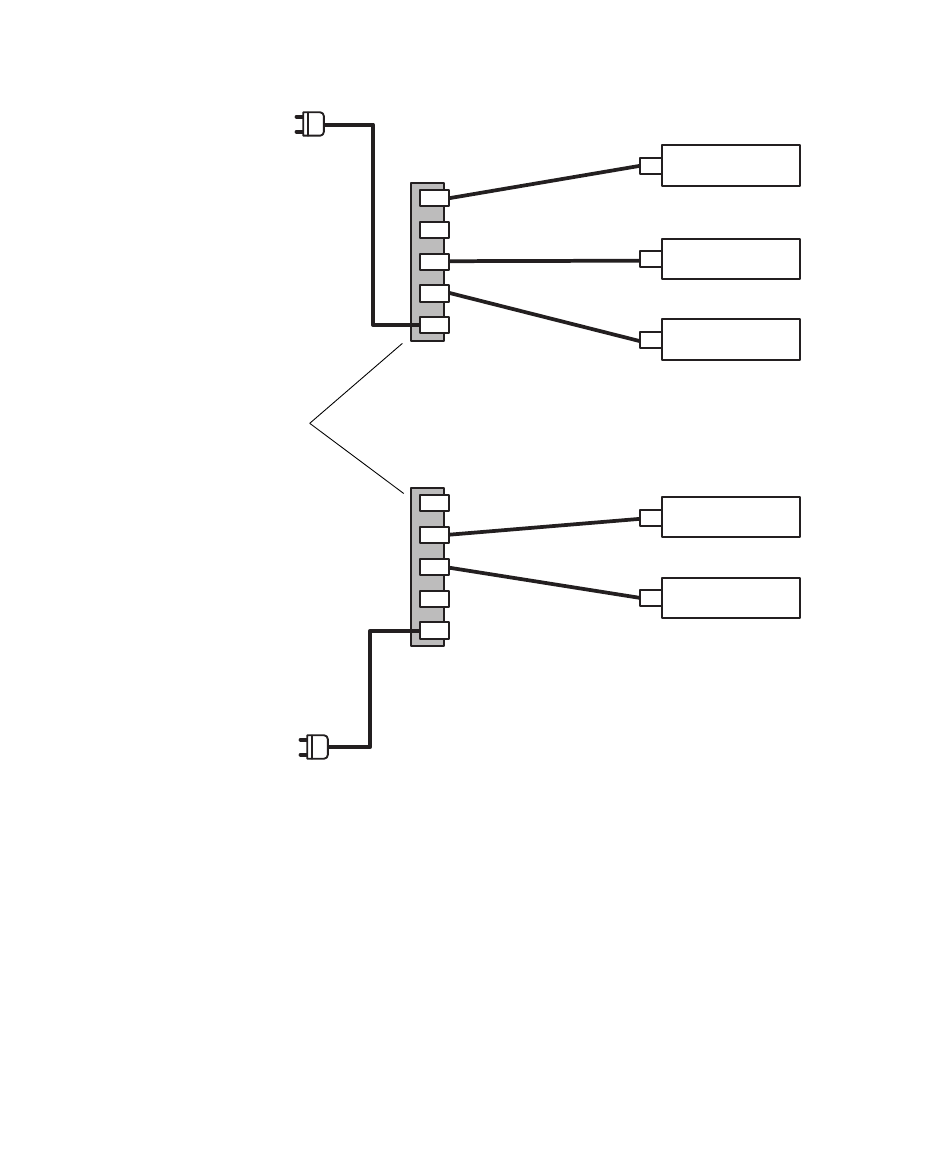

FlexCart power connections (optional):
To circuit A
AC line
FlexCart
power strips
To circuit B
AC line
Connecting to the electricity source
All cord lengths are 1 meter long except the LCD/
monitor cord, which is 2 meters long.
July 7, 2014, 715003736IVD Rev. C
Network switch
(if needed)
Sample manager
Binary solvent
manager
LCD/monitor
Computer
workstation
TP02578
79
